钨马铰削案例

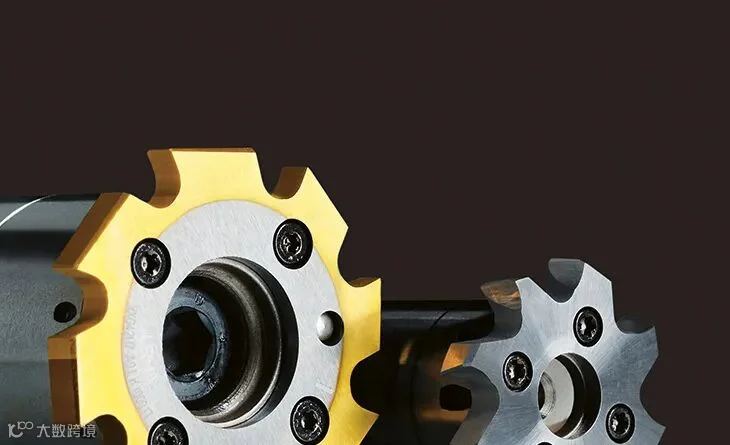

RX系列是钨马最主要的孔加工利器之一，它总是能给你带来惊喜。

Highest quality for your application. 💪

An interesting example of reaming with RX large.

The component is a steering knuckle used for a walking excavator 🚜

Material: 1.1118 / G24Mn6+QT1

Machine: DMG 100 U / HSK A-100

Bore 1: 50H7 x 46mm (2x)

Bore 2: 60H7 x 61mm

Cutting edge: RXL50H7-A06 F0512R1 / RXL60H7-A06 F0512R1

Vc = 80 m/min

Fz = 0.12 mm

Ap = 0.08 mm

Result:

Concentricity: max. 0.050 mm

Surface: Actual = Ra 1.2 Required = Ra 3.2

        了解详情，请联系您身边的钨马精密孔加工专家。
