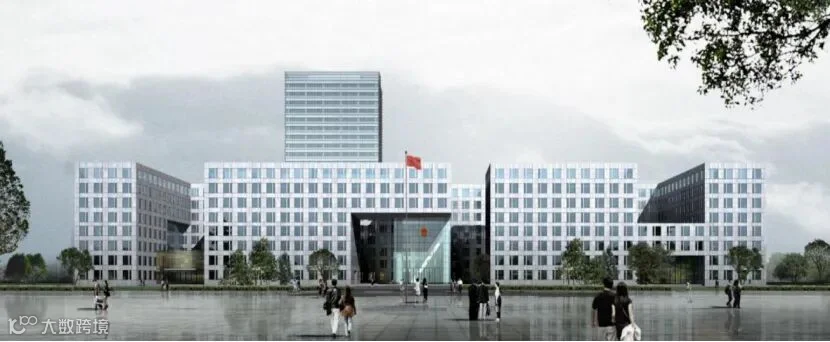

在碳中和的时代背景下，中哲新能源积极助力绿色能源发展，圆满完成宁波市行政服务中心“零碳小园”、“光伏幕墙”及“光储直柔”三大零碳改造示范项目。
“零碳小园”
Zero Carbon Garden

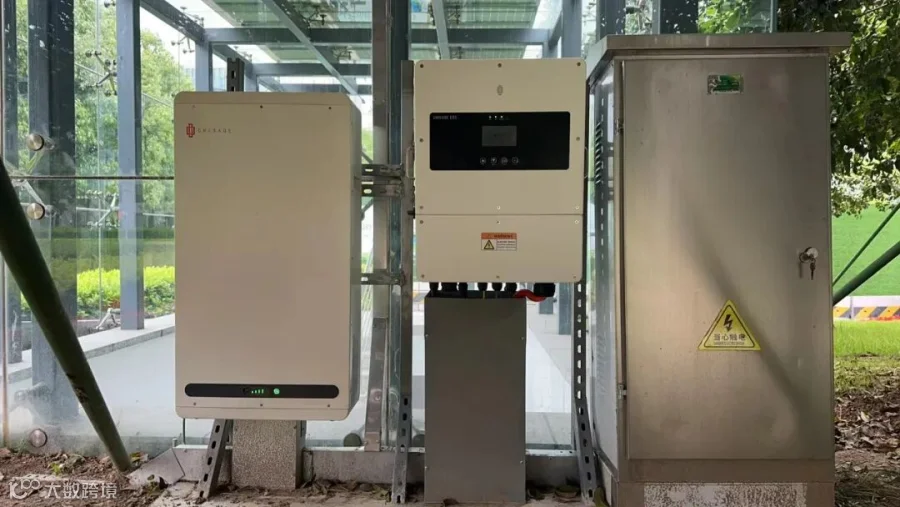

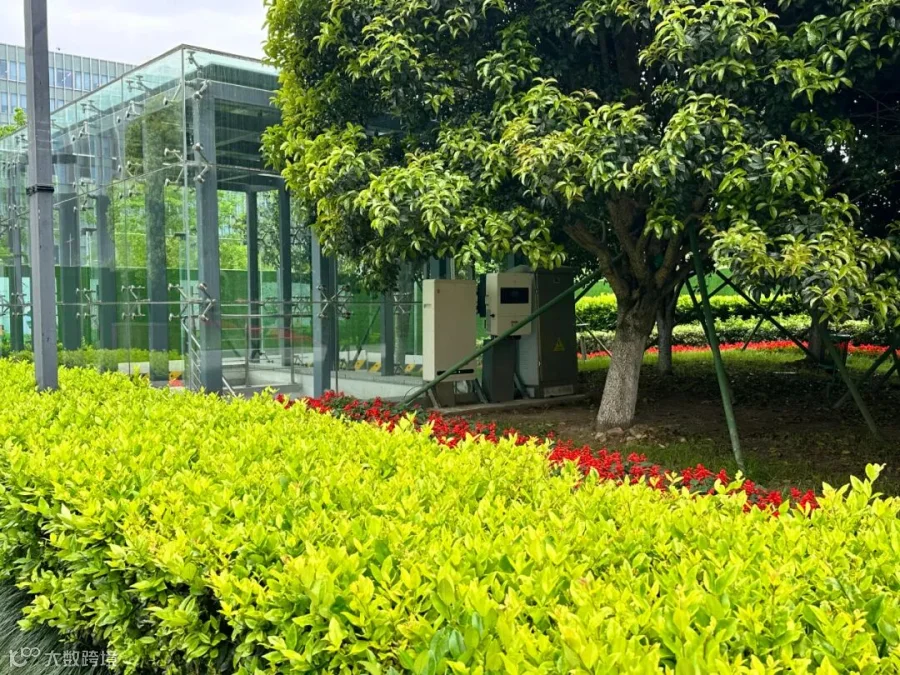

此项目位于宁波市人民政府科学技术局东侧，采用中哲新能源自主研发生产的CE48100-W锂电池Pack及Jup-5G1-LE低压单相储能逆变器，配合单晶硅430Wp轻质组件，构建了一套环保、高效与智能于一体的绿色能源解决方案，实现自发自用的目的。
The project is located on the east side of the Ningbo Municipal People's Government Science and Technology Bureau. It utilizes the independently developed CE48100-W lithium battery pack and Jup-5G1-LE low-voltage single-phase hybrid inverter by CHISAGE ESS, along with lightweight monocrystalline 430Wp solar panels. This combination creates an eco-friendly, efficient, and intelligent green energy solution that achieves the goal of self-generation and self-consumption.
在白天光照充足时，光伏优先为数据大屏及其他负载供电，多余电力存入电池，电池充满后多余能量可选择上网。当光照不足或夜晚时，电池优先供电给数据大屏及其他负载，特殊极端情况下若电力仍不足，则由电网适当补充。
During the daytime when there is ample sunlight, the photovoltaic system prioritizes supplying power to the data display and other loads, with any excess electricity stored in the battery. Once the battery is fully charged, the surplus energy can be fed back to the grid. When sunlight is insufficient or during nighttime, the battery primarily supplies power to the data display and other loads. In extreme situations where the power is still insufficient, the grid provides appropriate supplementary power.
“光伏幕墙”
Photovoltaic Curtain Wall

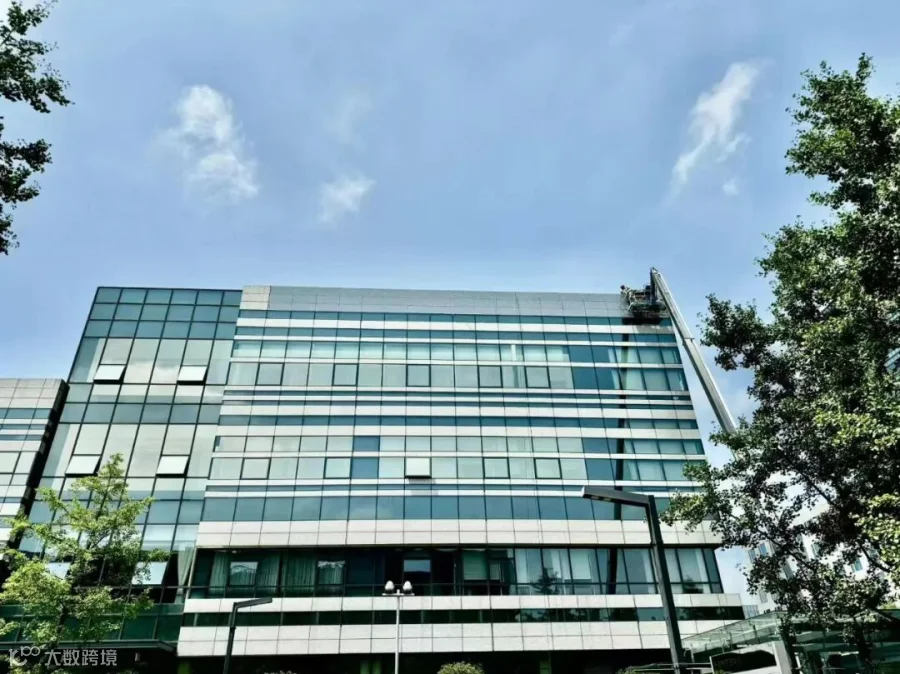

“光伏幕墙”项目位于行政服务中心4号楼，实际安装伏板面积为46.71m2 ，装机容量为3.72kWp，有效提升了建筑自身的发电能力。光伏幕墙的设计不仅美观大方，也为行政服务中心的日常运营提供了绿色动力。
The "photovoltaic curtain wall" project is located at Building 4 of the Administrative Service Center, with an actual installation area of 46.71m² and an installed capacity of 3.72kWp. This effectively enhances the building's own power generation capacity. The design of the photovoltaic curtain wall is not only aesthetically pleasing but also provides green energy for the daily operations of the Administrative Service Center.
“光储直柔”
Photovoltaic Storage Direct Flexible

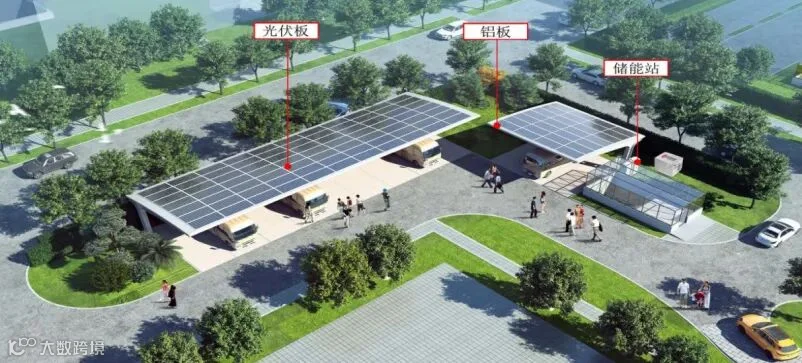

“光储直柔”项目位于4号楼东南侧，东侧为9个露天停车位，南侧为3个露天停车位，与地下室楼梯通道相邻。为有效利用空间并提高效率，整体施工方案设计采用单柱，布置在车尾，9米一间隔，光伏顶棚采用悬挑的方式。这样既可以在停车位内施工，又能最大程度保护原有绿化。
The "PV-Storage-DC Flex ”Project is located on the southeast side of Building 4, with nine outdoor parking spaces to the east and three outdoor parking spaces to the south, adjacent to the basement staircase passage. To effectively utilize space and improve efficiency, the overall construction plan features a single-column design placed at the rear of the parking spaces, with a 9-meter interval. The photovoltaic canopy uses a cantilevered structure. This allows for construction within the parking spaces while maximizing the protection of the existing greenery.

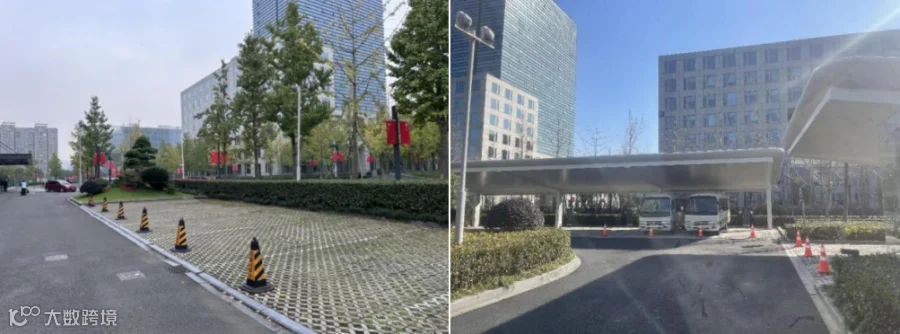

改造前/后 Before/After

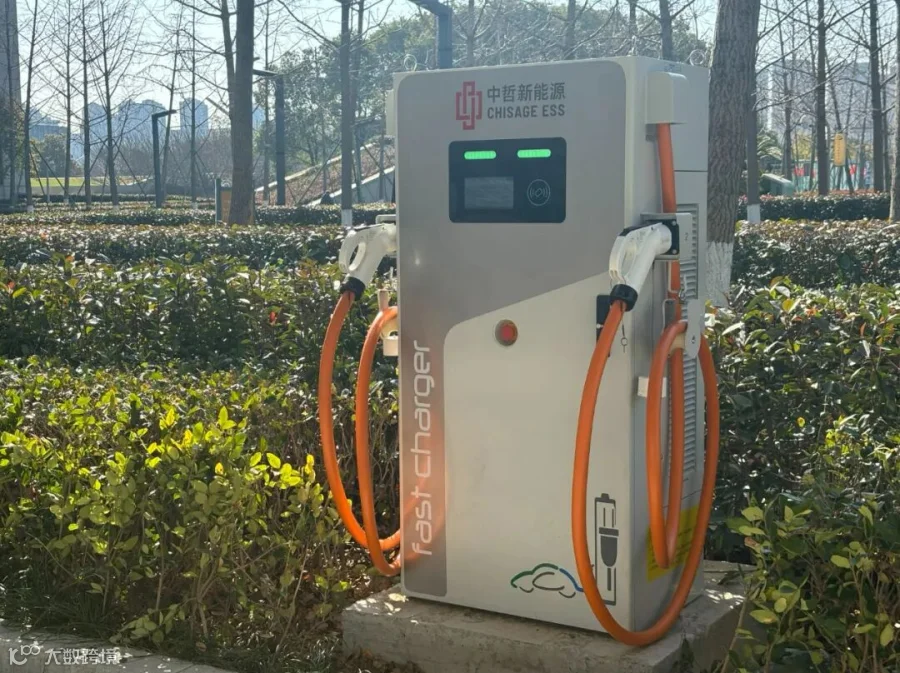

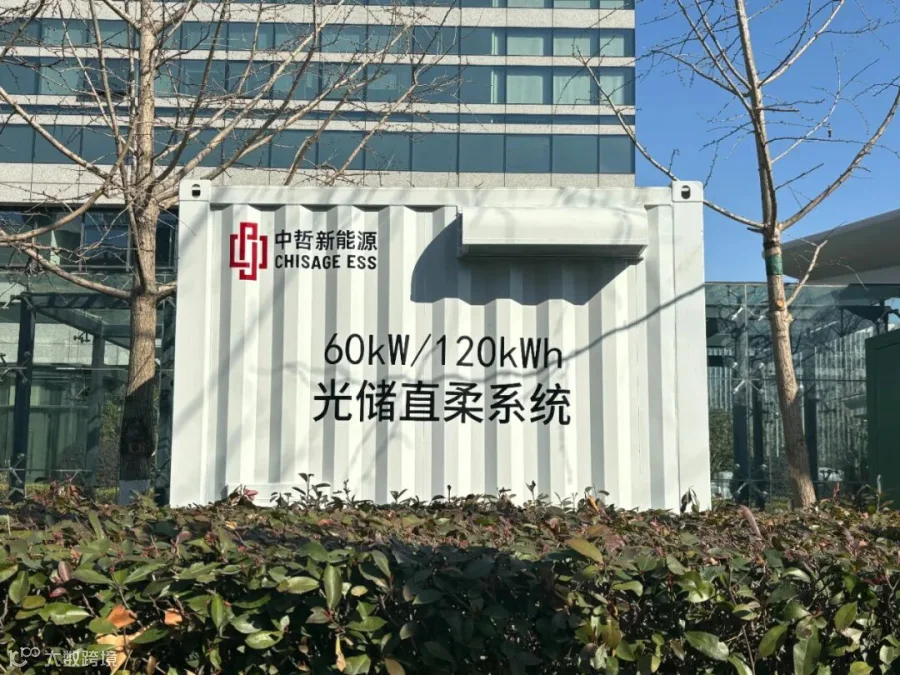

此次改造选用中哲新能源60kW光储一体机、60kW DC/DC充电桩、120kWh集装箱式储能系统。通过各环节的合理配置、科学设计，为用户提供高效、环保、静音、低耗的一体化储能、充电服务。
The renovation features CHISAGE ESS’s 60kW photovoltaic storage integrated machine, 60kW DC/DC charging pile, and 120kWh Container ESS. Through the optimized configuration and scientific design of each component, it offers users highly efficient, eco-friendly, quiet, and low-consumption integrated energy storage and charging services.
-
智能风冷超静音设计，风机转速随负荷及温度变化而相应调节。
Intelligent air-cooled ultra-quiet design, fan speed is adjusted accordingly with load and temperature changes.
冷热风道隔离的散热设计，避免控制电路在高温下工作。
The heat dissipation design of hot and cold air duct isolation avoids the control circuit from working under high temperature.
︱高效便利 Efficient and Convenient︱
︱一机多能 Multi-function Machine︱
按需增容功能：系统可接入锂电池系统，将电池功率输出与市电同时输出，通过系统的动态扩容解决负荷瞬时超容问题。
On-demand capacity increase function: the system can be connected to the lithium battery system, the battery power output and utility power output at the same time, through the dynamic expansion of the system to solve the load instantaneous overcapacity.
削峰填谷：通过系统实现峰谷电价差的获利，帮助用户降低用电成本。
Peak shaving and valley filling: the system realizes the profit of the difference between peak and valley electricity price, helping users to reduce the cost of electricity consumption.
直流快充、超充：柔性充电提高充电功率利用率，满足电动车充电功率需求。
DC fast charging, super charging: flexible charging improves the utilization rate of charging power and meets the charging power demand of electric vehicles.
车辆电池检测功能：充电过程中实时检测电池状态信息，深度分析电池健康状态，提供安全可控的充电管理。
Vehicle battery detection function: real-time detection of battery status information during the charging process, in-depth analysis of the battery health status, to provide safe and controllable charging management.
宁波市行政服务中心光储示范项目的成功落地，为实现城市低碳发展提供了可复制、可推广的模式。中哲新能源也将继续秉持务实、创新的态度，积极助力绿色转型，与各方携手共创可持续的未来。
The successful landing of the photovoltaic storage demonstration project in Ningbo Administrative Service Center has provided a replicable and scalable model for the realization of urban low-carbon development, and CHISAGE ESS will continue to actively contribute to the green transformation and work with all parties to create a sustainable future.
