摩铎利产品应用 - 儿童游乐设施 Motovario Product Application - Kiddie rides
>

摩铎利产品应用 - 儿童游乐设施 Motovario Product Application - Kiddie rides

摩铎利产品应用 - 儿童游乐设施 Motovario Product Application - Kiddie rides Motovario摩铎利
2020-06-19
0
导读：儿童游乐设施Kiddie rides应用描述:Application description:大多数使用摩铎
儿童游乐设施
Kiddie rides

应用描述:
Application description:

大多数使用摩铎利减速机的产业细分领域，主要着眼于机械设备的产量；动力传输构件不仅用于工业领域，也被用于娱乐产业，如“旋转木马”和“跳楼机”。
在这些应用中，机电系统用于保障旋转木马的旋转。

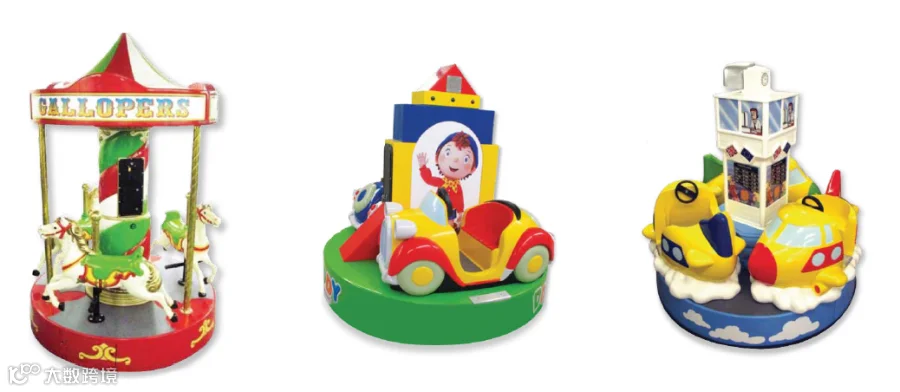

在第一种类型，旋转木马，它以一个可变的速度进行旋转，这通常是由一个操作员控制的，这个机器可以设置不同的类型以及各种各样的音效；这个操作系统是由一个涡轮传动马达带动的，输出轴连接到皮带上来带动一个滚轮系统，以保证系统的运转。

Most industrial segments where Motovario gearboxes are used, is focused on the production of machines and equipments; power transmission components are employed not only in the industry but also in the applications for the entertainment as Carousel and Twist Drop Towers.
In these applications the electromechanical system is used to guarantee the carousel rotation.
The first type of application, the carousel, does a rotation movement with variable speed and it is usually controlled by an operator.

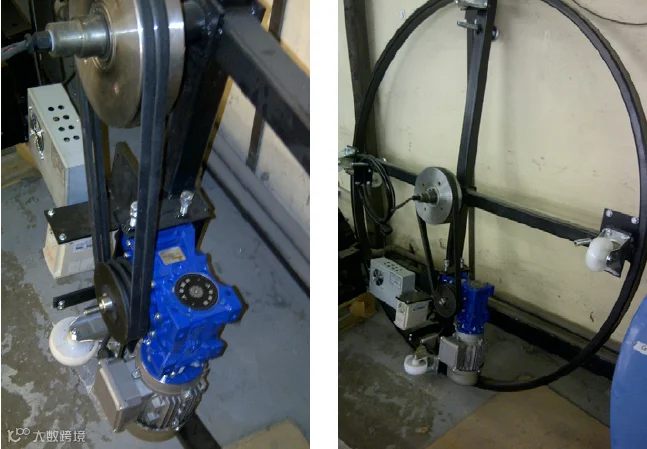

The machine could be customized with different layouts and various sound effects. The handling system is powered by a worm geared motor with the output shaft connected through a belt to a pulley system to guarantee the movement.

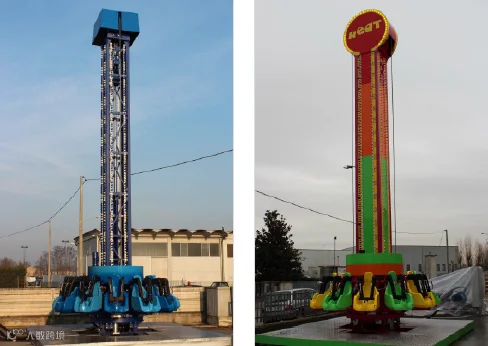

第二种装置的吸引力来自于一个塔外加小小的”刺激“ ，乘客会坐在一个合适的座椅上，设备将他们升到一个非常高的位置，然后让他们自由的下降，并且在下降的同时塔会旋转。
设备的升降是由一个油缸带动的，油缸尺寸根据设备的负荷而定；设备的旋转是由安装在设备结构中心的一个螺旋齿轮减速电动机带动滚轮沿着轨道旋转完成的,它可以允许座椅360°旋转。

The second type of attraction is a tower with the addition of a little ‘thrill’, which consists on carrying the passengers on proper seats to a great height, and then they are freely falling downward and at the same time rotating around the tower.
The lifting is done by the use of an oleodynamic cylinder, dimensioned on the machine load; the rotation is carried out by an helical geared motor installed in the center of a structure moved by wheels fitted along a rail, allowing the 360° seats rotation.


摩铎利的解决方案案例:

摩铎利的解决方案恰好符合了这些应用的需求，在操作周期内保证可靠性和高性能。
涡轮传动马达，NMRV-power系列，NMRV-063+MOTOR070-4三相电机，被应用于需要低转速、恒定速度的旋转木马的项目。
NMRV-P系列的特点是设计简洁的铝制箱体；通用托架保证了在同一数量的润滑油的情况下，使安装位置获得最大的灵活性。

Example of Motovario solution:

Motovario solutions answer exactly to the requirements of these applications, ensuring reliability and high performances during the operation cycle.
Worm geared motors, NMRV-power Series, size 063 with three phase 4poles motors size 071, are used for carousel applications, where low and constant speed is required.
NMRV-P Series is characterized by aluminum casing with square design; the universal mounting ensures the maximum flexibility in all mounting positions by using always the same quantity of oil lubricant.

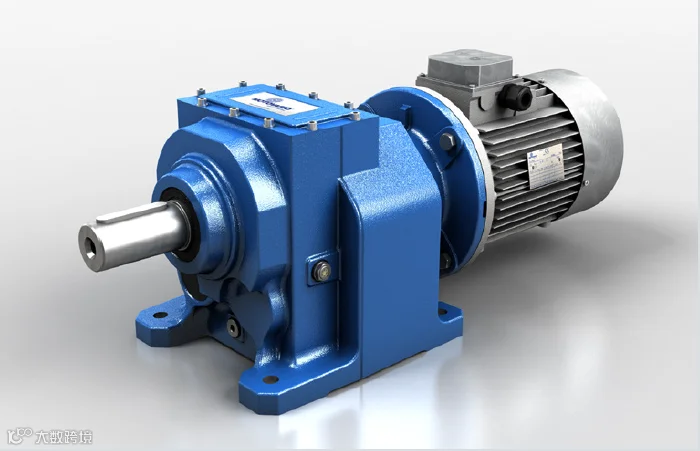

螺旋斜齿轮减速马达，H系列，尺寸050配有2个磨碎段，被应用于速度多变且高峰值扭矩的“跳楼机”项目，这些减速机的特点是使用经过热处理的坚硬的铸铁作为箱体。

Helical geared motors, H Series, size 050 with 2 reduction stages, are used for twist drop towers applications, where the movement speed is not constant and with high torque peaks. These gearboxes are characterized by cast iron casing and hardened/tempered gears.


鉴于以下技术工艺/商业优势，摩铎利替代之前的驱动器供应商，成为这些项目的新的合作伙伴：
  • 广泛的版本和尺寸
  • 产品设计
  • 高性能和效率
  • 低噪声水平
  • 产品质量和可靠性
  • 比竞争对手更低的价格
  • 快速交付
  • 恰当的技术支持

Thanks to the following technical/commercial advantages, Motovario has became the new partner for these applications, replacing the previous supplier of the drive:
  • Wide range of sizes and versions
  • Products design
  • High performances and efficiency
  • Low noise level
  • Product quality and reliability
  • Lower price than competitors
  • Fast deliveries
  • Appropriate technical support
