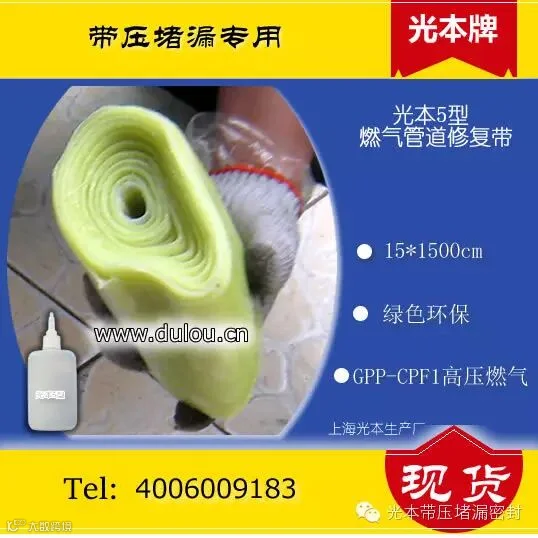

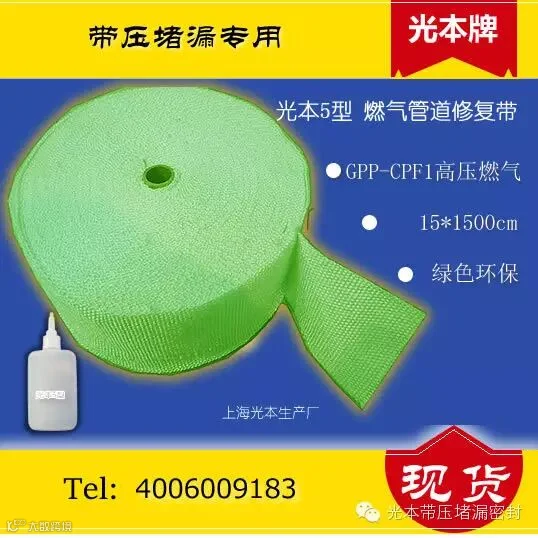

光本5型 燃气管道修复带
Guangben5: Gas pipeline repair tape
A.HP FUEL GAS INTERCONNECTION TRUNKLINE 3–4” (GPP-CPF1)
Top Layer 500µm(min.)API 5L PSL2 BN 4” (THICKNESS 4.78mm) SMLS, R=6D 15° ,Double Layer FBE Primer Layer 300µm(min.), API 5L PSL2 BN 4” (THICKNESS 4.78mm) SMLS, Three Layer Polypropylene Coating cut back 150mm
EPOXY PRIMER FOR CONDENSATE INTERCONNECTION TRUNKLINE (CPF3-CPF1-GPP)
E: C5+ CONDENSATE INTERCONNECTION TRUNKLINE 2–10”(GPP-HPS)
PP Melt Stick Coating Repair ∅ 20 mm x 300 mm
Note1: The mother line of hot elbows should be bared before fabricated and then anti-corrosion coated. All hot elbows
should be fabricated and anti-corrosion coated by vendor in factory before transported to site.
Note2: VENDOR shall consider the wall thinning rate of the hot elbow and increase the mother line’s thickness.
Note3: For diameter less than 500mm, the minimum tangent length in both side of bend shall be 500mm,
For diameter not less than 500mm, the minimum tangent length in both side of bend shall be 1000mm.
Use： CIF Umm Qasr Port, Iraq
Manufacture：Shanghai Light Industry Co., Ltd.
Telephone：008621 54303775
每卷重0.7kg
带规格：宽150mm长15m厚0.5mm
外形规格：厚70mm宽200mm长220mm
