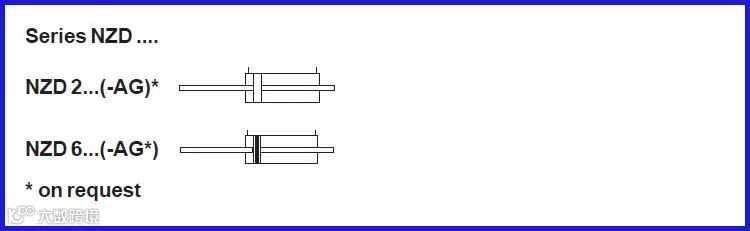

Versions :
• Option with/without
contactless position sensing
• Double acting without adjustable
end cushioning
• Option of internal or external
mounting on piston rod

Special versions:
High temperature version (+150°)
The cylinder profile has grooves in which, depending on stroke length,
one more magnetic switches can be mounted for sensing the end
positions or intermediate positions of the magnetic piston.
The delivery includes:
1 Cylinder
Magnetic switches are not included
- please order these separately.
