气动元件-执行元件-气动马达 P系列
起订量：1个
保修期：1年
德国原装进口
欢迎咨询和下单
案例：
P1V-A
Air Motors, Series P1V-A
P1V-A is a range of reversible air motors intended for heavy and
demanding applications. The motor housings are made from painted cast iron, and the components sealed to permit operation in damp and dirty
environments.
The range contains three different sizes, P1V-A160, P1V-A260 and P1V-A360, with power ratings of 1600, 2600 or 3600 Watts. The basic motors can be supplied with built-in gearboxes, either planetary, helical or worm
drive, to provide the correct speed of rotation and torque, and the correct
installation mountings.

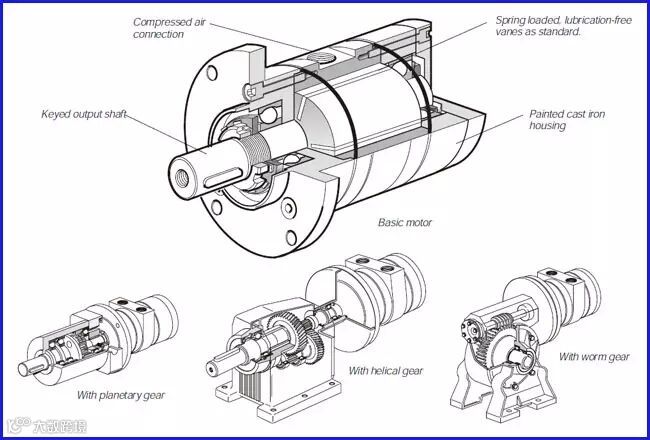

Basic motor
standard, which gives the motors very good starting and low speed
running characteristics. They are also equipped with vanes for intermittent lube-free operation as standard. 100% struction of the motors makes
them very reliable, with long service life and they are easy to service.
Motors with planetary gears
A P1V-A combined with a planetary gear has small installation
dimensions, low weight in relation to performance, free installation
position, flange mounting as standard, in line output shaft and high
efficiency. They are available with shaft speeds ranging from 95 rpm to
1200 rpm, with torques ranging from 16 Nm to 160 Nm.
Motors with helical gears
A P1V-A combined with a helical gear has high efficiency, simple
installation with flange or foot, and competitive pricing. They are available with shaft speeds ranging from 25 rpm to 1050 rpm, with torques ranging
from 23 Nm to 1800 Nm. Oil-bath gears mean that the installation position must be decided beforehand.The installation position governs the amount of oil in the gear and the location of filling and drain plugs.
Motors with worm gears
A P1V-A combined with a worm drive gear has the following
characteristics : gearboxes with high gear ratios are self-locking, which
means that they can be used to maintain the output shaft in position,
simple installation with the flange on the left or right sides or with a foot,
small installation dimensions and competitive pricing. They are available with shaft speeds ranging from 62 rpm to 500 rpm, with torques ranging
from 38 Nm to 670 Nm. Oil-bath gears mean that the installation position must be decided beforehand. The installation position governs the amount
of oil in the gear and the location of filling and drain plugs.
