．Fixing dimensions are compliant to norm ISO 6431 or UNITOP
．To be installed with standard fixing elements
．High reliability and long life time
．Standard magnetic version
．Special versions and strokes on request

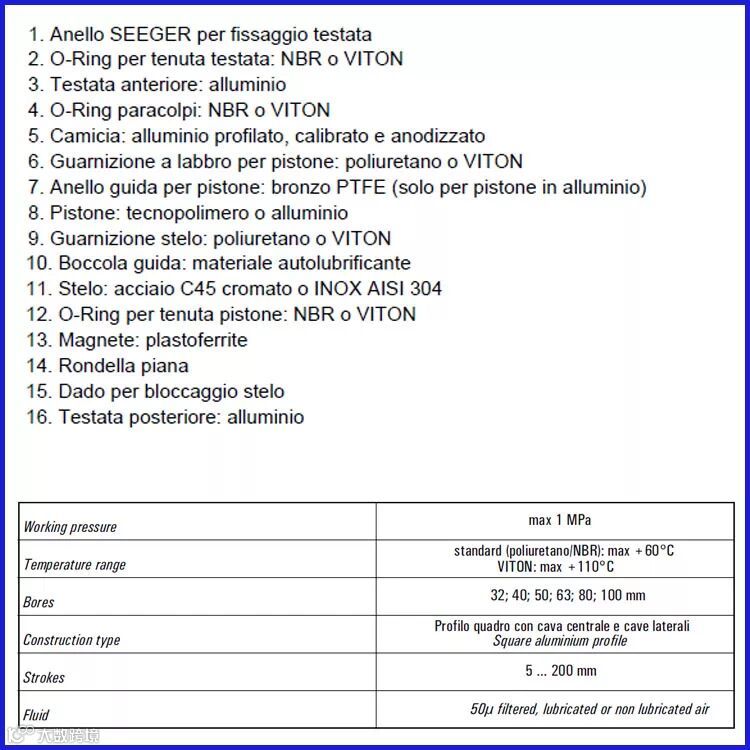

Materials
Barre: laluminium
Piston-rod : C45 (chromium plated) or stainless steel
End-cup: saluminium
Piston : technopolymer (standard) or aluminium (on request). The piston in
technopolymer is not suitable for ATEX.
Sealings : polyurethane or VITON
Piston-rod sea:l ipnoglyurethane or VITON
Magne: tmagnetic iron compound (not suitable for temperatures over +60

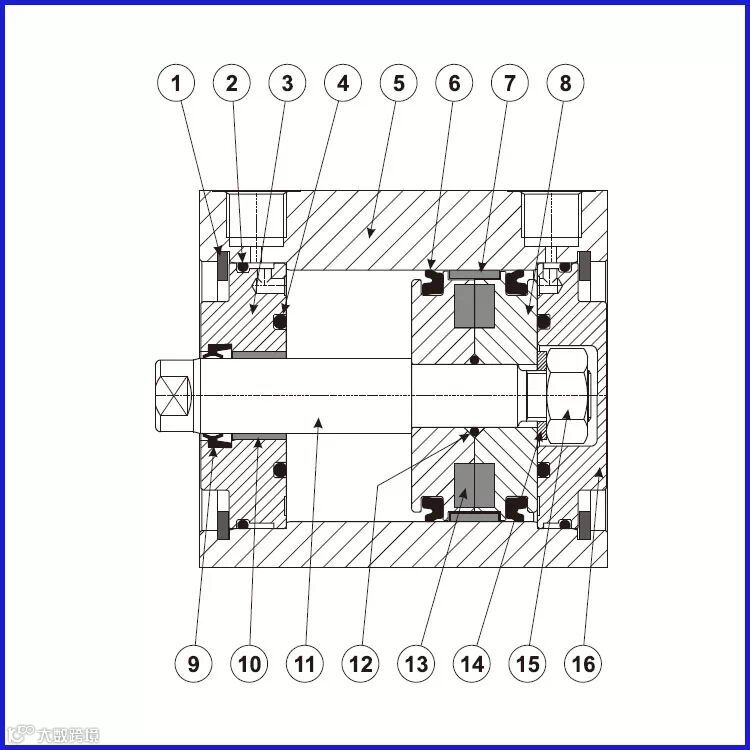

the drawing is valid from bore 32 to bore 100 :
