气动元件-执行元件-振动器
起订量：1个
保修期：1年
德国原装进口
欢迎咨询和下单
案例：

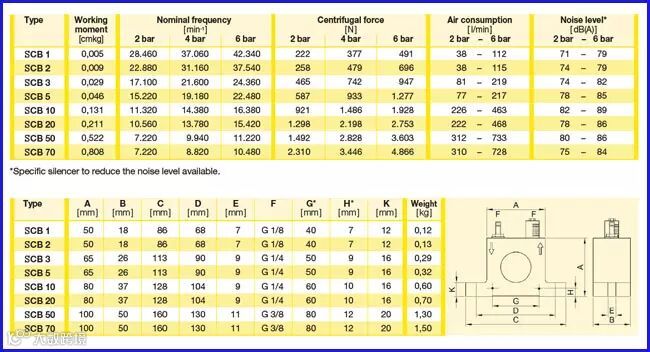

Smartech Pneumatic Ball Vibrators
Series SCB
• Rotary vibration
• Nominal frequency from 7.220 min-1 to 42.340 min-1
• Centrifugal force from 220 N to 4.866 N
• Frequency continuously adjustable via air pressure
• Suitable for temperatures up to 200ºC
Applications
Series SCB pneumatic ball vibrators can be used wherever bulk
materials need to be moved.
They serve in the emptying of bunkers, for preventing bridging, ratholing and adhesion. When used to drive chutes,sieves and vibrating tables,they ensure that the material flow is maintained.
The special feature is the simple construction.
Construction and Working Principle
The rotary vibration is created by the high centrifugal force produced by a circulating steel ball, which runs on hardened, polished steel races.
The frequency, and hence the centrifugal force, can be continuously
regulated via the operating pressure.
Series SCB ball vibrators can be operated using lubricationfree
compressed air.
A multidirectional valve is required for operation (not included in the
scope of supply).
Permissible Operating Conditions
Drive medium:
Compressed air or nitrogen (filter 5 μm), preferably with oil mist
Operating pressure:
2 bar to 6 bar
Ambient temperature:
– 20ºC to +120ºC
HT version up to +200ºC
Smartech offers the accessor ies required for the mounting, installation
and control of vibrators and interval impactors.
Smartech provides solutions.
Consult our experienced application technicians.
