气动元件-执行元件-夹紧缸 O系列
起订量：1个
保修期：1年
德国原装进口
欢迎咨询和下单
案例：

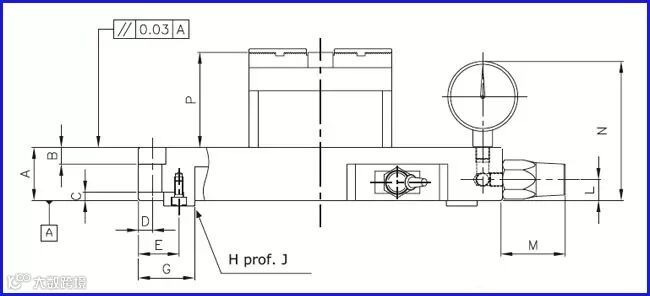

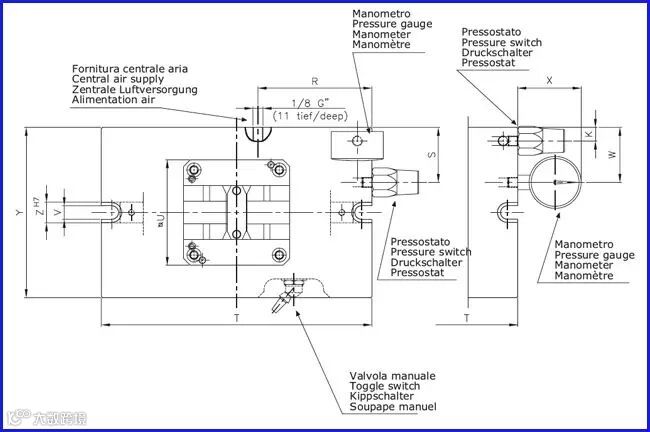

Clamping force blocks,pneumatic-hydraulic,centric clamping-CFB
Technical data
- Operating pressure range: 9 bar with air (6 bar per CFB
250) max 60 bar with oil
- Repeatability accuracy: CFB 66... 100 0.01 mm
CFB 160...200 0.02 mm
CFB 250 0.03 mm over 100 cycles
- Operating temperature range: from 5°C to 60° C
- Operating principle: wedge and piston design with
mechanically restricted guidance
- Stroke range from 4 to 30 mm
- Mounting: by means of bores for H7 pins
- Housing material: hardened steel
- Material for functional parts: hardened steel
- Actuation: filtered hydraulic oil (10μm) viscosity 46 mm2/s
at 40° ISO VG; max 60° compressed air (10μm) and lubricated
- Connections: sides-base
- Maintenance: relubrified every 10.000 cycles when used in
handling. When used in machining centers for tool clamping,
lubricate every 5.000 cycles
