气动元件-执行元件-移动平台 O系列
起订量：1个
保修期：1年
德国原装进口
欢迎咨询和下单
案例：

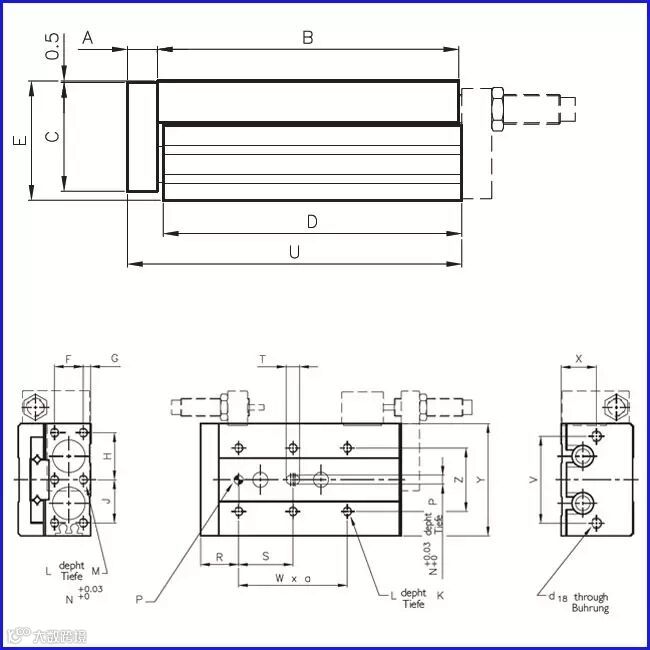

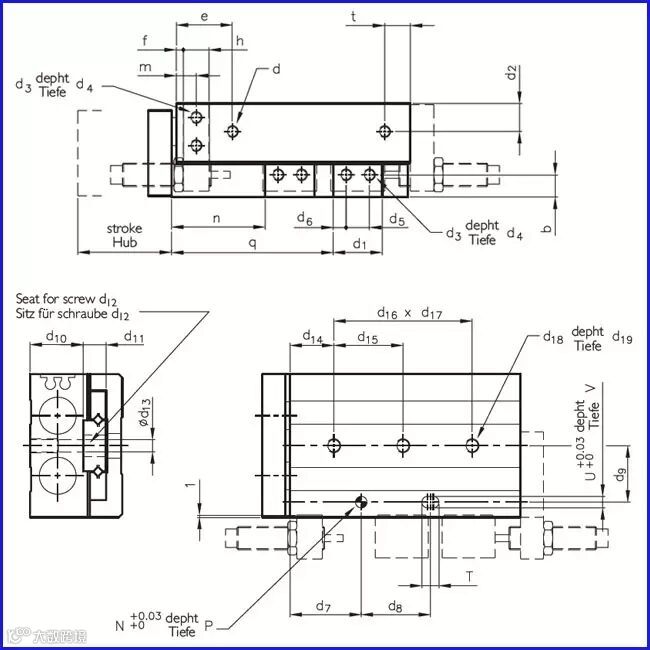

Pneumatic linear actuator - series MSR with cylinder
Technical data:
- Range of operating pressure : 2 - 8 bar
- Accuracy repeability : 0.05mm with adjustable stroke
- Operating temperature : 5 C to 60 C
- Operating system : through internal cylinder
- Housing material : high tensile hardcoated aluminium alloy
- Material of functional parts : treated and ground steel
- Chrome push-rod
- Sliding : cross roller guide
- Actuation : compressed air filtered (10 m), dry or lubricated
- Maintenance : no maintenance required for the first 2 million cycles
- Speed no load: 0,5 at 0,7 m/s
- Accessories: shock absorber
- Adjustable end position
- Rating IP20
- Warranty 24 mounth
