P1Q Compact Cylinder
Smartech’s P1Q series cylinders provide an economical, compact
design suited for a variety of applications. With its modular flexibility and
low cost price point, the P1Q will provide the ideal solution machine
builders need today.
The P1Q series has 10 bore sizes and standard stroke ranges from
5mm – 100mm. Both male and female rod end options and magnetic or
non-magnetic construction can be specified. Also, threaded through holes are the standard mounting option, and 4 additional modular mounting
configurations are available.

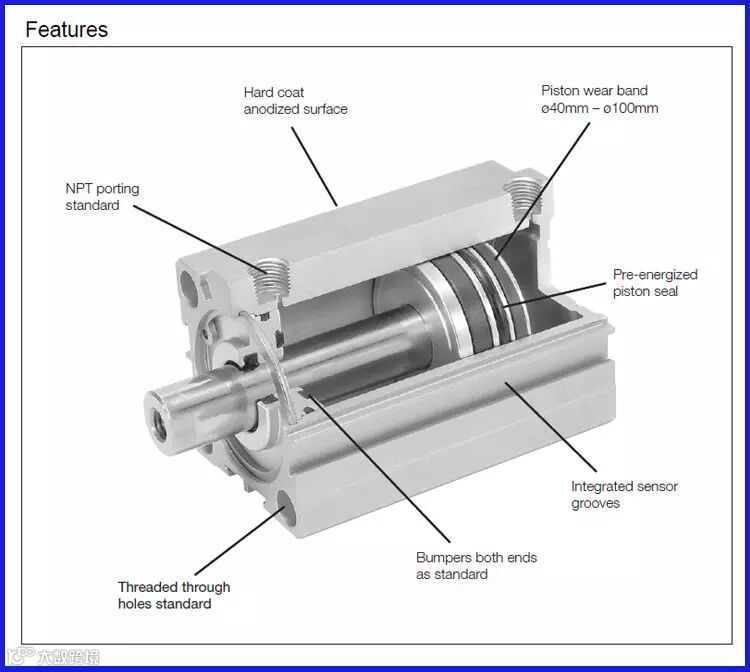

The P1Q provides quieter operation due to its build in bumpers, which
are standard on all bore sizes. Included in bore sizes 40mm – 100mm is a piston wear band providing superior life.
Sensors and Accessories
When piston sensing is needed, the integrated switch grooves
provide flexible mounting of any combination of NPN, PNP, and
reed sensors with flying leads, M8, or M12 cord options within
the Smartech P8S Global Sensor Family.
For rod end accessories, when a male rod is specified, both
rod clevis and rod eye accessories are available.
