Cylinder ø 12-25 mm to ISO 21287 :
Versions :
• Optional with/without
contactless position sensing
• Single acting without adjustable
end cushioning
• Double acting without adjustable
end cushioning

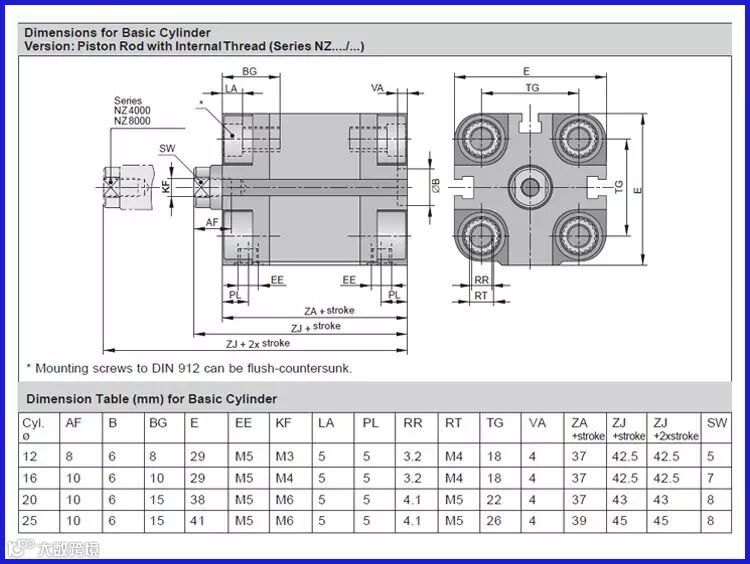

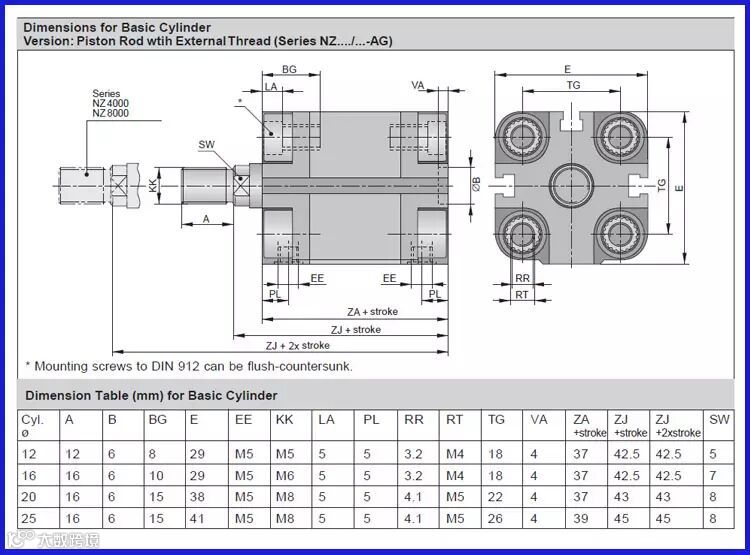

• Option of internal or external
mounting on piston rod
Special versions:
High temperature version (+150°)
The cylinder profile has grooves in
which, depending on stroke length,
one more magnetic switches can be
mounted for sensing the end
positions or intermediate positions
of the magnetic piston.
The delivery includes:
1 Cylinder
Magnetic switches are not included
- please order these separately.
