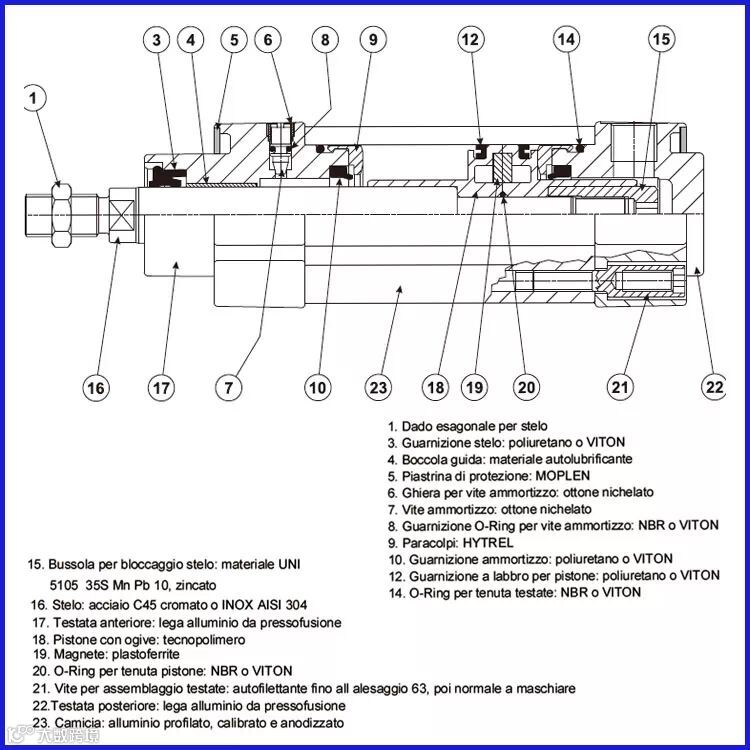

The drawing is valid from bore 32 to bore 125 - PISTON IN TECHNOPOLYMER

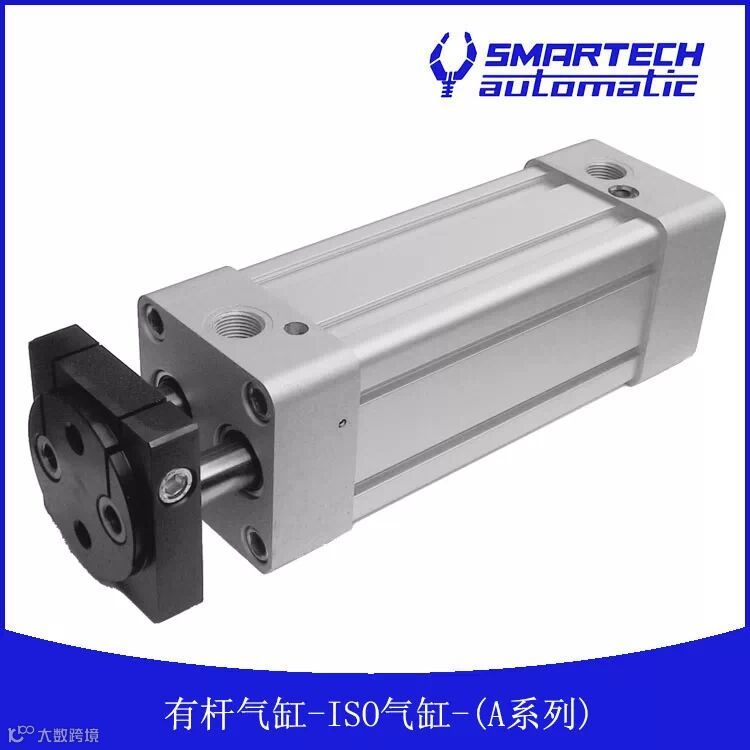

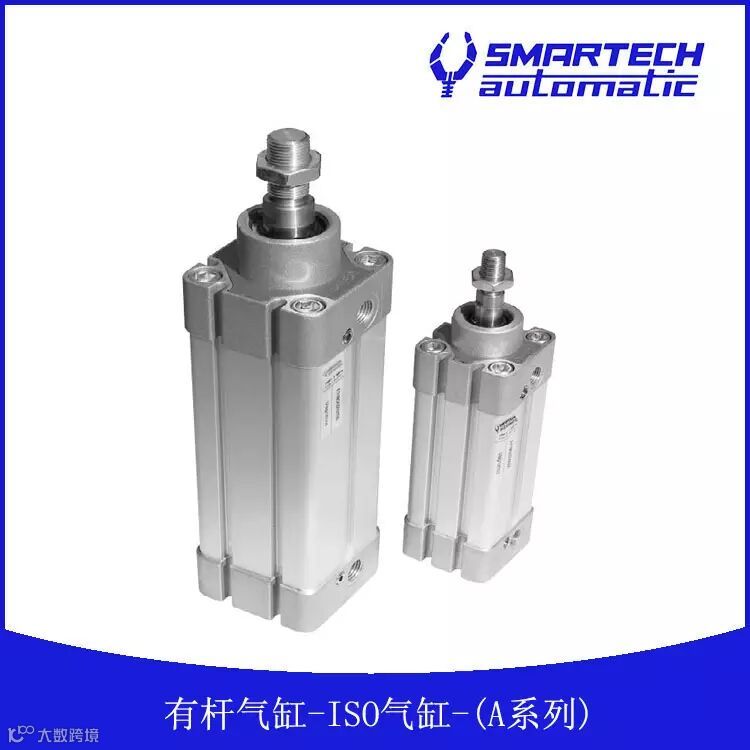

Cylinders ISO 6431 VDMA :
．Compliant to norm ISO 6431 VDMA
． High reliability and long life time
．Versione magnetica standard
．With square profile (series N) or "easy" profile (series E)
．Special versions and strokes on request
Materials
Barrel: aluminium
Piston-rod: C45 (chromium plated) or stainless steel
End-cups: aluminium
Piston: technopolymer (standard) or aluminium (on request)
Sealings: polyurethane or VITON
Piston-rod seali:n gpolyurethane or VITON
Magnet: magnetic iron compound (not suitable for temperatures over +60°C)
