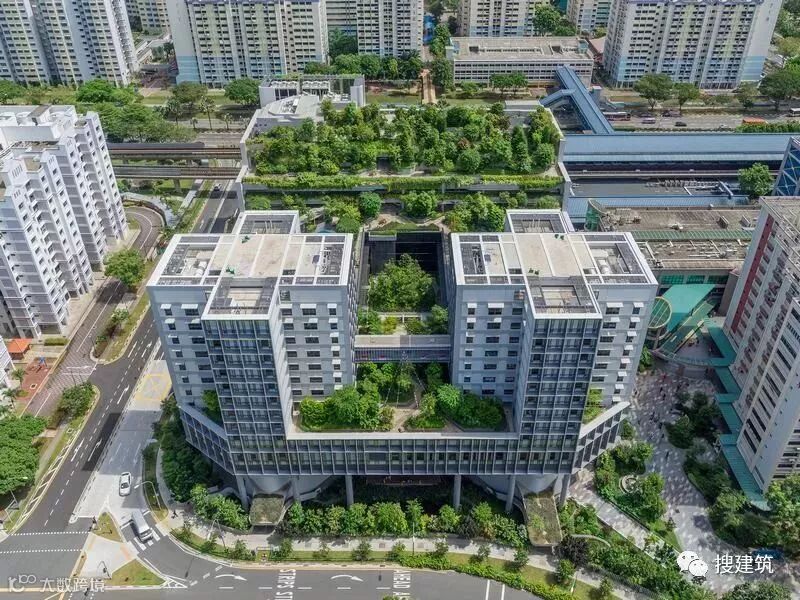

Kampung Admiralty是新加坡首个综合公共开发项目，将公共设施和服务融为一体。传统方法是每一个政府机构都划出自己的地块。从而形成几个独立的建筑。另一方面，这个一站式综合设施最大限度地利用了土地，是满足新加坡人口老龄化需求的原型。
Text description provided by the architects. Kampung Admiralty is Singapore’s first integrated public development that brings together a mix of public facilities and services under one roof. The traditional approach is for each government agency to carve out their own plot of land, resulting in several standalone buildings. This one-stop integrated complex, on the other hand, maximises land use, and is a prototype for meeting the needs of Singapore’s ageing population.

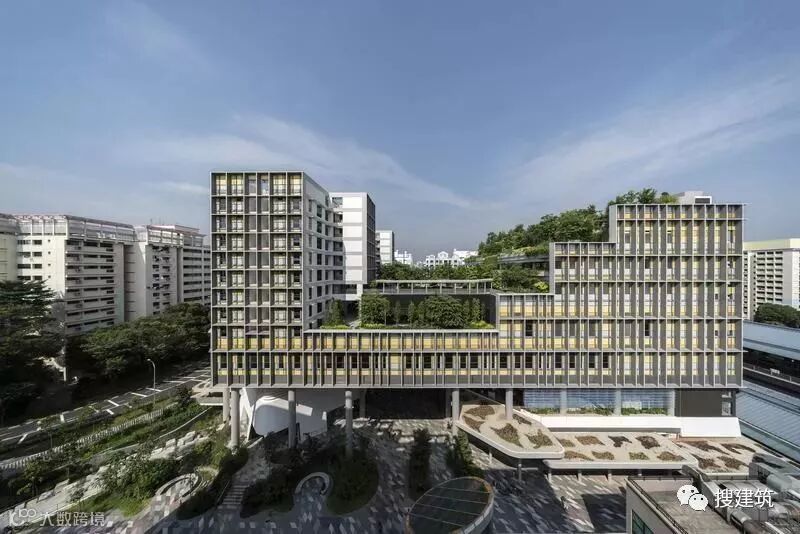

该项目位于一个0.9公顷的场址，高度限制为45米，采用分层的“三明治”方法。设计了一个“垂直甘榜（村）”，底层为社区广场，中层为医疗中心，较高层为老年人提供公寓的社区公园。这三个不同的阶层并列了各种建筑用途，以促进跨层间的多元化，并为活动者在底层留出了自由空间。与医疗保健，社交，商业和其他便利设施，支持代际联系，促进积极老龄化。
Located on a tight 0.9Ha site with a height limit of 45m, the scheme builds upon a layered ‘club sandwich’ approach. A “Vertical Kampung (village)” is devised, with a Community Plaza in the lower stratum, a Medical Centre in the mid stratum, and a Community Park with apartments for seniors in the upper stratum. These three distinct stratums juxtapose the various building uses to foster diversity of cross-programming and frees up the ground level for activity generators. The close proximity to healthcare, social, commercial and other amenities support inter-generational bonding and promote active ageing in place.

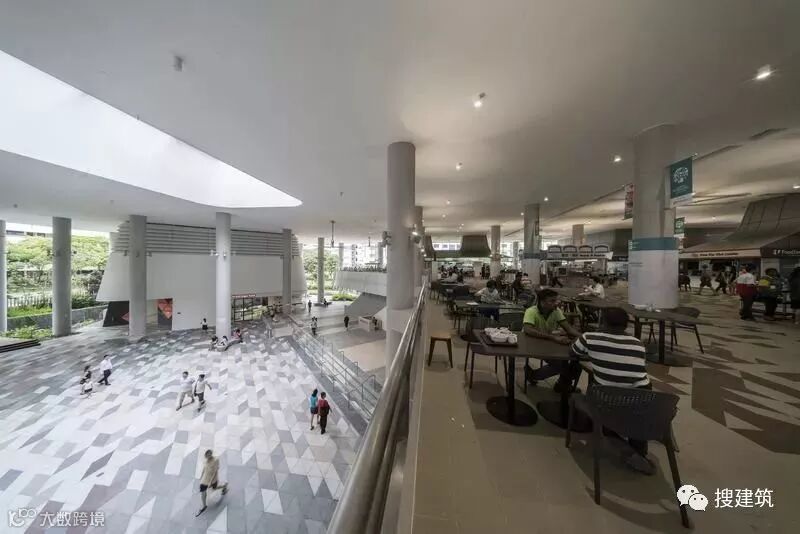

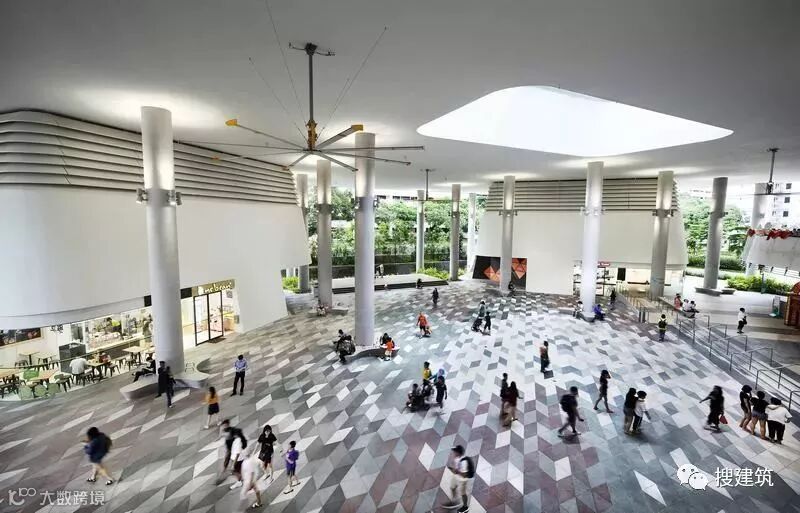

社区广场是一个完全公共，多孔和漫步的平面布局，设计为社区客厅。在这个温馨且包容的空间内，公众可以参加有组织的活动，参加本季的庆祝活动，购物或在第二层的餐厅中心用餐。凉爽的热带广场被上面的医疗中心遮蔽和庇护，无论风雨天气，都可以继续活动。
The Community Plaza is a fully public, porous and pedestrianised ground plane, designed as a community living room. Within this welcoming and inclusive space, the public can participate in organised events, join in the season’s festivities, shop, or eat at the hawker centre on the 2nd storey. The breezy tropical plaza is shaded and sheltered by the Medical Centre above, allowing activities to continue regardless of rain or shine.
在Kampung Admiralty找到一个医疗中心意味着居民不需要到医院咨询专科医生。为了促进健康和康复，该中心的咨询和等候区在自然光下从周边窗户和中央庭院进行清洗。对下面的社区广场和上面的社区公园的视野也有助于老年人感受到与大自然和其他人的联系。
Locating a Medical Centre in Kampung Admiralty means that residents need not go all the way to the hospital to consult a specialist, or to get a simple day surgery done. To promote wellness and healing, the centre’s consultation and waiting areas are washed in natural daylight from perimeter windows and through a central courtyard. Views towards the Community Plaza below, and the Community Park above also help seniors feel connected to nature and to other people.

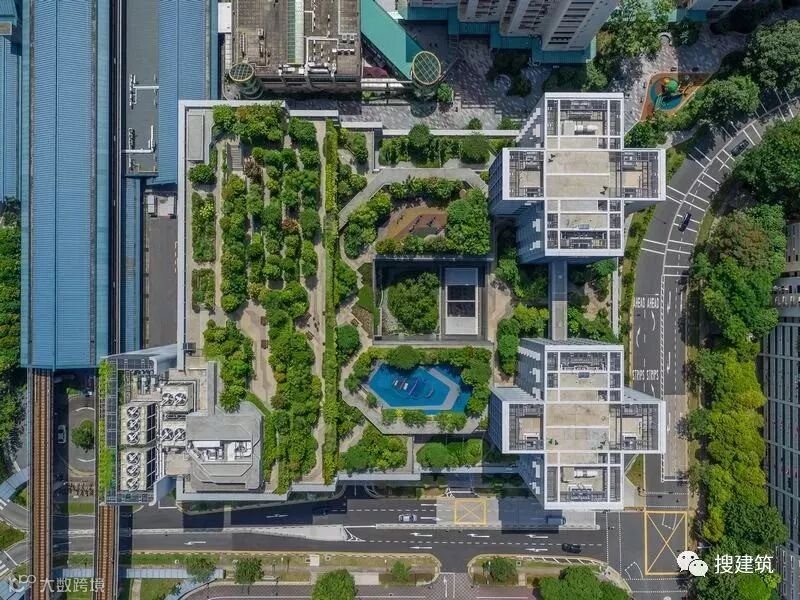

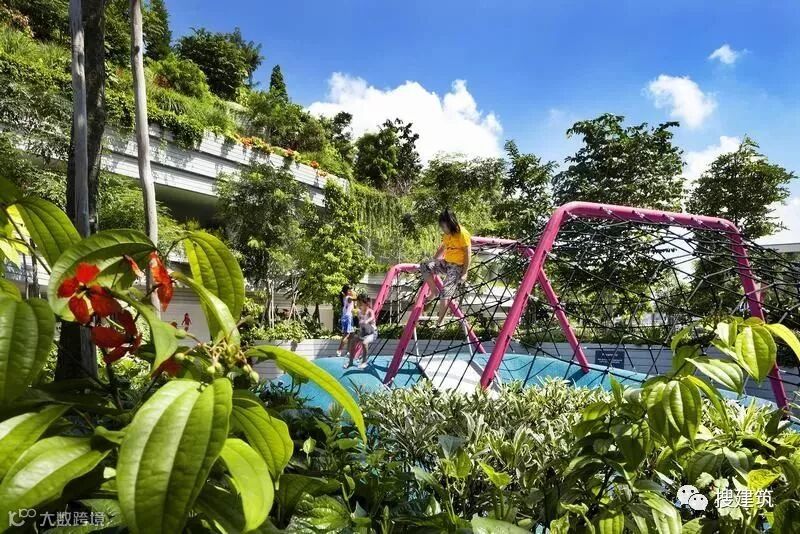

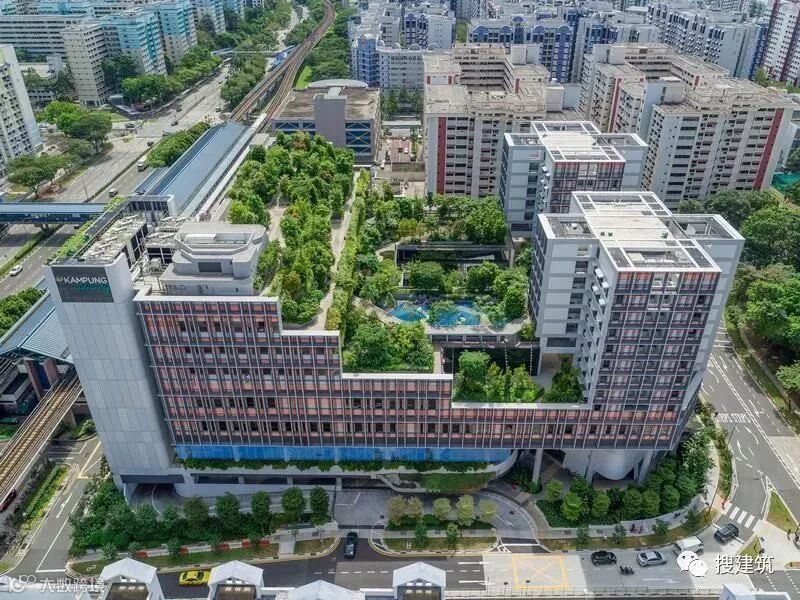

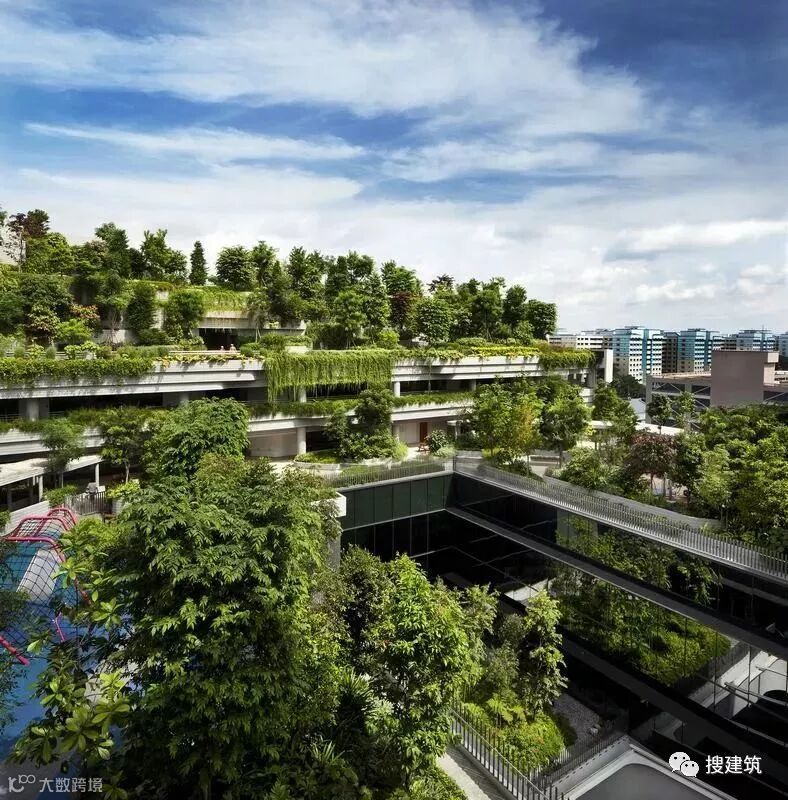

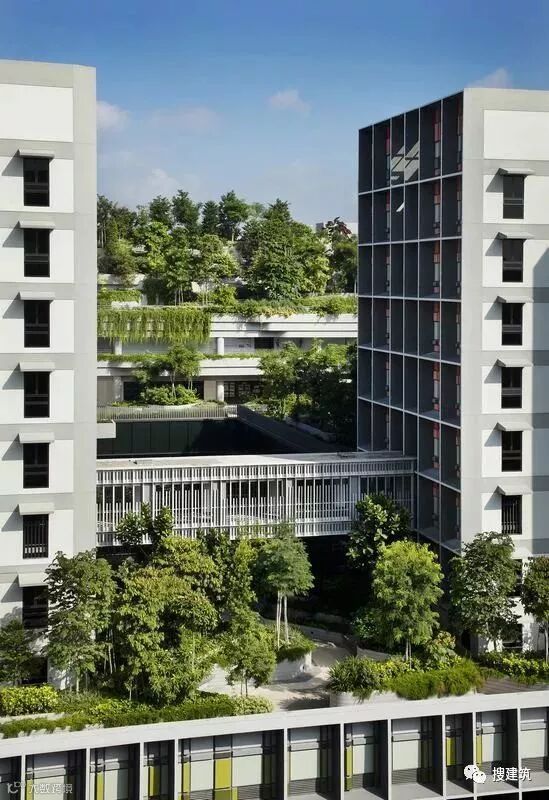

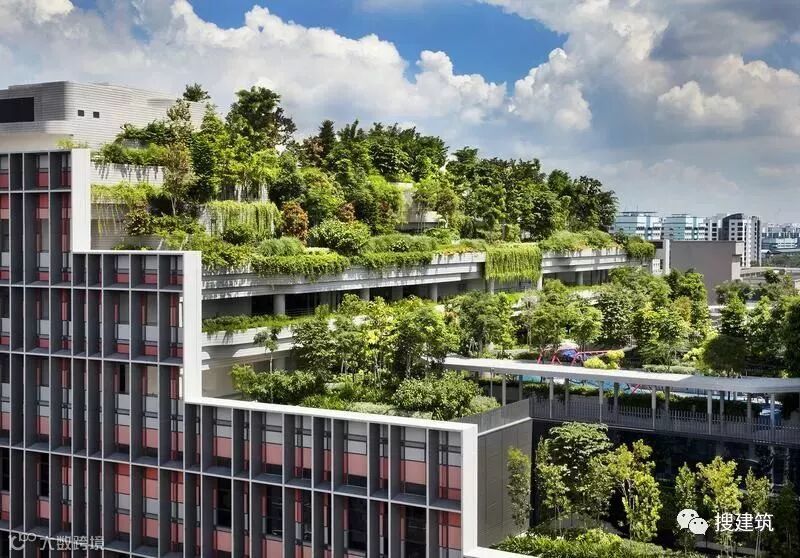

社区公园是一个更密集，更高的村庄绿地，居民可以积极地聚集在一起锻炼，聊天或照料于社区农场。儿童保育和积极老龄中心（包括高级护理）等辅助项目并排放置，将年轻人和老年人聚集在一起生活，吃饭和玩耍。共有104套公寓在两个11层高的街区供老人或单身夫妇使用。共用入口处的“共享长椅”鼓励老年人走出家门，与邻居们互动。这些装置采用通用设计原则，专为自然交叉通风和最佳采光而设计。

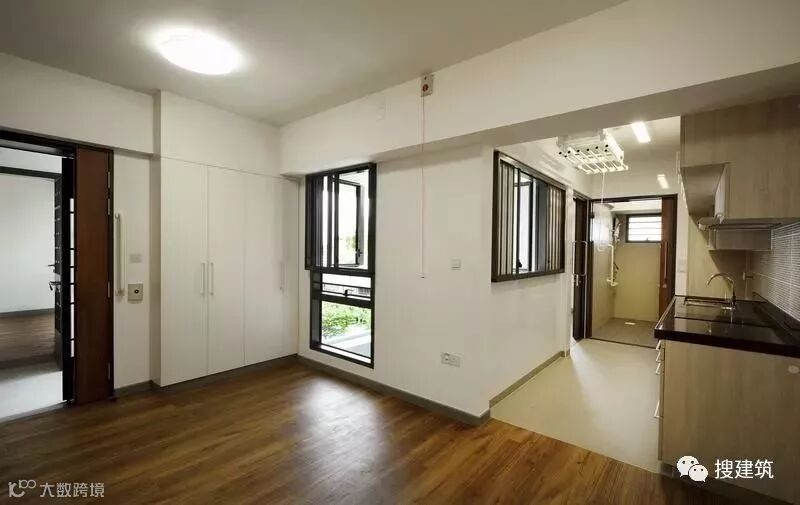

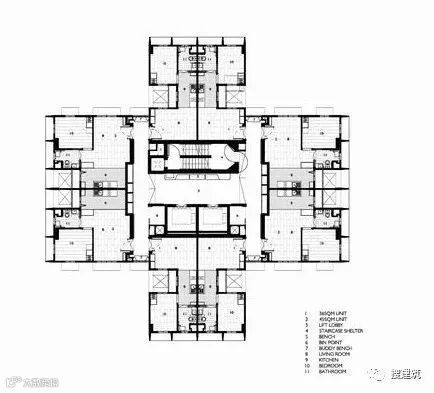

The Community Park is a more intimately scaled, elevated village green where residents can actively come together to exercise, chat or tend community farms. Complementary programmes such as childcare and an Active Aging Hub (including senior care) are located side by side, bringing together young and old to live, eat and play. A total of 104 apartments are provided in two 11-storey blocks for elderly singles or couples. “Buddy benches” at shared entrances encourage seniors to come out of their homes and interact with their neighbours. The units adopt universal design principles and are designed for natural cross ventilation and optimum daylight.
场地平面图

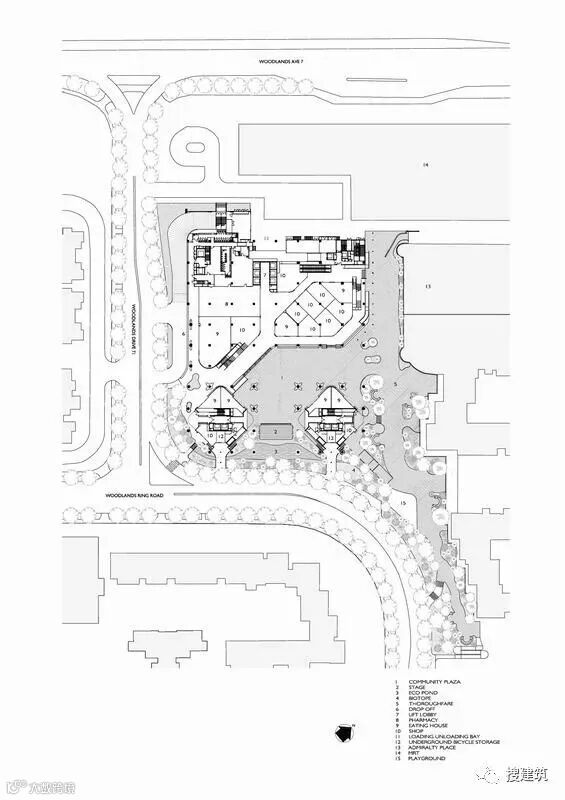

一层平面图

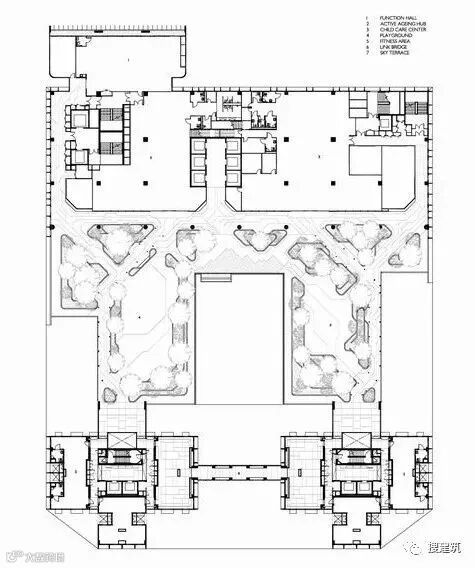

六层平面图
九层平面图
立面图

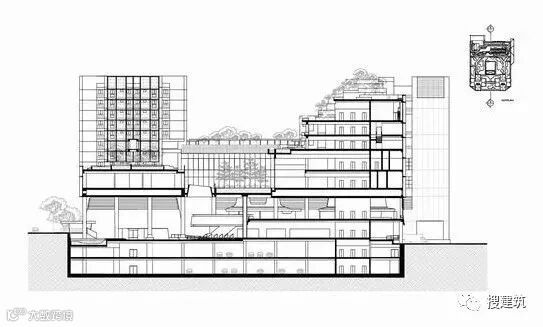

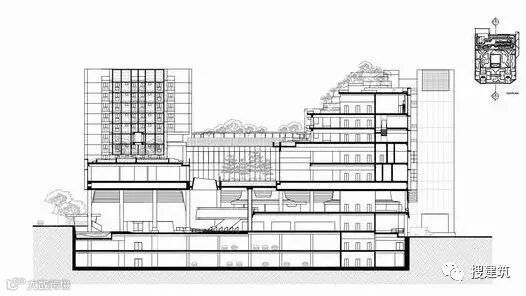

剖面图
建筑师：WOHA
地点：新加坡
