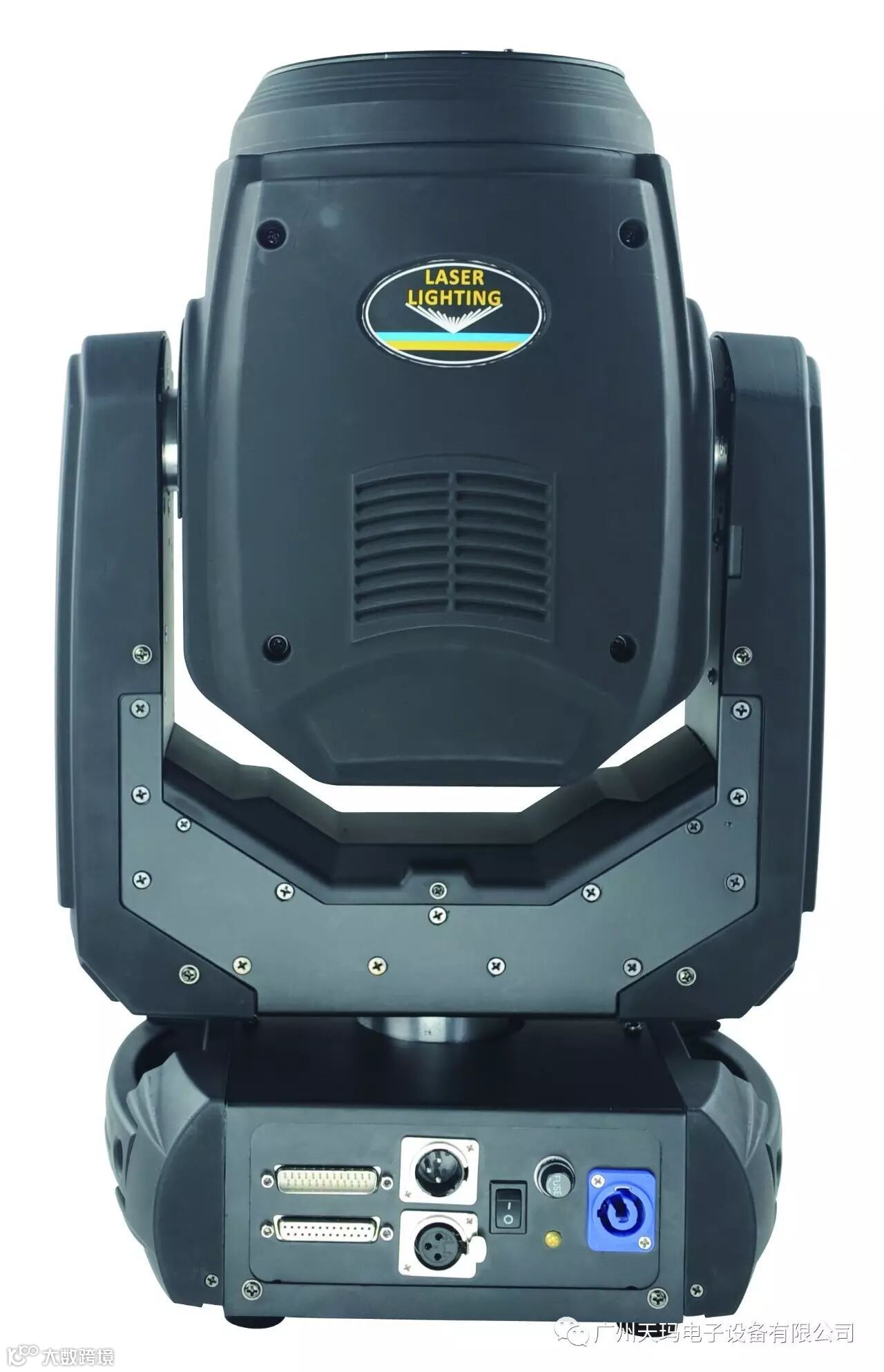

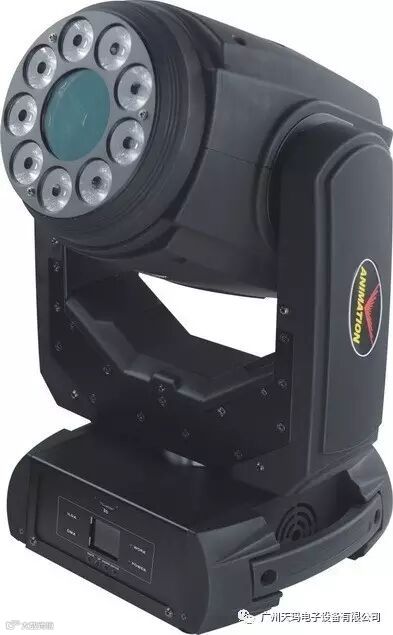

天玛TME-Y2<酒吧黑武器摇头8W全彩动画激光带LED渲染>

Y2/5~8WRGB Moving head laser spider light 全彩摇头激光灯

1、  摇头+激光+LED 一机多用

2、  兼容ILDA接口加SD卡扩充功能

1、moving head+laser+LED,Multi-purpose

2、Compatiblewith ILDA interface and SD card

◎工作电压：AC100~240V 50/60Hz; 额定功率：<1000W

◎振镜:40K高速扫描振镜,光学角度±30°;输入信号±5V;线性失真<2%

◎步进电机：三相57步进电机 2个

◎X轴：540度   Y轴：270度

◎激光调制：模拟调制

◎光束直径及发散角：5mm：<2mrad

◎控制模式：声控(4种模式带黑场)/自走/主从机/DMX512(25CH)/

◎演示效果：DMX内置144个图案,

◎DMX特效: 单图案模式,可分别断笔,频闪,旋转,移动,翻滚,分图,渐绘,换色,改变大小等功能

◎使用须知: 环境温度控制在10~40℃,干燥少尘环境可减少激光功率衰减，延长灯具寿命

◎适合场所：迪吧，酒吧，夜总会,电视台,演唱会,体育场,广告推广等

◎包装尺寸：39*25*58cm          ◎净/毛重：13/14.5KG

◎Rated Voltage：AC100~240V 50/60Hz    Rated Power：<1000W

◎Scanner: 40K high speed module scanner (Can be upgradedto 60K),Scan angle:±30°;Input signal:±5V;Linearity distortion<2%)

◎Motor:Three-phase stepper 57 motor  2Pcs

◎Pan/Tilt:X axis 540°Y axis 270°

◎Modulation:analog

◎ Beam diameter and Divergence : 5mm;<2mrad

◎Control Modes： Music four mode with blackout)/Automatic/Master-Slave/DMX512(25CH)

◎Demonstration effect:Built-in 144 pattern

◎DMX effect: Single pattern modes,and with the functionof unique blanking,strobing, rotating, movement, billowing, zoom,drawing,speedand color etc.

◎Security Intelligent function: no signal no emit,Keypower,signal is changed automatically(PC to DMX or DMX to PC),Quick Channel,one of the product channels, SD card update online.

◎Operating requirement: dry, less dust, 10~40℃(environmentaltemperature) ,will reduce the attenuation of the diode and extend the life ofthe light.

◎Application：Disco, Clubs, KTV, Pub, Vocalconcert,Television Station,stadium,Advertising promotion etc.

◎Size：39*25*58cm        ◎N.G/G.W：13/14.5KG
