领航
系列
S5
panel saw
电子开料锯
S5前上料电子开料锯用于精确锯切木质板材及其它类似锯切特性的板材，可对接多种拆单软件，并标配专用的智能优化软件，提高板材利用率。该款开料锯不仅功能强大，还具有极高的锯切速度和超高的锯切精度，是拥有卓越性价比的锯切利器。
S5 front loading panel saw is used to precisely cut wood panels and other panels with similar cutting characteristics as wood, and connected to a variety of software and equipped with a smart optimization software to improve material utilization. This panel saw is not only equipped with many useful functions, but also has extremely high cutting speed and super-high cutting accuracy, and is an excellent cost performance saw.
设备亮点
Machine highlights
1、锯车使用直线电机200米/分高速驱动
Saw carriage driven by linear servo motor with speed 200m/min
2、主锯使用永磁电机，升降带伺服控制, 并实现锯槽功能
Main saw driven by a permanent magnet motor, saw blade vertical movement with servo control, can realize grooving function

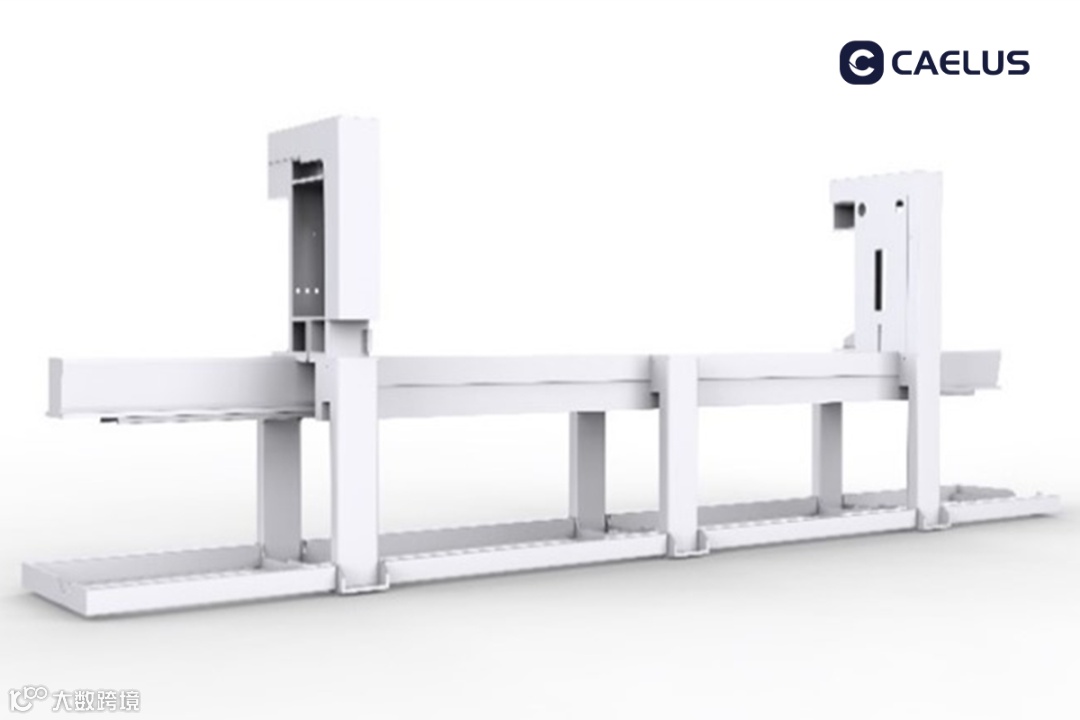

3、高刚性重型机身，经过退火、去应力整体加工，长久稳定运行不变形
Heavy-duty steel frame with annealing, stress relief and CNC processing to ensure long-term lifetime without deformation
4、气浮珠钢台面, 板材移动更加轻便，保护敏感表面
Fully air-cushioned steel table moves parts more smoothly to protect sensitive surface without damage
5、独立双推手, 主、副两组机械手独立驱动，效率可提升30%
Independent twin pusher. The main and auxiliary manipulators are independently driven, and the efficiency can be increased by 30%
6、智能柔性工夹, 可依据不同板材尺寸调整最佳夹手位置
Intelligent flexible working clamps to adjust the best grip position according to different part sizes
核心亮点
Highlights

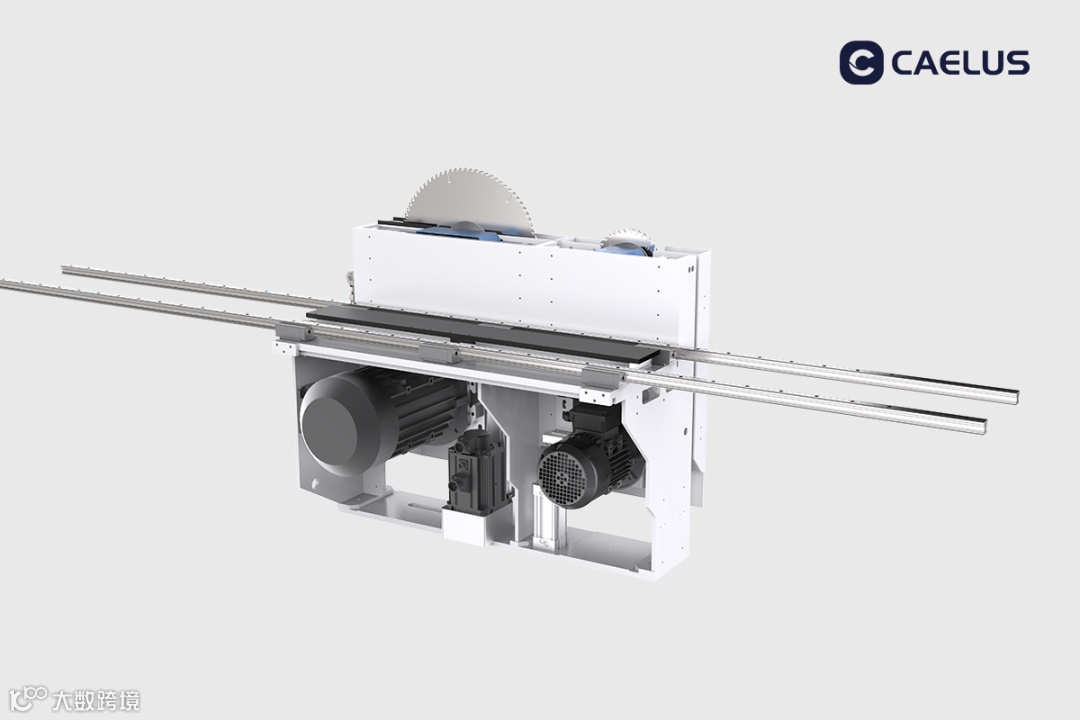

【1】锯车驱动系统采用伺服控制和高刚性、高精度和高防尘的直线导轨结构，可根据不同锯切宽度实现自动定位锯切行程，减少空行程时间，提高工作效率，最大锯切速度可达160m/min；
The saw carriage driven by a linear servo motor and equipped with a high rigidity, high precision, and dust proof linear guide rail structure. It can automatically position the saw cutting stroke according to different cutting widths, which reduces idle travel time, improves work efficiency. Maximum cutting speed at 160m/min;

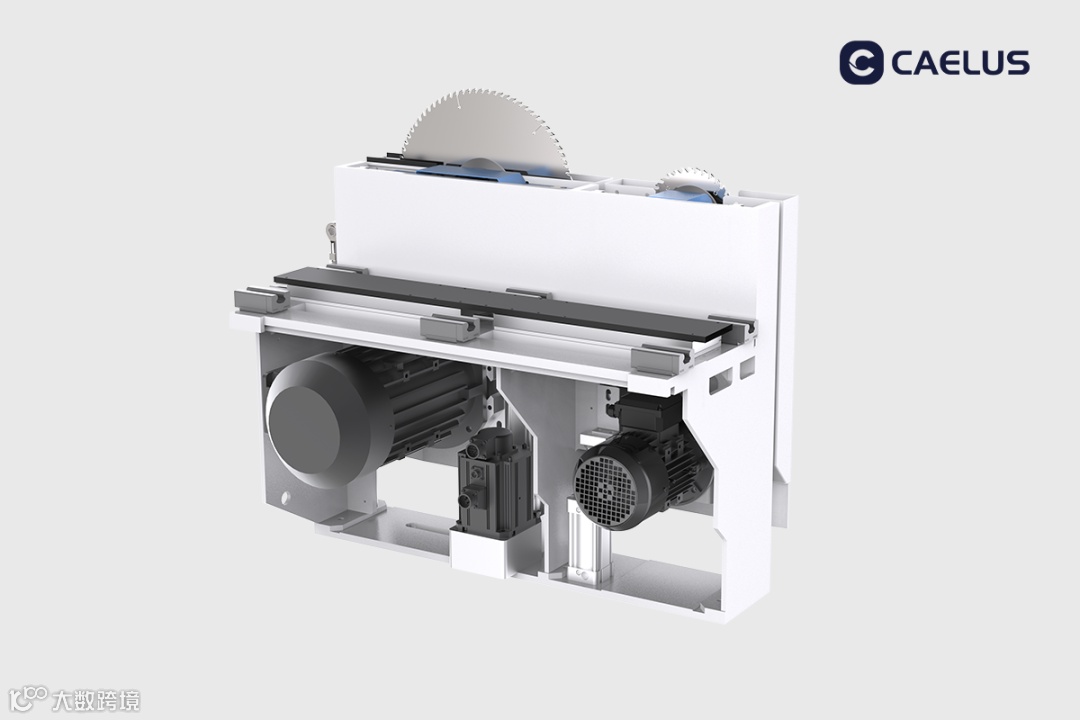

【2】主锯使用功率22KW（变频）永磁同步电机，扭矩大，噪音低，速度调节范围宽，响应快，绿色节能，非锯切的时候，速度自动下降，能够适应大批量快速裁切，最高回程速度可达200m/min；
The main saw uses a 22KW (variable frequency) permanent magnet synchronous motor with high torque, low noise, wide speed adjustment range, fast response, green and energy-saving advantages. When not cutting, the speed decreases automatically. It perfectly fits to large-scale cutting. The maximum return speed can reach 200m/min;
【3】主锯与副锯采用独立的升降控制系统，主锯升降采用伺服控制和电缸传动结构，可根据锯切厚度自动调节上升高度，达到最佳锯切效果；
The main saw and scoring saw driven independent with lifting control systems. The main saw vertical movement with servo control and electric cylinder transmission structure, which can automatically adjust the lifting height according to the cutting thickness to achieve the best cutting effect;

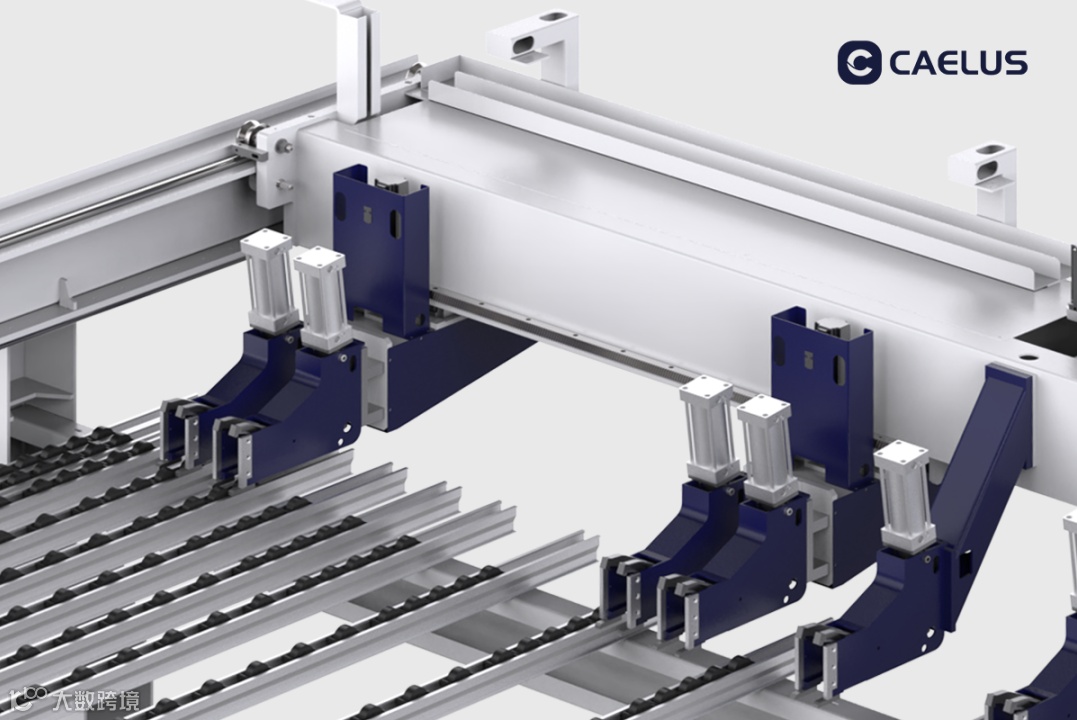

【4】配备2 组伺服控制移动机械手工夹，突破常规，根据不同板材尺寸调整最佳夹手位置，保证裁切效果；
Equipped with 2 sets of servo controlled flexible working clamps, breaking through conventions and adjusting the optimal clamp position according to different cutting sizes to ensure cutting effectiveness;

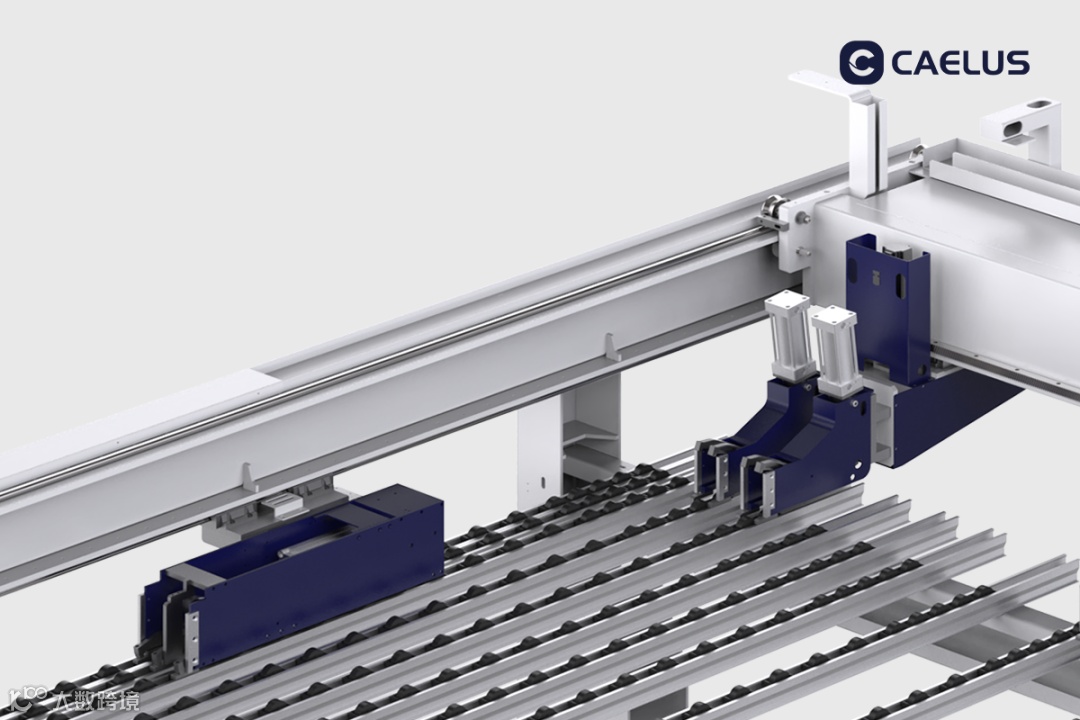

【5】配置伺服双推手装置，由主、副两组机械手组成，两组推手独立驱动，协同工作，可同时锯切两张不同尺寸板件，效率可提升30%；
Equipped with a servo controlled twin pusher device, consisting of two sets of mechanical arms, the main and auxiliary. The two sets of pushers are independently driven and work in parallel , and can simultaneously cut two different sized panels with an efficiency increase by 30%;
【6】压梁升降采用高精度双拉杆气缸，特殊气动控制，实现升降自动定位，可根据板材厚度调整上升距离，减少气缸空行程，提高锯切效率；
The vertical movement of the pressure beam driven by high-precision double pull rod cylinders, with special pneumatic control to achieve automatic positioning of the height. The lifting distance can be adjusted according to the thickness of the panel in order to reduce the useless stroke and improving the cutting efficiency;

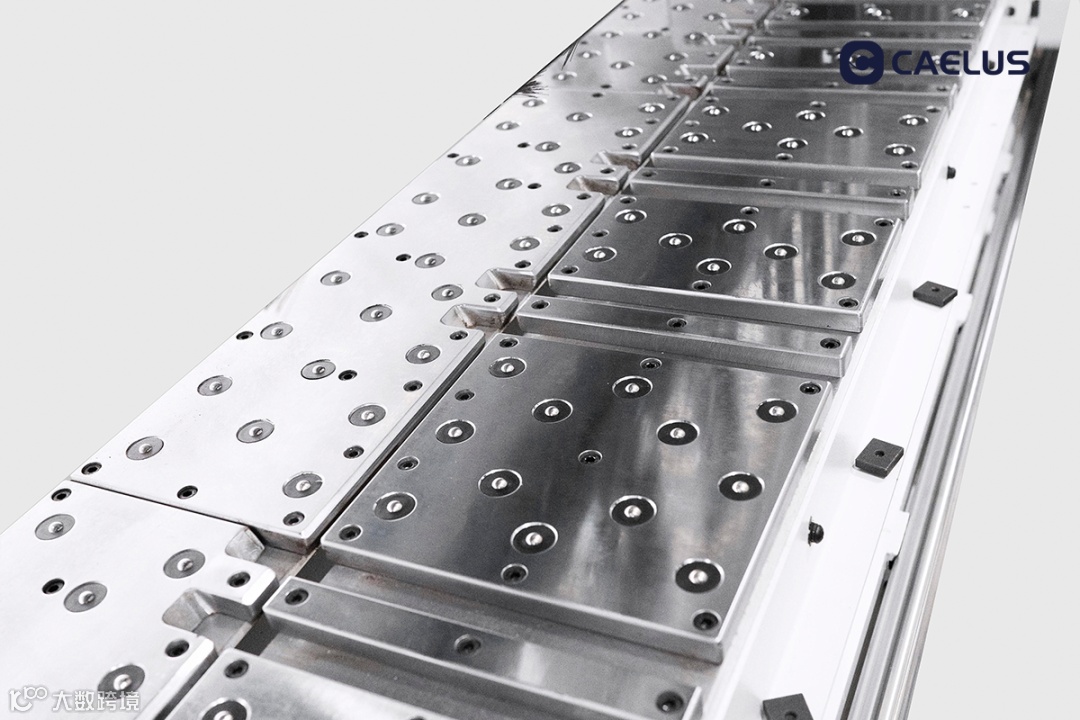

【7】工作台面采用气浮珠钢台面，有效保证敏感饰面板件加工和防止板材刮伤，板材移动更加轻便。
Fully air-cushioned steel table moves parts more convenient and smoothly to protect sensitive surface without scratches.
技术参数
Technical parameters
|
最大锯切尺寸（L*W） Maximum cutting size |
3780mm*3780mm |
|
最大锯切厚度 Maximum cutting thickness |
120mm |
|
主锯转速 Main saw rpm |
3800r/min |
|
副锯转速 Scoring saw rpm |
5300r/min |
|
锯车回程速度Max Saw carriage return speed Max. |
200m/min |
|
锯切速度Max Cutting speed Max. |
160m/min |
|
送料速度Max Program fence speed Max. |
95m/min |
|
主锯片外径*内径 Main saw blade outer diameter * inner diameter |
φ450mm*φ75mm |
|
主锯片外径*内径 Scoring saw blade outer diameter * inner diameter |
φ200mm*φ50mm |
