Robot Panel Saw SawTekRob 5

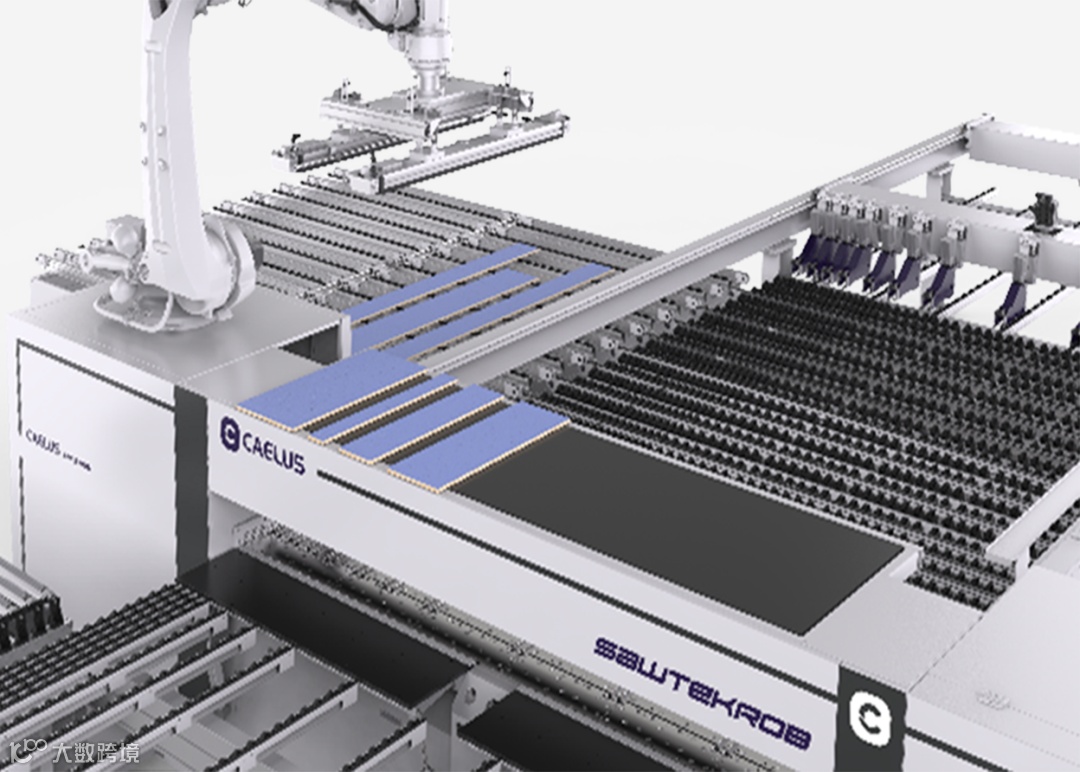

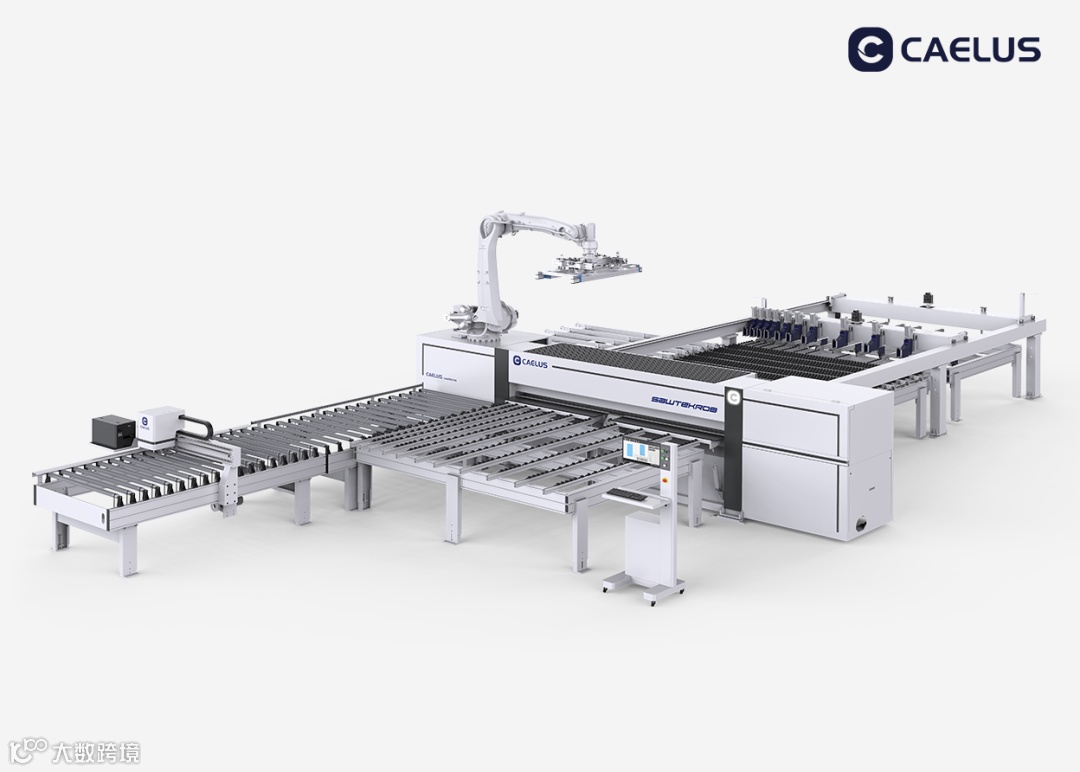

The robot saw can precisely cut wooden boards and other similar panels. Driven by linear motor, it is highly efficient and operates at a high speed, enabling fully automated production. It has the functions of automatic panel rotation, turnover, multiple processing, and achieves a high panel utilization rate. Equipped with an automatic labeling conveyor and a waste collection system, it improves production efficiency and the level of intelligence.
1

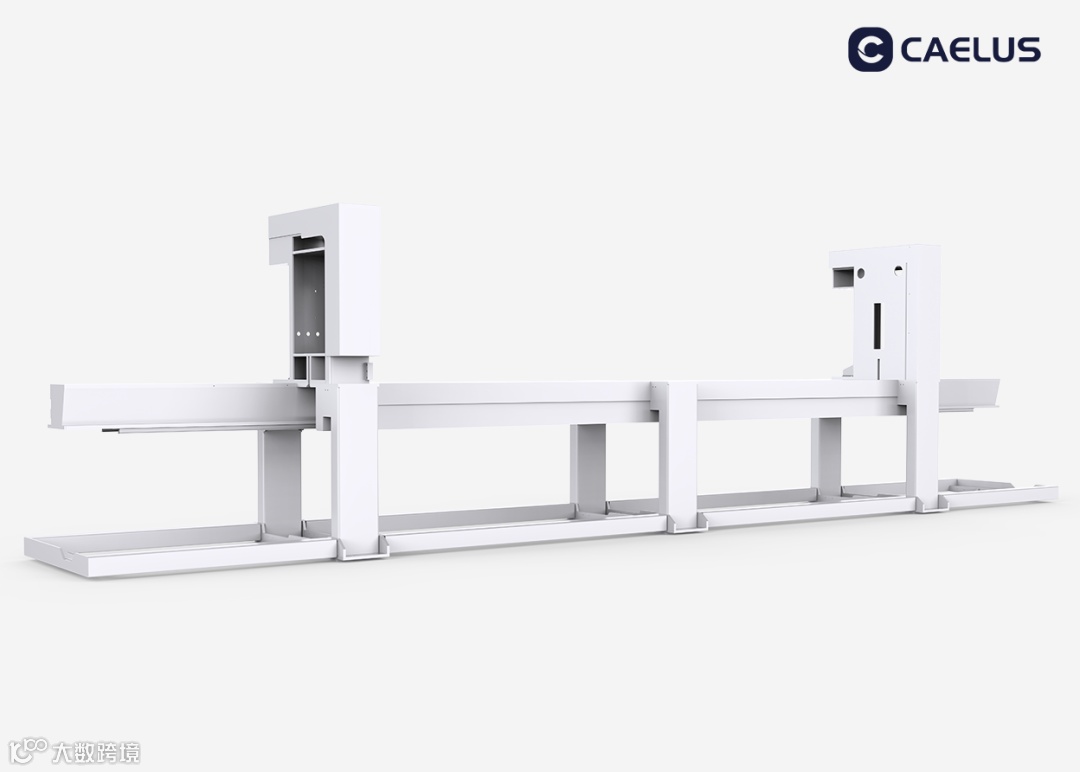

Heavy-Duty Machine Frame
The high-rigidity, heavy-duty frame is annealed, sandblasted, and processed to ensure long-term stable operation without deformation.
2

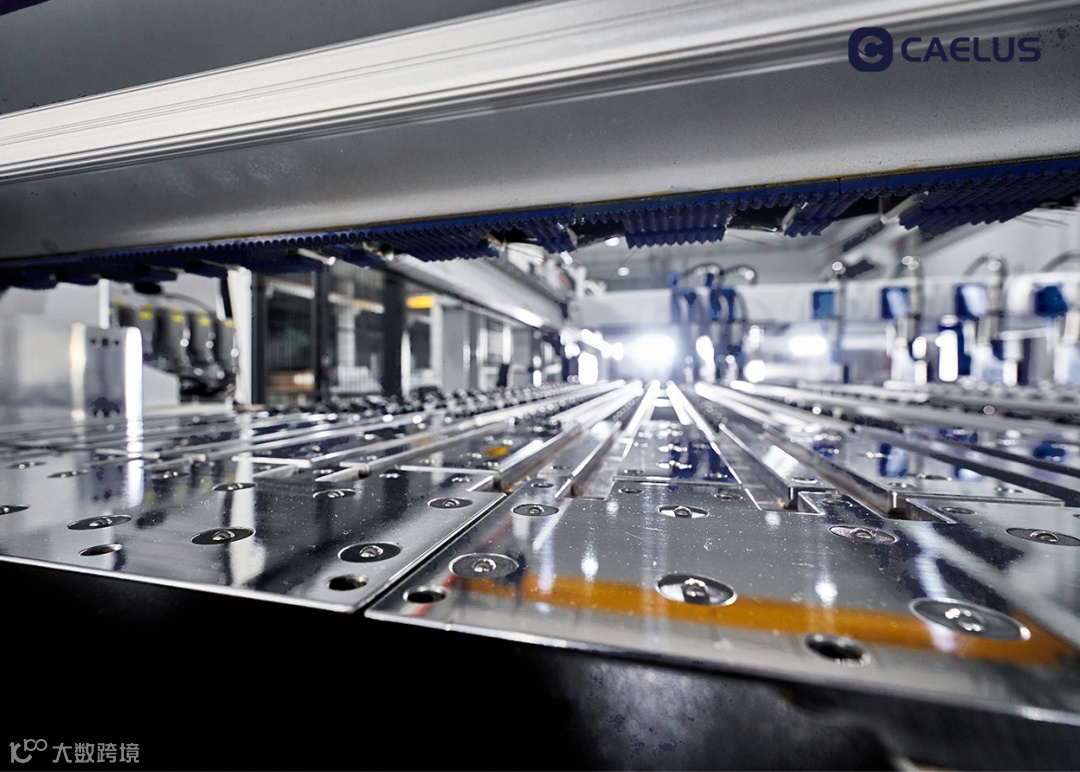

Steel Table

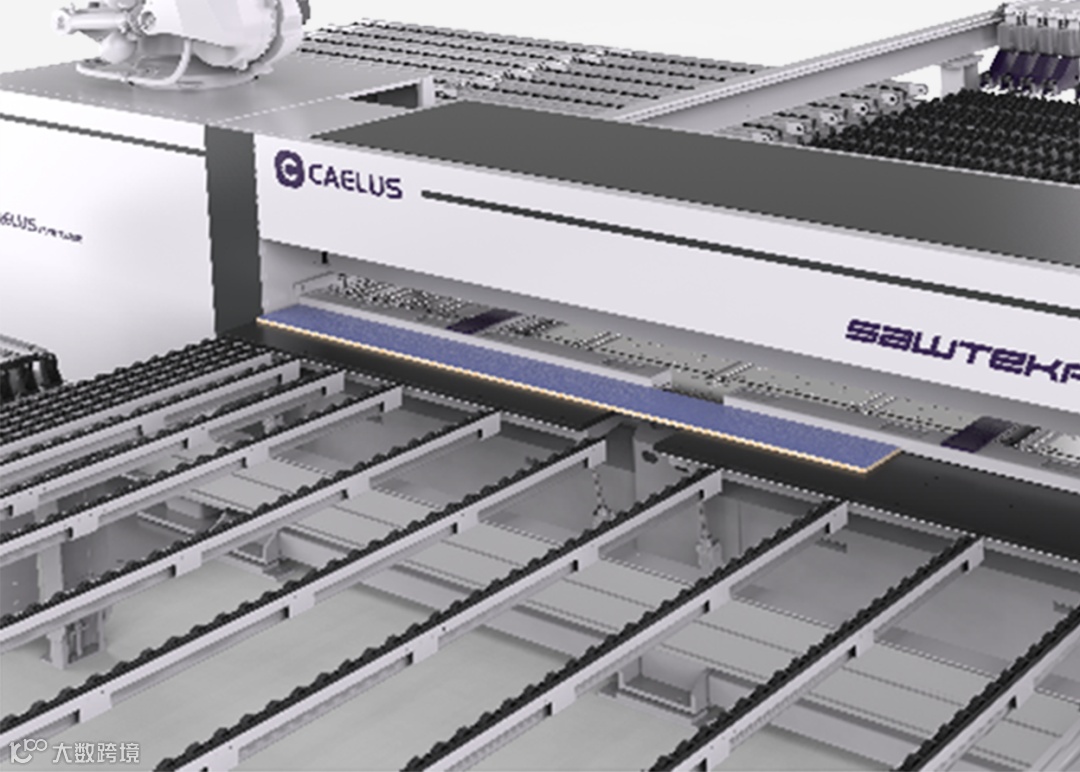

Integrated air jets facilitate the smooth movement of panels and protect materials with highly sensitive surfaces.
3

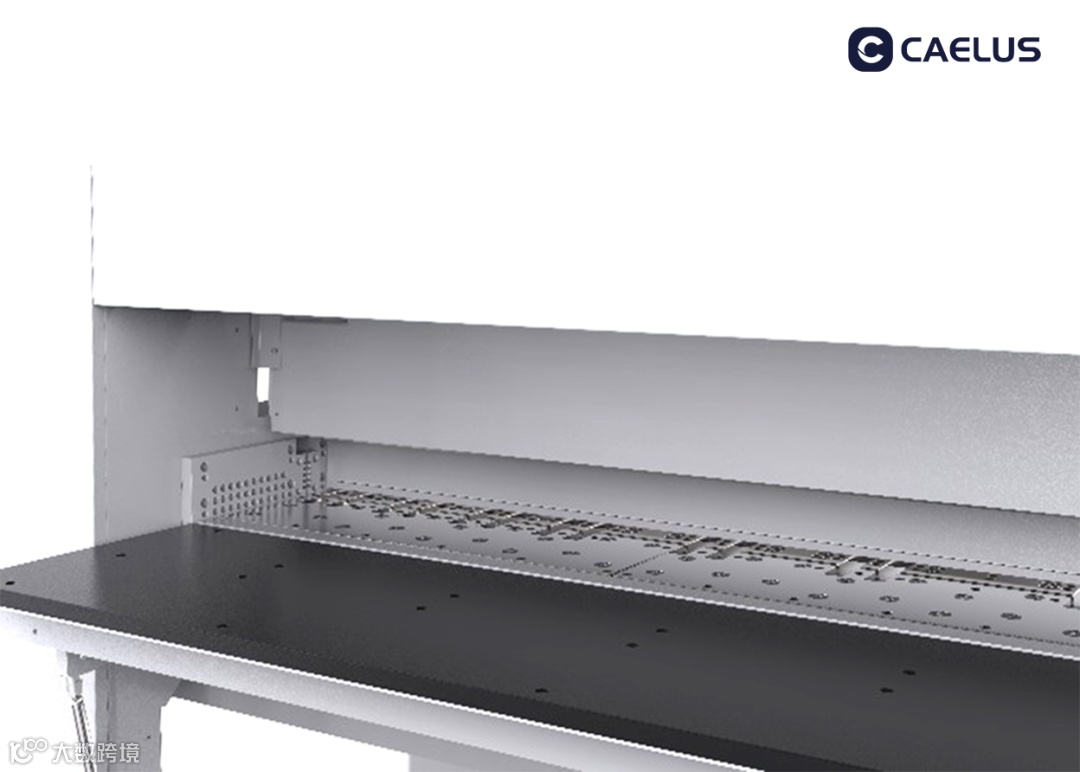

Side Super Dust Extraction
A lateral air jet combined with an angular fence connected to dust extraction and dual-pressure beams forms an enclosed dust channel. Superior dust extraction performance.
4
Magnetic Levitation Saw Carriage

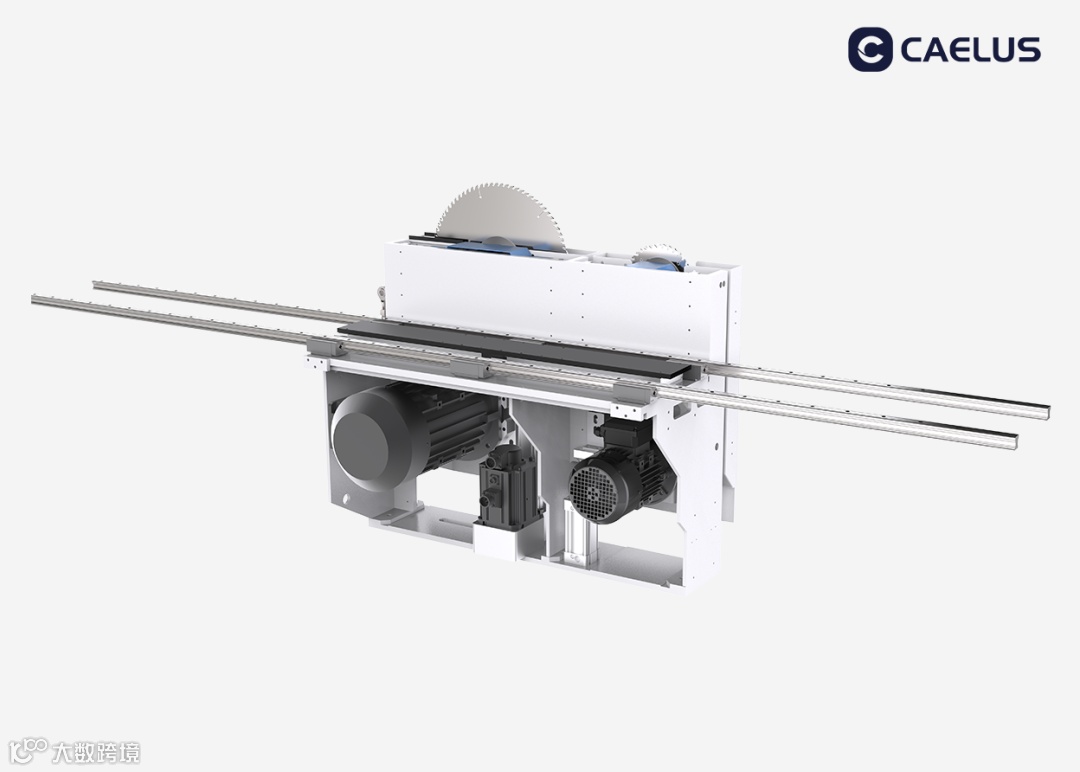

The magnetic levitation saw carriage drive system enables faster and more stable cutting, with a maximum speed of up to 200 m/min.
5

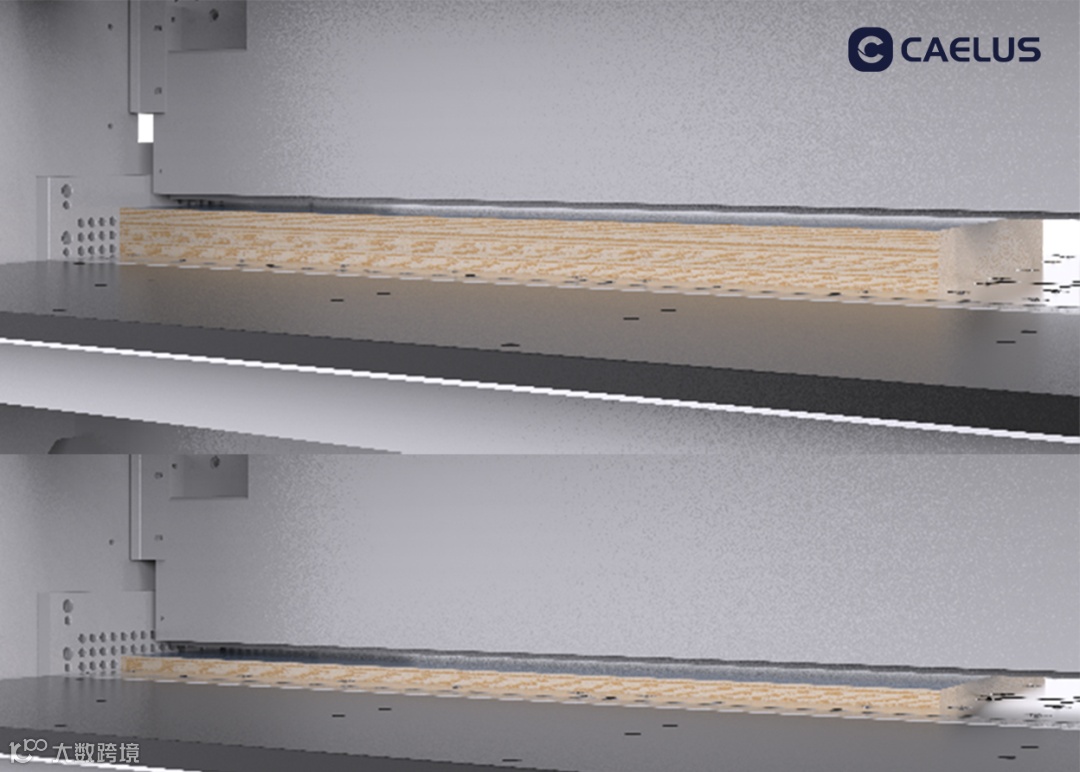

Precise Positioning of Dual Pressure Beams' Lifting

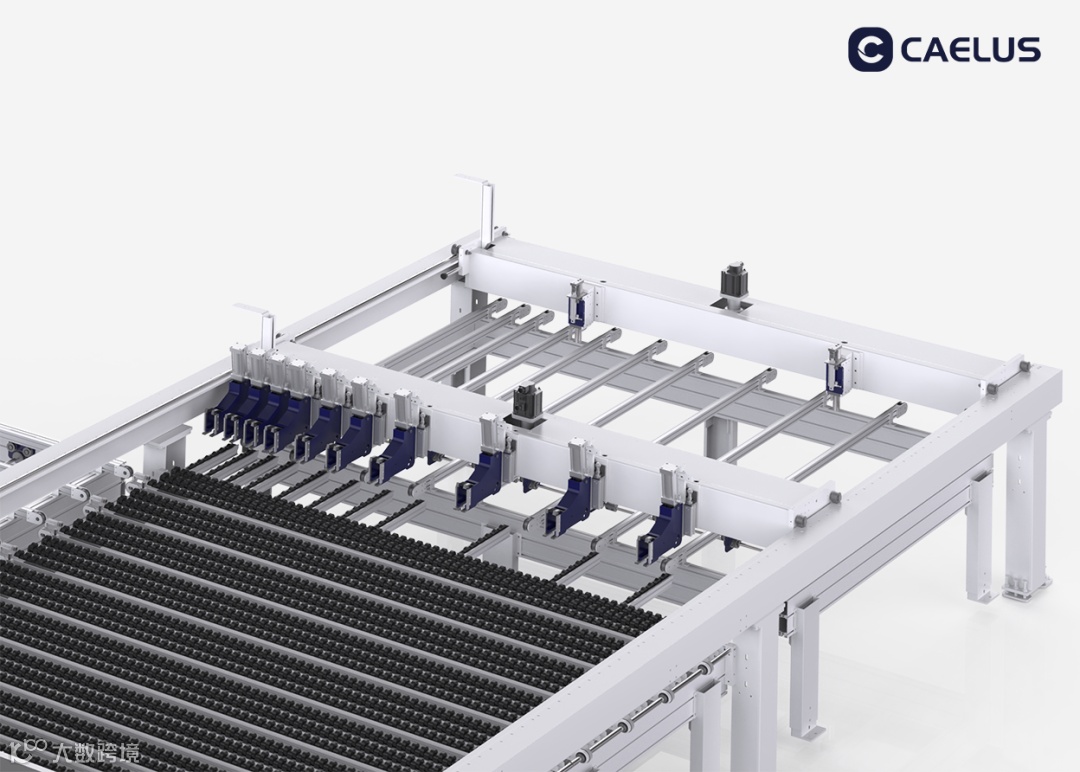

Equipped with dual pressure beams, their lifting adopts a magnetic measuring device for precise measurement and positioning. The height of the pressure beams is automatically adjusted according to the panel height, reducing idle strokes and effectively improving cutting efficiency.
6

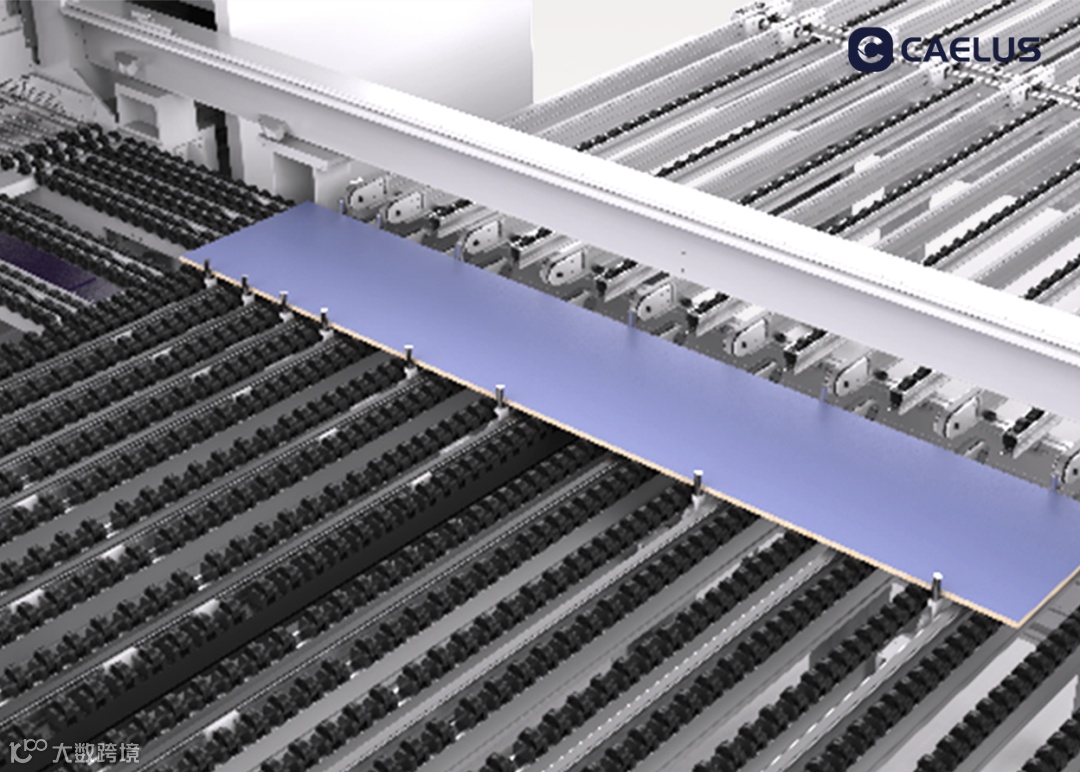

Panel Alignment
The feeding area at the rear of the machine table integrates both longitudinal and transverse wood panel alignment functions, ensuring the stability of automatic clamping.
7
Dual Program Fence Feeding
The program fence and feeding beam operate independently, allowing processing and feeding to occur simultaneously, reducing waiting time for feeding and increasing feeding efficiency by 20%.
8

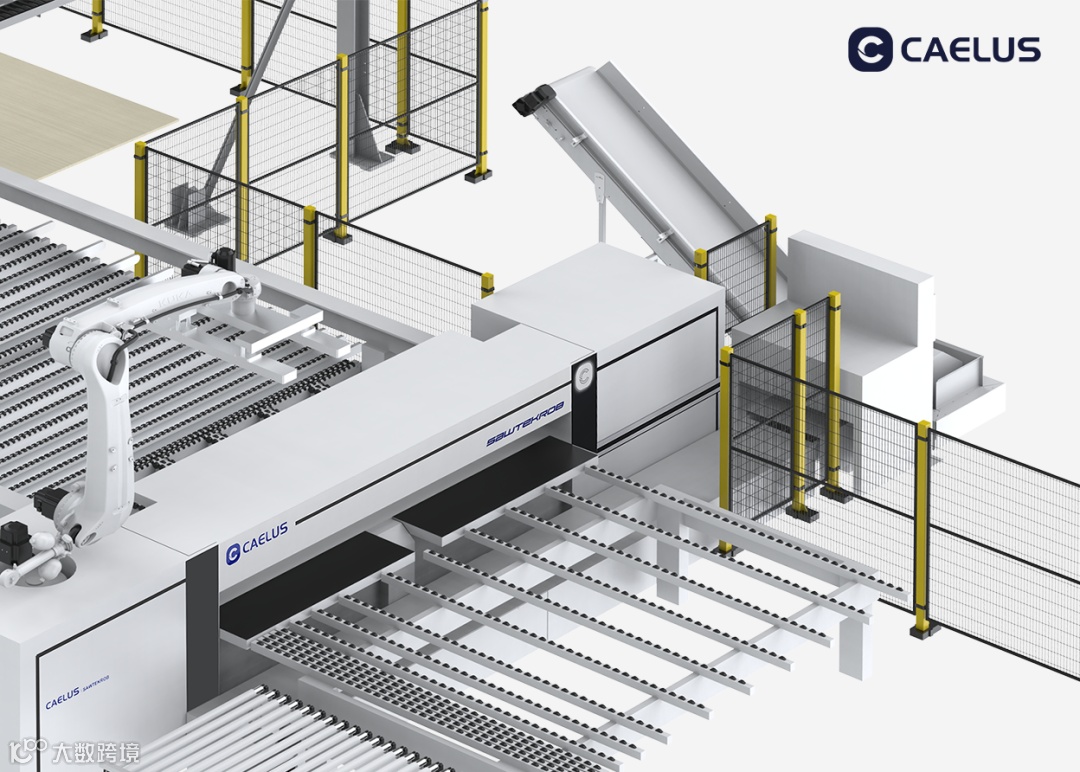

Robot System

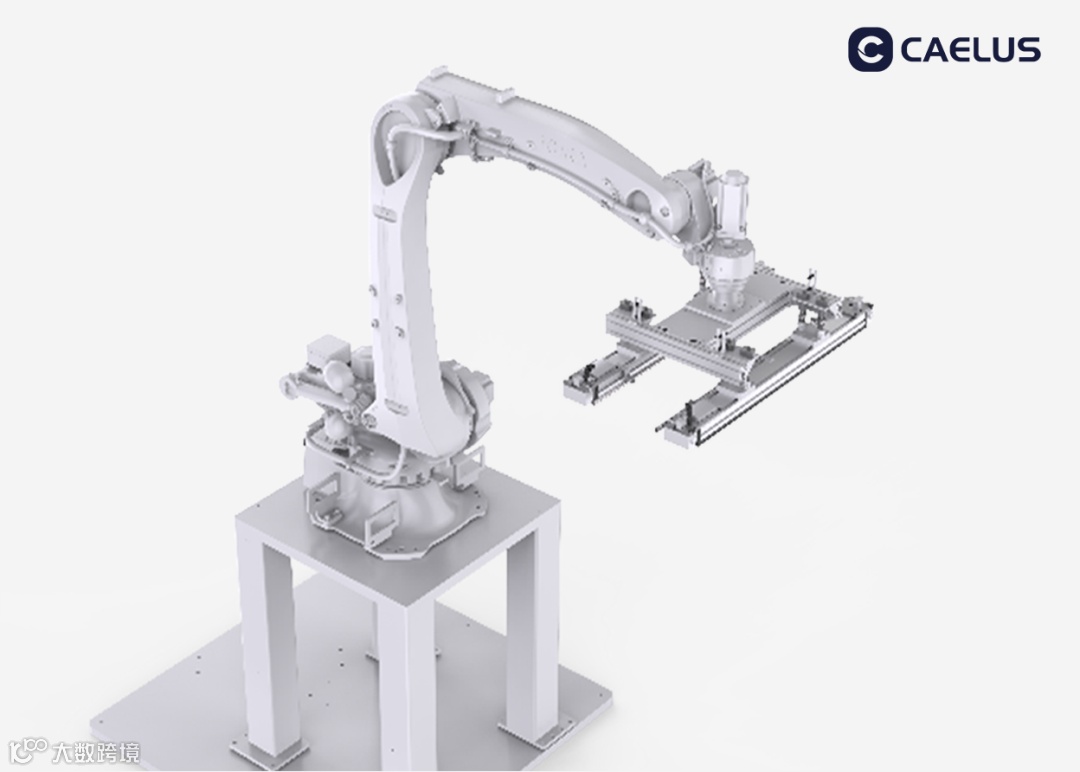

The German KUKA robotic system works in collaboration with the machine, and together with the German Schmalz suction system, it enables the transport of finished and semi-finished panels between the buffering area, feeding area, workpiece discharging area, and labeling area.
9
Buffer System
The buffering system includes side buffering tables and top buffering tables. The top buffering table is mainly used for storing small-sized boards, while the side buffering table is primarily for storing medium to large-sized boards. The wooden boards on the top buffering table require loading by the robotic system, whereas the side buffering table is equipped with a driven belt, allowing for loading and unloading of semi-finished boards.
10
Pushing Device
The pushing device ensures that all discharged wooden boards reach the robot's working area, guaranteeing that the robot can complete the turnover of all required boards. It also ensures that waste material reaches the disposal area, facilitating the timely removal of waste.
11
Waste Disposal System
The automated waste disposal system seamlessly shreds, transports, and collects waste materials ensuring minimal manual intervention.
12

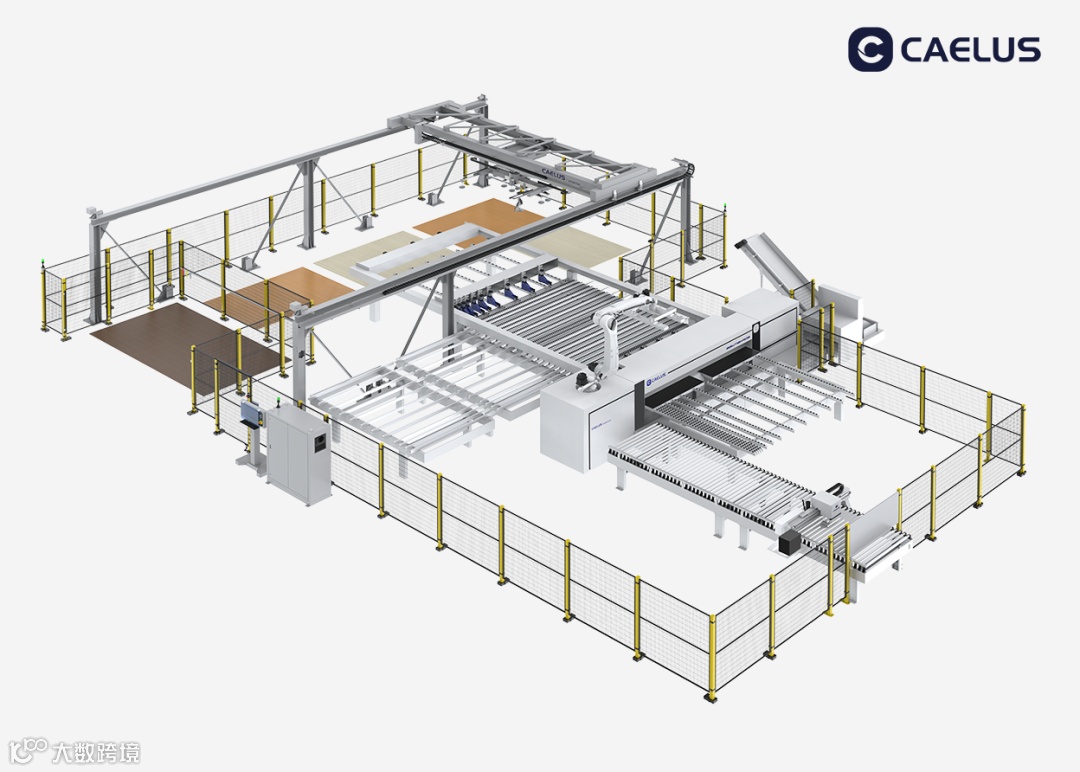

Connection with Storage System
Software in connection with storage system with seamless connection, easy operating from saw to control the storage.
|
Maximum panel size |
3350mm*3350mm |
|
Minimum parts size |
240mm*80mm |
|
Maximum parts size |
2800mm*1200mm |
|
Cutting Thickness |
8-45mm |
|
Main saw motor |
15kW |
|
Saw carriage return speed Max. |
200m/min |
|
Cutting speed Max. |
160m/min |
Optional Features
•Infeed solution
•Waste disposal system
