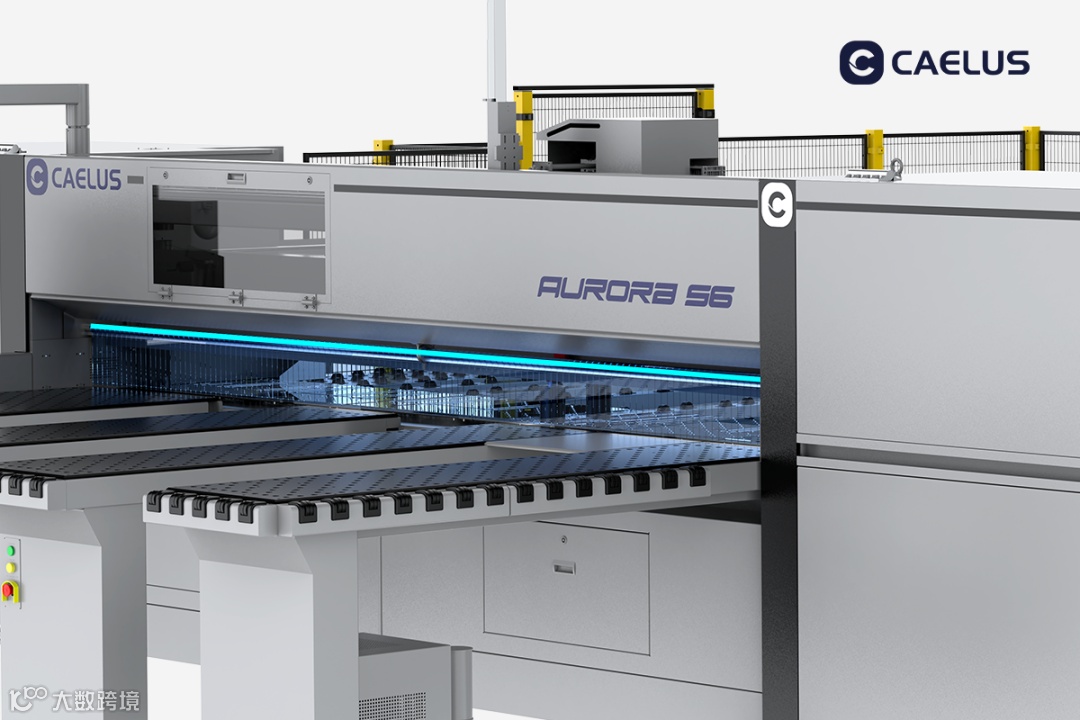

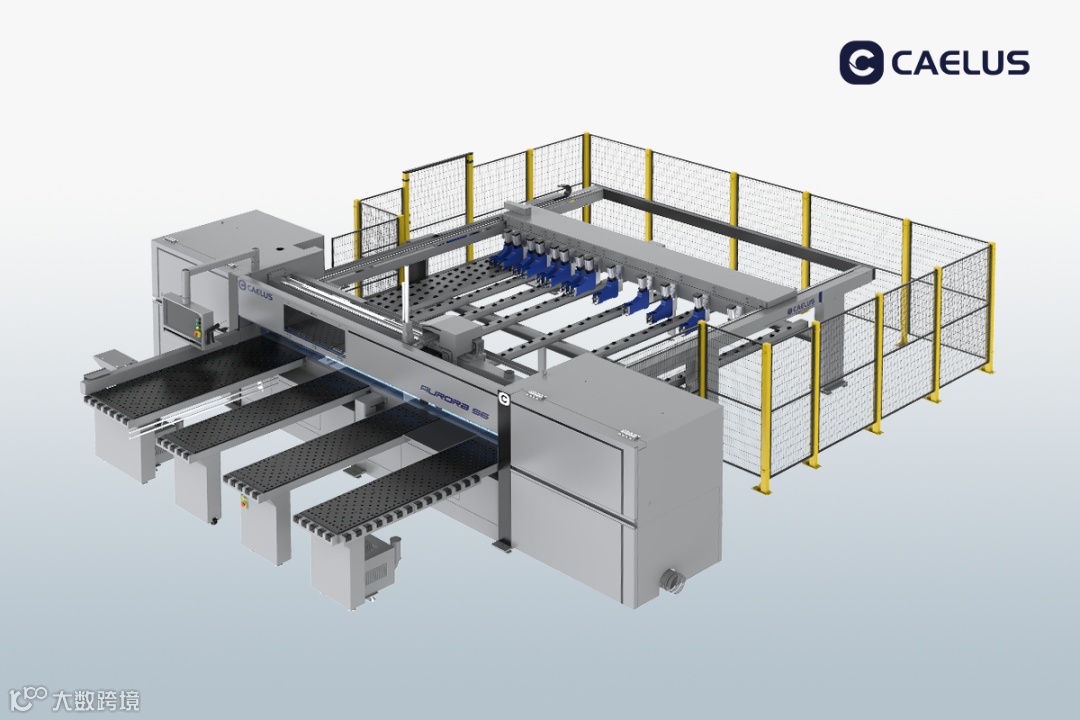

Panel Saw Aurora S6
With the three core technologies of "linear motor driven + intelligent labeling + laser detection", the precision and efficiency of workpiece processing are redefined.
1
The Linear Motor Driven Saw Carriage System
The linear motor driven saw carriage system enables faster and more stable cutting. Its maximum speed can reach 200m/min
2

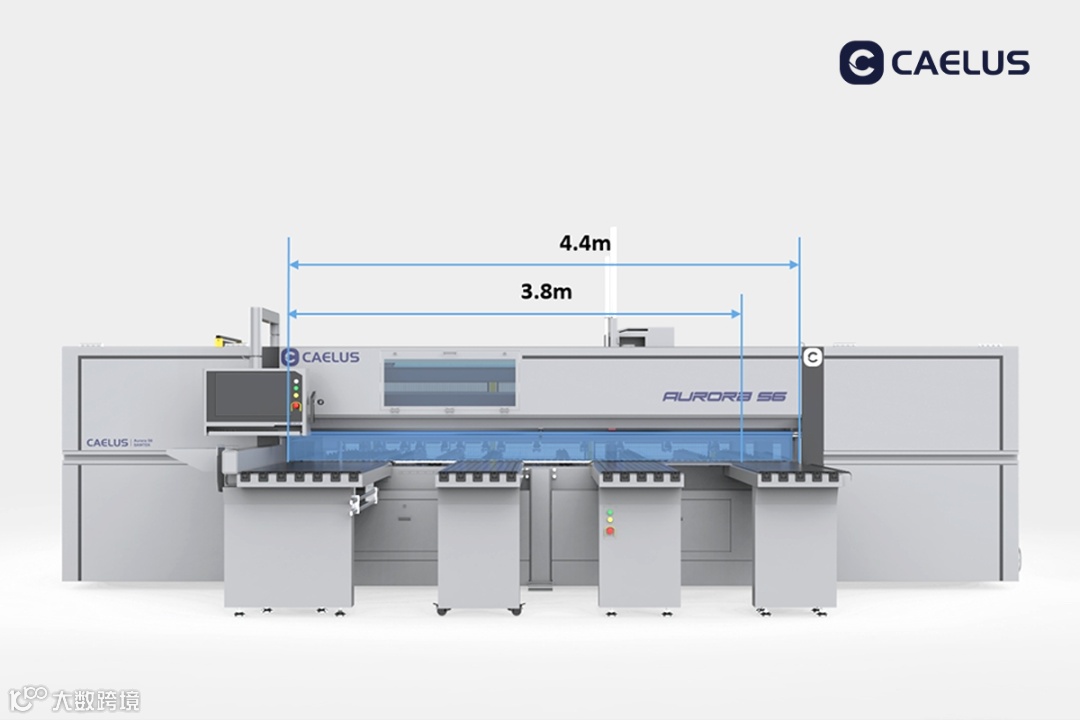

Customizable machine size
Customizable machine size. Maximum cutting lengths available in 3.8m, 4.4m
3

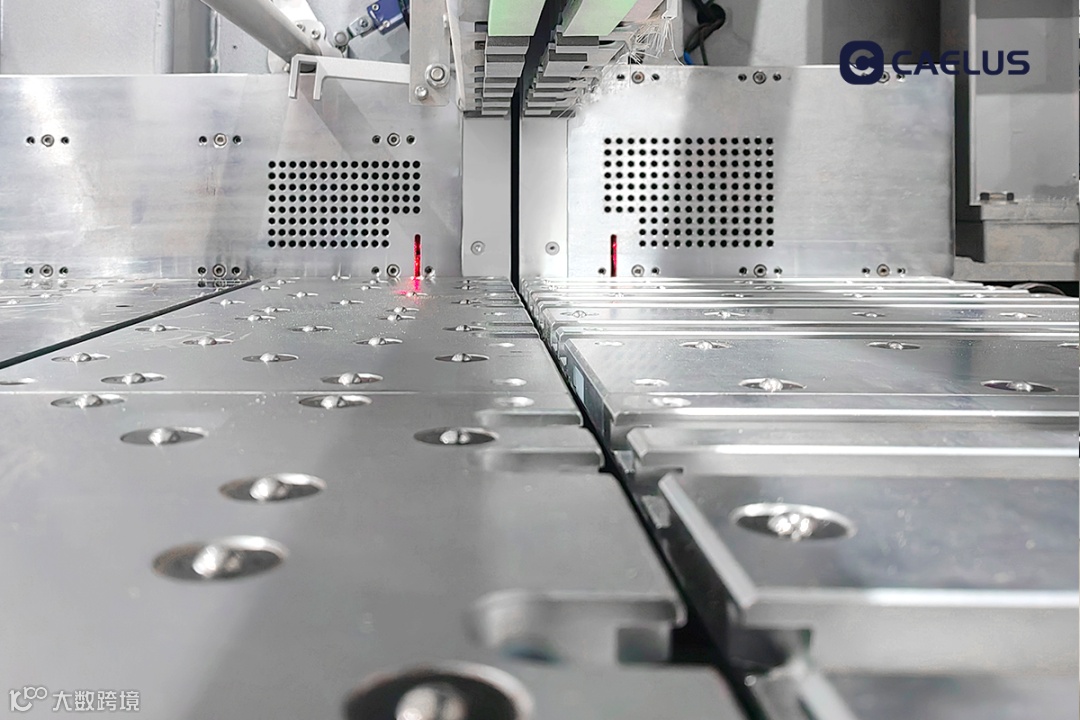

The Intelligent Optical Sawing Auxiliary System
The intelligent optical sawing auxiliary system integrates real-time dynamic tracking of the saw carriage, automated dimensional verification for workpiece compliance, computer vision-assisted alignment guidance, and predictive equipment condition monitoring
4

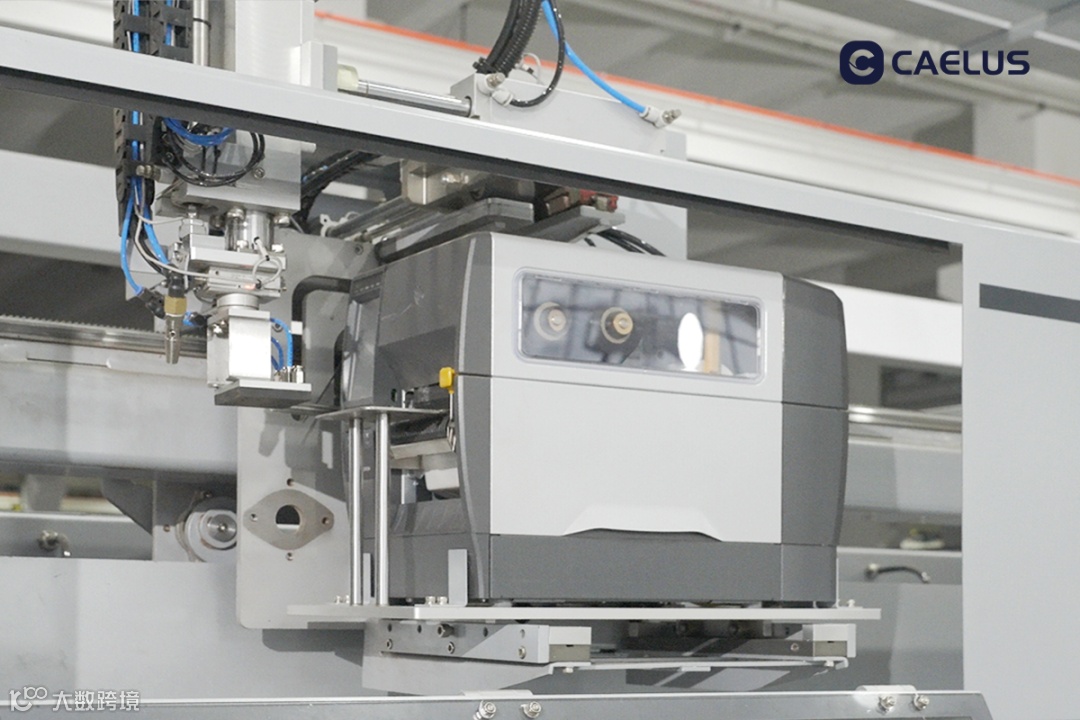

The Intelligent Labeling System
The intelligent labeling system seamlessly integrates with the cutting operation, enabling simultaneous cutting and labeling. It is equipped with a built-in high-pressure air blowing device to remove dust before labeling. With fully automated labeling, it reduces manual intervention and prevents missed or incorrect labeling
5

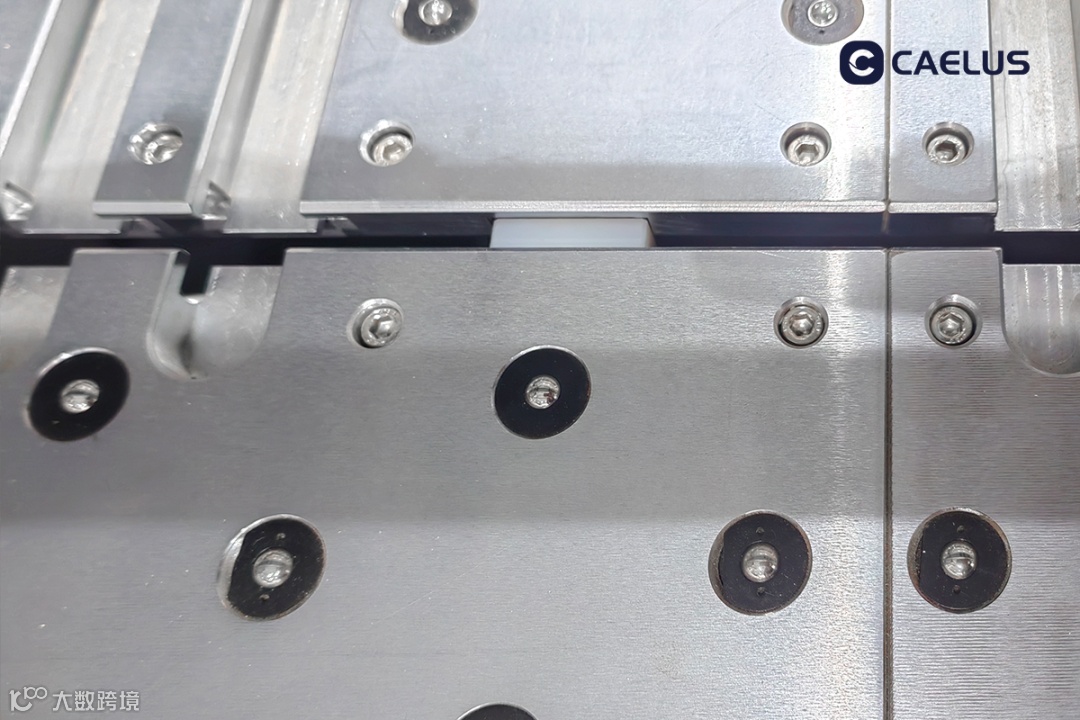

Intelligent Cutting Path Closing System
Intelligent cutting path closing system to prevent strips from falling under the machine table and avoid obstruction of saw carriage movement
6

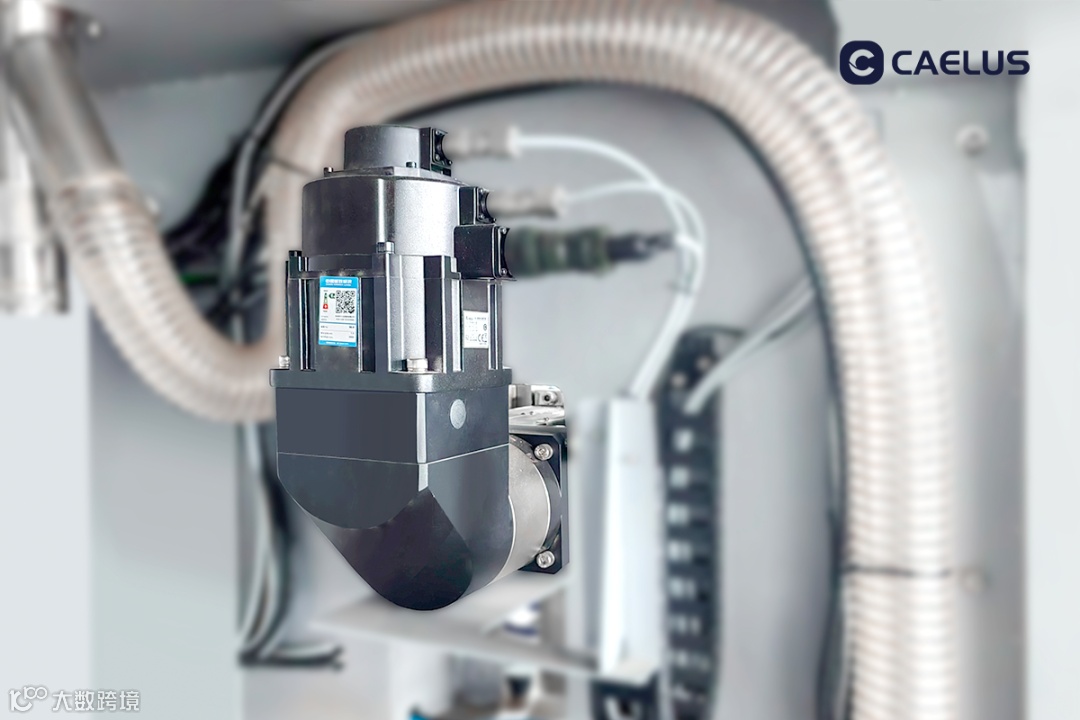

Adaptive Control System
Adaptive control system for pressure beam combined with servo-motor driven, achieving rapid upward/ downward movement and gentle approaching sequences to maximize operational efficiency while significantly reducing impact forces on both processed materials and machine table
7

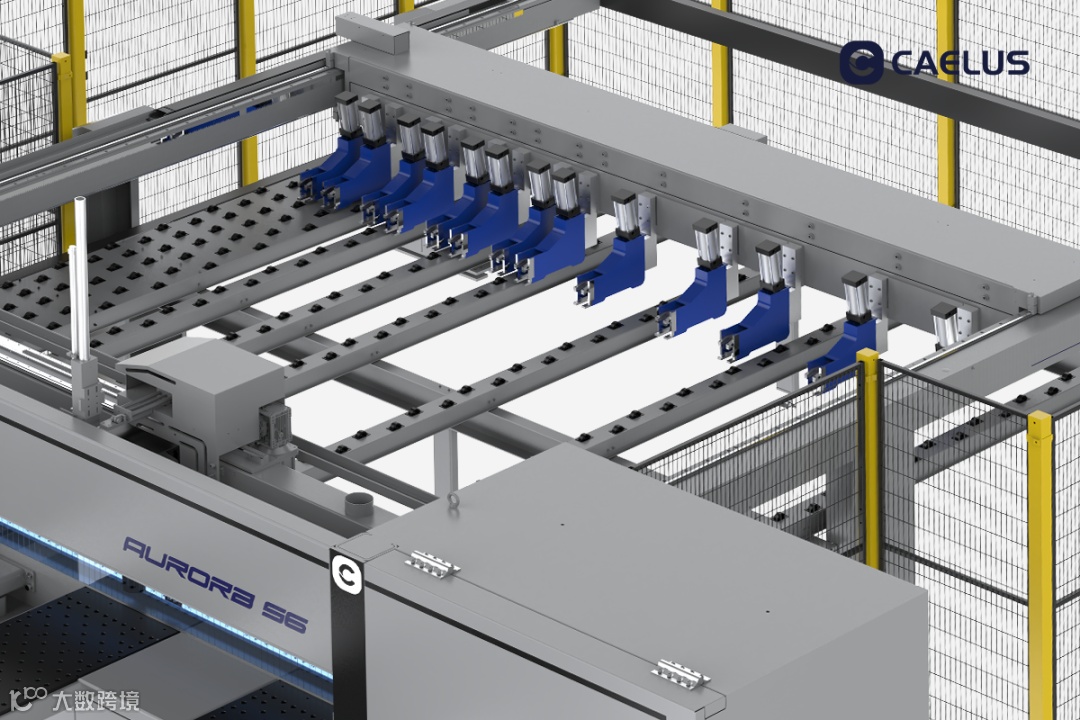

Intelligent Clamps Configured In A Compact, High-Density Arrangement
With higher density clamps and each clamp controlled individually, it can firmly grip the workpiece, ensuring optimal sawing results and smartly avoiding special dimensions
8
Twin Pusher System
Two sets of pushers operate independently, allowing simultaneous cutting of two panels of different sizes, increasing efficiency by 30%
9

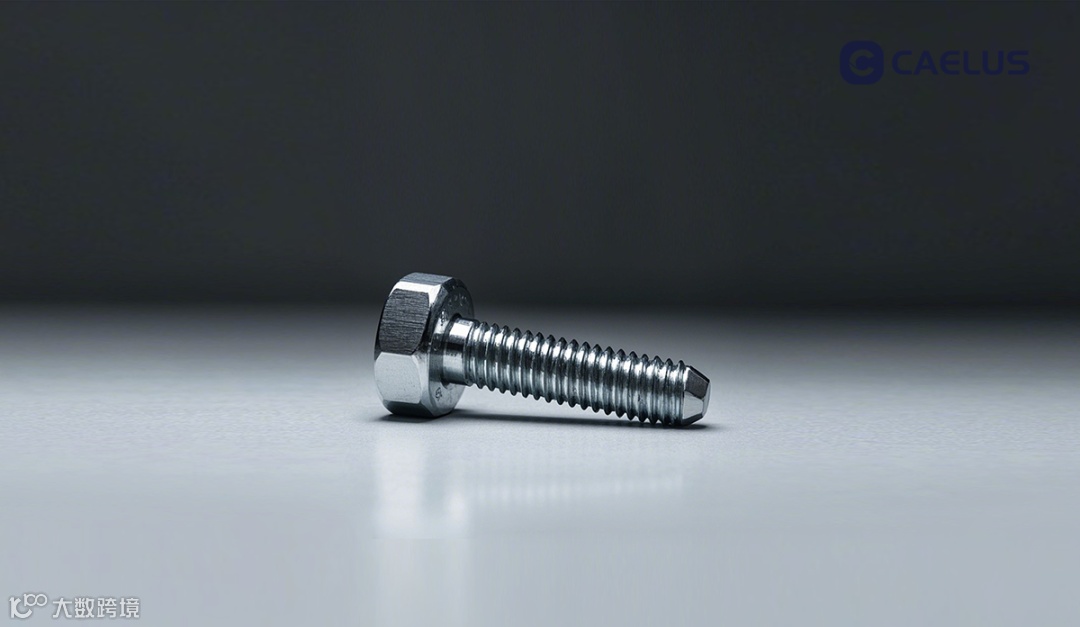

The Entire Machine Uses High-Strength Nickel-Plated Screws
High-Strength Nickel-Plated Screws. With a tensile strength of no less than 1200 MPa and a yield strength of no less than 1080 MPa, these screws are engineered for extreme performance. They are ideal for highly demanding applications such as aerospace and high-speed rail systems.
10

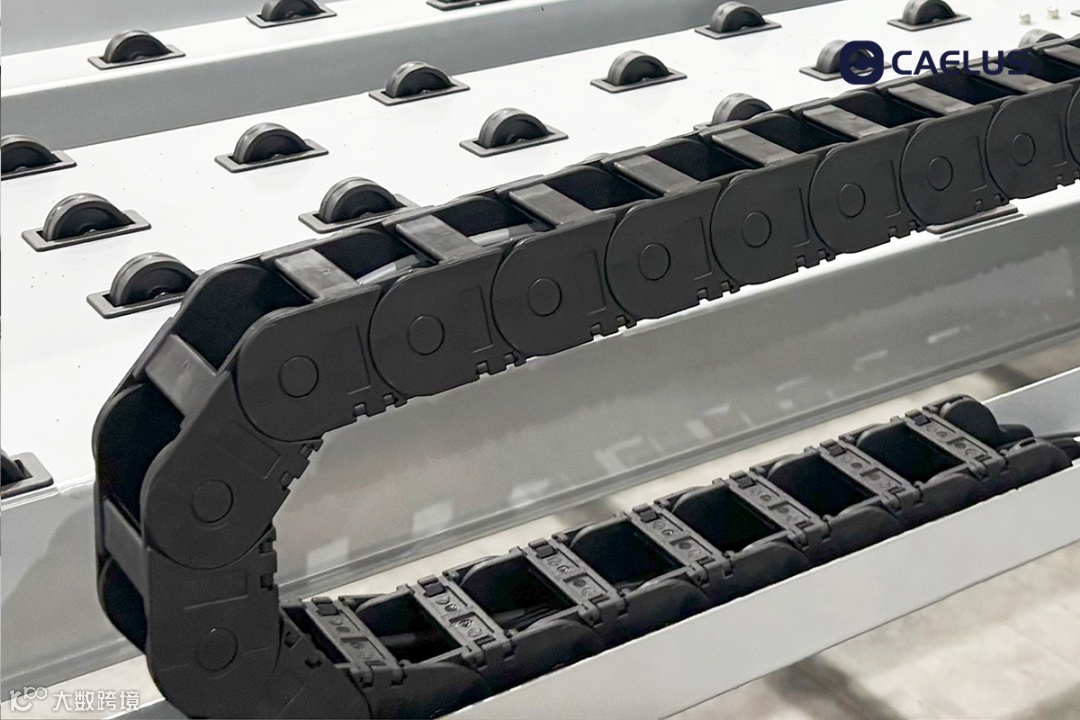

Equipped with Igus Power Chain and Flex-Cable
Equipped with Igus drag-chain and flex-cable, it offers an extremely long service life. The drag-chain can withstand up to 10 million times of bending and friction, ensuring the stable operation of the equipment in high-load working environments
11
The Precision-Ground Machine Table
The precision-ground, hard-chrome-plated steel workbench has a high-precision surface and outstanding wear resistance. Integrated air jets facilitate the smooth movement of panels and protect materials with highly sensitive surfaces
12

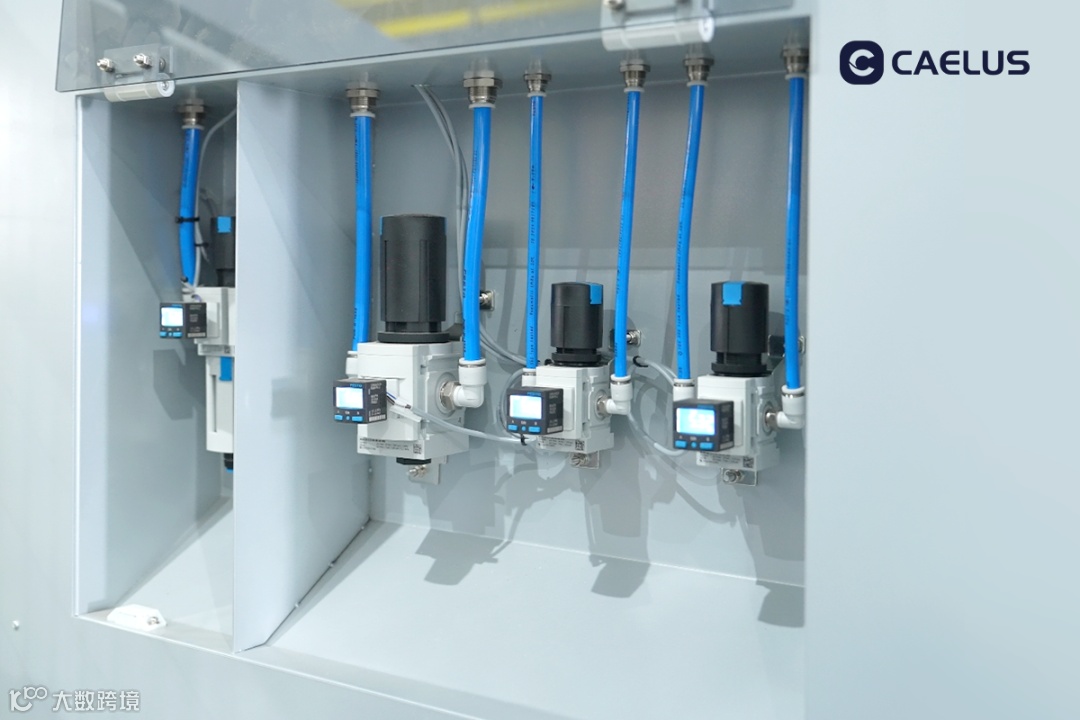

Festo Pneumatic System
The machine is equipped with Festo's Filter- Regulator-Lubricator unit, a precision pressure regulator, hydrolysis-resistant hoses, and an electronic pressure gauge. This configuration ensures clean and stable air supply, with the regulator enabling precise control of air pressure. The hoses are designed to withstand harsh operating conditions, while the gauge provides real-time monitoring of pressure
|
Maximum cutting size |
3800mm*3800mm |
|
Saw blade projection |
120mm |
|
Main saw motor |
22kW |
|
Scoring saw motor |
2.2kW |
|
Saw carriage return speed Max. |
200m/min (linear motor driven saw carriage) |
|
Cutting speed Max. |
160m/min (linear motor driven saw carriage) |
|
Program fence speed Max. |
95m/min |
|
Main saw blade outer diameter * inner diameter |
φ450mm*φ75mm |
|
Scoring saw blade outer diameter * inner diameter |
φ200mm*φ50mm |
The parameters are based on the S6/38 model
Optional Features
• Pressure beam labeling system
• Panel labeling system
• Laser curve detection
• Intelligent cutting path closing
• Precision enhancement module
• Plastic cutting module
• Linear motor driven saw carriage
• Twin pusher system
• Connection with the storage system
• Rear loading with dual program fence
• Turning divice
