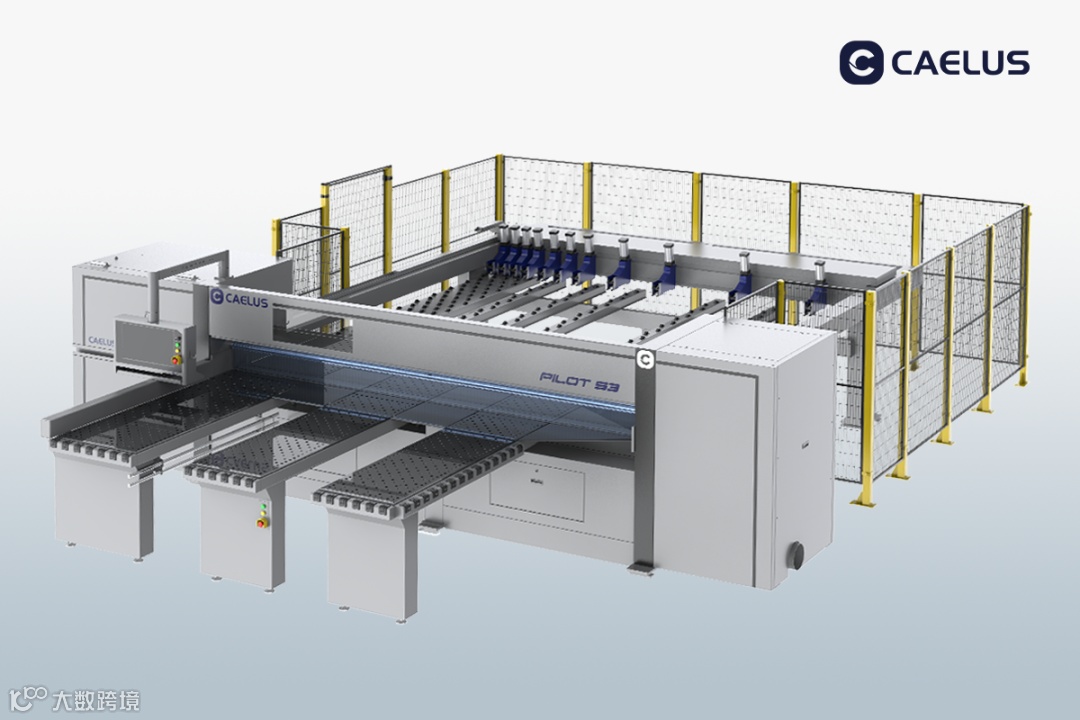

Panel Saw Pilot S3
This electronic panel saw is a premium entry-level model, specially designed for users seeking a high- quality cutting experience. It offers outstanding stability and cutting accuracy,
making everyday wood processing effortless. With optional specialized cutting modules, it can also handle materials like acrylic, meeting diverse production needs. Whether you're upgrading a new furniture factory or aiming for high-standard production, this machine is an ideal choice.
1

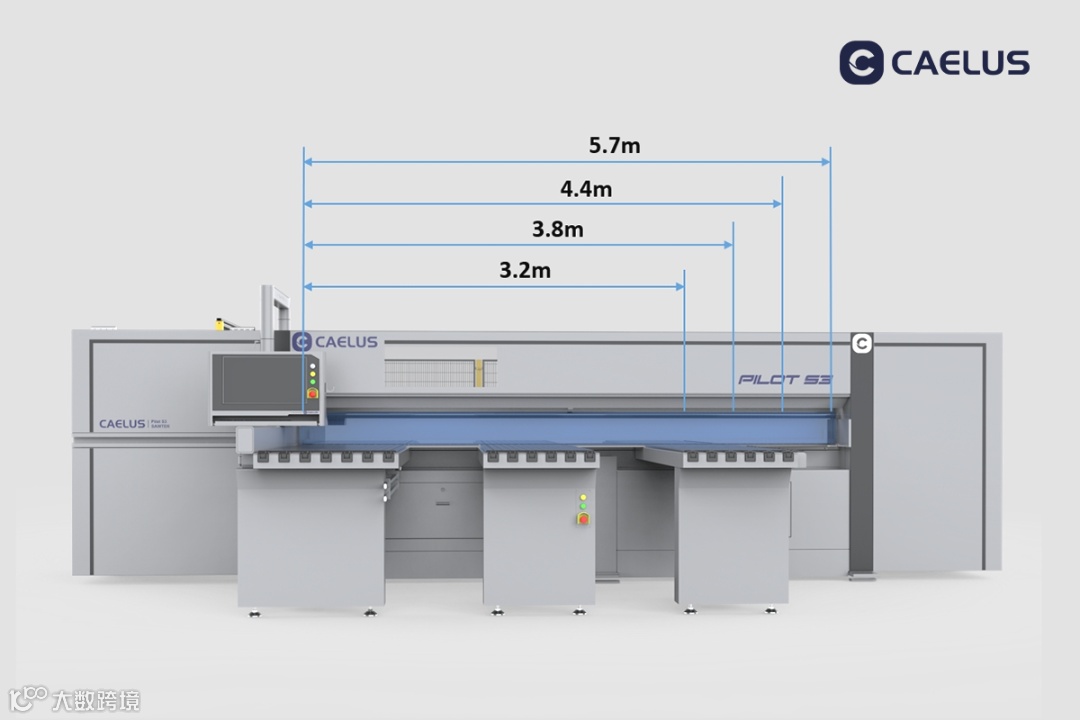

Flexible Sizing to Alleviate Space Concerns
Enjoy customized machine dimensions that cover the full range from 3.2m to 5.7m, eliminating worries about limited space.
2

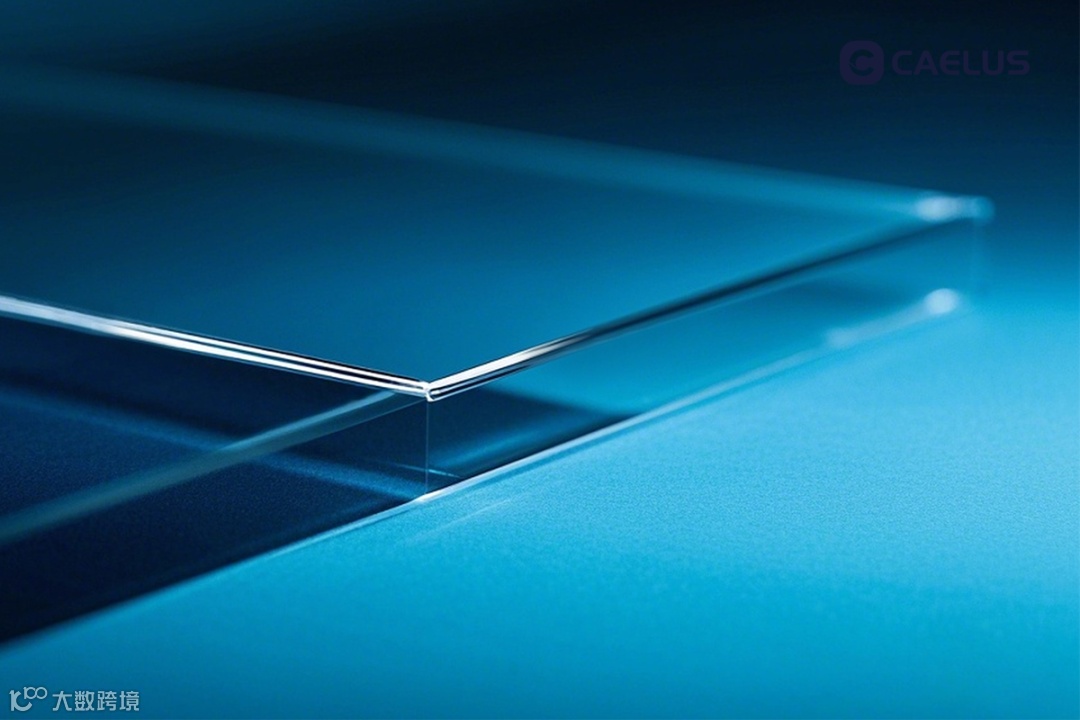

Versatile Sawing Capabilities
It can cut a wide variety of materials, including wooden boards, acrylic, nylon and other composite materials, meeting the needs of furniture manufacturing, advertising, and industrial parts production
3

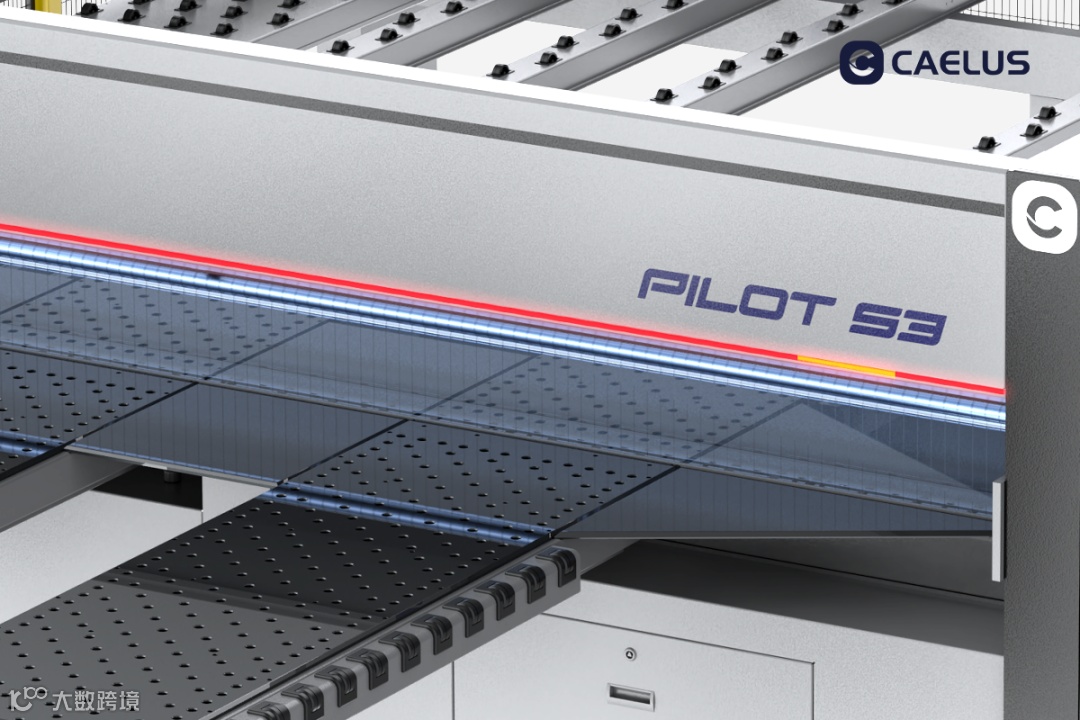

The Intelligent Optical Sawing Auxiliary System
The intelligent optical sawing auxiliary system integrates real-time dynamic tracking of the saw carriage, automated dimensional verification for workpiece compliance, computer vision-assisted alignment guidance, and predictive equipment condition monitoring
4

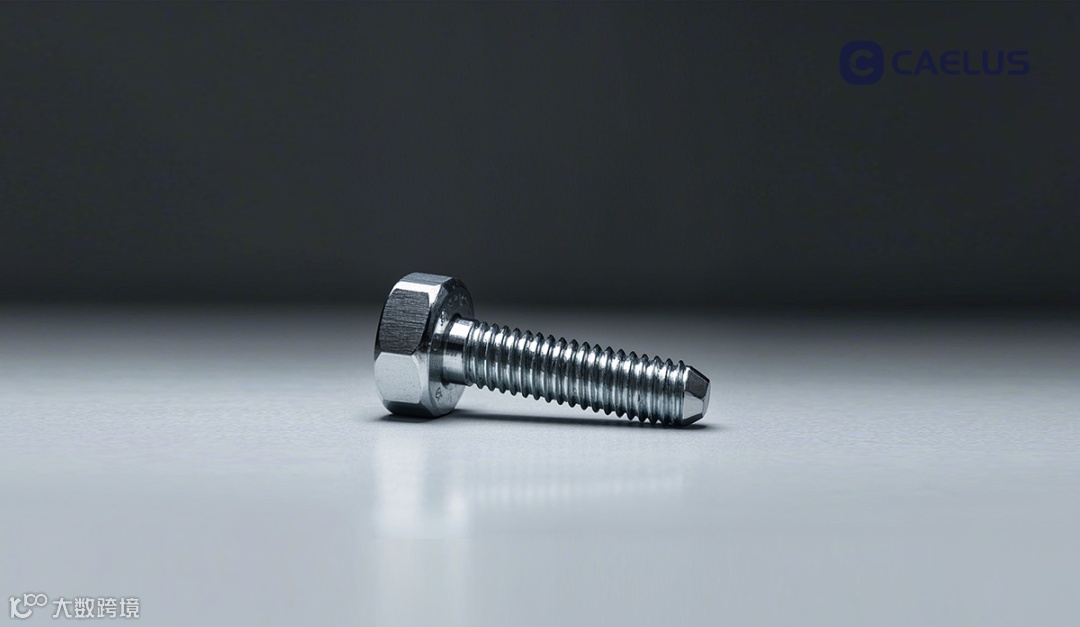

The Entire Machine Uses High-Strength Nickel-Plated Screws
High-Strength Nickel-Plated Screws. With a tensile strength of no less than 1200 MPa and a yield strength of no less than 1080 MPa, these screws are engineered for extreme performance. They are ideal for highly demanding applications such as aerospace and high-speed rail systems.
5

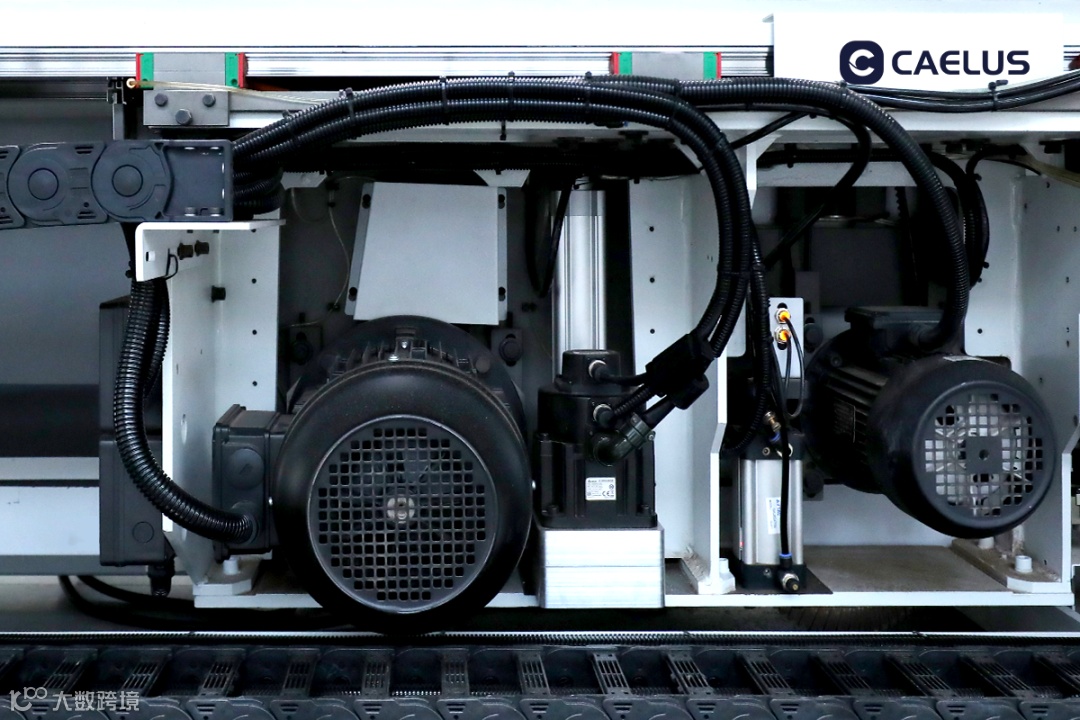

The 22kW Permanent Magnet Synchronous Drive System
The 22kW permanent magnet synchronous drive system offers high torque and low noise. It features intelligent wide-range speed regulation and rapid response
6

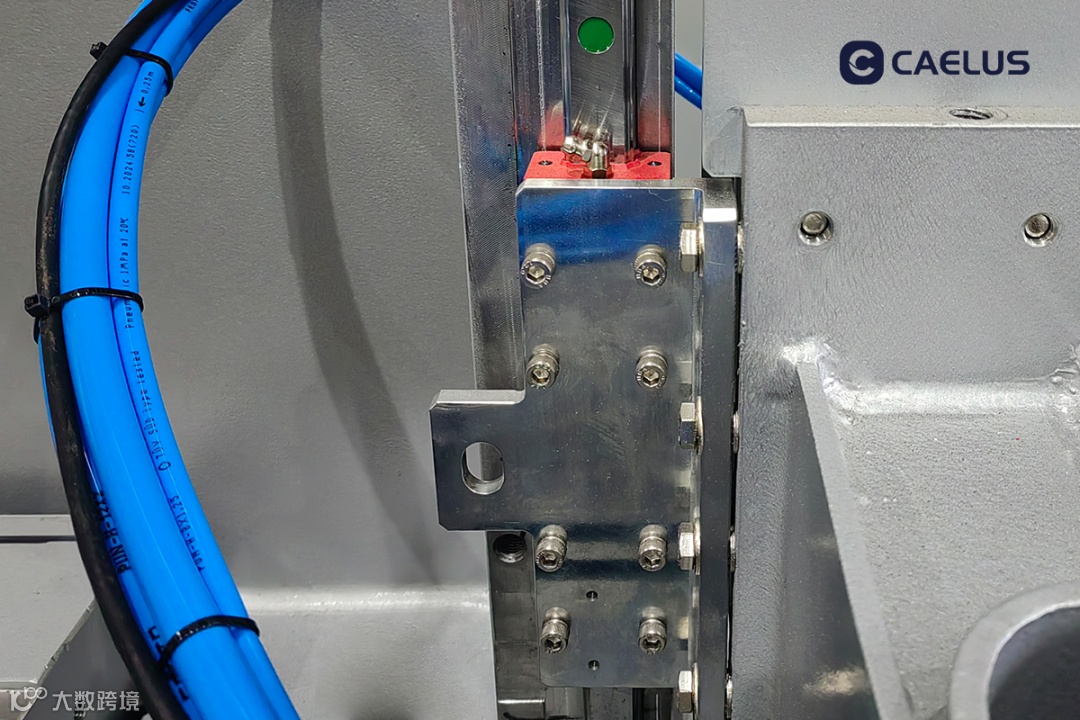

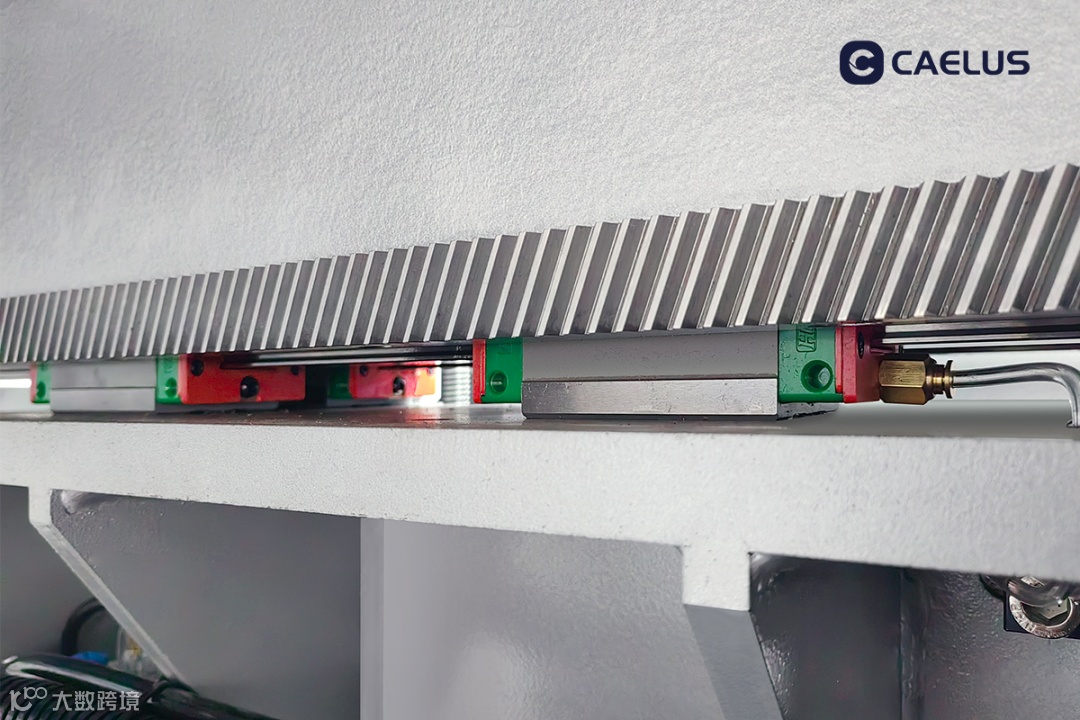

The Drive System
The drive system of the saw carriage utilizes a linear guide rail structure characterized by exceptional rigidity, high precision and superior dust-resistance
7

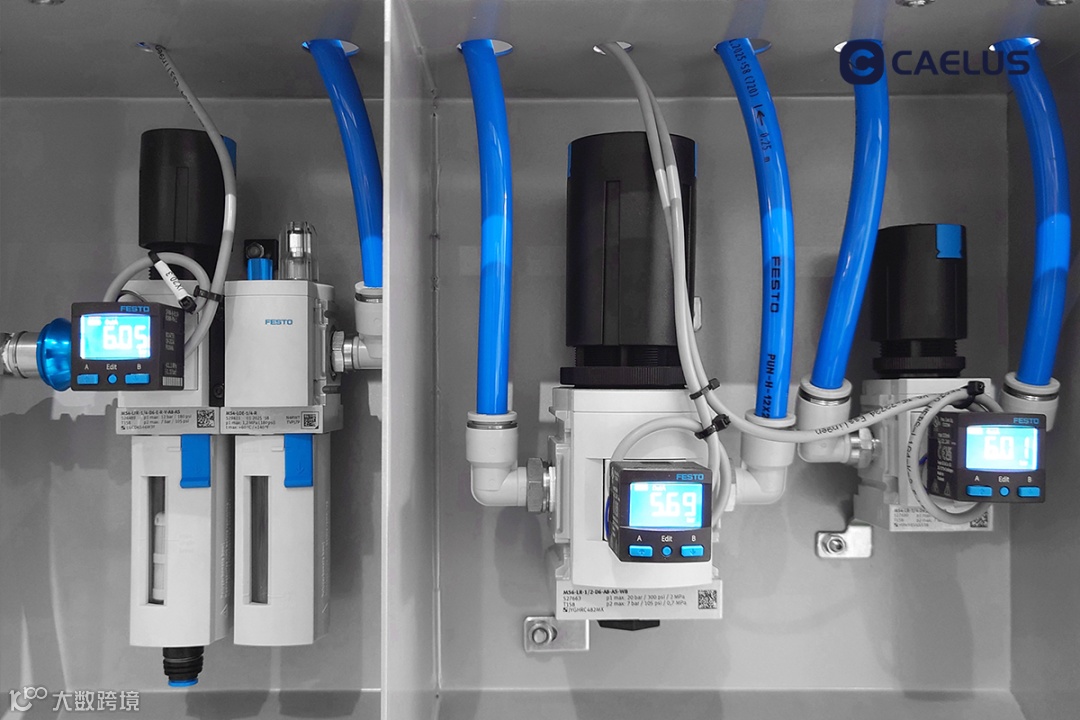

Festo Pneumatic System
The machine is equipped with Festo's Filter- Regulator-Lubricator unit, a precision pressure regulator, hydrolysis-resistant hoses, and an electronic pressure gauge. This configuration ensures clean and stable air supply, with the regulator enabling precise control of air pressure. The hoses are designed to withstand harsh operating conditions, while the gauge provides real-time monitoring of pressure
8

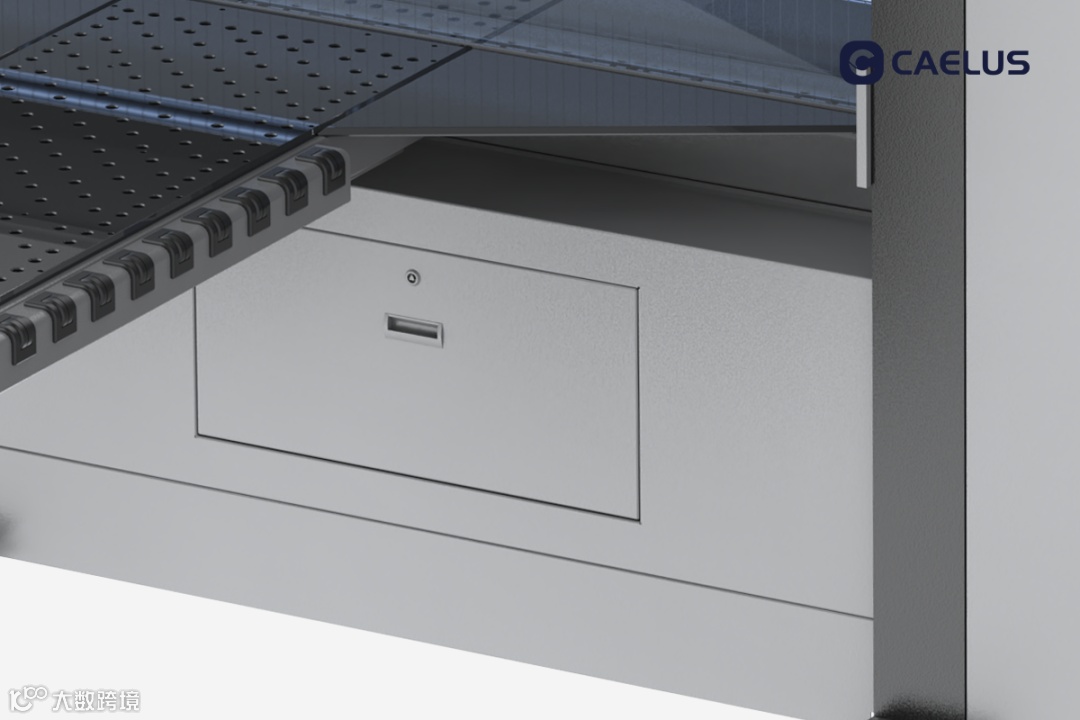

Cleaning Position
Allowing easy removal of cutting waste
9

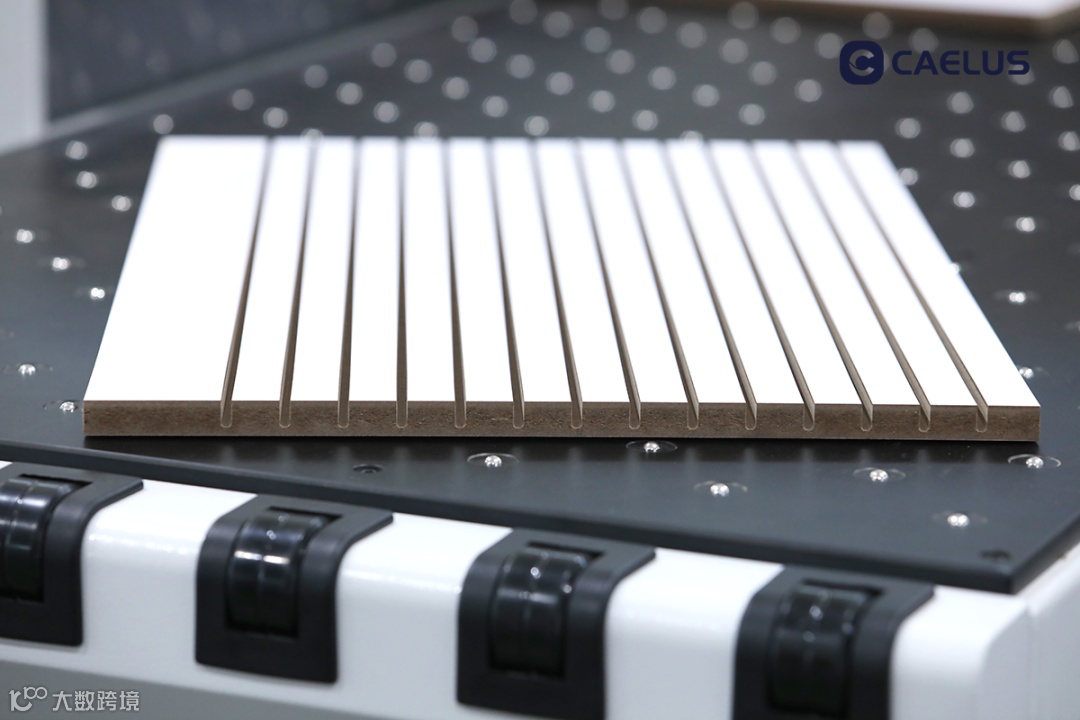

Servo-Controlled Main Saw Lifting
The main saw's lifting is servo-controlled. It can automatically adjust the rising height according to the cutting thickness and features an accurate grooving function
10
The Pressure Beam
The pressure beam, guided by linear guide rails, moves up and down more smoothly. With the "Adaptive Pressure Control for Pressure Beam" option, it can automatically adjust the pressure
11

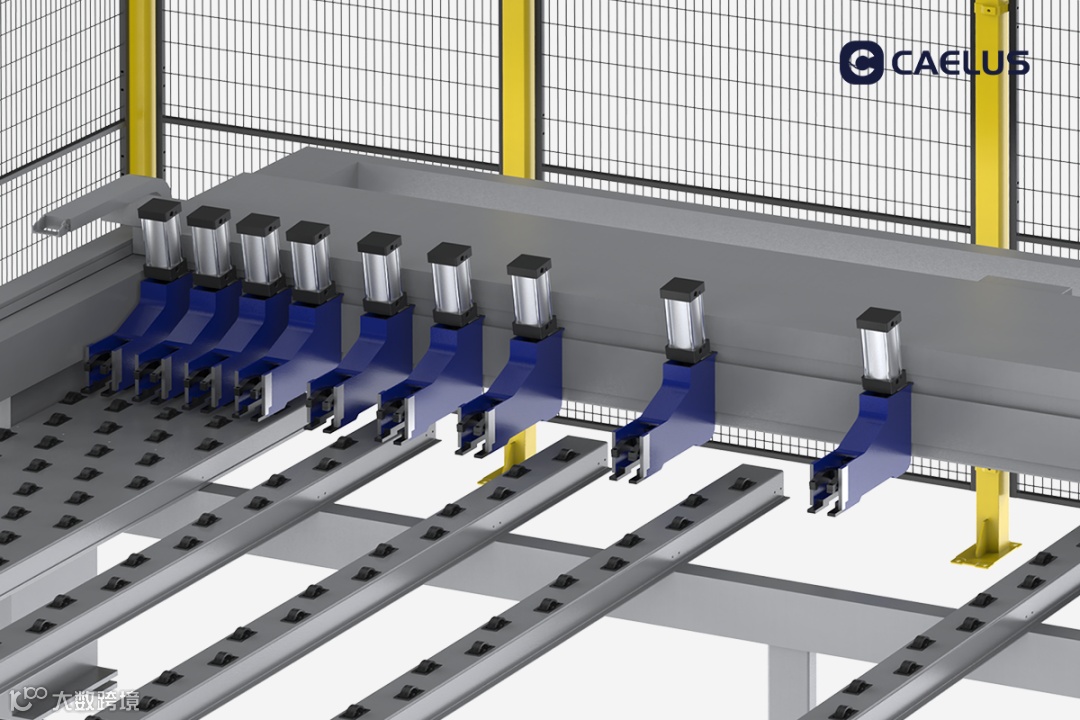

With Higher Density Clamps
With higher density clamps, the system can firmly grip the boards, ensuring optimal cutting results
|
Maximum cutting size |
3800mm*3800mm |
|
Saw blade projection |
120mm |
|
Main saw motor |
22kW |
|
Scoring saw motor |
2.2kW |
|
Saw carriage return speed Max. |
125m/min |
|
Cutting speed Max. |
125m/min |
|
Program fence speed Max. |
95m/min |
|
Main saw blade outer diameter * inner diameter |
φ450mm*φ75mm |
|
Scoring saw blade outer diameter * inner diameter |
φ200mm*φ50mm |
The parameters are based on the S3/38 model
Optional Features
• Adaptive pressure control for pressure beam
• Plastic cutting module
• Steel table
• Connection with the storage system
• Rear loading with dual program fence system
