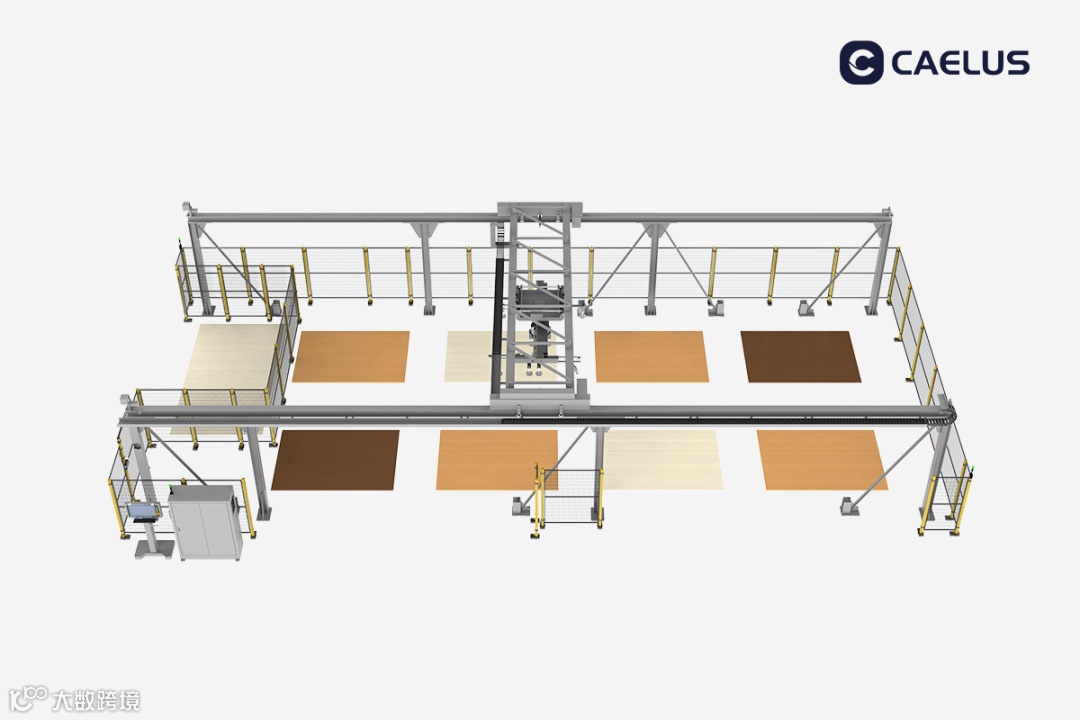

Storage System StoreTek 5

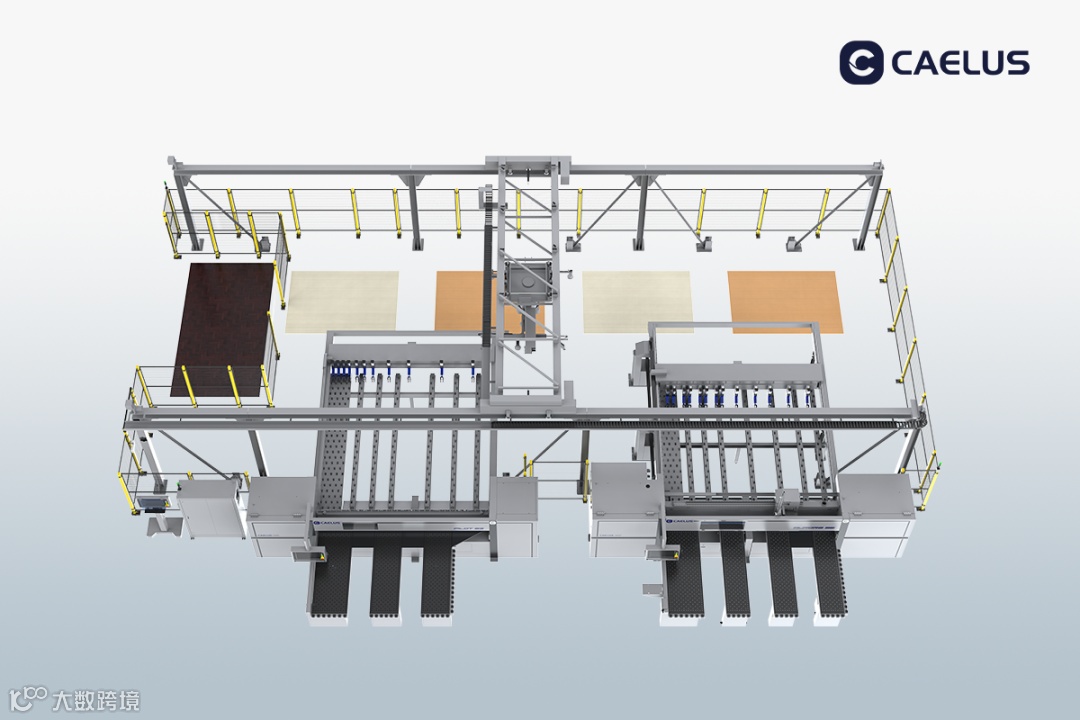

Intelligent sorting, dynamic buffering, autonomous scheduling, and seamless coordination between the storage system and the panel saw. It offers flexible combination, and can be paired with front-loading panel saws, rear-loading panel saws, flexible cutting cell and CNC. The size of the storage can be customized flexibly.
• Smart positioning: The multiple categories of panel specifications can be stored, retrieval automatically
• Proactive material preparation logic: Intelligent buffering according to the production plan, shortening the waiting time
• Saving labor costs: Automatic infeed and outfeed, reducing labor force
1
Intelligent Panel Selection System
Capable of storing a wide variety of panel types and specifications. When a specific panel is needed, the system automatically and accurately selects the required panel without manual intervention, ensuring rapid and efficient production support
2

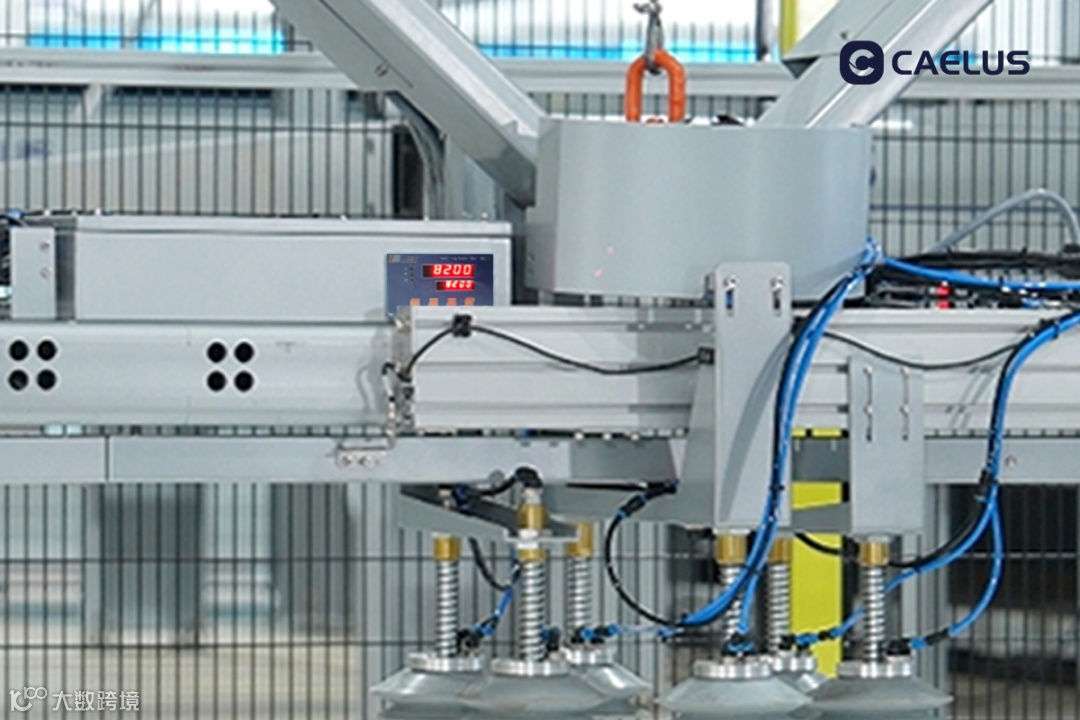

Load Monitoring System
Load monitoring system, smart detection of plate adhesion, overload prevention, plate detaching module-ensures precise separation of adhered plates
3
Turning Device
Automatically completes panel rotation and coordinates with the standard saw to adjust the cutting sequence, enhancing equipment versatility
4

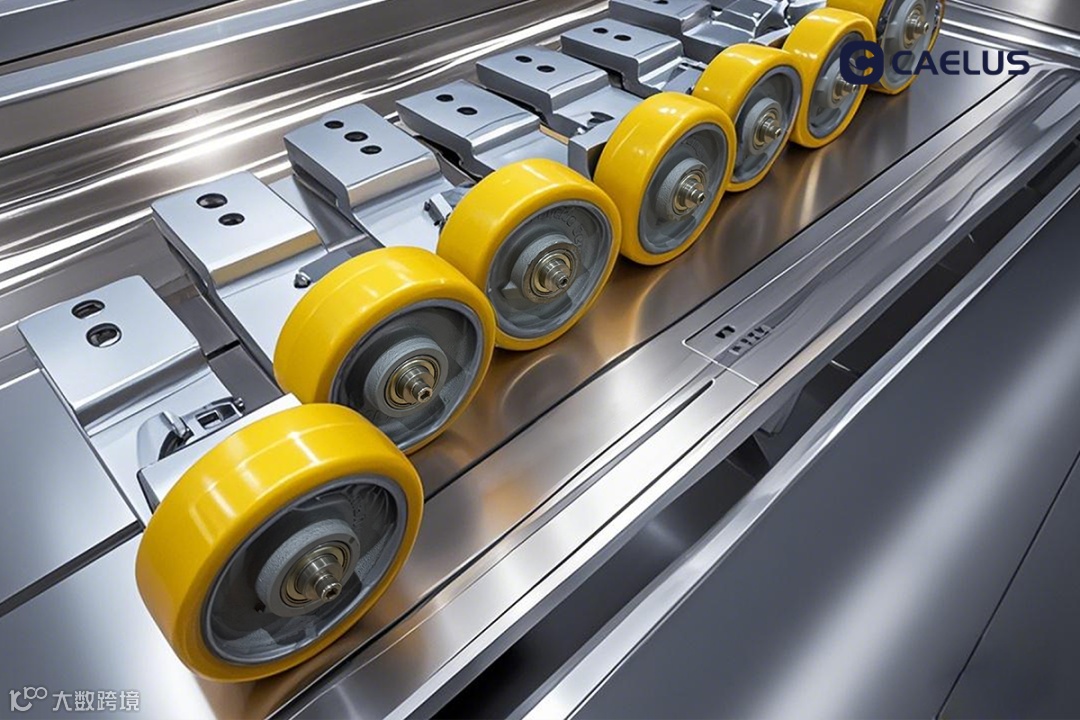

Blickle Silent Wheels
Blickle silent wheels, low rolling resistance, high dynamic load capacity, Ultra-Wear-Resistant and high tensile strength
5

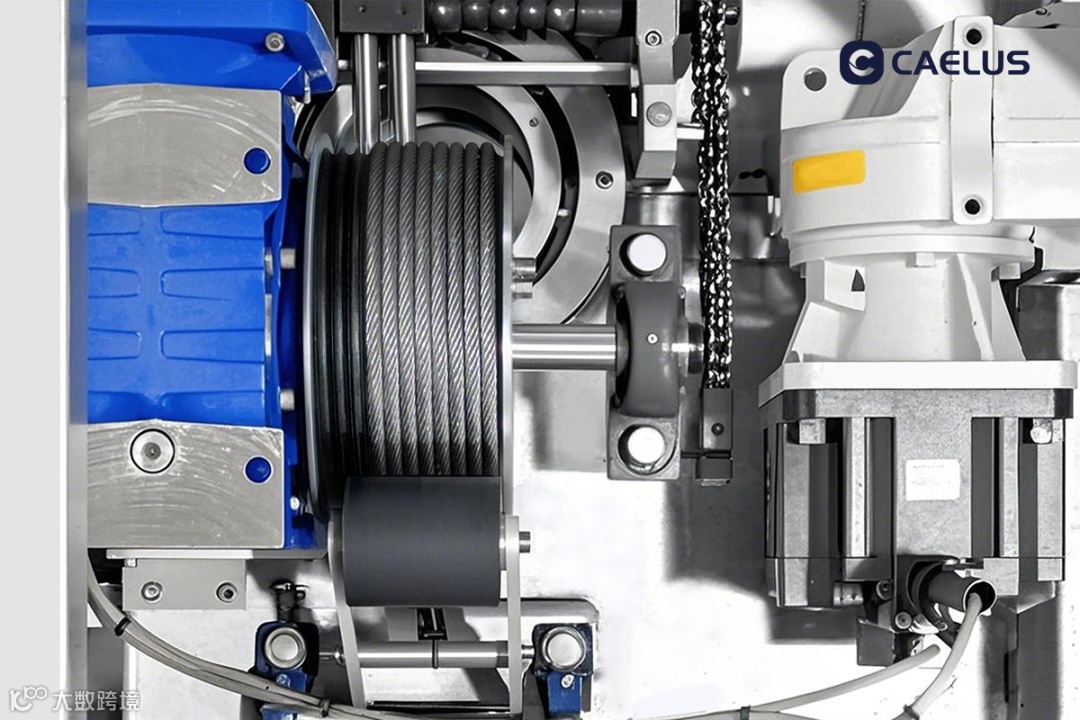

Lebus winding drum technology
Lebus drum technology effectively prevents the wire rope from crossing and tangling, ensures smoother operation, and significantly extends the service life of the wire rope
6

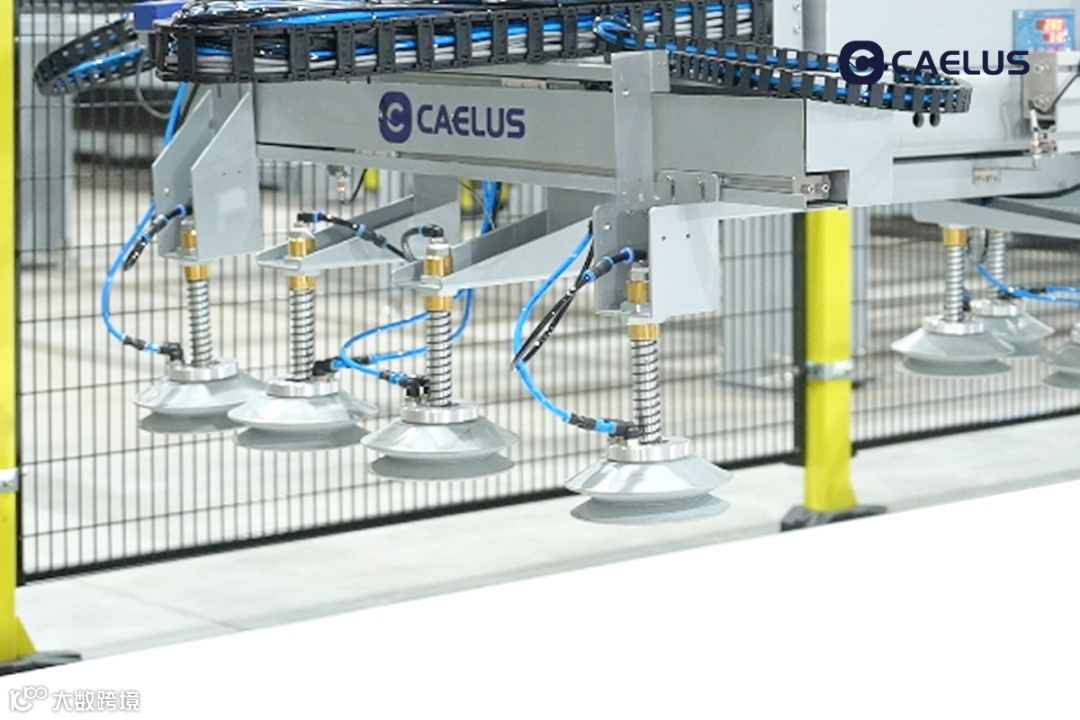

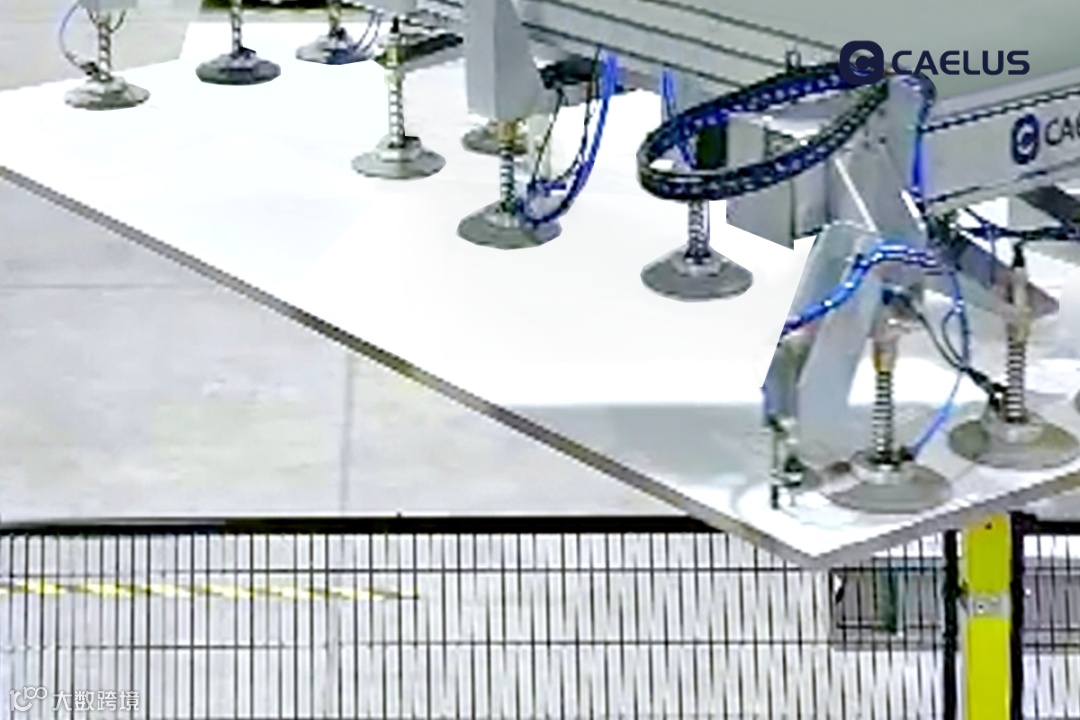

Schmalz Suction System
Schmalz suction system, individual controlled suction cups, adapt to the board dimension automatically
|
Storage width (range) |
5m-12m |
|
Storage length (travel path) |
10m-50m |
|
Workpiece length |
2000mm-4200mm |
|
Workpiece width |
800mm-2200mm |
|
Workpiece thickness Min. |
3mm |
|
Panel weight Max. |
250kg |
|
Stack height |
2100mm |
|
Speed of carriage |
80m/min |
|
Speed of Bridge |
60m/min |
|
Speed lifting drive Max. |
45m/min |
Optional Features
• Range size
• Travel path size
• Infeed unit
• Outfeed unit
• Rainbow stack unit
• Ground steel support
