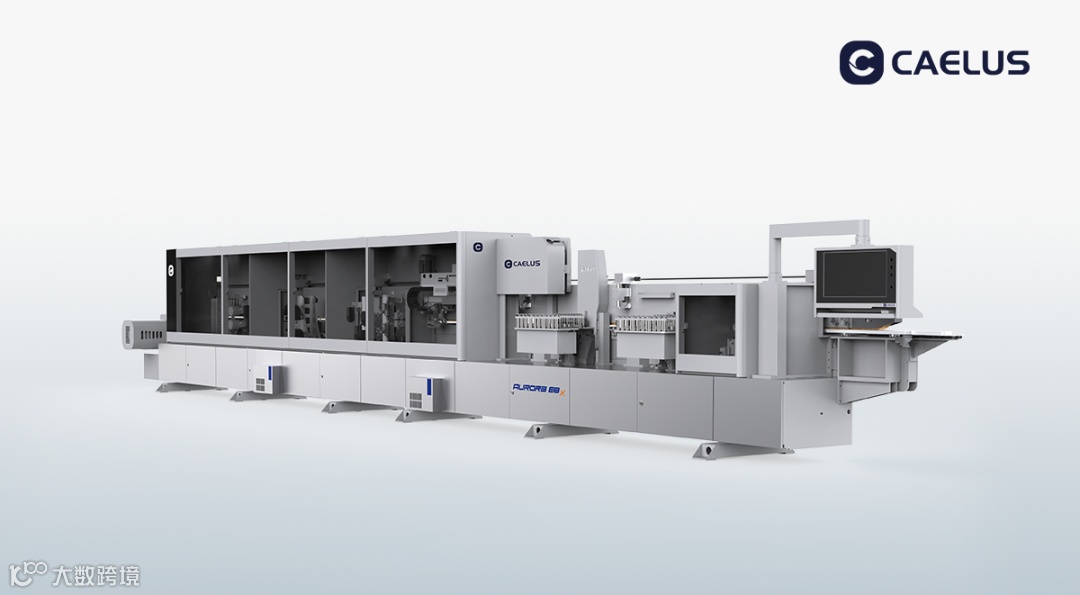

High Speed Intelligent Edge Banding Machine Aurora E8x
The E8x high-speed intelligent edge banding machine is compatible with EVA / PUR / Laser edge banding technologies. Featuring a heavy-duty steel structure integrated with a full servo positioning system, it is equipped with dual 12-coils servo edge magazine, 42m/min high-speed horizontal snipping unit, dual linear motor driven corner rounding unit, and dual tracing wheels on fine trimming unit and profile scraping unit with servo positioning. Combining millimeter-level precision with excellent efficiency, it establishes new benchmarks in premium edge banding.
1

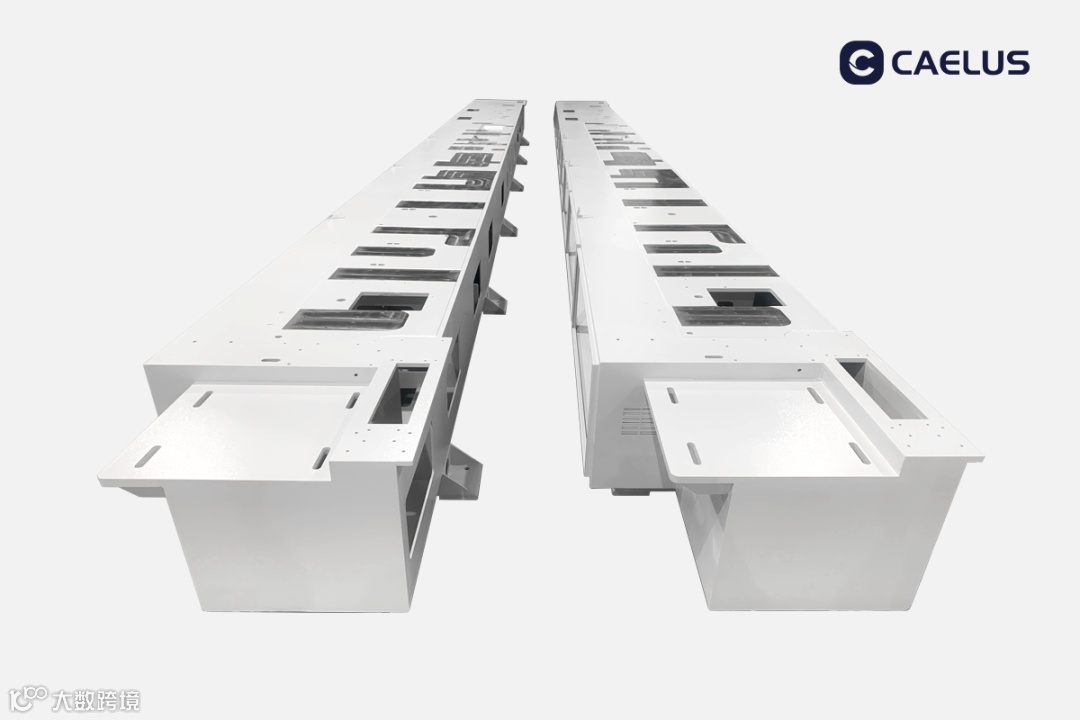

Intergrated heavy-duty steel frame construction
Steel pressure beam, steel chain track, steel frame with fine finish processing
2

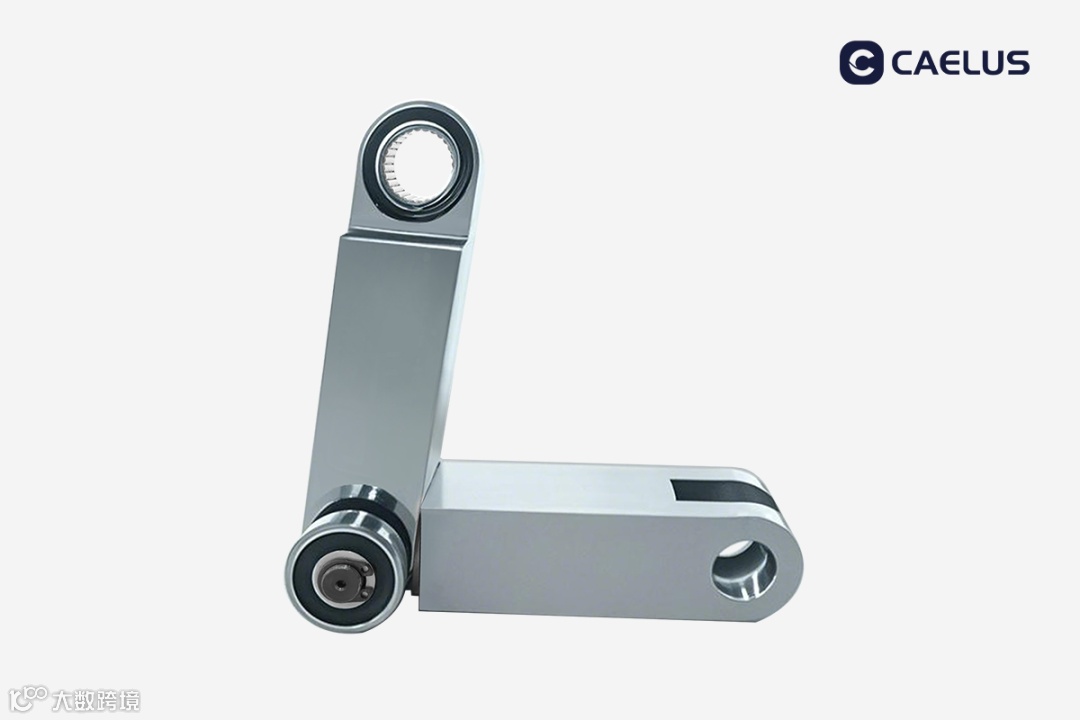

Rolling block link chain
Featuring high speed and stability
3
Adopting high-strength PC panel
Enhancing infeed protection, ensuring safety
4

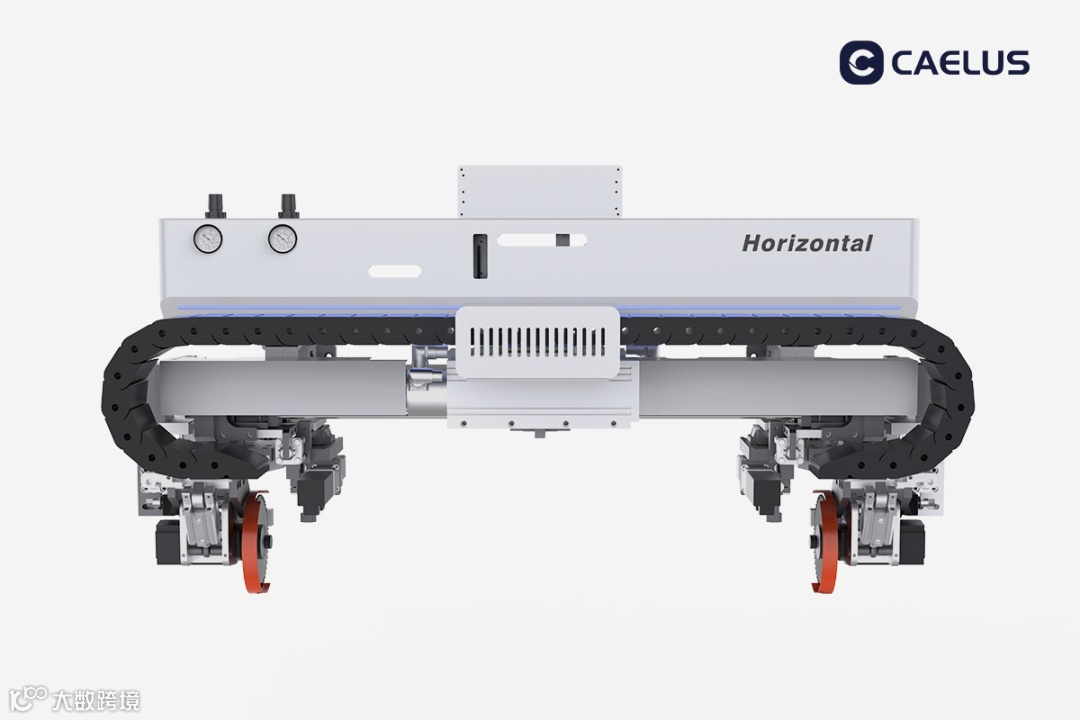

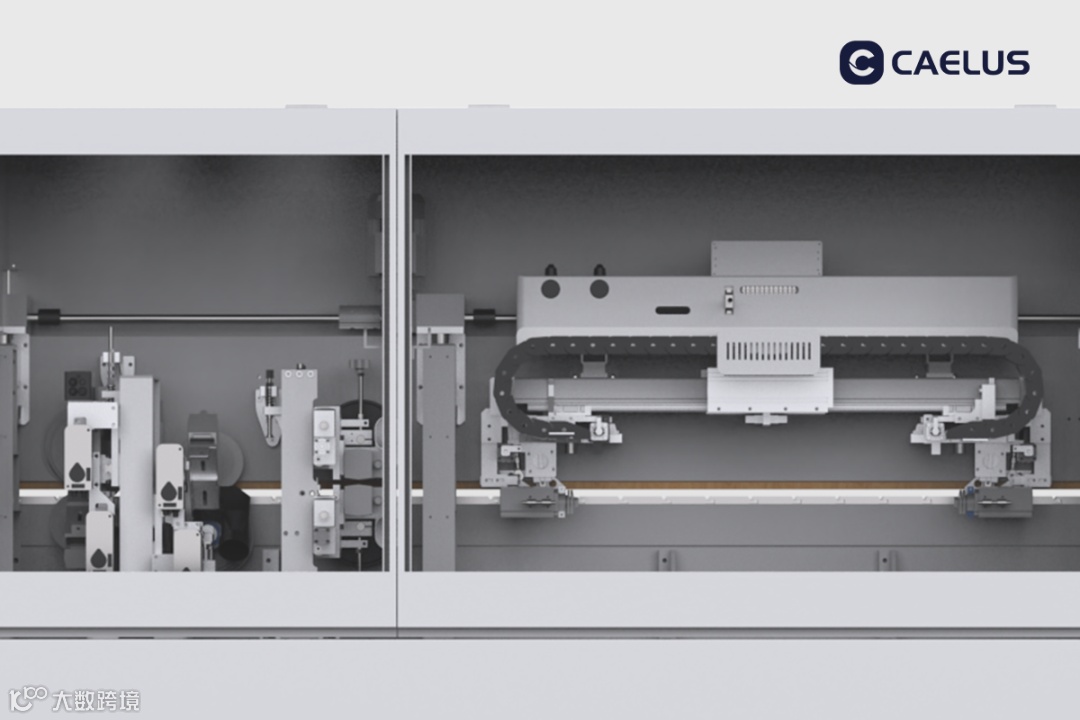

Linear motor driven horizontal snipping unit
42m/min high-speed
5

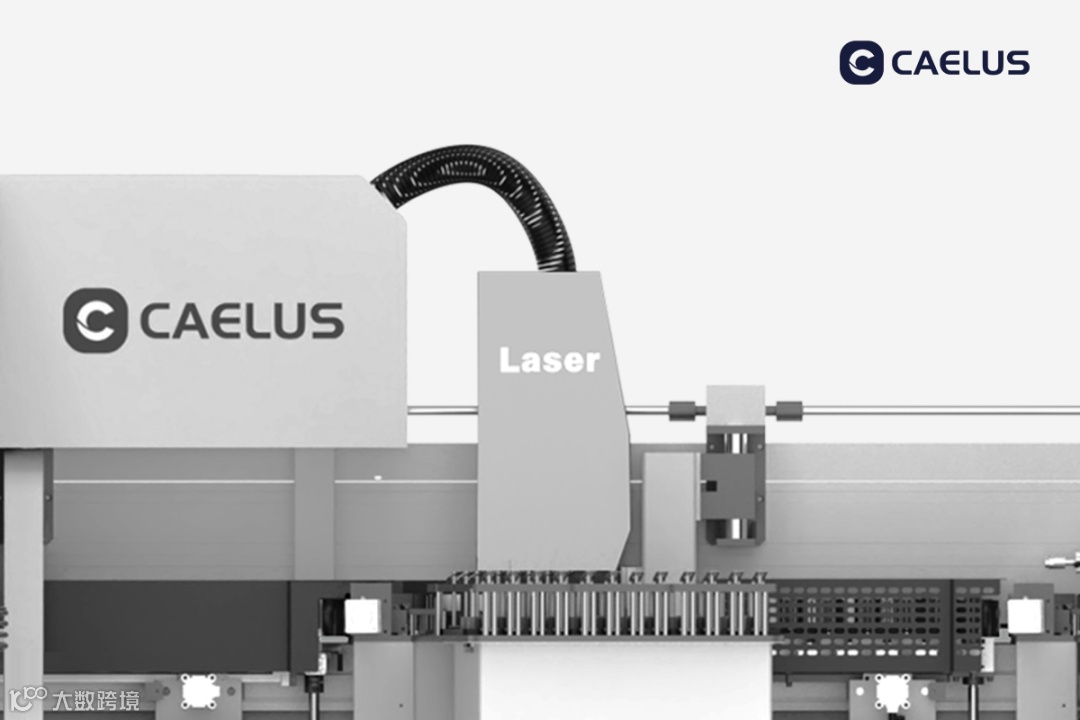

Flexibility in gluing
EVA+ dual-color PUR / Laser +dual-color PUR / 2 sets of EVA / 2 sets of dual-color PUR
6

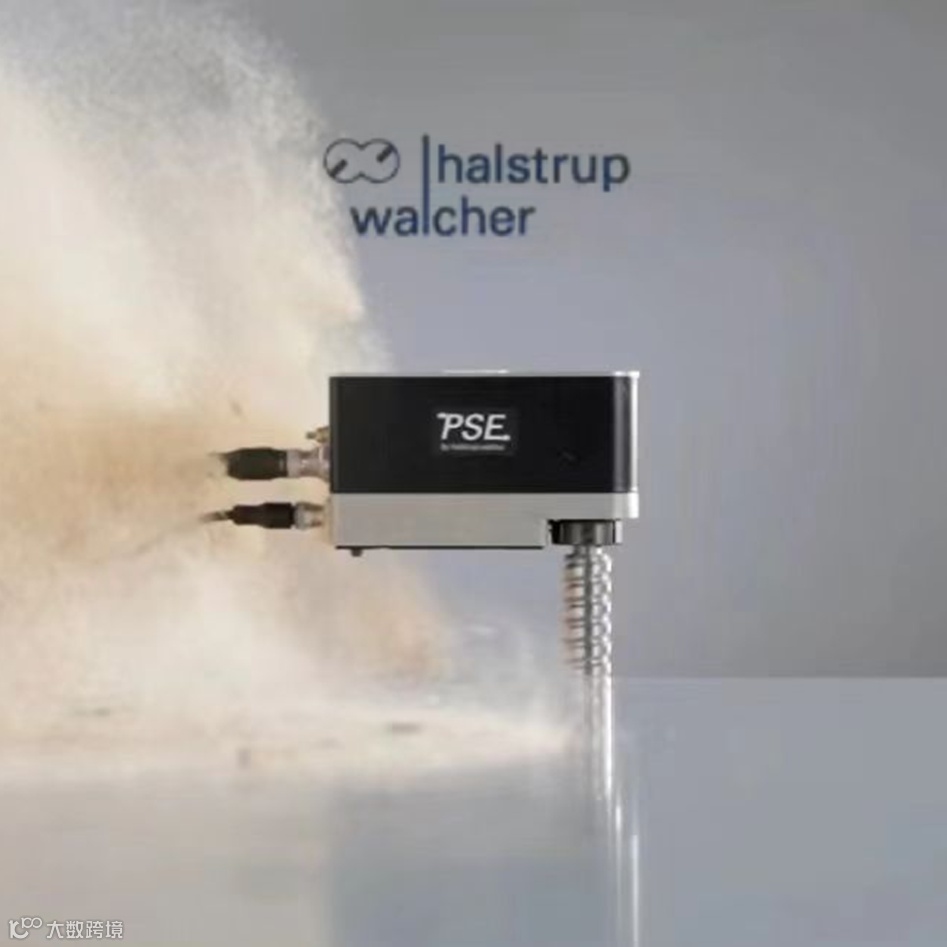

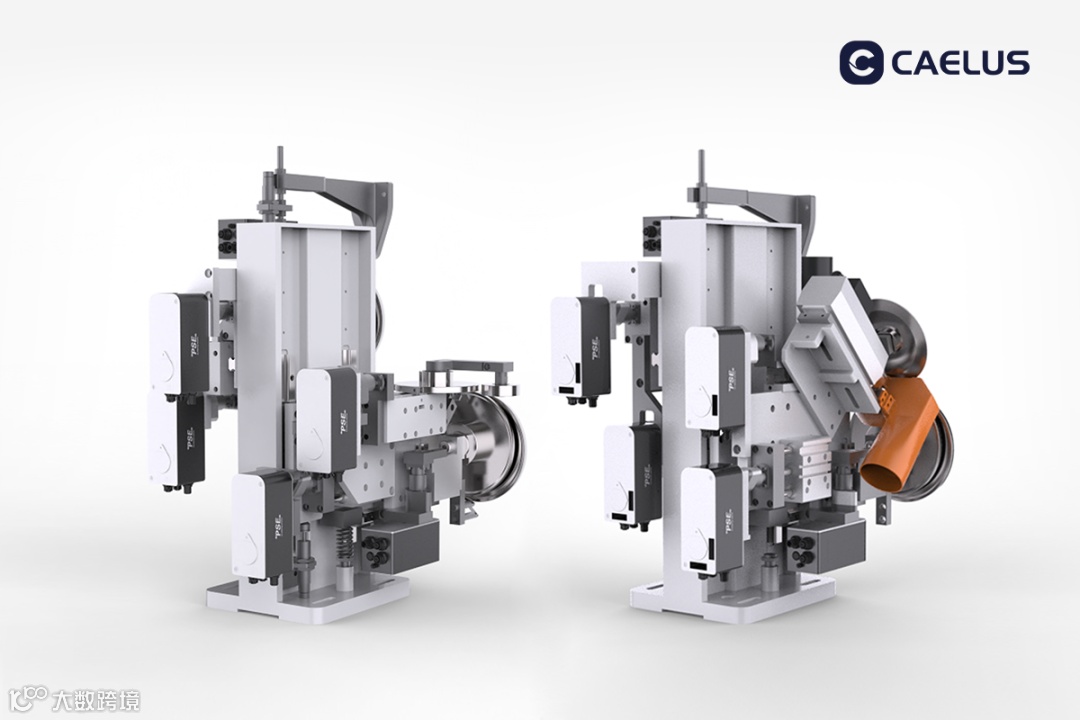

Servo positioning
Dual tracing wheels on fine trimming unit and profile scraping unit with servo positioning
7

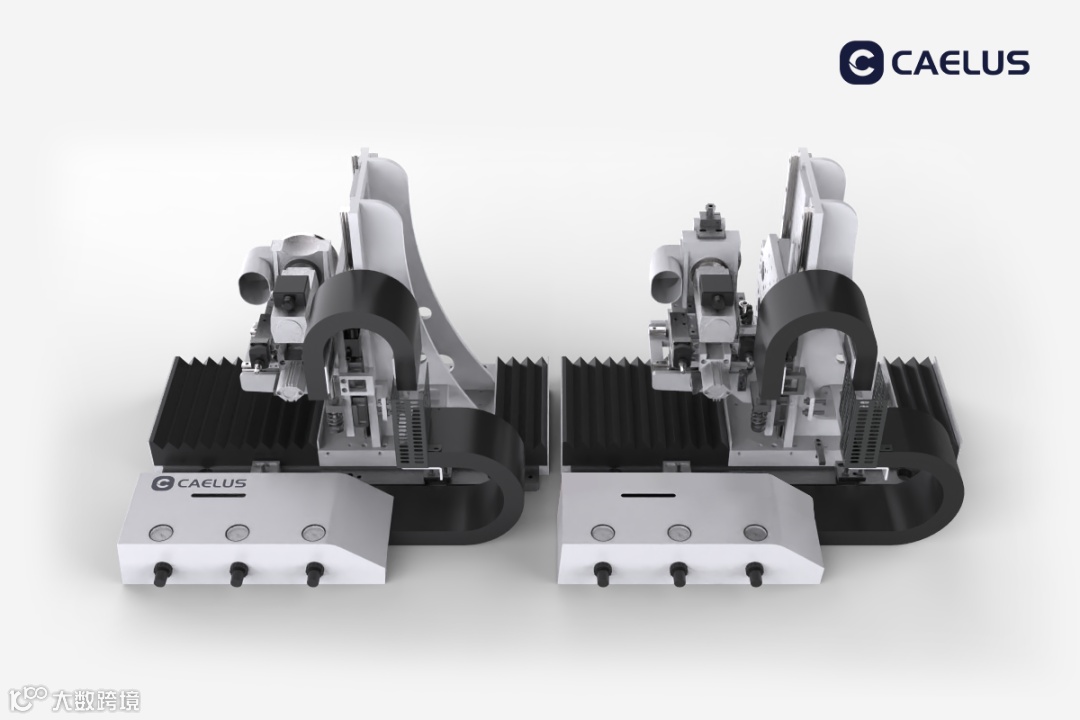

Dual linear motor driven corner rounding unit
Maximum speed 36m/min
8

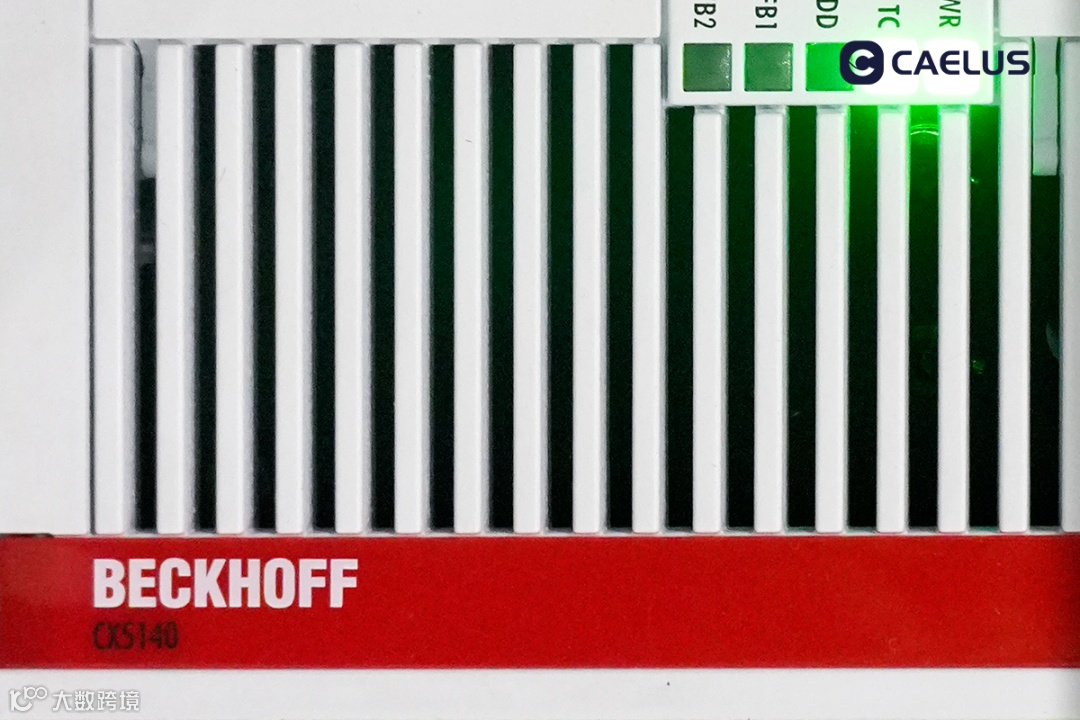

Electrical components from world-class brands
Such as Beckhoff, Siemens and others
|
Overall dimension |
12012mm*1169mm*1960mm (L*W*H) |
|
Total weight |
~ 7500kg |
|
Feed speed |
26-32-36-42m/min ( Laser 26m/min) |
|
Edge thickness |
0.4-3mm ( Laser 0.8-2mm) |
|
Workpiece thickness |
9-60mm ( Laser 9-30mm) |
|
Workpiece length |
≥ 240mm |
|
Workpiece width |
≥ 120mm |
|
Minimum parts size |
240mm*120mm |
