领航
系列
E6
Edge banding machine
高速智能封边机
E6高速智能封边机可为您提供丰富的选择，可全面满足EVA、PUR或激光等不同的封边工艺。全钢结构重型机身，搭载伺服定位系统、双12通道伺服送带、32m/min的水平齐头、重型四马达跟踪、抛光打蜡等高性能配置，为您的家居工厂高质量生产保驾护航。
The E6 high speed intelligent edge banding machine offers you a wide range of options for different processes such as EVA, PUR or laser. The heavy-duty steel structure frame is equipped with servo positioning system, dual 12-slots servo magazine, 32m/min horizontal end-cutting, heavy-duty four motor corner rounding, double buffing and waxing unit and other high-performance configurations, all to guarantee the high quality production of your furniture factory.
设备亮点
Machine highlights

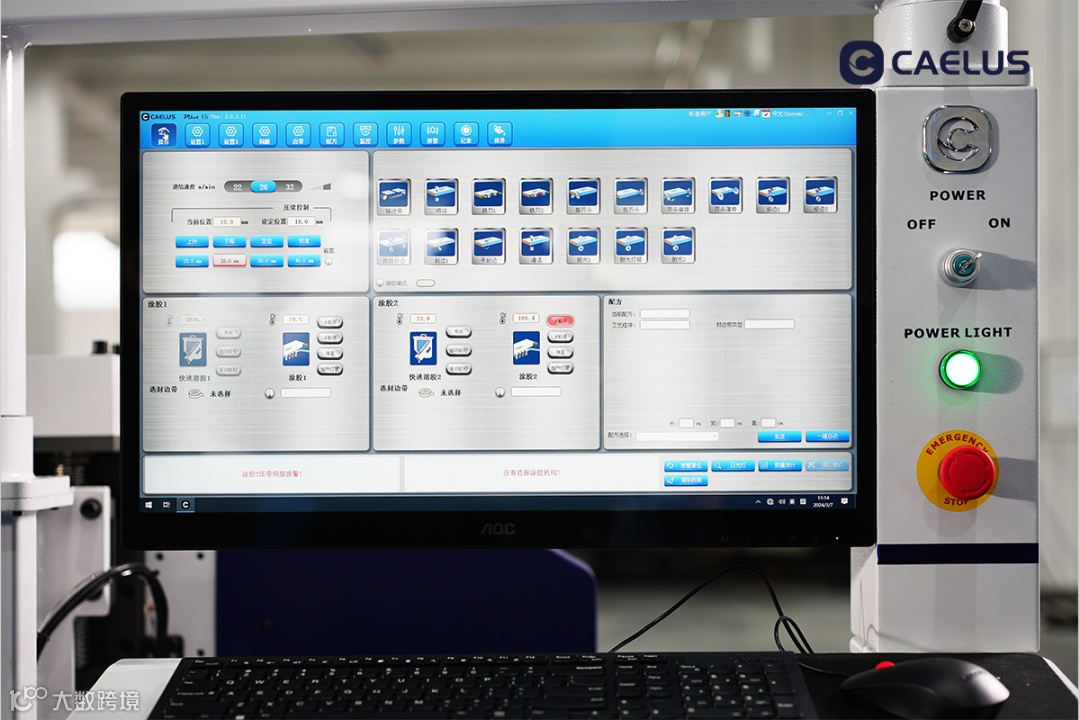

1、PC智能控制系统
PC intelligent control system
2、全钢结构重型机身：钢压梁、钢导轨、钢台面，精加工处理
The heavy-duty steel structure frame: steel pressure beam, steel guide rails, steel frame with fine finish processing
3、12+12 通道伺服送带 / EVA ( 可选配激光)+双色PUR
12+12 slots servo feed / EVA (laser as option) + Dual-color PUR
4、预热板件，提升板材与边带的粘合效果
Preheating the board to enhance the bonding effect between the workpieces and the edge strips
5、智能定位七轮压贴，减小对边带及板材的冲击
Seven pressure rollers with intelligent positioning, reduce impact on edge strips and workpieces
6、高速水平齐头带偏摆，32米/分
High speed horizontal end-cutting with angle tilting, max speed 32m/min
7、伺服定位系统应用于智能修边、刮边等机构
Servo positioning system applied on finishing trimming and profile scraping etc.
8、重型四马达高速跟踪，双工位刀具切换功能，实现稳定快速的封边倒圆
Heavy-duty high speed four motor corner rounding, can switch two positions for different edge thickness
9、智能定位双缓冲轮刮边机构
Dual tracing wheels on profile scraping with intelligent positioning
10、双抛光打蜡，提升表面光亮度
Double buffing and waxing unit, improve surface brightness
核心亮点
Highlights

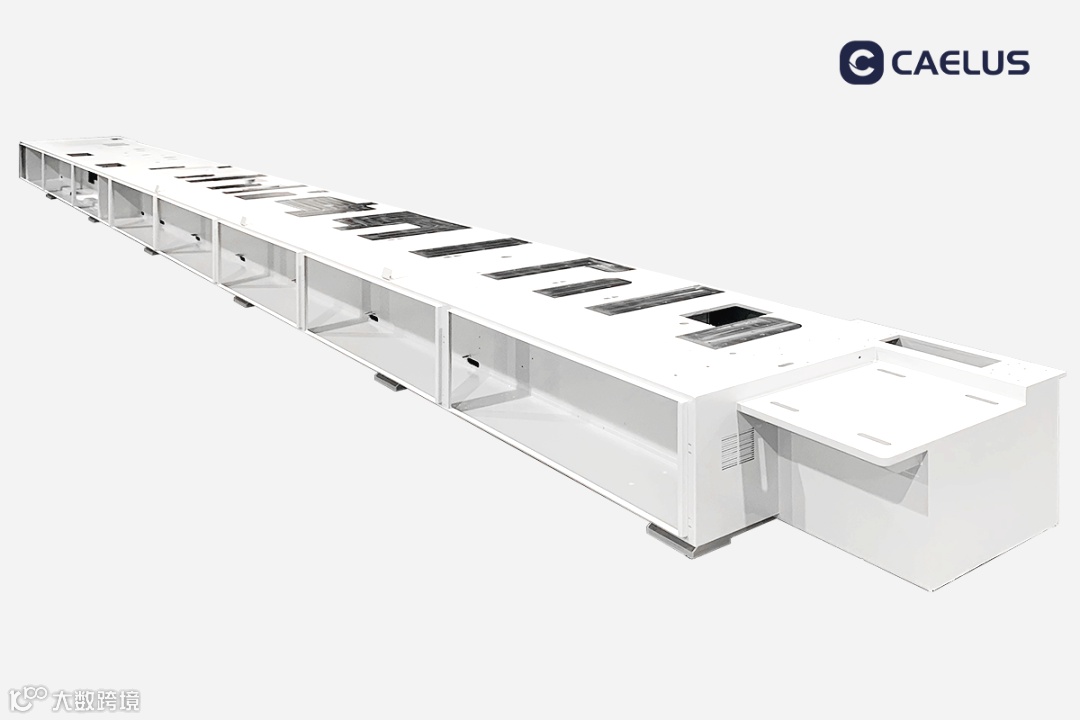

【1】【高精度重型框架式机架】钢制压梁、钢制导轨、履带式压料，为32m/min 高效稳定封边保驾护航；
【High precision heavy-duty frame 】Steel pressure beam, steel guide rail and V-belt pressing, providing efficient and stable edging process for max speed at 32m/min;
【2】【双胶锅+ 双压贴机构】双胶锅可自由切换EVA（可选激光 ）与PUR，实现不同封边工艺需求；
【Dual glue pots + double pressure zone】The dual glue pots can freely switch between EVA (optional laser) and PUR, meeting different edging process requirements;

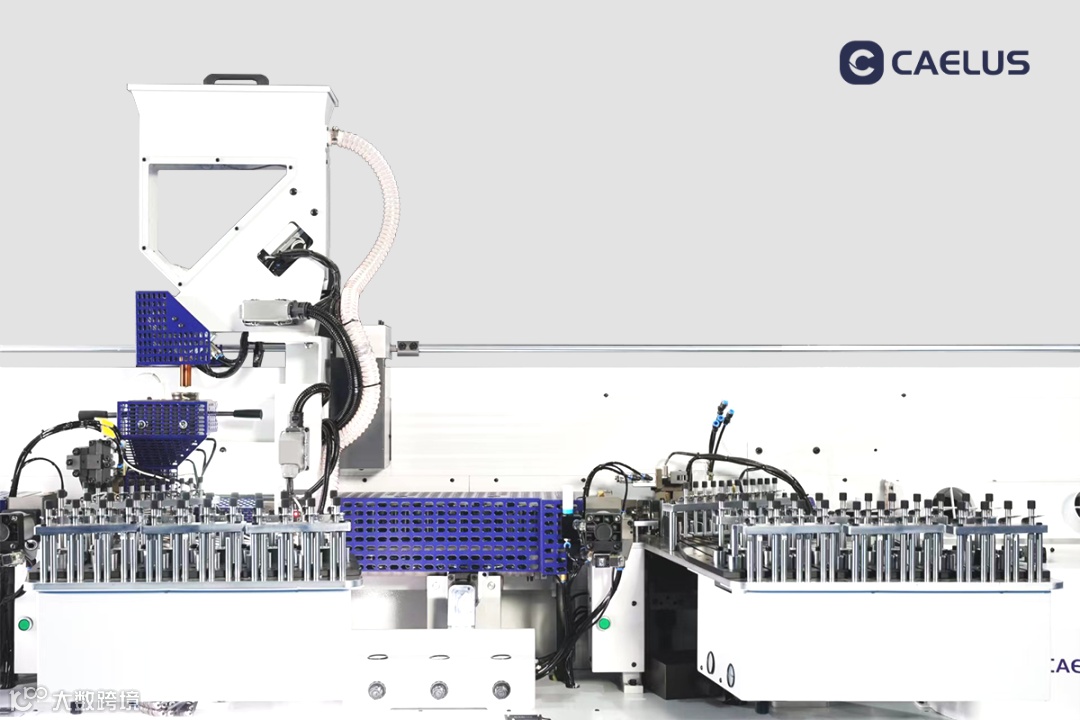

【3】【标配12+12 通道伺服送带】多规格边带自动切换，操作方便，省时省事；
【Standard configuration with 12+12 slots servo feeding】Multi edge strips automatically switch, easy to operate, time-saving and less effort;
【4】【智能定位七轮压贴】独立驱动电机，根据封边带厚度智能切换压轮位置，封边更加牢靠，提升封边品质；
【Seven pressure rollers with intelligent positioning】Independent driving motor, intelligently switches the position of the pressure rollers according to the thickness of the edge banding strips, making the edge banding more reliable and improving the quality of the edge banding;

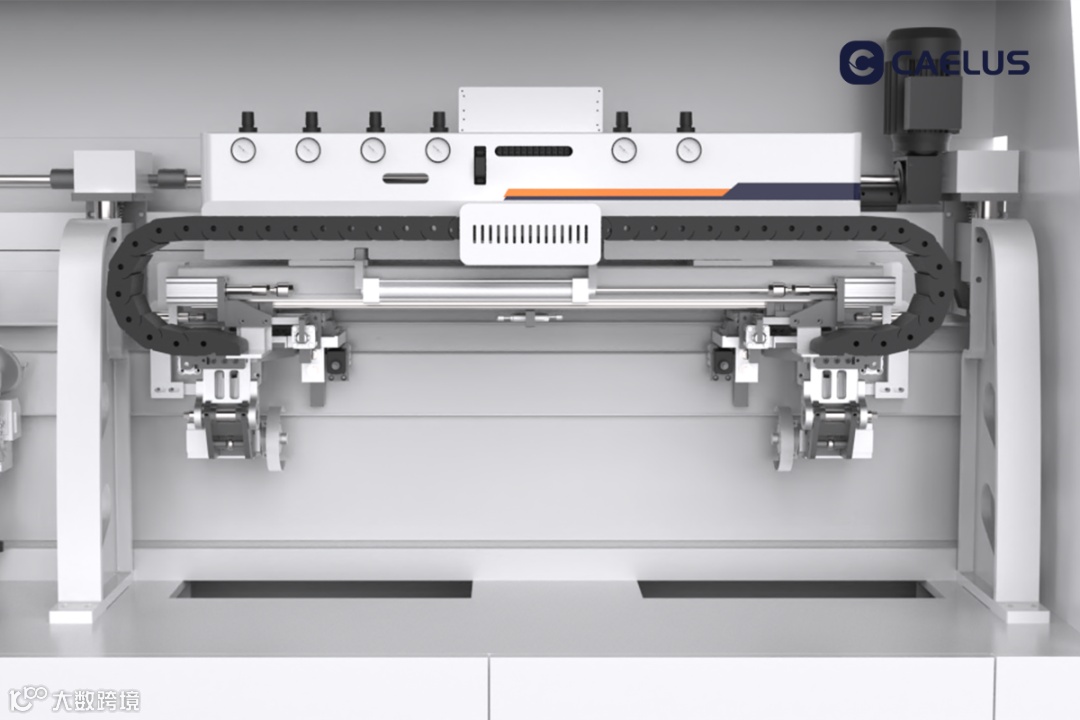

【5】【带偏转角高速水平齐头】高效加工，完美解决磕板问题；
【High speed horizontal end-cutting with angle tilting】High efficient and perfectly solving the problem of workpiece collision;

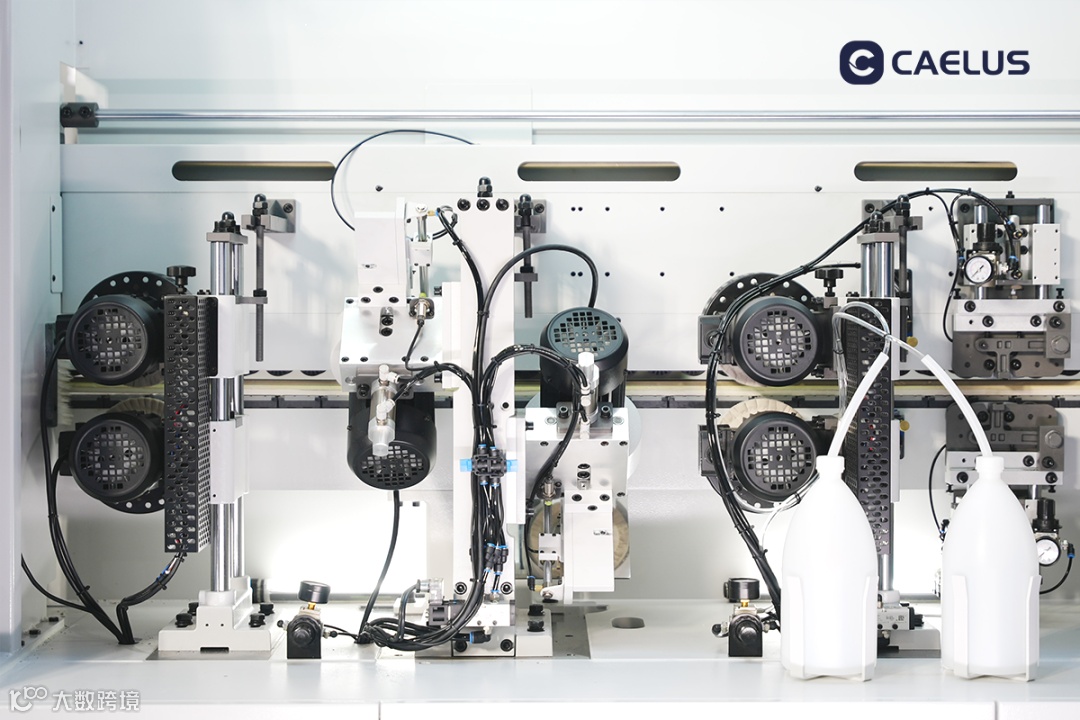

【6】【可视化高速跟踪】双工位刀具切换功能，自由切换两种不同厚度封边带；
【Visual high speed corner rounding】Dual positions tool switching function, allowing for free switching between two different thickness edge banding strips;

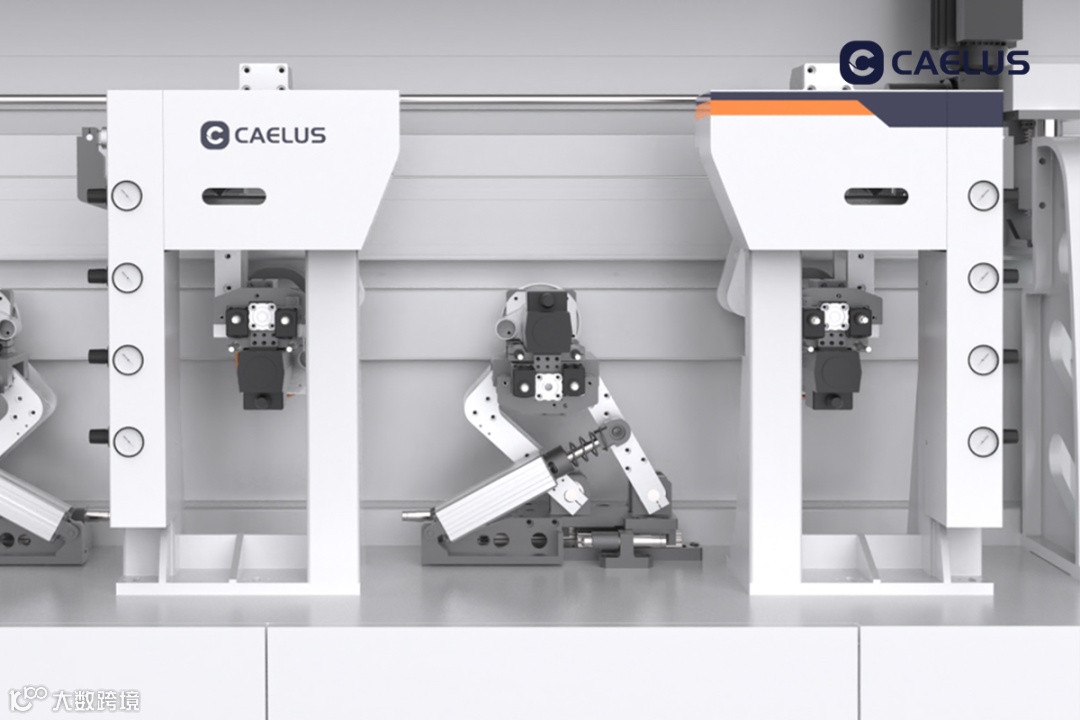

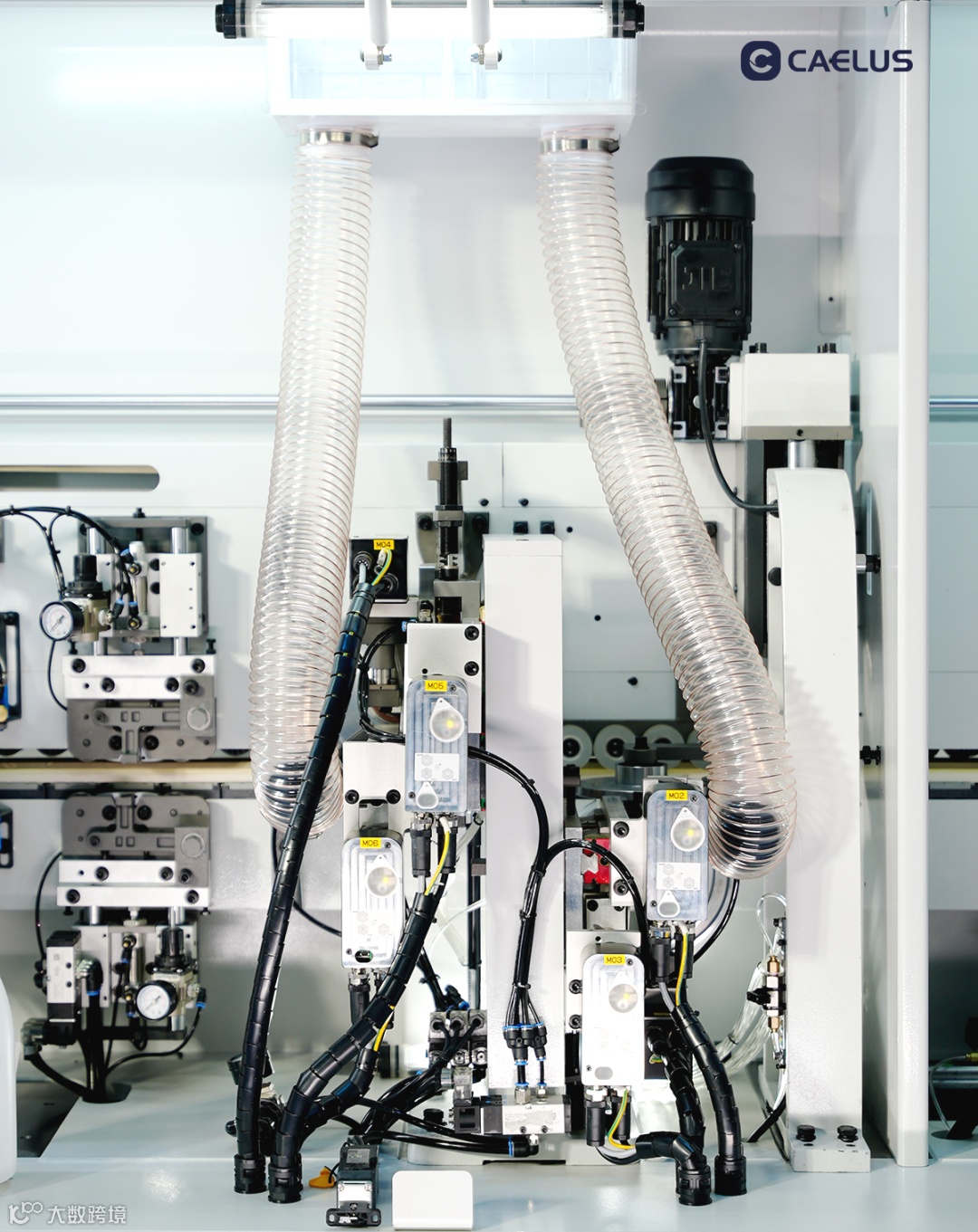

【7】【智能定位双缓冲轮修边、刮边】配置双缓冲轮缓和冲击, 提升封边品质；智能定位电机根据封边带厚度自动调节刀具位置，切换封边带免调试；
【Dual tracing wheels on finishing trimming and profile scraping with intelligent positioning】Equipped with dual tracing wheels to reduce impact and improve edge banding quality; The intelligent positioning motor automatically adjusts the tool position based on the thickness of the edge banding strips, and switches the edge banding strips without manual adjustment;

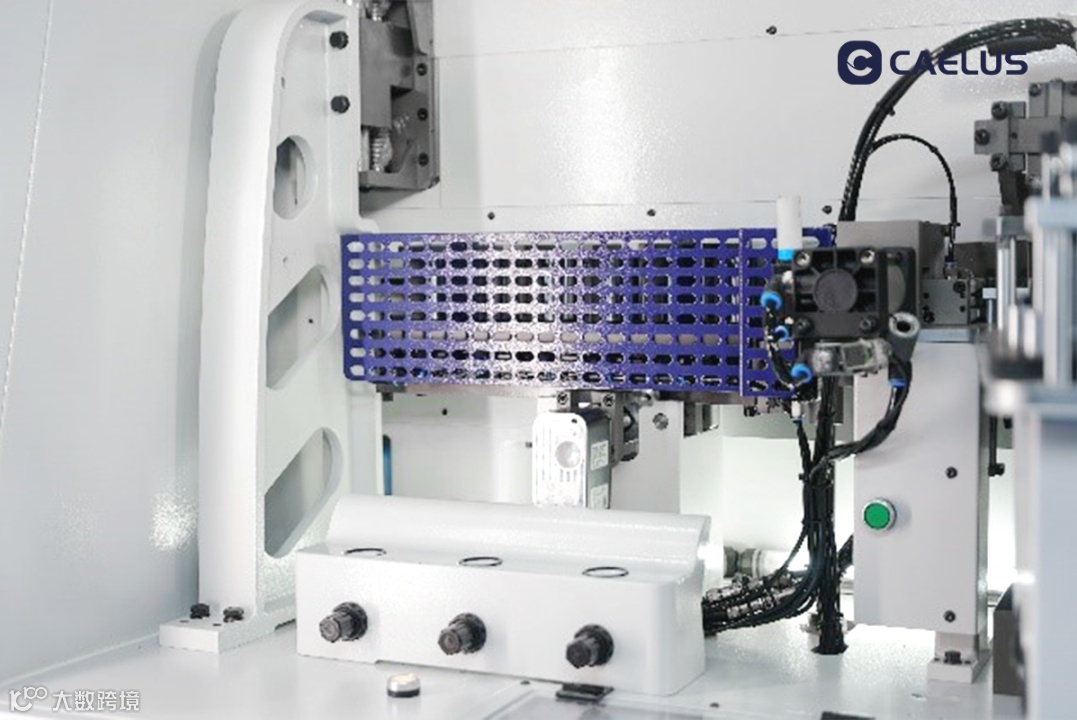

【8】【标配抛光打蜡】可自动供给蜡条, 消除刮边后封边带发白现象，提升圆弧角光亮度，封边更美观；
【Standard configuration with dual buffing units and waxing】It can automatically supply wax strips, eliminate the phenomenon of whitening of the edge banding after scraping, improve the brightness of the arc angle, and make the edge banding more beautiful;
【9】【知名品牌电控元器件】可靠性高、抗干扰能力强、减少故障率等优点。
【World-class electronic control components and systems】High reliability, strong anti-interference ability and less failure rate.
技术参数
Technical parameters
|
外形尺寸 Overall dimension |
11889 (L)*1150 (W)*1960 (H) mm |
|
机器重量 Total weight |
~6800kg |
|
进给速度 Feed speed |
22-32m/min |
|
封边带厚度 Edge band thickness |
0.4-3mm |
|
板料厚度 Workpiece thickness |
9-60mm |
|
板料长度 Workpiece length |
≥100mm |
|
板料宽度 Workpiece width |
≥60mm |
|
最小板尺寸 （封边尺寸为长边） Minimum parts size (edging size based on lengthwise) |
100*60mm |
