极光
系列
E8
Edge banding machine
高速智能封边机
E8高速智能封边机不仅可满足您对EVA、PUR或激光等不同的高品质封边工艺的需求，同时还让您的生产更灵活，更高效，更智能。一体式全钢结构重型机身，搭载全伺服定位系统、双12通道伺服送带、42m/min的高速伺服水平齐头、双磁悬浮马达跟踪、智能定位双缓冲轮修边刮边等高性能配置，带您走进高效率与高品质的完美封边。
The E8 high speed intelligent edge banding machine not only meets your needs for high-quality edge banding processes such as EVA, PUR, or laser, but also makes your production more flexible, efficient and intelligent. The integrated one heavy-duty steel structure frame is equipped with a full servo positioning system, dual 12-slots servo magazine, 42m/min high speed servo horizontal end-cutting, dual maglev motor corner rounding, dual tracing wheel edge trimming and scraping with intelligent positioning and other high-performance configurations, bringing you into perfect efficiency and high-quality edge banding process.
设备亮点
Machine highlights

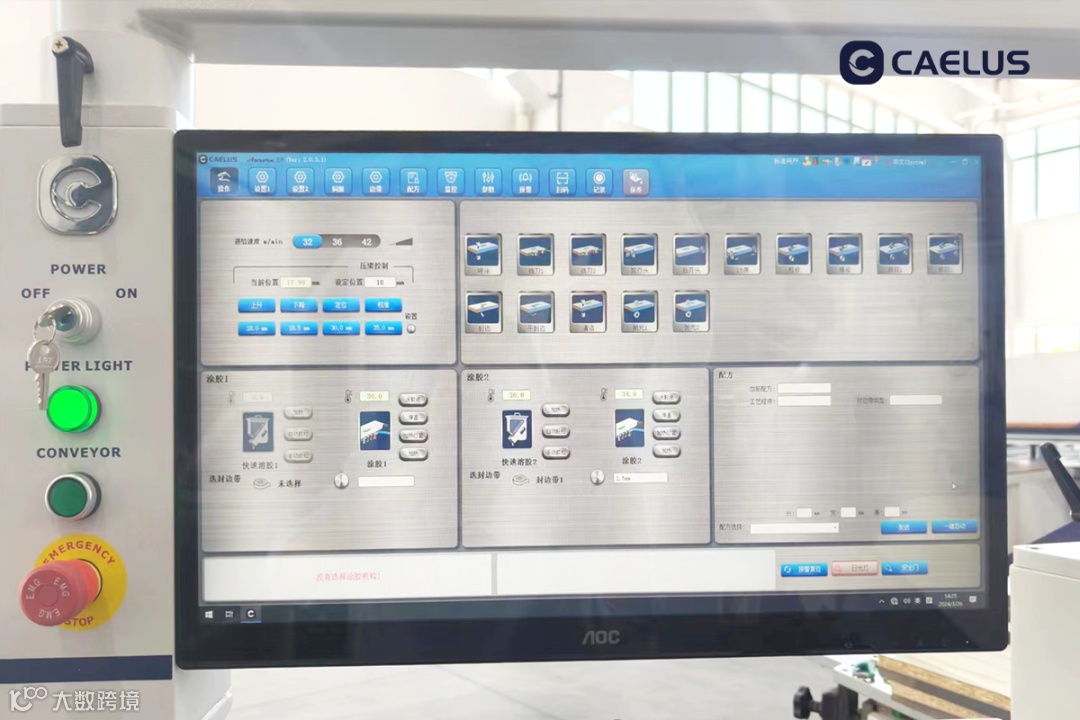

1、PC智能控制系统及数据采集
PC intelligent control system and data collection
2、一体式全钢结构重型机身:钢压梁、钢导轨、钢台面，精加工处理
Integrated one heavy-duty steel structure frame: steel pressure beam, steel guide rails, steel frame with fine finish processing
3、主传动采用精密链节传动，高速、稳定
Precision roller block link chain driven (main drive), high speed and stable
4、12+12 通道伺服送带 / EVA ( 可选配激光)+双色PUR
12+12 slots servo feed / EVA （laser as option）+ Dual-color PUR
5、预热板件，提升板材与边带的粘合效果
Preheating the board to enhance the bonding effect between the workpieces and the edge strips
6、智能定位七轮压贴，减小对边带及板材的冲击
Seven pressure rollers with intelligent positioning, reduce impact on edge strips and workpieces
7、高速磁悬浮水平齐头机构
High speed horizontal meglev end-cutting
8、伺服定位系统应用于智能修边、刮边等机构
Servo positioning system applied on finishing trimming and profile scraping etc.
9、智能定位双缓冲轮刮边机构
Dual tracing wheels on finishing trimming and profile scraping with intelligent positioning
10、超高速双磁悬浮马达跟踪 36m/min
Super high speed dual maglev motor corner rounding, Max speed 36m/min
11、伺服水平垂直开槽单元（选配）
Servo horizontal and vertical grooving unit (option)
核心亮点
Highlights

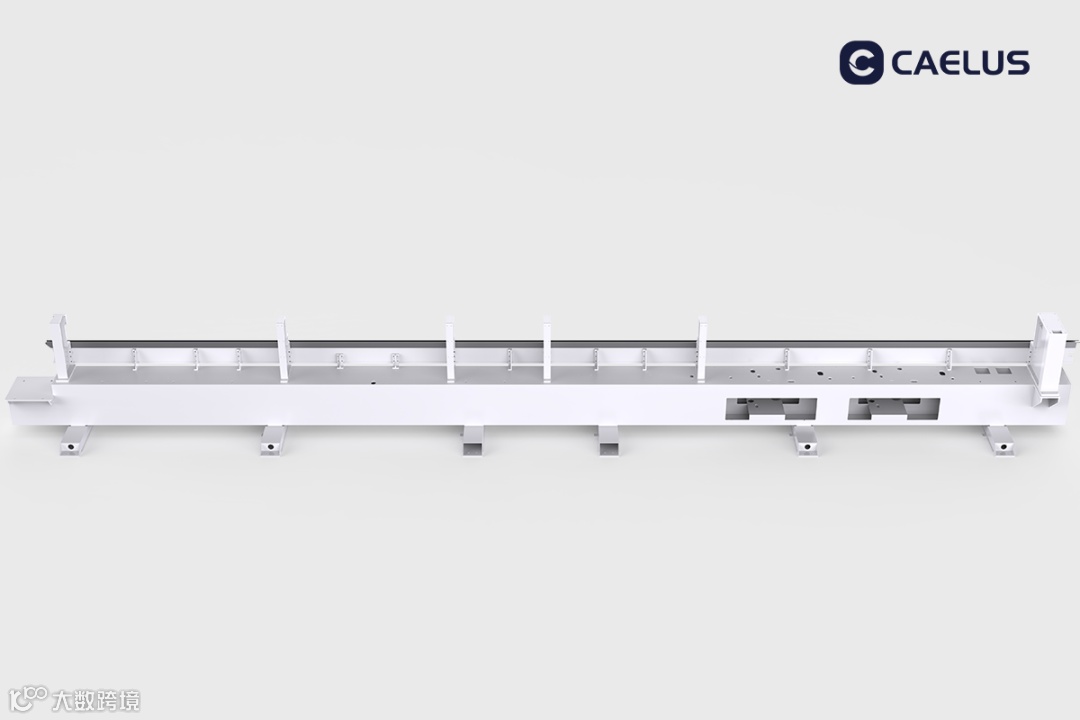

【1】【高精度重型框架式机架】钢制压梁、钢制导轨、履带式压料，为42m/min高效稳定封边保驾护航；
【 High precision heavy-duty frame 】 Steel pressure beam, steel guide rail and V-belt pressing, providing efficient and stable edging process for max speed at 42m/min;

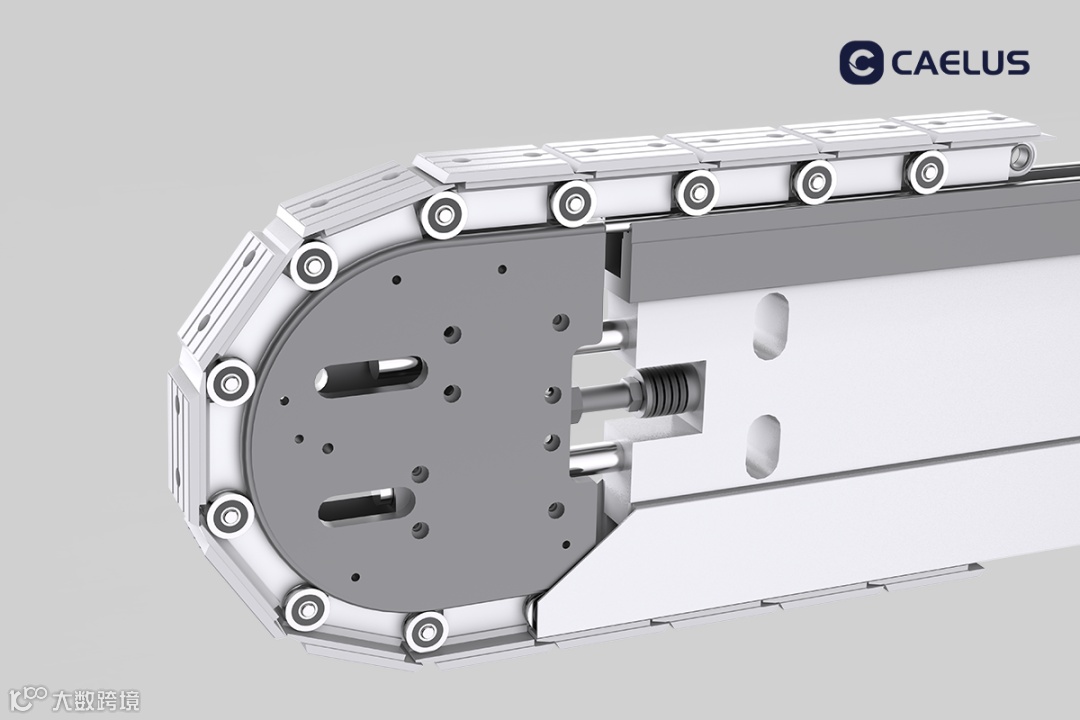

【2】【精密链条传动】精密链条，由特殊合金钢精密机加工而成，尺寸精度高，抗变形能力强，保证高速运行的稳定性尺寸精度高，保证超高速稳定性；
【 Precision roller block link chain driven (main drive) 】Precision chains are made of special alloy steel, precision machined with high dimensional accuracy and strong resistance to deformation, ensuring stability during high-speed operation with high dimensional accuracy and ultra-high speed stability;
【3】【双胶锅+双压贴机构】双胶锅可自由切换EVA（可选激光 ）与PUR，实现不同封边工艺需求；
【Dual glue pots +double pressure zone】 The dual glue pots can freely switch between EVA (optional laser) and PUR, meeting different edging process requirements;

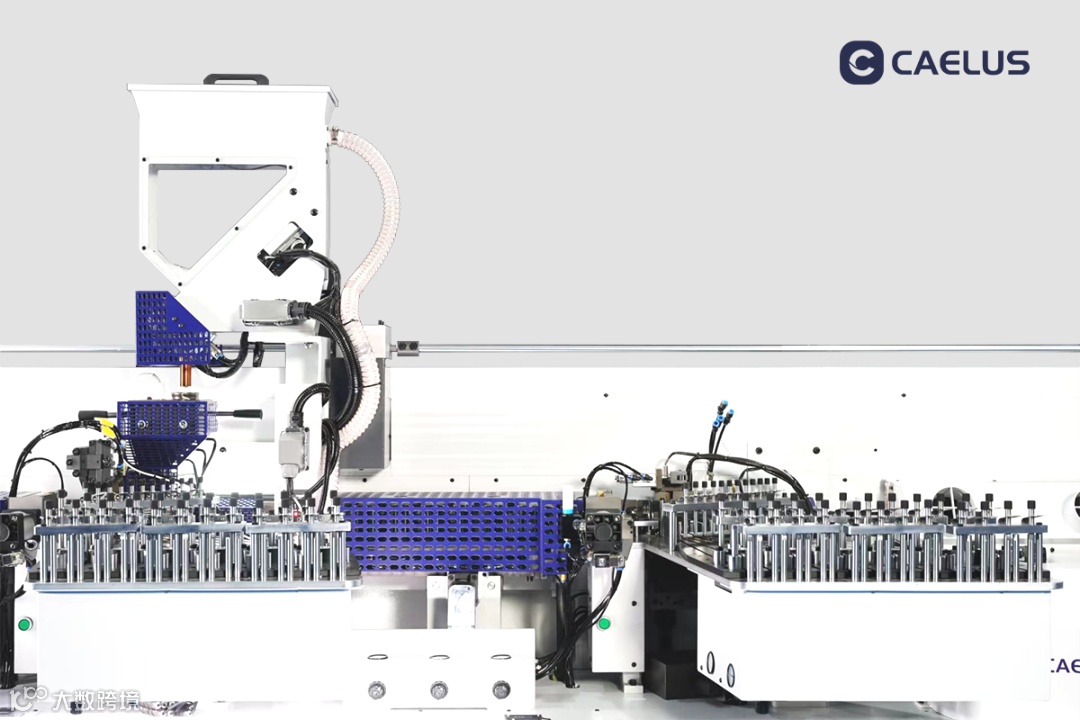

【4】【标配12+12通道伺服送带】多规格边带自动切换，操作方便，省时省事；
【Standard configuration with 12+12 slots servo feeding】 Multi edge strips automatically switch, easy to operate, time-saving and less effort;
【5】【智能定位七轮压贴】独立驱动电机，根据封边带厚度智能切换压轮位置，封边更加牢靠，提升封边品质；
【Seven pressure rollers with intelligent positioning】 Independent driving motor, intelligently switches the position of the pressure rollers according to the thickness of the edge banding strips, making the edge banding more reliable and improving the quality of the edge banding;

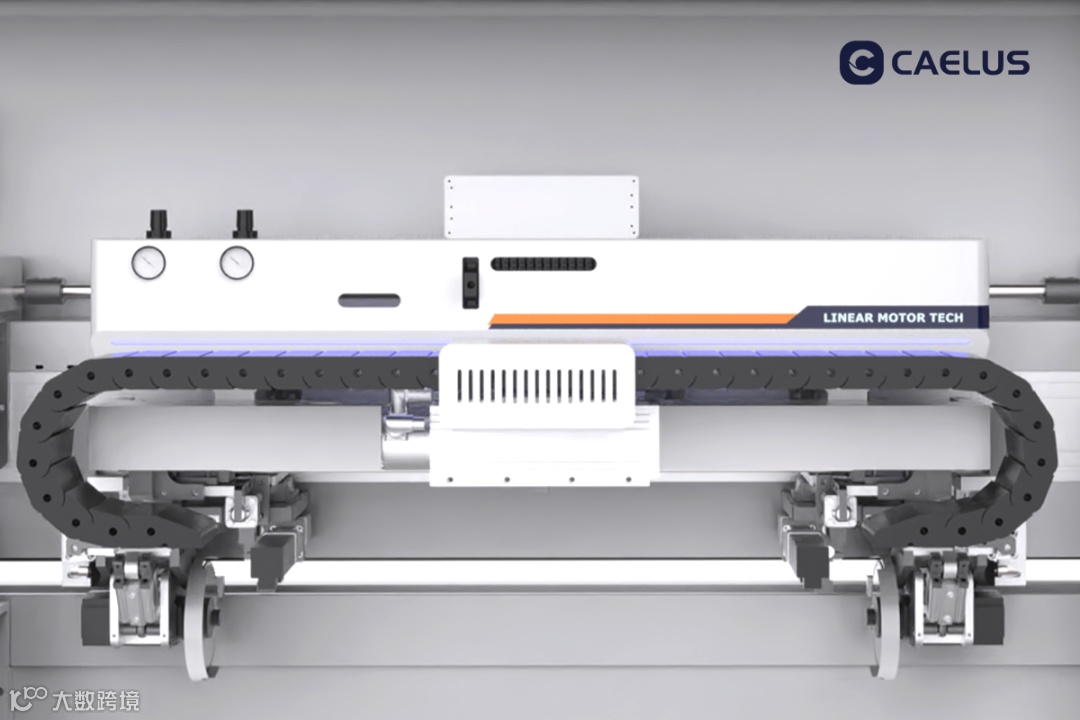

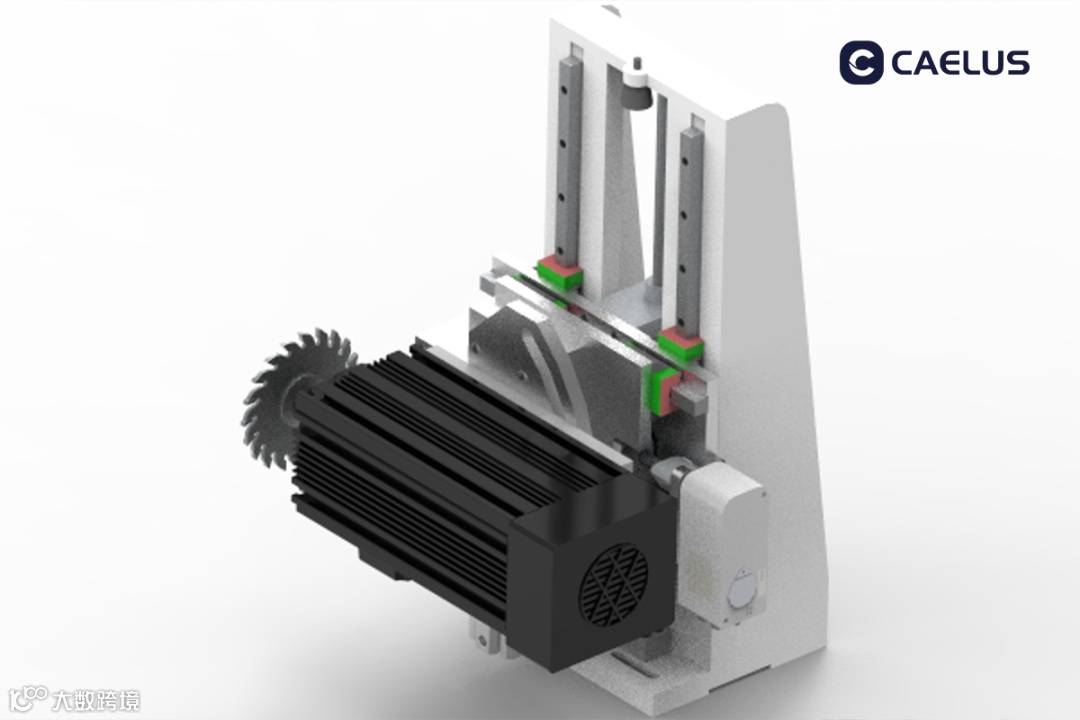

【6】【磁悬浮水平齐头】42m/min超高速稳定齐头加工，最小板间距350 mm，完美解决磕板问题；
【 High speed horizontal maglev end-cutting 】 42m/min ultra-high speed for stable end-cutting processing, with a minimum workpiece spacing of 350mm, and perfectly solving the problem of workpiece collision;

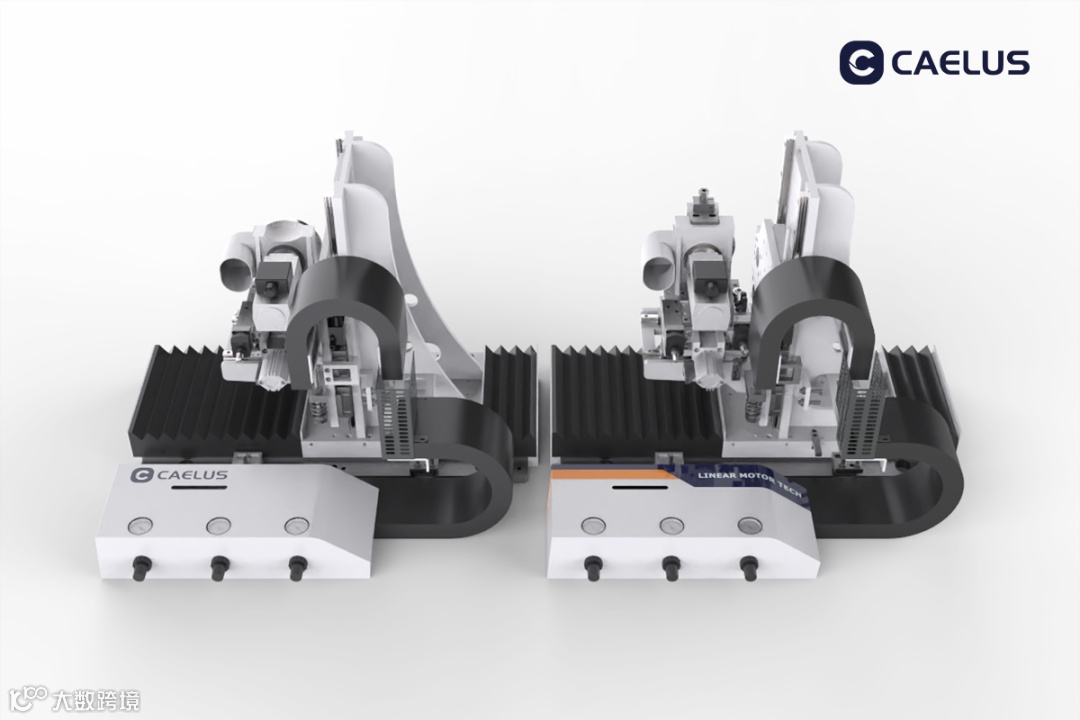

【7】【磁悬浮跟踪】36m/min超高速稳定圆弧加工，最小板间距400 mm，可切换两种不同厚度封边带；
【 Super high speed dual maglev motor corner rounding】36m/min ultra-high speed corner rounding, with a minimum workpiece spacing of 400mm, and can be switched between two different thicknesses of edge banding strips;

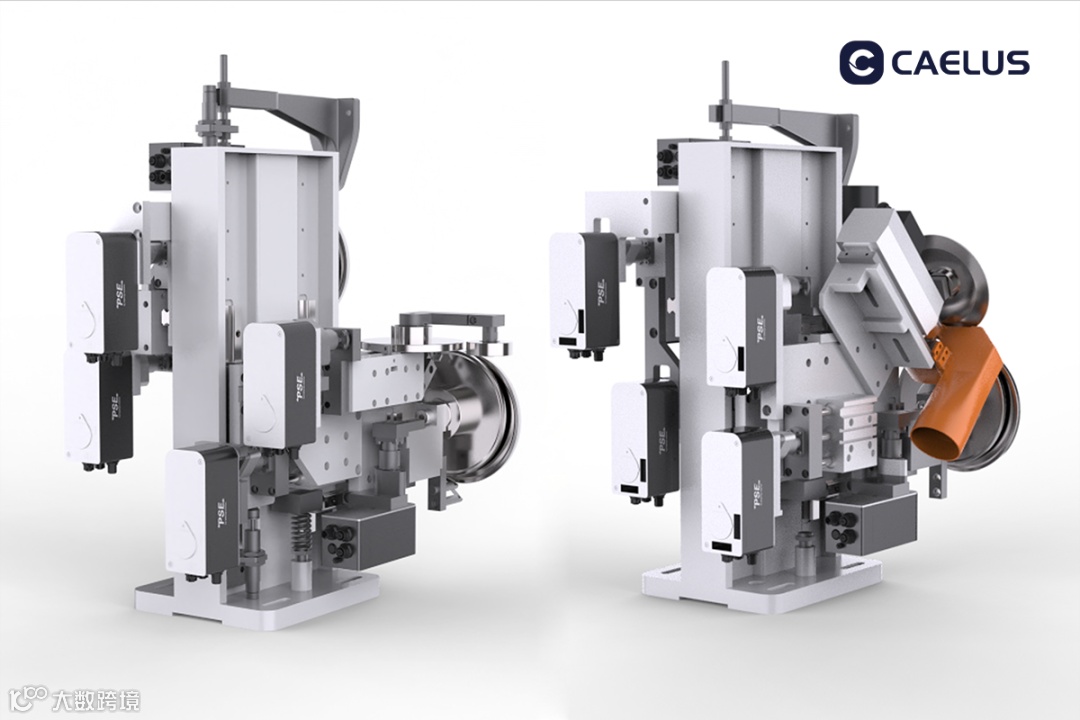

【8】【智能定位双缓冲轮修边、刮边】配置双缓冲轮缓和冲击，提升封边品质；智能定位电机根据封边带厚度自动调节刀具位置，切换封边带免调试；
【Dual tracing wheels on finishing trimming and profile scraping with intelligent positioning】 Equipped with dual tracing wheels to reduce impact and improve edge banding quality; The intelligent positioning motor automatically adjusts the tool position based on the thickness of the edge banding strips, and switches the edge banding strips without manual adjustment;

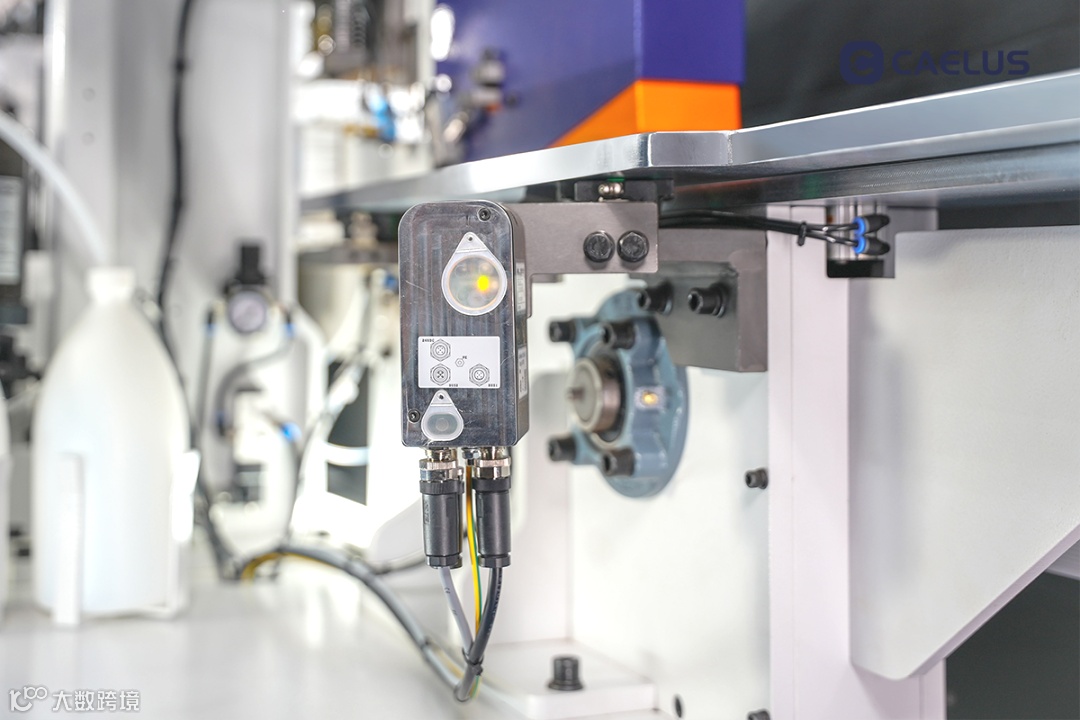

【9】【知名品牌电控元器件】可靠性高、抗干扰能力强、减少故障率等优点。
【World-class electronic control components and systems】High reliability, strong anti-interference ability and less failure rate;
【10】【伺服水平垂直开槽单元】（选配）
Servo horizontal and vertical grooving unit (option)
技术参数
Technical parameters
|
外形尺寸 Overall dimension |
12012 (L)*1169 (W)*1960 (H)mm |
|
机器重量 Total weight |
~7000kg |
|
进给速度 Feed speed |
32-36-42m/min |
|
封边带厚度 Edge band thickness |
0.4-3mm |
|
板料厚度 Workpiece thickness |
9-60mm |
|
板料长度 Workpiece length |
≥240mm |
|
板料宽度 Workpiece width |
≥120mm |
|
最小板尺寸 （封边尺寸为长边） Minimum parts size (edging size based on lengthwise) |
240*120mm |
