Automated Precision Work Solution

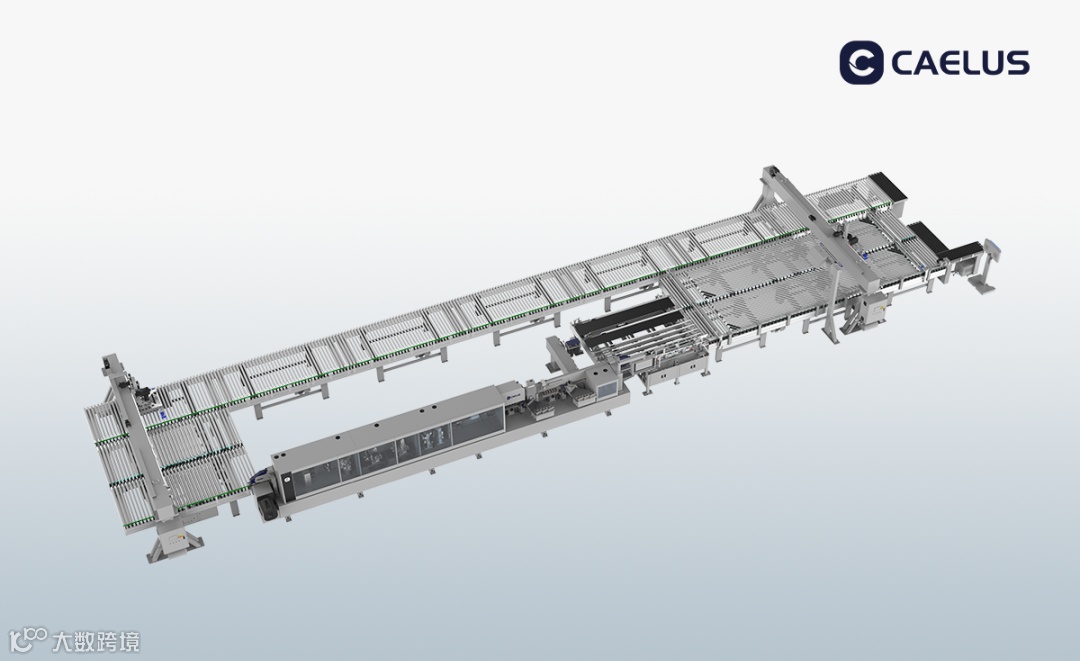

Elevating edge-banding excellence with submillimeter-level precision, this system integrates advanced technologies including high-speed intelligent edge banding, and automatic outrigger sizing system, a high-efficiency circulation system. The linear motor-driven outrigger sizing system ensures extremely high parallelism on the long edges of the workpieces. The infeed system, synchronized to the edge banding machine's 36m/min feed speed, guarantees high perpendicularity during short-edge processing. Equipped with high-quality roller, a high-speed roller conveyor, and a gantry side pusher system, it significantly boosts efficiency and production capacity across the entire line. The intelligent production line control system facilitates automatic plate recognition, real-time production data management, and seamless data integration, streamlining operational workflows. Automated workpiece dimension measurement technology prevents manual feeding errors and ensures equipment safety.
Core Highlights
• 36m/min high infeed speed: industry-leading operational efficiency with a 30% production capacity enhancement
• Intelligent precision work solution: linear motor-driven outrigger sizing system + high-precision servo infeed system
• High-speed gantry: 150m/min high-speed gantry can be applied to the transportation and spacing with small workpiece
• Automated production line: High-speed roller conveyor + single-person operation, reducing production costs
• Flexible adaptation: can process workpieces of various sizes
1
Intelligent Feeding System
QR Code Scanning System
• Quickly identifies panel information
• Reduces human error

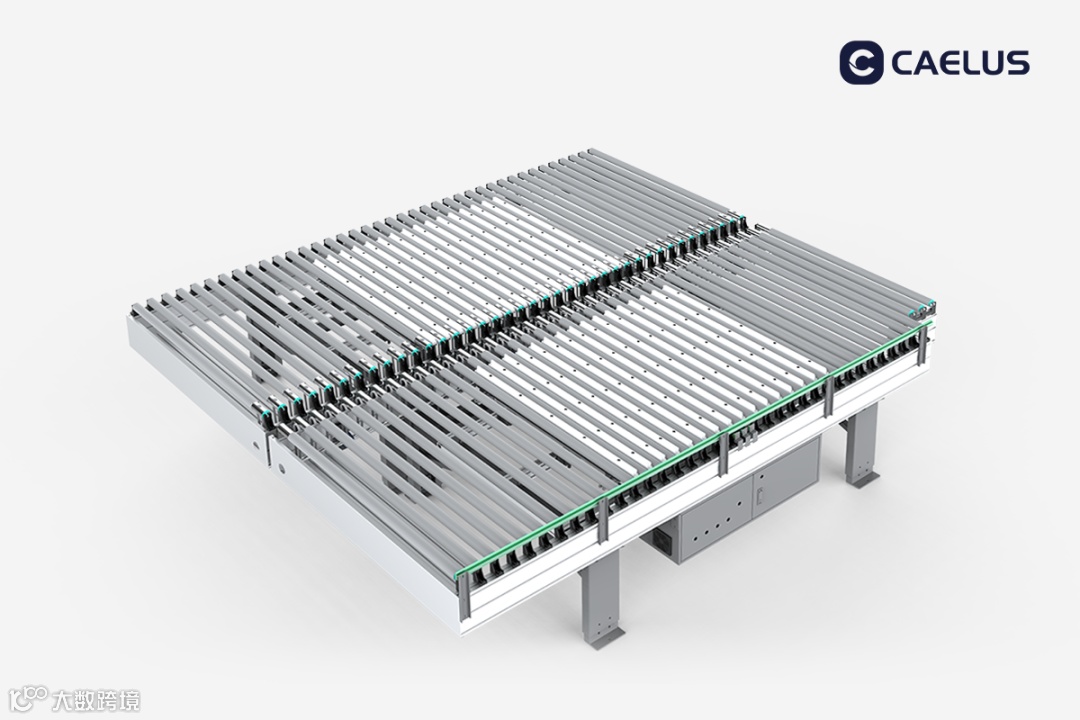

Roller Conveyor CT85/32X
• Angled roller conveyor achieves autonomous edge alignment
• select high-quality rollers，ensuring smooth panel conveyance
2
Precision Work Unit

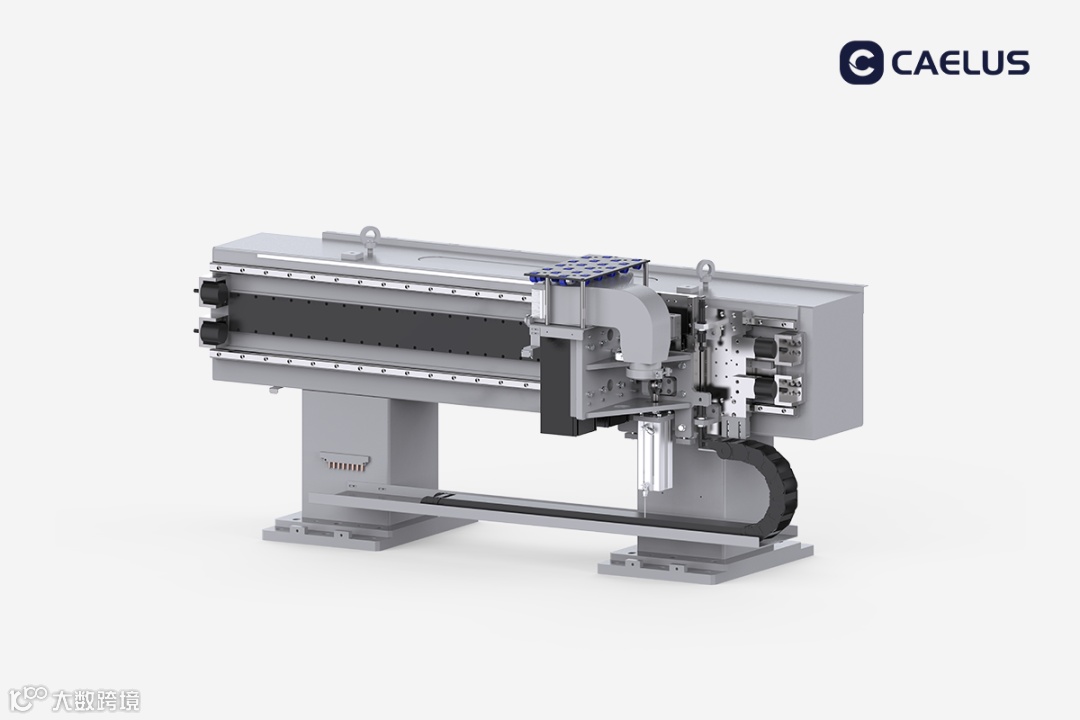

Infeed System CG12
• High-load servo drive + precise linear guided rail for workpiece pushing
• High-precision pusher and clamping device, correcting the posture of the workpiece when it enters the edge banding machine
• With position close-loop servo control, the pre-milling amount is precise for ensuring the workpiece

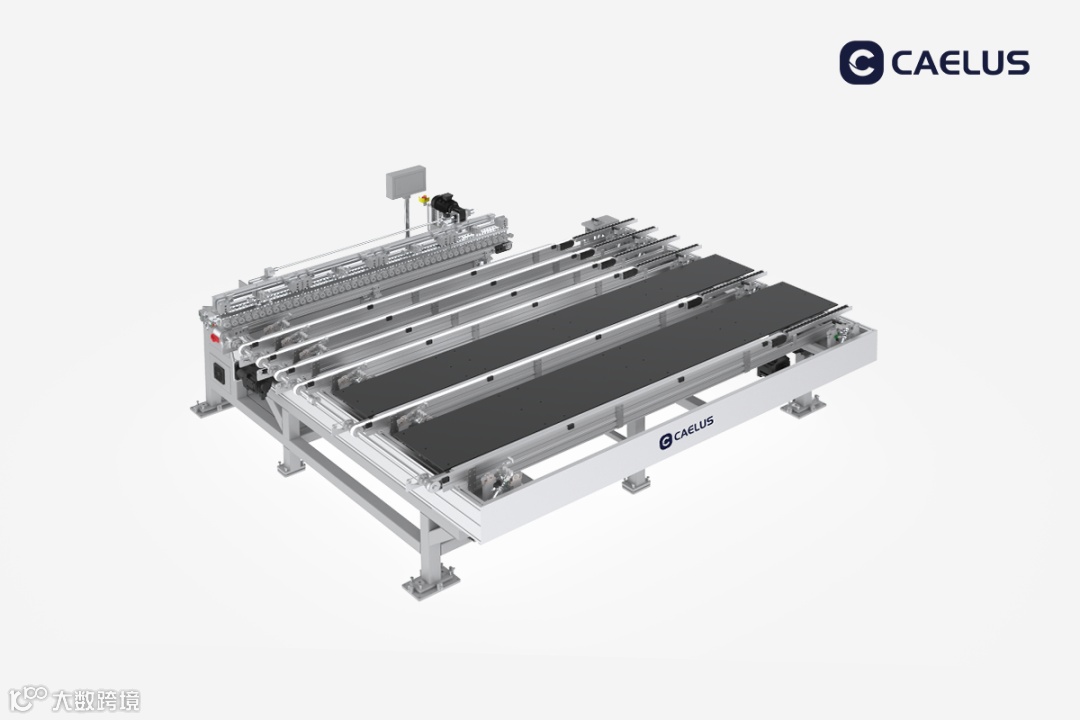

Outrigger Sizing System CM12
• Equipped with precision linear guided rails for accurate positioning, maintaining the reference posture during milling operations
• Utilizes linear servo motor for high-speed and high precision, ensuring precise workpiece dimensions
• The outrigger milling cutter aligns with the joint trimming unit of the edge banding machine to suppress deflection during milling
3
Edge Banding Core Equipment

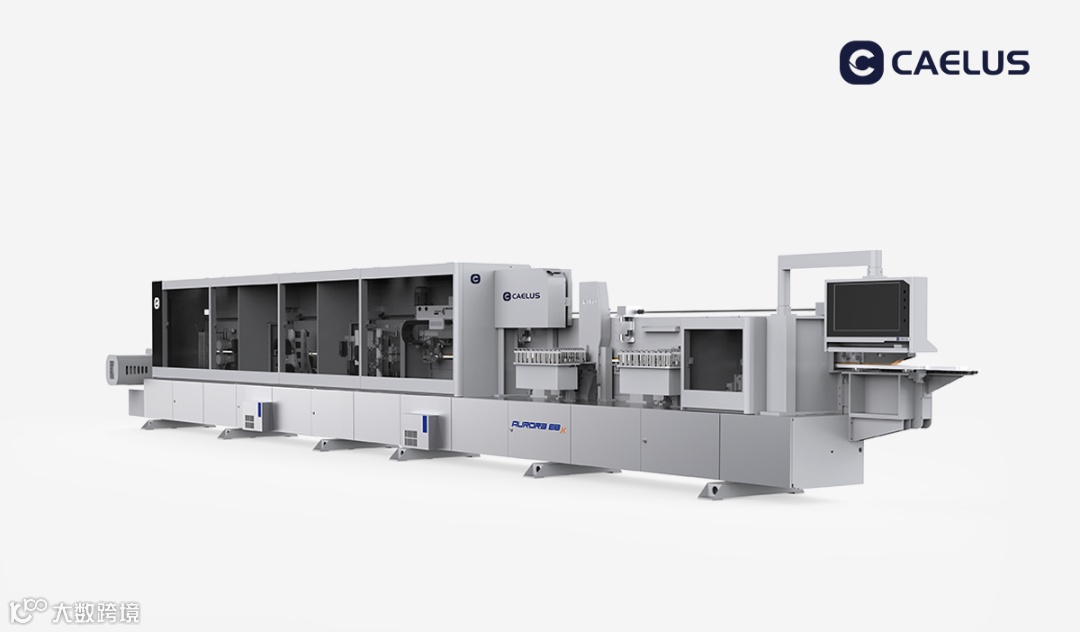

High-speed Intelligent Edge Banding Machine E8x
• Intergrated heavy-duty steel frame construction
• A wide range of modular units
• Equipped with the full servo positioning system
4
Automatic Outfeeding and Circulation System

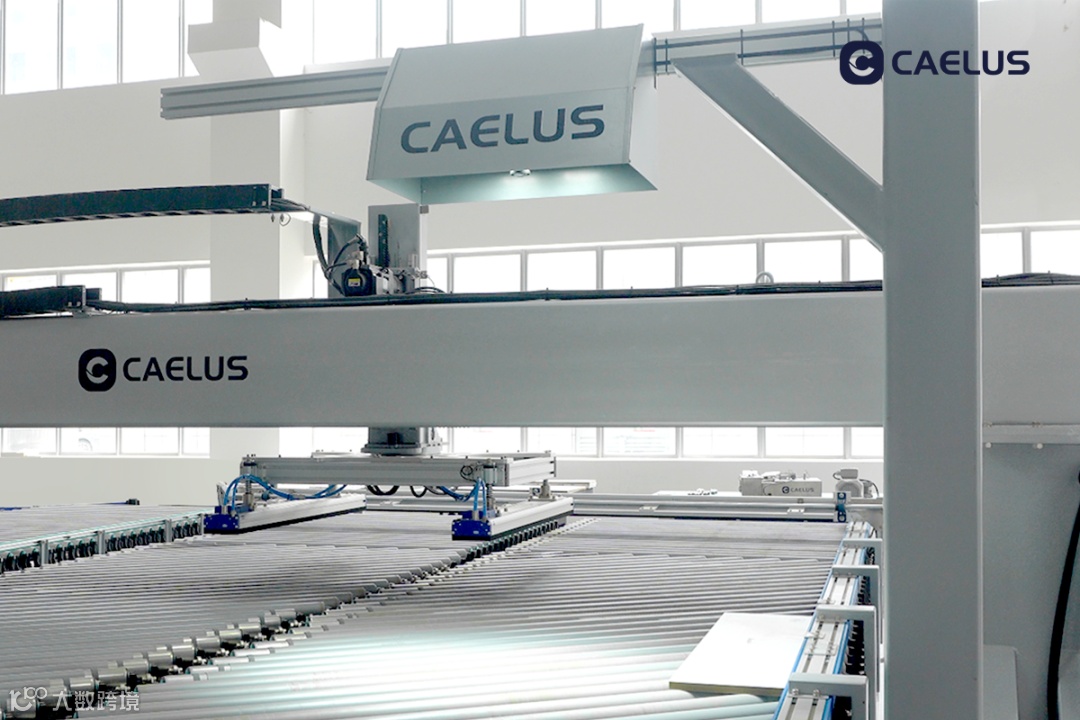

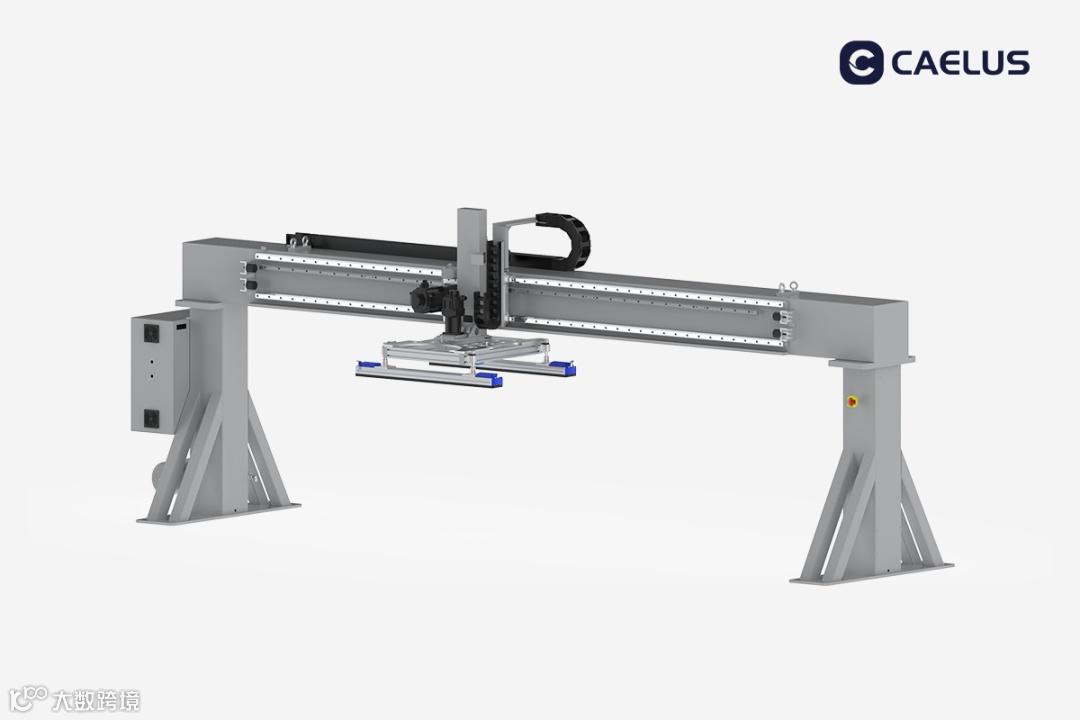

Gantry Circulation System CL40
• 150m/min High-speed movement, reducing the waiting time for workpieces
• Equipped with a heavy-loaded servo motor plus precision linear guided rails for high-speed, high precision, ensuring accurate grasping and releasing of the workpieces
• High-quality suction cups, suitable for different sized workpieces

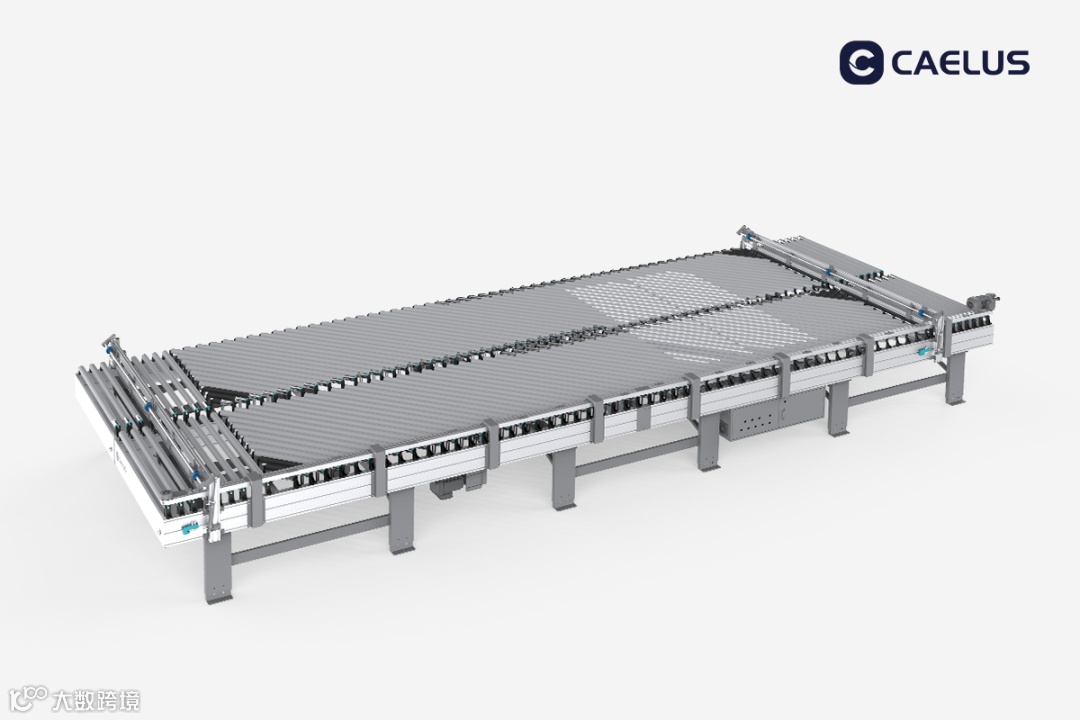

Roller Conveyor CT37
• Select high-quality rollers, ensuring smooth panel conveyance
• Equipped with a lifting mechanism, reducing the waiting time for workpieces
• Modular design, adaptable to various factory layouts
|
Maximum part size |
2800mm*1200mm |
|
Minimum part size |
240mm*240mm |
|
Feed speed |
26-32-36m/min |
|
Overall dimension |
27m*8m*1.96m |
Energy Consumption and Safety
• 380V 3-Phase AC, 0.6MPa Air Pressure
• Fully enclosed guarding with E-Stop system | CE Compliance
· END ·
