X7CAM4K系列相机搭配不同的传感器的主要参数
|
相机型号 |
X7CAM4K8MPA |
X7CAM4K8MPB |
X7CAM4K16MPA |
|
传感器尺寸(mm) |
IMX678(C) |
IMX585(C) |
IMX283(C) |
|
1/1.8"(7.68x4.32) |
1/1.2"(11.14x6.26) |
1/1.1"(13.06x7.34) |
|
|
像素(um) |
2.0x2.0 |
2.9x2.9 |
2.4x2.4 |
|
G光灵敏度 |
3541mv with 1/30s |
5970mv with 1/30s |
1847mv with 1/30s |
|
暗电流 |
0.15mv with 1/30s |
0.13mv with 1/30s |
0.84mv with 1/30s |
|
传感器输出 |
72@3840*2160 |
75@3840*2160 |
30@5440*3060 |
|
(FPS/分辨率) |
|||
|
采样平均 |
1x1 |
1x1 |
1x1 |
|
曝光时间 (ms) |
0.019~1000 |
0.048~1000 |
0.104~1000 |

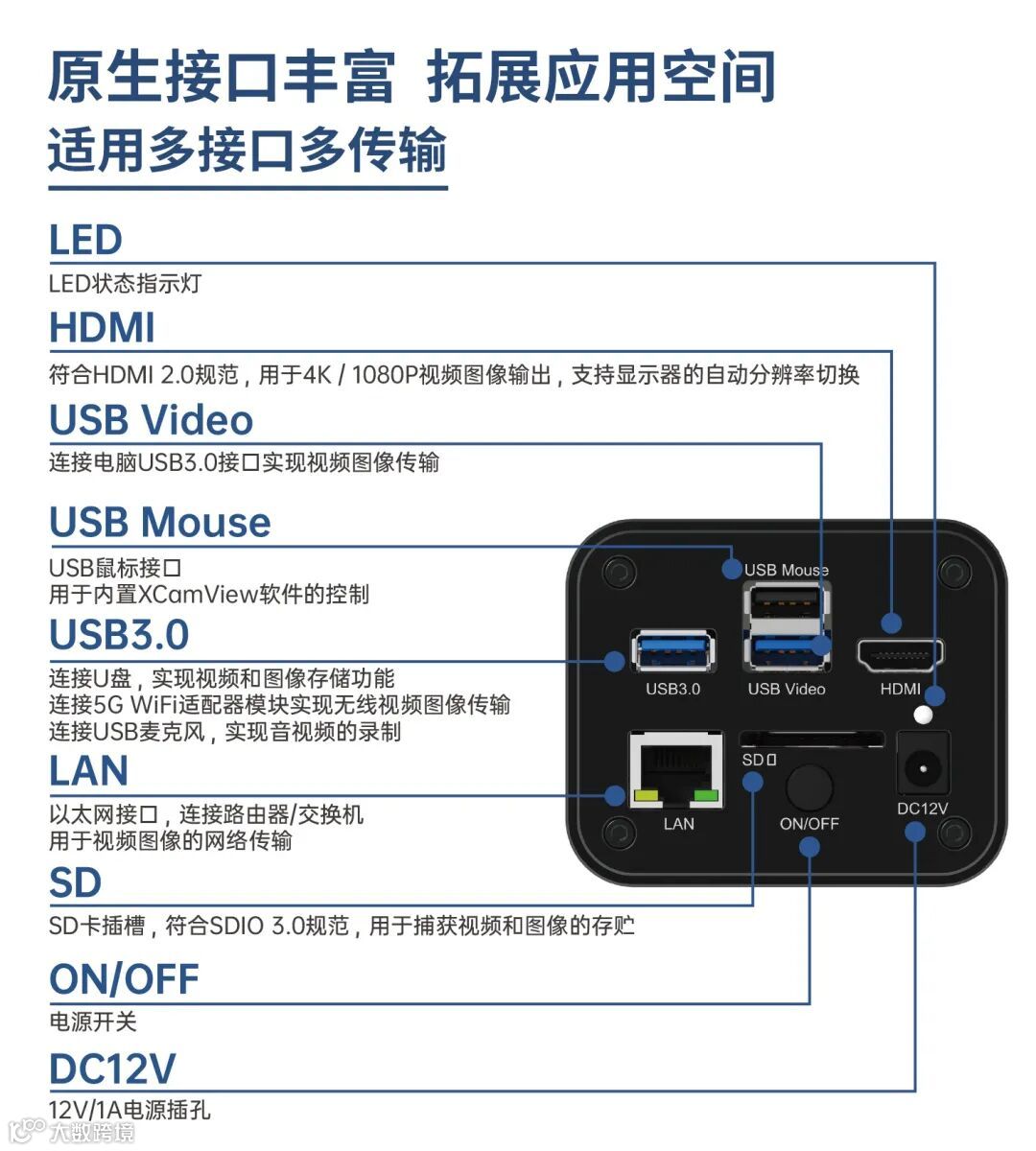

X7CAM4K系列相机不同接口输出参数
|
相机型号 |
X7CAM4K8MPA |
X7CAM4K8MPB |
X7CAM4K16MPA |
|
视频录制 (FPS/分辨率) |
72@3840*2160 |
75@3840*2160 |
30@3840*2160 |
|
72@1920*1080 |
75@1920*1080 |
30@1920*1080 |
|
|
HDMI2.0 (FPS/分辨率) |
60@3840*2160 |
60@3840*2160 |
30@3840*2160 |
|
60@1920*1080 |
60@1920*1080 |
30@1920*1080 |
|
|
USB3.0 (FPS/分辨率) |
30@3840*2160 |
30@3840*2160 |
20@5440*3060 |
|
45@2688*1512 |
45@2688*1512 |
30@2688*1512 |
|
|
60@1920*1080 |
60@1920*1080 |
30@1920*1080 |
|
|
NETWORK (FPS/分辨率) |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
|
60@1920*1080 |
60@1920*1080 |
30@1920*1080 |
|
|
72@1280*720 |
75@1280*720 |
30@1280*720 |
