预应力施工介绍
Introduction of prestressing construction
1
预应力是为了改善结构使用中的表现，在施工期间给结构预先施加的压力，结构在使用期间预加压应力可全部或部分抵消荷载导致的拉应力，避免结构破坏。预应力混凝土结构，是在结构承受荷载之前，预先对其施加压力，使其在外荷载作用时的受拉区混凝土内力产生压应力，用以抵消或减小外荷载产生的拉应力，使结构在正常使用的情况下不产生裂缝或者裂得比较晚。
Prestressing is applied to improve the performance of structures during use by pre-applying stress to the structure during construction. This pre-applied stress can fully or partially counteract the tensile stress caused by loads during the service life of the structure, thereby preventing structural failure. Prestressed concrete structures are those in which stress is applied to the concrete before it is subjected to loads. This pre-applied stress induces compressive stress in the tensile zones of the concrete when external loads are applied. This counteracts or reduces the tensile stress caused by external loads, ensuring that the structure does not crack or cracks later under normal service conditions.
预应力张拉施工分类
Classification of prestressing tensioning construction
先张法/Pre-Tensioning
过程：在浇筑混凝土之前，首先在模具中拉紧钢筋（或钢绞线）。钢筋被固定在模具的两端，并被拉紧到设计要求的预应力。
Process: Before casting concrete, steel tendons (PC strands) are tensioned in a mold. The tendons are anchored at each end of the mold and stressed to the desired level of pre-tension.
浇筑混凝土：在钢筋保持拉紧状态下，浇筑混凝土。混凝土硬化后，松开钢筋的拉紧装置，钢筋通过与混凝土的粘结力传递预应力。
Concrete Casting: While maintaining the tension in the tendons, concrete is poured into the mold. Once the concrete hardens, the tensioning devices are released, and the pre-stress is transferred to the concrete through bond.
应用：先张法通常用于预制混凝土构件，如桥梁板、空心板等。
Application: Pre-tensioning is typically used for precast concrete elements, such as bridge girders, hollow-core slabs, and other prefabricated components.
后张法/Post-Tensioning
过程：在混凝土构件浇筑并达到一定强度后，通过预留的管道或孔道，将钢绞线或钢筋穿过构件，并在两端安装锚具。
Process: After the concrete element has been cast and gained sufficient strength, steel tendons are threaded through ducts or voids within the element, and anchorages are installed at each end.

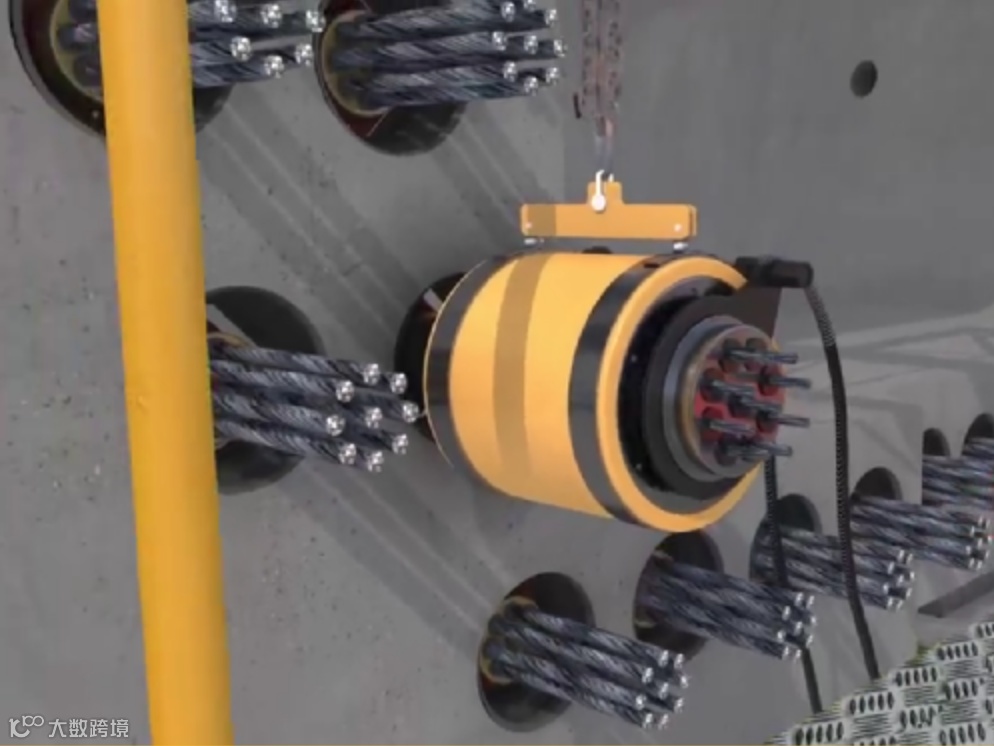

施加预应力：使用张拉设备在钢绞线上施加预应力，然后将预应力通过锚具固定下来。
Applying Pre-Stress: Tension is applied to the tendons using jacking equipment, and the tendons are then anchored in place.
灌浆：为了保护钢绞线和增加粘结力，最后在孔道中灌注水泥浆或其他填充材料。
Grouting: To protect the tendons and enhance the bond, grout or other filling materials are injected into the ducts.

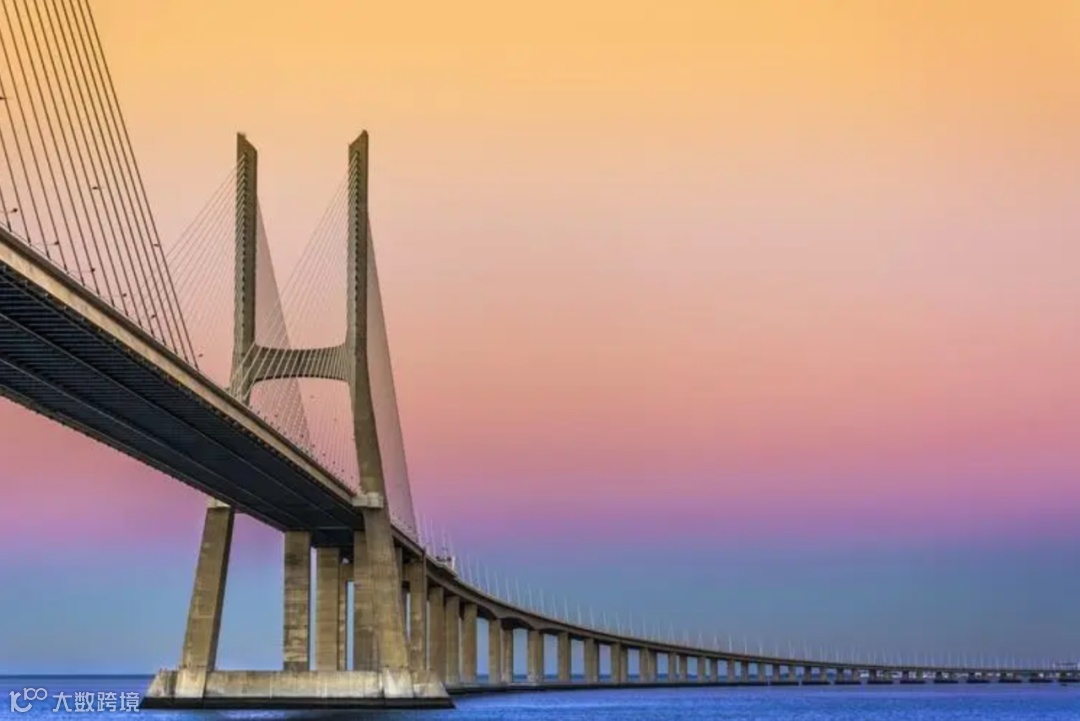

应用：后张法常用于现浇混凝土结构，如大型桥梁、楼板、大跨度结构等。
Application: Post-tensioning is commonly used in cast-in-place concrete structures, such as large bridges, slabs, and long-span structures.
