柯尔布斯 Kolbus KM 610.A 2018年
柯尔布斯 Kolbus KM 610.A
识别码：YA26994
制造商：Kolbus
型号：KM 610.A
年份：2018
运行时间：2000小时
状态：在生产
Equipment

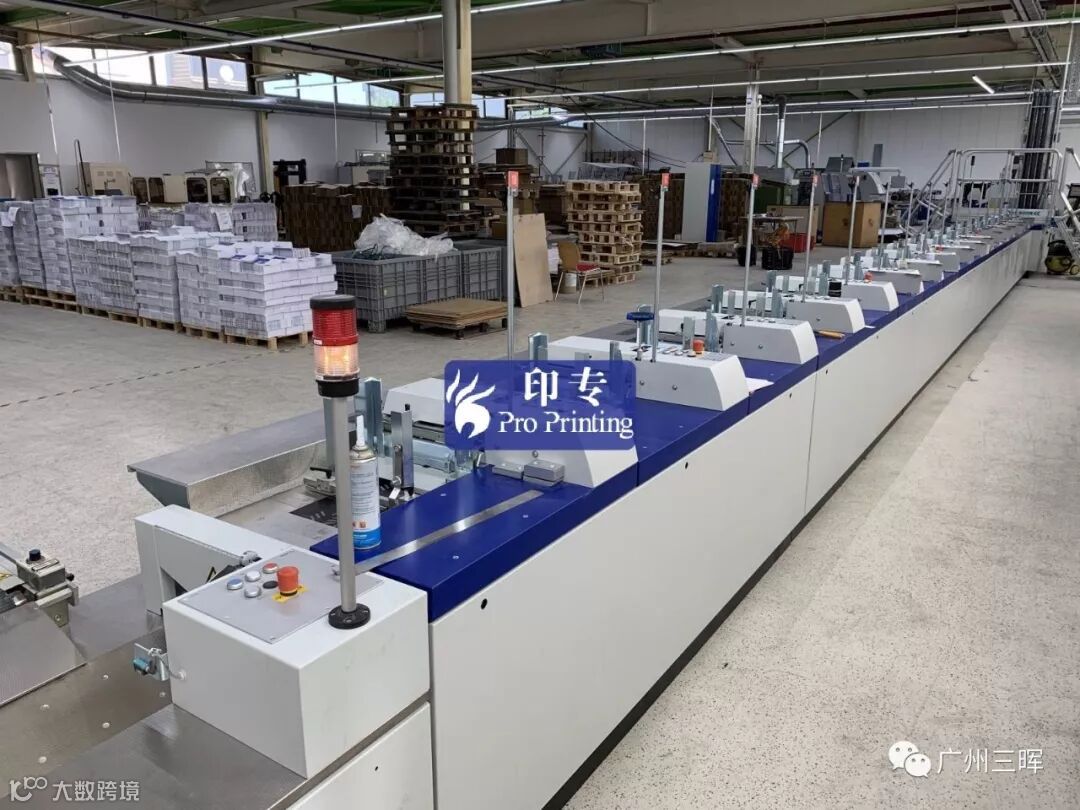

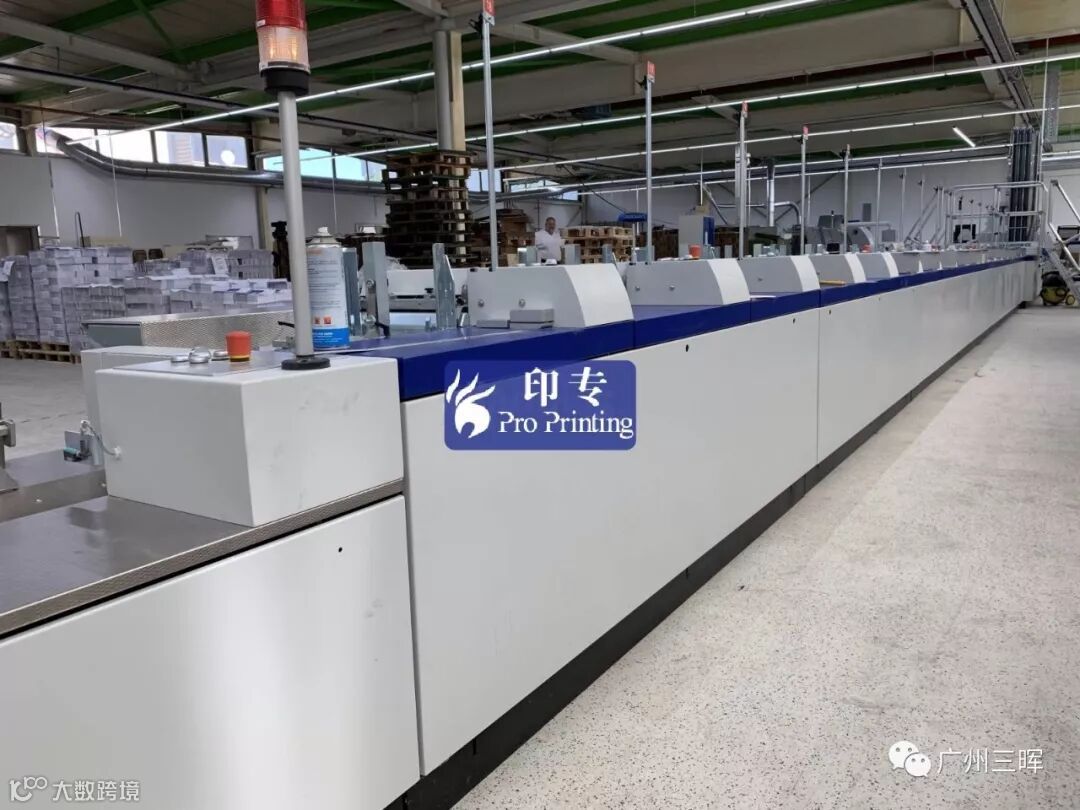

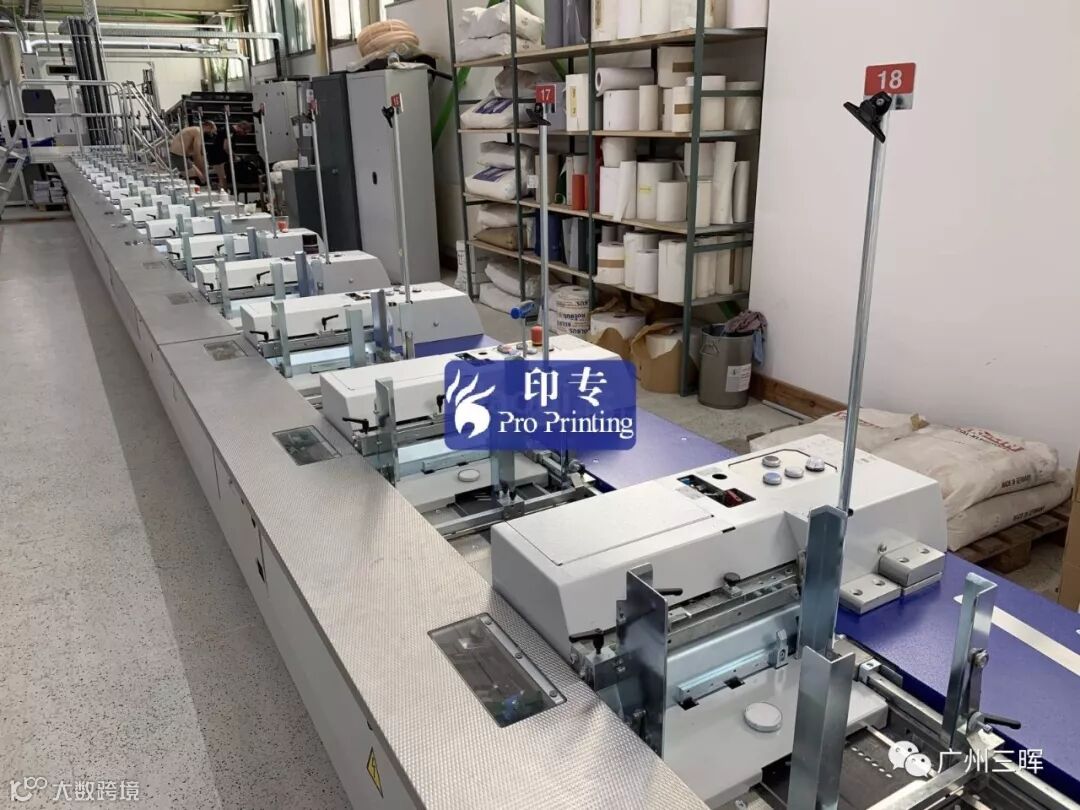

Gathering Machine
Type: ZU 832.A
Gathering stations: 18x
Year: 2018
Hand feeding station
ATC (automatic sheet thickness control)
Reject Unit: AS 842.A
Sheet recognition system
Picture and text mode, as well as Barcodemudus A
Technical Details
Size max: 320 x 460 mm
Size min: 105 x 105 mm
layer thickness max: 3 mm
Pile height max: 250 mm
Mechanical speed max: 8,000 cycles/h

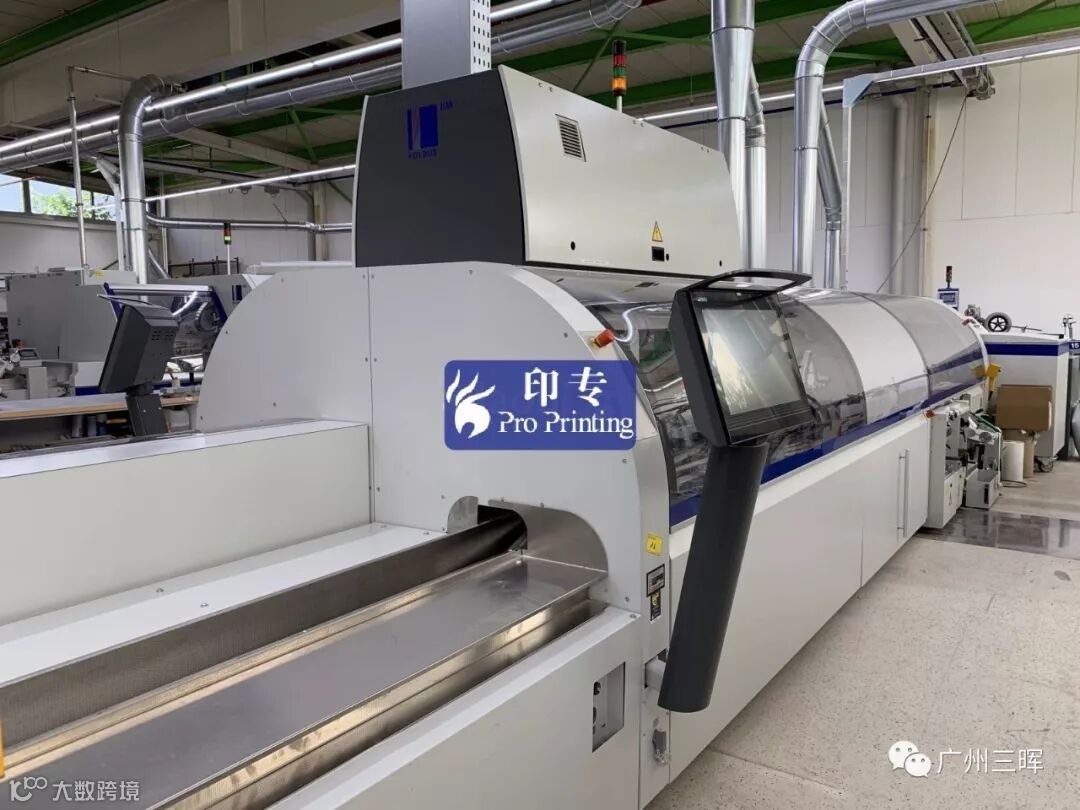

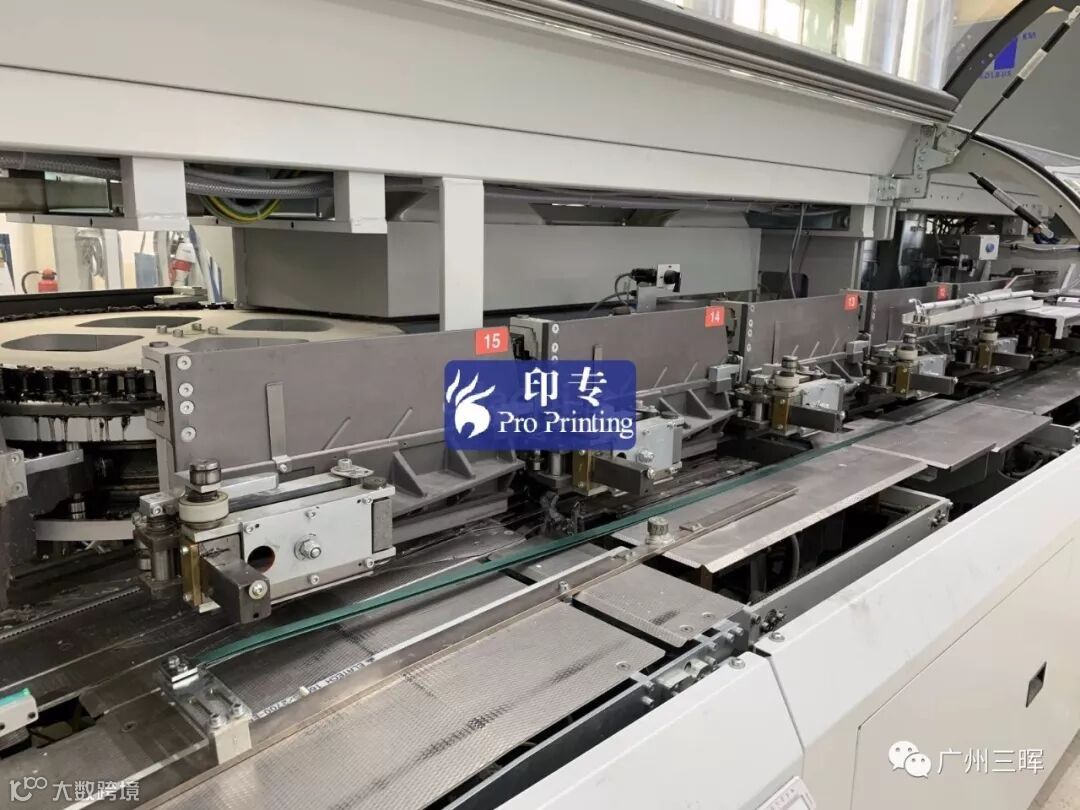

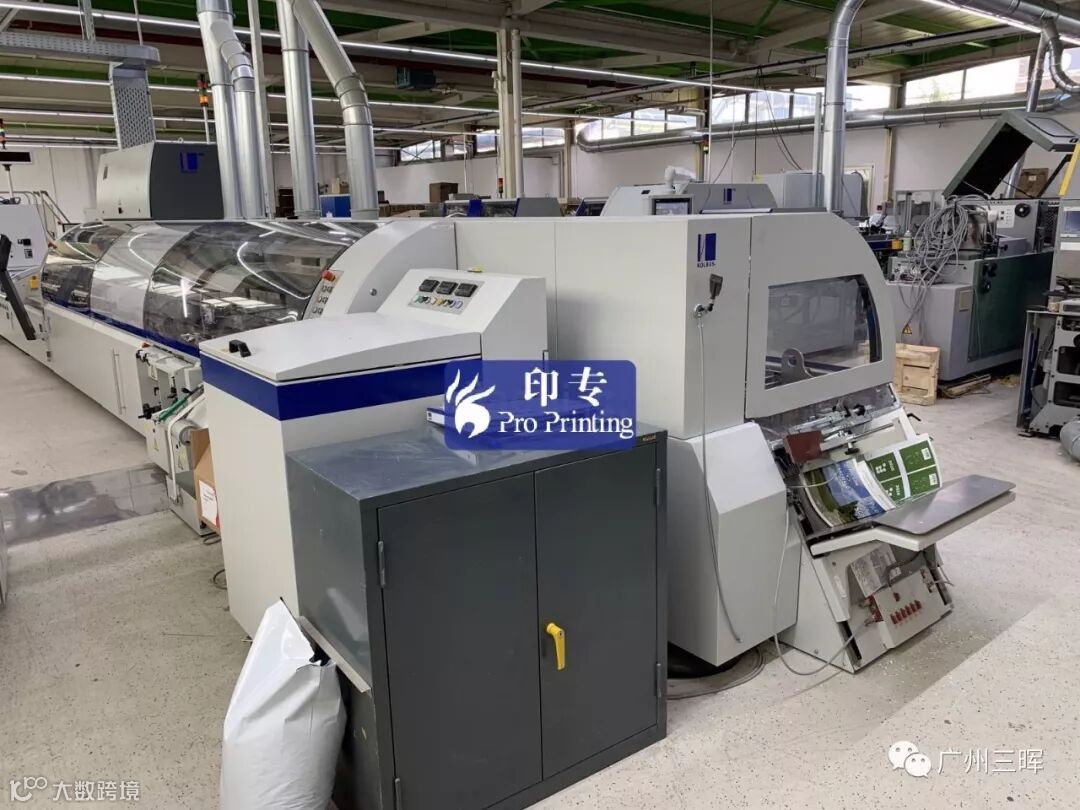

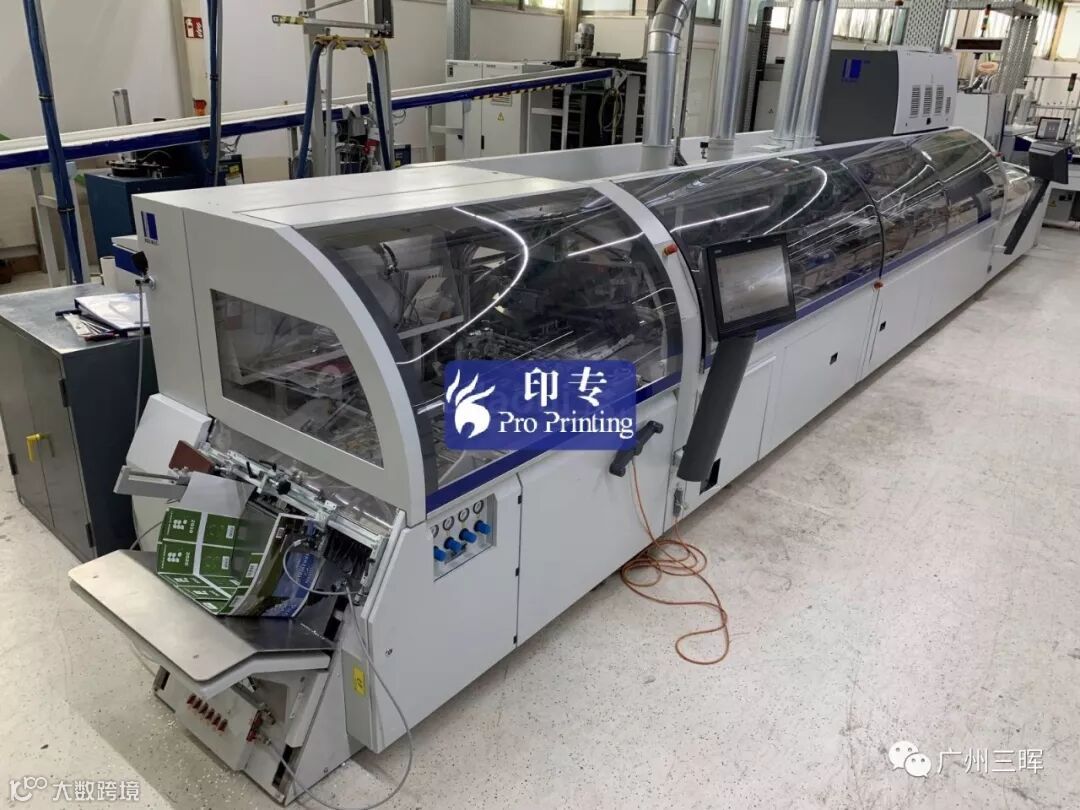

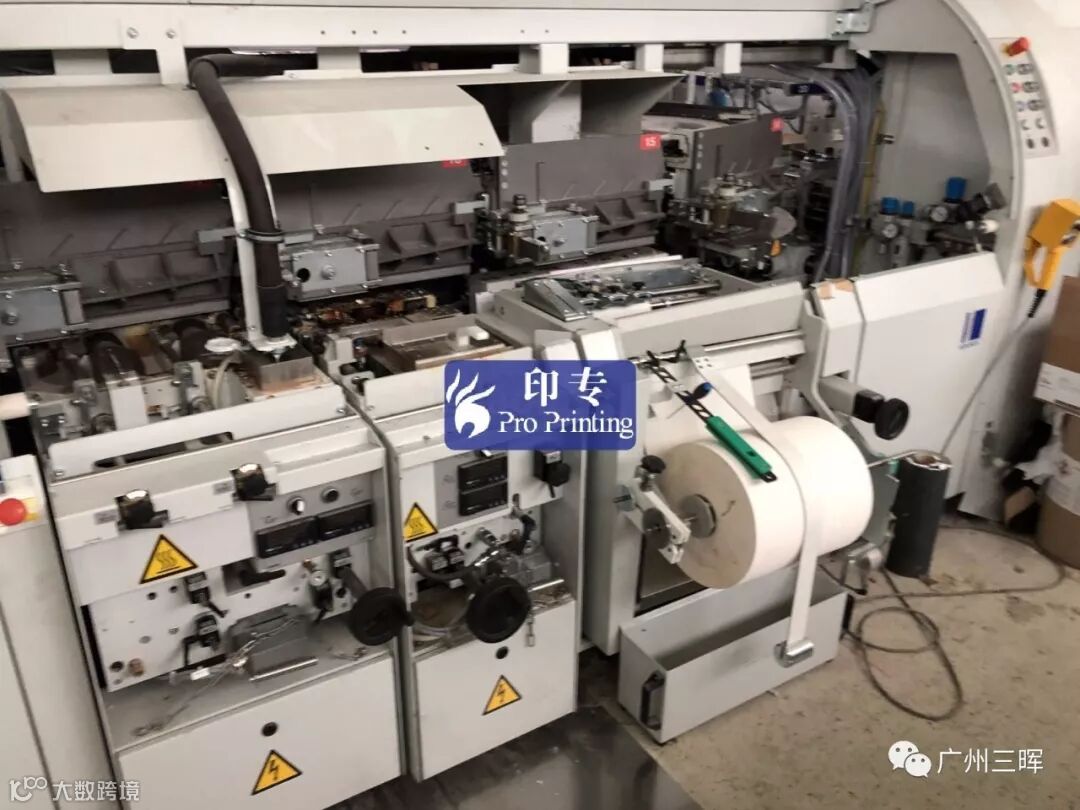

Perfect Binder
Year: 2018
Number of clamps: 21x
infeed incl. coupling to a ZU gathering
Milling station
Hotmelt spine gluing
Hotmelt side gluing
PUR Spine Glue
PUR Side Glue
Cold glue: exchangeable coldglue spine gluing unit
Premelter: Nordson "VersaPUR"
Premelter: LH 375.B
Gauzing
rill station for 4 times rill
Cover feeder: RA 610.A
Cover recognition system
Picture and text mode, as well as Barcodemudus A
Nipping and Pressing station
2nd Nipping and Pressing station
lay down device
Dryer: IR Heating in steering range of the clamps

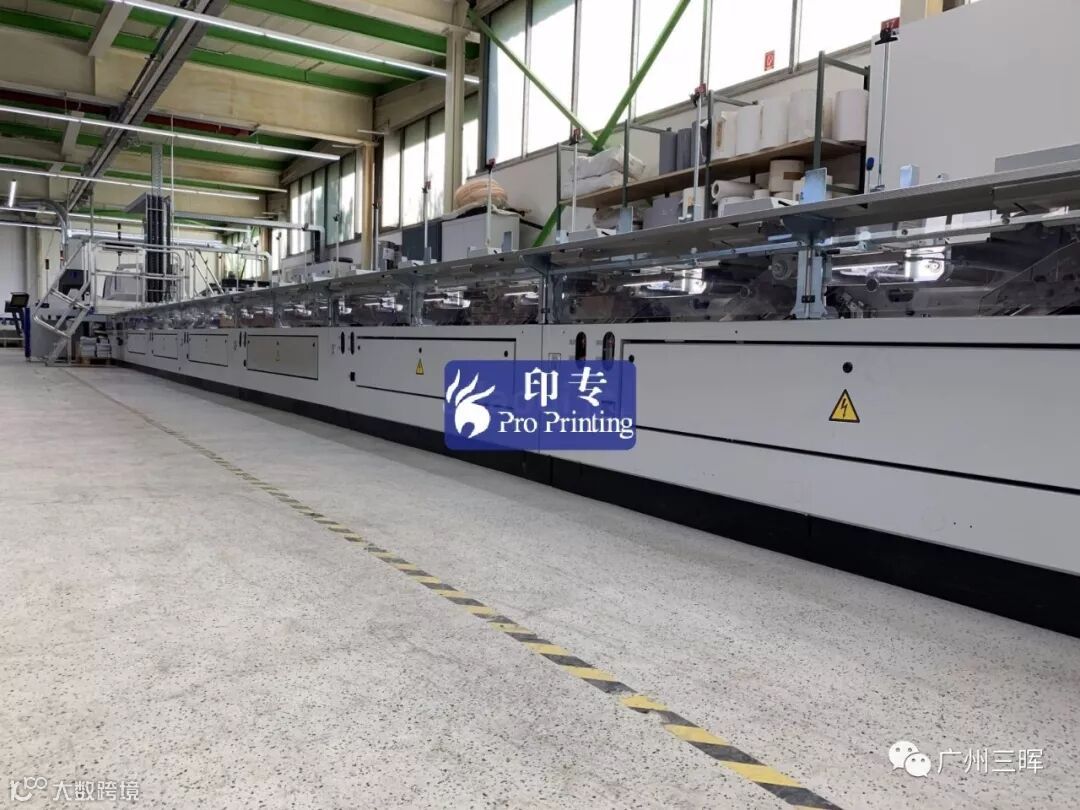

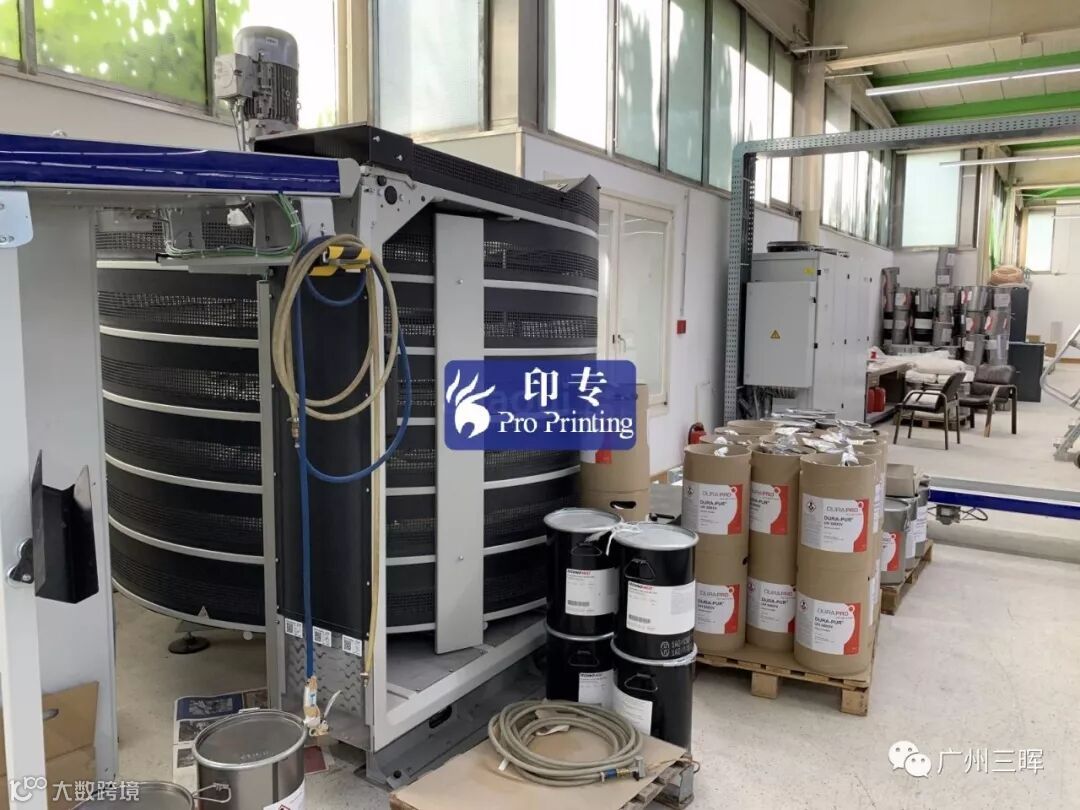

Drying Conveyor
conveyor belts

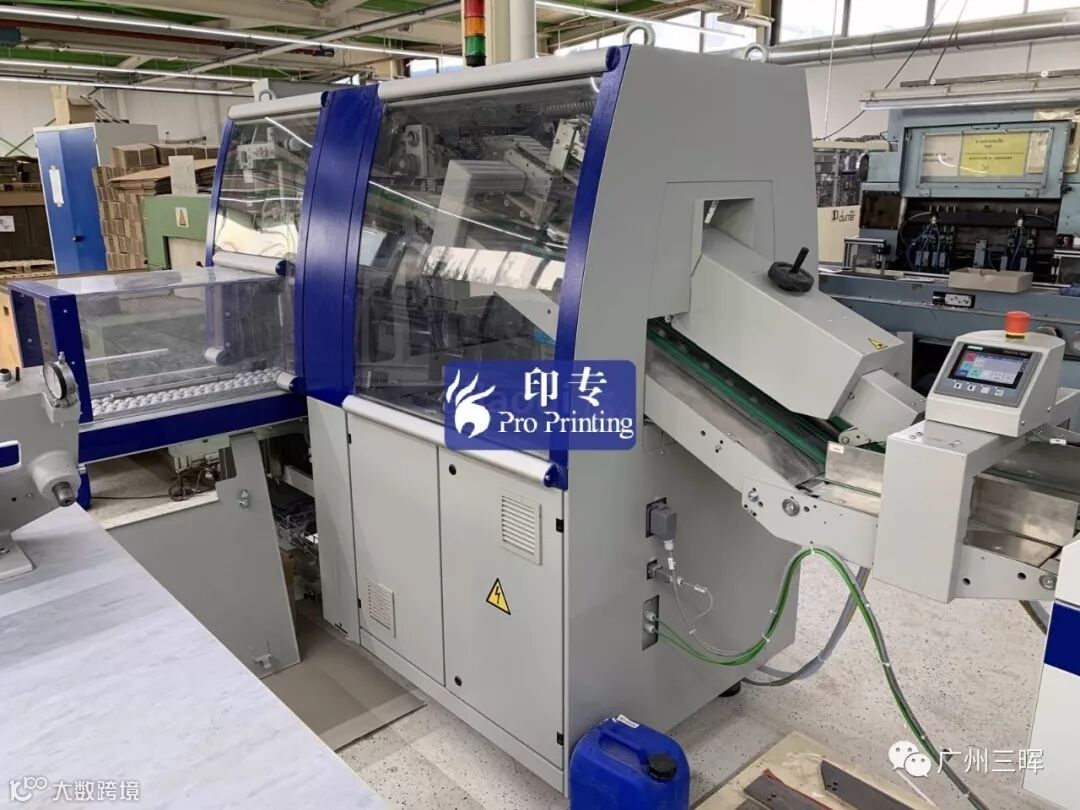

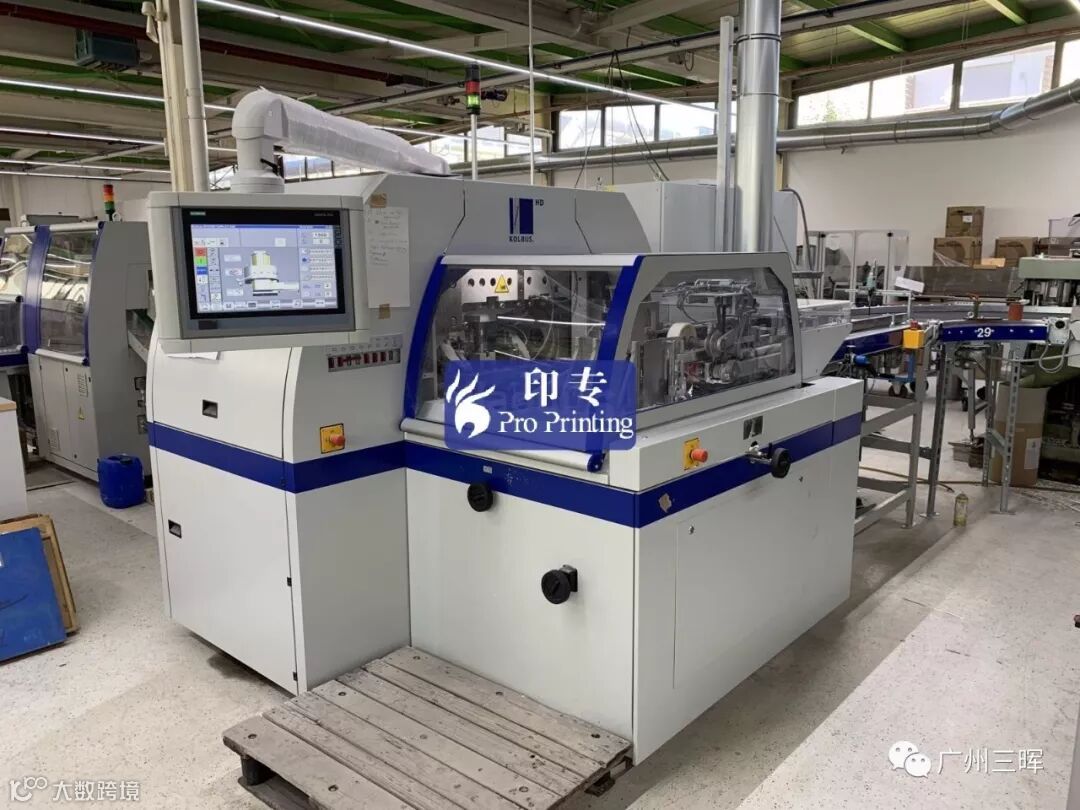

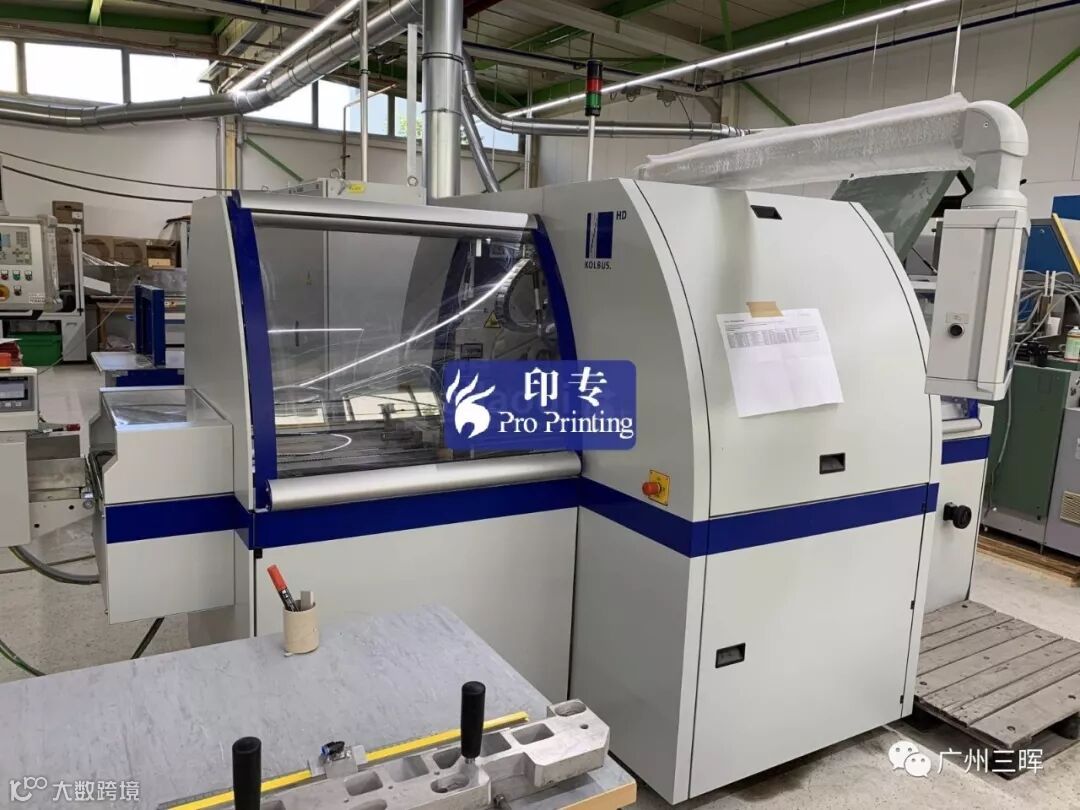

Three knife trimmer
Type: Kolbus HD 153.M
Year: 2018

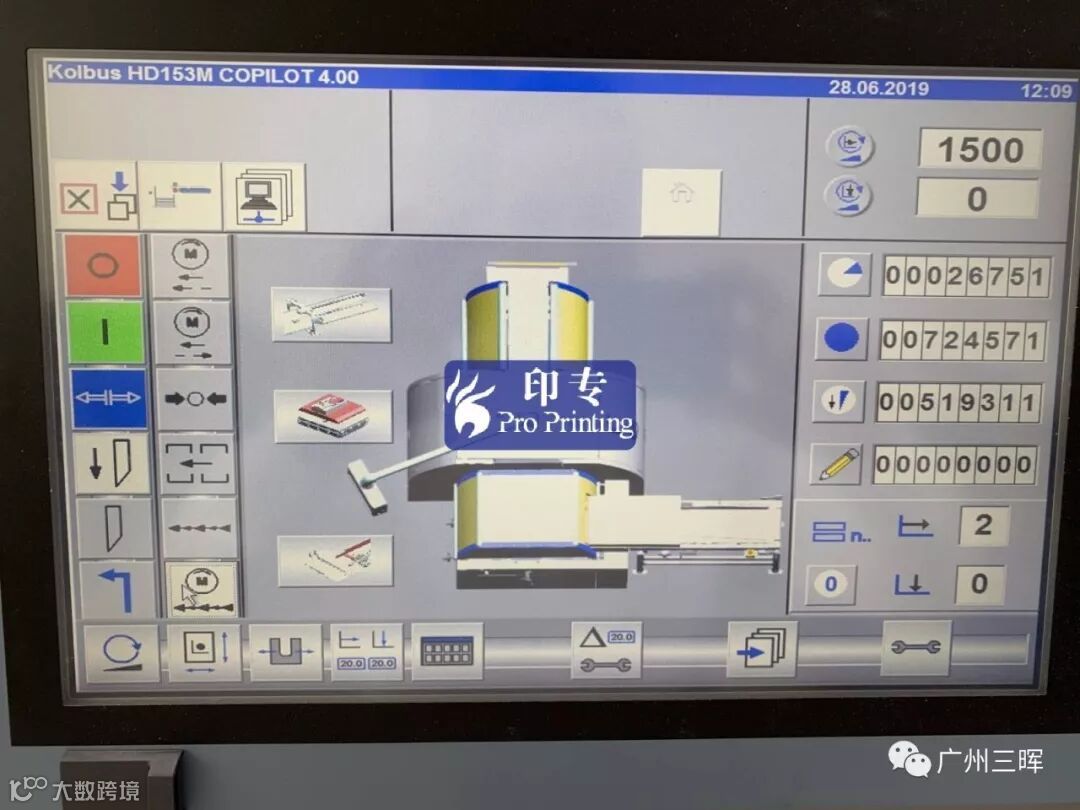

Control Panel: Copilotsystem with "Touchscreen"
Format memory
automatic size adjustment
Infeed direction: Infeedbelt from right
Technical Details
Size max (cutted)): 100 x 120 x 1,5 mm
Size min (cutted): 300 x 420 x 80 mm
Size max (uncutted): 310 x 430 x 80 mm
Pile height max: 80 mm
Front Cut max: 40 mm
Mechanical speed max: 6,600 cuts/h
Stacker
Type: Kolbus KL 501
Year: 2018
Output direction: Left & right
Control Panel: Copilotsystem with "Touchscreen"
automatic size adjustment
Technical Details
Size max: 320 x 420 x 80 mm
Size min: 100 x 125 x 2 mm
Pile height max: 330 mm
Mechanical speed max: 18,000 cycles/h
Technical Details
Mechanical Speed: 8,000 cycles/h
Book thickness: 70 mm
Max Block format range (width x height x thickness): 320 x 383 x 70 mm / 190 x 460 x 70 mm
Min. Block format range (width x height x thickness): 100 x 105 x 3 mm
