HB-520PB双线圈打孔装订一体机

东莞市恒博装订设备有限公司

2024-06-14

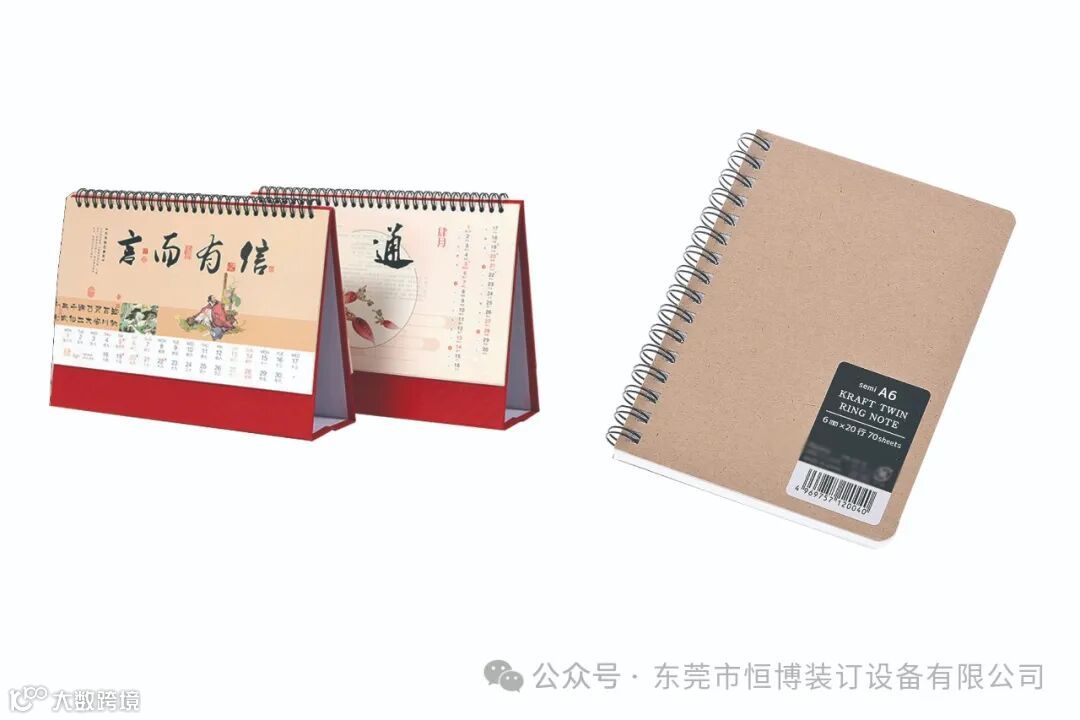

导读：可高速高效率生产:台历，挂历，笔记本，写宇本，画画本，画册说明书等活页产品。

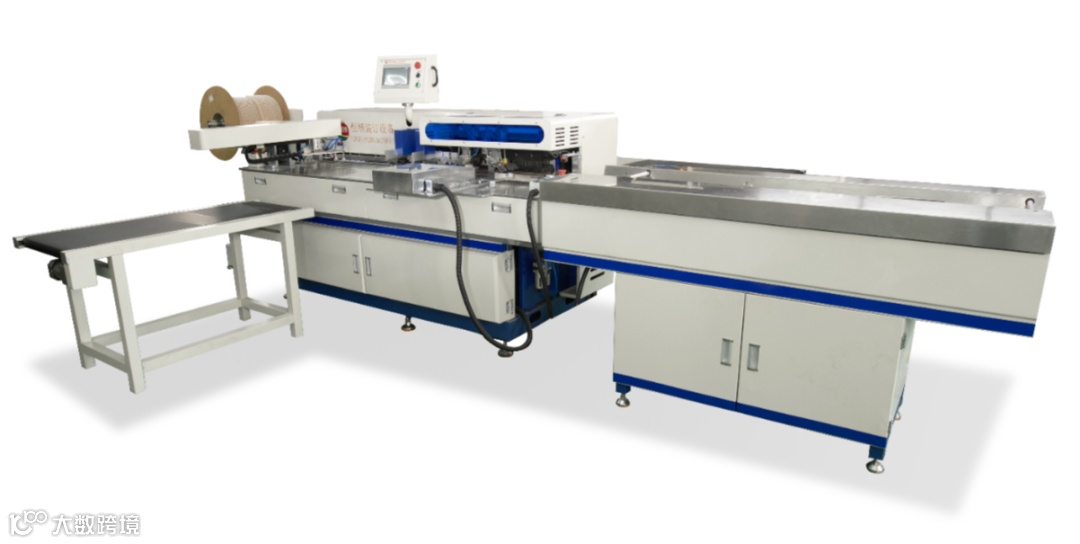

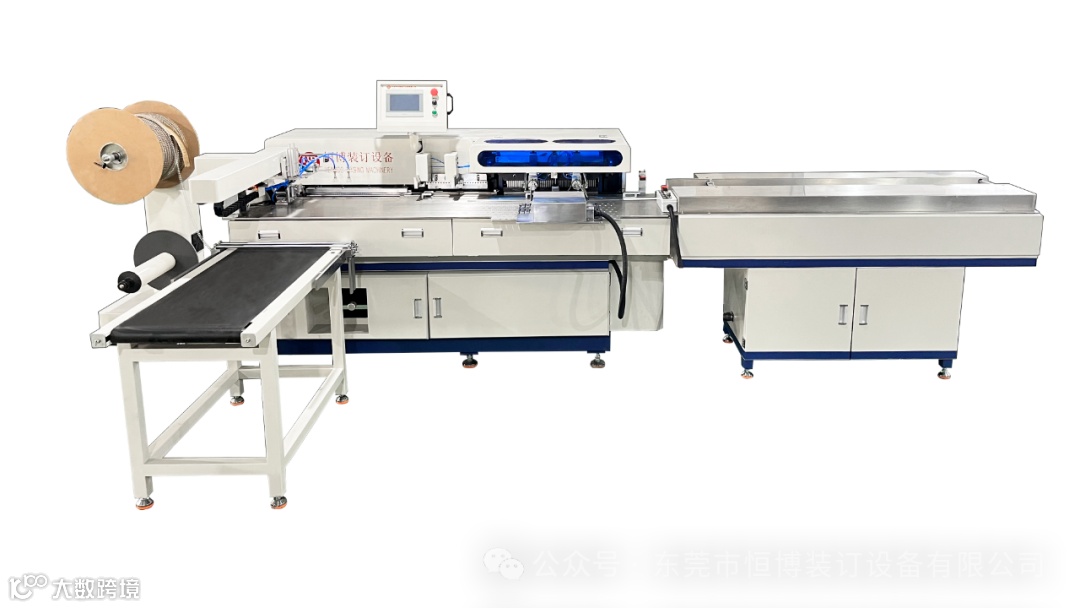

机器介绍

HB-520PB国内首创研发，是国内唯一的一台可以解决笔记本封面封底大于内页一起打孔，装订的设备，本机具有十多项发明和实用型专利，比传统生产提高80%效率以上，可高速高效率生产:台历，挂历，笔记本，写宇本，画画本，画册说明书等活页产品。

HB-520PB Automatic bouble loop wire puching and binling machine, the only machine that can solve the problemthat the cover is bigger than the imer paper to mke the whole book punching and binding together,Themchine has above ten items of pstent for invention,which can improve the efficiency abowe 80% it canproduce the product at high speed, such as desk calendlar, hanger calendsr, notebook, instruction book and so on.

产品展示：

1.本机具有自动分层送本、自动分层打孔、自动分封面打孔、自动书本校孔、自动书本装订、自动收本。

2.本机只需1-2个普通操作员完成。

3.高质量打孔模具，最厚一次可以打孔6mm,采用模具自动加油机构，一套模体设计双边二规格，可以分四次新

模具使用，比普通打孔模具十倍的寿命。

4.打孔模具换规格、拔针、不用卸螺丝，一分钟搞定。

5.封面封底大于内页的笔记本，和台历，可自动分层识别封面封底的大小去分次打孔装订。

6.有自动校线圈的功能。

7.自动故障提示功能。

8.线圈可分节分段，最多可分六段。

9.挂历可加装自动下挂杆装置-选装挂钩架。

10.可选装自动翻书功能及自动下封面装。

1.The machine can automatic feed the book,automatic punch one book several times,automatic punch the cover and inner paper separately,automatic adjust the hole,automatic bind,automatic receive the book.

2.The machine only need 1-2 workers to operate.

3.High quality of punch mould,it can punch at most 6mm,which can add the oil automatic.One mould has two sides with two sizes of the hole,it can use as new mould for four times,which makes the mould can be used for ten times of life than the normal mould.

4.It just need one minute to change the mould size.

5.The machine can recognize the book that the cover is bigger than the inner paper,then punch it separately.

6.It can adjust the double loop wire automatically.

7.Automatic remind the malfunction.

8. The double loop wire can be set to max six loops.

9.The machine can add the hanger attchment for hanger calendar.

10.Can choose the function of turning the book cover and feeding the cover automatically.
