Product introduction产品介绍
Advantage优势:
Widely for all kinds of oil plant 对大多数油料适用
Biggest processing capacity 20T/24H 最大处理量 20吨/24小时
Low oil content in the residue cake 低枯饼残油
Big pressing force in the chamber 强劲的榨膛压力
Long-term continuous work 适应长时间连续性工作
Long durable work life more than 10 years 10年以上的使用寿命
Wearing parts can be dismountable 配件可更换
Different design in squeeze chamber for both cold and hot pressing 不同的压榨级数满足冷榨和热榨
Characteristic产品特点:
Physical squeezing craft 物理压榨工艺
Triangle Belt via motor or diesel engine 适用电机和柴油机
Big processing capacity 20T/24H suit for large oil factory 20吨/天处理量适用于大型油厂
Owned certificate of ISO,SGS,TUV,BV,CQC 拥有 ISO,SGS,TUV,BV,CQC 等认证
Manufacturer with own import and export right 外贸客户工厂直接发货
Carbon steel and Iron are processed by cemented quenching & tempering 主材碳钢采用渗碳淬火和回火工艺

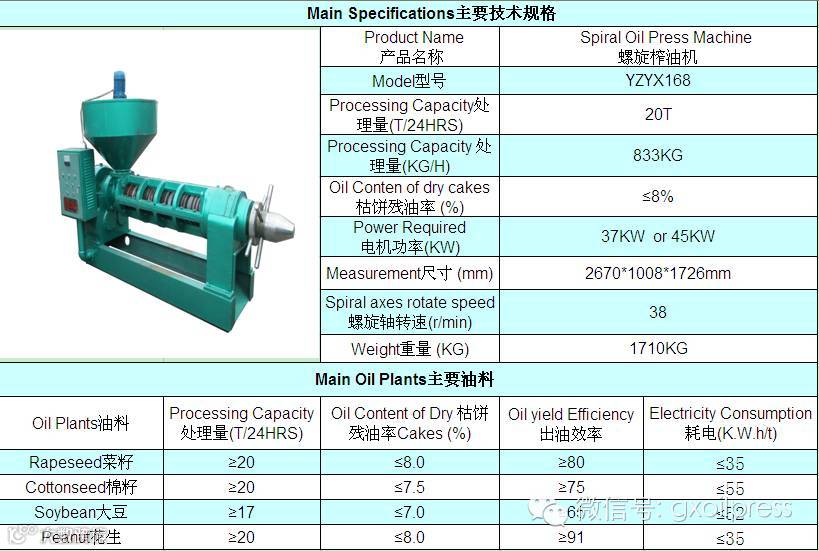

Specification主要规格参数：
Work principle工作原理
1. Transferred by the triangle belt, the electromotor drives the spiral shaft.
通过三角带，电机带动螺旋轴转动
2. The oil plants falls into the first section of the spirals through the feeding part and being carried toward the end of the machine along with the rotating squeeze spirals.
通过进料机构油料进入螺旋轴第一部分，然后被旋转着的螺旋轴带入到机器末端
3. As the space between the squeeze spirals are getting smaller, the oil plants frictions with each other as well as the squeeze spirals and the squeeze loops. The pressure in the chest is becoming bigger.
由于螺旋轴挤压内部空间逐渐变小，油料在榨螺榨圈之间相互摩擦，因此榨膛内压力逐渐增大
4. During this process, the oil plants are smashed and big amount of heat is generated, the tissue cells are destroyed and the oil is separated from the oil plants and flow out from several outlets.
在这个过程中，油料被挤压并升温，油料的细胞组织被破坏因此油从油料中分离出来，并从榨圈的油线中流出
5. After extracted, the oil plants turns to be cake containing low oil and discharged in thin slices from the end of the machine. The whole oil and residue separation process is completed.
压榨过后，油料变成含油极低的枯饼薄片从机器尾部排出，整个压榨过程结束。

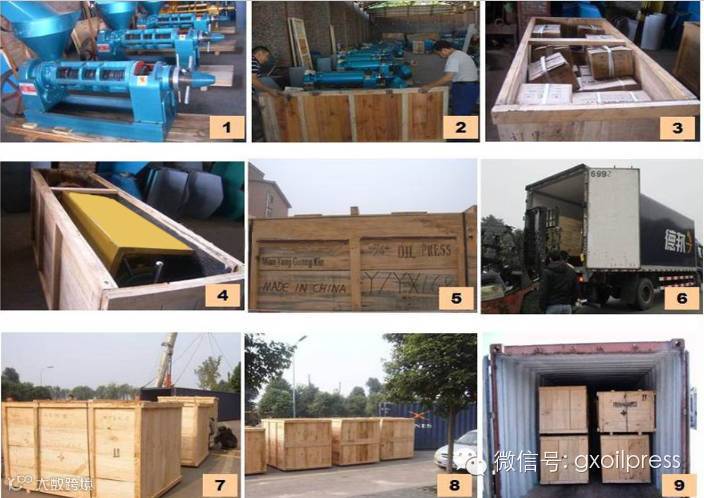

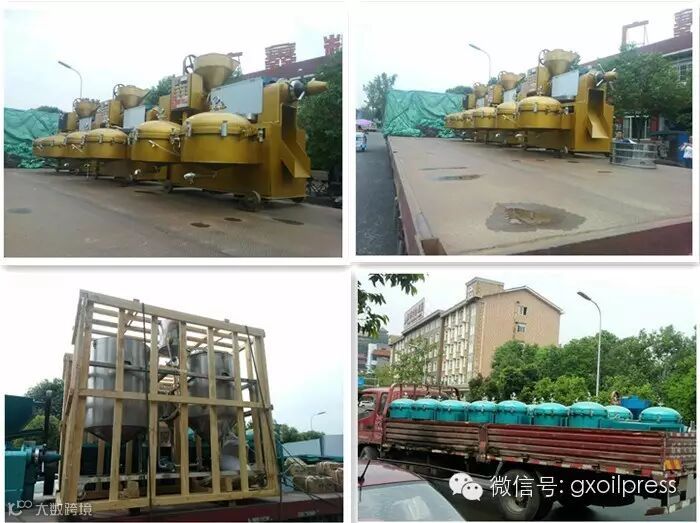

Packaging and transportation包装和运输：
To overseas出口包装:
Domestic 国内包装和运输：
