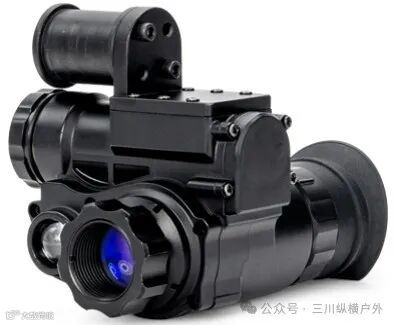

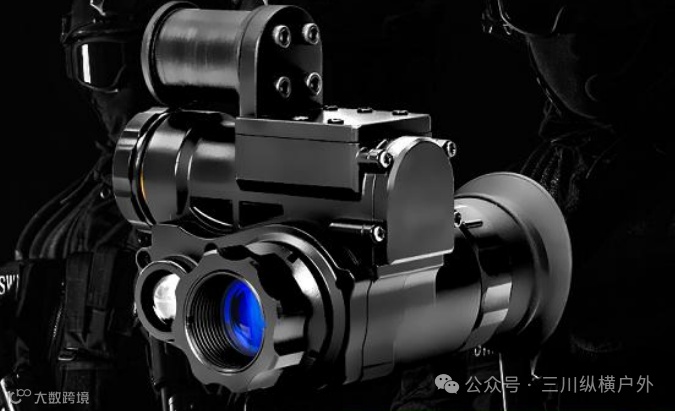

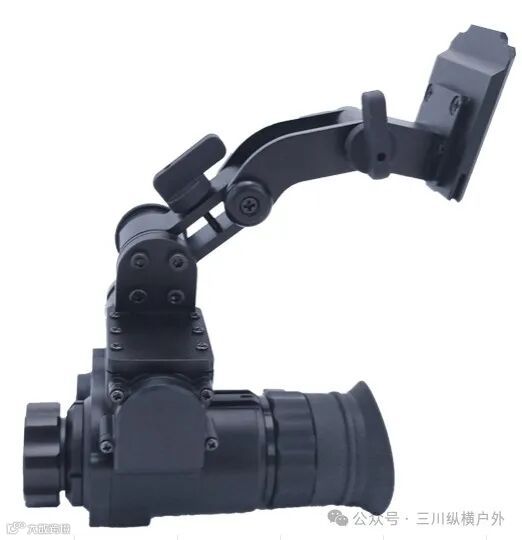

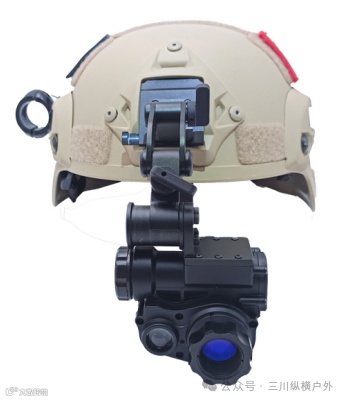

头戴式夜视仪
中文说明规格参数
| 产品型号/ | 参数核对 | |
| 1 | FCC/ | 有 |
| 1 | CE/ | 有 |
| 1 | RoHS/ | 有 |
| 2 | 光学放大倍率 | 1x |
| 2 | 数码放大倍率 | 3x |
| 2 | 物镜直径 | 24mm |
| 2 | 目镜类型 | 带视度调节 |
| 2 | 视场度 | 25.5°x14.5° |
| 2 | 视度调节 | ±5 |
| 2 | 焦距 | 20mm |
| 2 | 焦距调节 | 物镜调焦 |
| 2 | 最近焦距 | 250mm |
| 2 | 出瞳距离 | 20mm --25mm |
| 3 | 出瞳直径 | Ø7 |
| 2 | 镜片镀膜 | 超宽带红外增透膜 |
| 2 | 光学分辨率 | ≤11” |
| 3 | 摄像头类型 | CMOS |
| 3 | 摄像头像素 | 1280X720 |
| 3 | 感光尺寸 | 1/2" |
| 3 | 照明红外波长 | 850nm/940nm |
| 3 | 最低照度 | 10-4LUX |
| 3 | 红外功率 | 1W |
| 3 | 红外灯照度调节 | 3级 |
| 4 | 显示图像分辨率 | 1024x768 |
| 4 | 显示屏尺寸/类型 | 0.51 OLED |
| 4 | 白平衡 | 自动 |

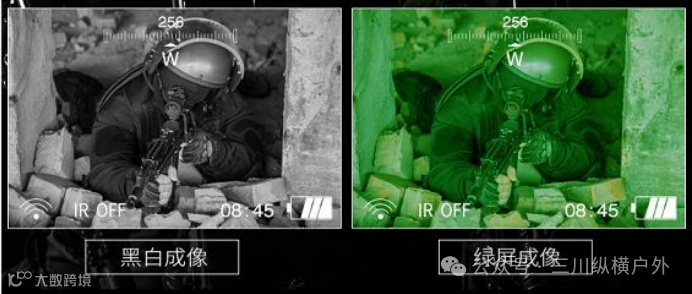

| 4 | 显示颜色模式 | 黑白，荧光绿 |
| 5 | 工作温度 | -40℃ - ＋55℃ |
| 5 | 工作湿度 | 最大70% |
| 5 | 储存温度 | -50℃ - ＋70℃ |
| 5 | 工作电压 | 3.6V - 4.2V |
| 5 | 电池类别 | 18650x1 |
| 5 | 充电电源 | 外配 |
| 5 | 电池续航时间 无红外辅助/有红外辅助 | 五小时以上 |
| 6 | 视频输出 | wifi |
| 6 | 防水性能 | IP66 |
| 6 | USB接口 | 无 |
| 6 | 拍照功能 | 有 |
| 6 | 音视频录制功能 | 有 |
| 6 | 屏幕亮度调节功能 | 有 |
| 6 | 照明灯亮度调节功能 | 有 |
| 6 | 照片、视频、回放及删除功能 | 有 |
| 6 | 时间设置功能 | 无 |
| 7 | 外观材料 | 军用级 增强ABS+PC |
| 7 | 配色方案 | 黑色 |
| 7 | 产品尺寸(mm) | 100x78x65 |
| 7 | 产品重量(g) | 237g |
英文说明参数规格
| 1 | FCC/ | yes |
| 1 | CE/ | yes |
| 1 | RoHS/ | yes |
| 2 | Optical zoom | 1x |
| 2 | Digital zoom | 3x |
| 2 | Objective lens diameter | 17.5mm |
| 2 | Eyepiece type | rubber, no folded,manual adjust |
| 2 | Field of view | 25.5°x14.5° |
| 2 | Diopter adjust | ±5 |
| 2 | Focal length | 20mm |
| 2 | Focal adjust | manual adjust by objective lens |
| 2 | Minimum Focus Distance | 20cm |
| 2 | Eyerelief | 20mm |
| 3 | Exit pupil diameter | Ø7 |
| 2 | lens coating | ultra wide band infared films |
| 2 | Optic resolution | ≤11” |
| 3 | Camera sensor | CMOS |
| 3 | Camera resolution | 1920*1080 |
| 3 | Infrared light wave | 850nm/940nm |
| 3 | Minimum illumination | 10-4LUX |
| 3 | Infrared power | 1W |
| 3 | Infrared lamp illumination adjustment | 3-level |
| 4 | white balance | Auto |
| 4 | Image color mode | black & white,green |
| 5 | Operating temperature | -40℃ - ＋55℃ |
| 5 | Operating humidity | 0-70% |
| 5 | Storage Temperature | -50℃ - ＋70℃ |
| 5 | Working voltage | 3.6V - 4.2V |
| 5 | Battery type | 18650 lithium battery x1 |
| 6 | Audio and video recording function | Yes(App) |
| 6 | Screen brightness adjustment function | Yes |
| 6 | Infrared lamp brightness adjustment function | Yes |
| 6 | photography/ video/ playback and delete functions | Yes(App) |
| 6 | Time set/ | Yes |
| 7 | color | black |
| 7 | product size(mm) | 100x78x65 |
| 7 | product weight | 237g |
