TL;DR
在本指南中，您将学习如何使用 A2A 协议、AG-UI 协议和 CopilotKit 在来自不同 AI 代理框架的 AI 代理之间构建全栈代理到代理 (A2A) 通信。
在我们开始之前，我们将介绍以下内容：
-
什么是 A2A 协议？ -
使用 CLI 设置 A2A 多代理通信 -
将来自不同代理框架的 AI 代理与 A2A 协议集成 -
使用 CopilotKit 构建 AG-UI 和 A2A 多代理通信的前端
什么是 A2A 协议？

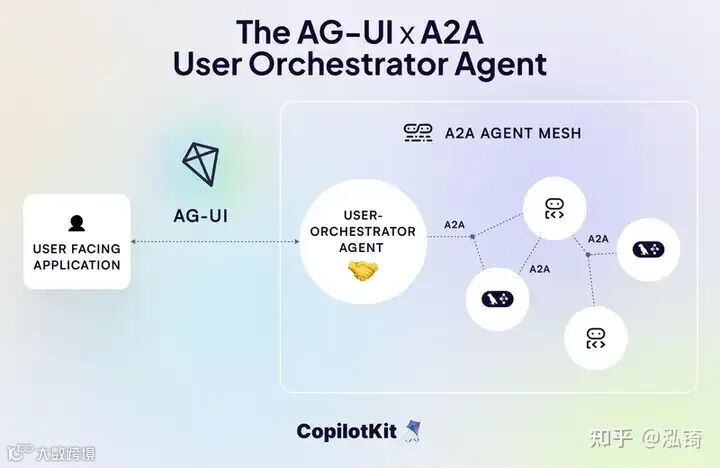

A2A（Agent-to-Agent）协议是 谷歌推出的标准化通信框架，使得不同的AI代理能够在分布式系统中不受框架限制地发现、通信和协作。
A2A 协议旨在促进代理间通信，其中代理可以调用其他代理作为工具或服务，从而创建专门的 AI 功能网络。
A2A 协议的主要特点包括：
- A2A 客户端
：这是启动一切的“老板代理”（我们称之为“客户代理”）。它会确定需要做什么，找到合适的辅助代理，并将任务交给它们。你可以把它想象成代码中的项目经理。 - A2A 代理
：一款 AI 代理，它会根据 A2A 规则设置一个简单的 Web 地址（HTTP 端点）。它会监听传入的请求，处理任务，并返回结果或更新。这对于让你的代理“公开”并随时准备协作非常有用。 - 代理卡
：想象一下 JSON 格式的数字身份证——易于阅读和共享。它包含 A2A 代理的基本信息，例如其名称、功能以及如何连接。 - 代理技能
：这些就像是代理的职位描述。每项技能都概括了其擅长的一项具体技能（例如，“总结文章”或“生成图像”）。客户阅读这些技能后，就能确切地知道需要分配哪些任务——无需猜测！ - A2A Executor
：幕后大脑。它是代码中的一个函数，负责执行繁重的工作：接收请求，运行逻辑以解决任务，并输出响应或触发事件。 - A2A 服务器
：Web 服务器端。它将您代理的技能转化为可在互联网上共享的内容。您将使用 A2A 的请求处理程序进行设置，使用 Starlette（一个 Python Web 框架）构建一个轻量级 Web 应用，并使用 Uvicorn（一个快速的服务器运行器）启动它。轰隆隆——您的代理已上线并准备就绪！

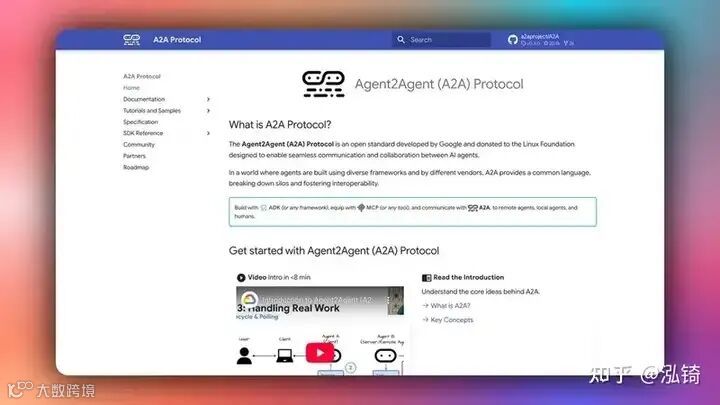

如果您想深入了解 A2A 协议的工作原理及其设置，请查看此处的文档：A2A 协议文档。
现在您已经了解了 A2A 协议是什么，让我们看看如何将它与 AG-UI 和 CopilotKit 一起使用来构建全栈 A2A AI 代理。
先决条件
要完全理解本教程，您需要对 React 或 Next.js 有基本的了解
我们还将利用以下内容：
- Python——
一种用于使用 AI 代理框架构建 AI 代理的流行编程语言；确保它已安装在您的计算机上。 - AG-UI 协议
- 由 CopilotKit 开发的代理用户交互协议 (AG-UI) 是一种开源、轻量级、基于事件的协议，可促进前端和 AI 代理后端之间的丰富实时交互。 - Google ADK——
由 Google 设计的开源框架，旨在简化构建复杂且可投入生产的 AI 代理的过程。 - LangGraph
- 用于创建和部署 AI 代理的框架。它还有助于定义代理要执行的控制流和操作。 - Gemini API 密钥
- 一个 API 密钥，使您能够使用 Gemini 模型为 ADK 代理执行各种任务。 - CopilotKit
- 一个开源副驾驶框架，用于构建自定义 AI 聊天机器人、应用内 AI 代理和文本区域。
使用 CLI 设置 A2A 多代理通信
在本节中，您将学习如何使用 CLI 命令设置 A2A 客户端（编排器代理）+ A2A 代理，该命令使用带有 AG-UI 协议的 Google ADK 设置后端，并使用 CopilotKit 设置前端。
查看 AG-UI 的 GitHub ⭐️
让我们开始吧。
步骤 1：运行 CLI 命令
如果您还没有预先配置的 AG-UI 代理，则可以通过在终端中运行下面的 CLI 命令来快速设置一个。

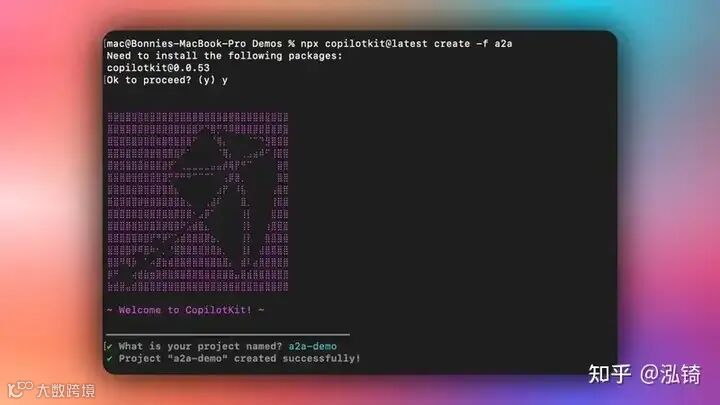

npx copilotkit@latest create -f a2a然后给你的项目命名，如下所示。
步骤 2：安装前端依赖项
成功创建项目后，使用您首选的包管理器安装依赖项：
npm install步骤 3：安装后端依赖项
安装前端依赖项后，安装后端依赖项：
cd agents
python3 -m venv .venv
source .venv/bin/activate # On Windows: .venv\Scripts\activate
pip install -r requirements.txt
cd ..步骤 4：设置环境变量
安装后端依赖项后，设置环境变量：
cp .env.example .env
# Edit .env and add your API keys:
# GOOGLE_API_KEY=your_google_api_key
# OPENAI_API_KEY=your_openai_api_key步骤 5：启动所有服务
设置好环境变量后，启动包括后端和前端在内的所有服务。

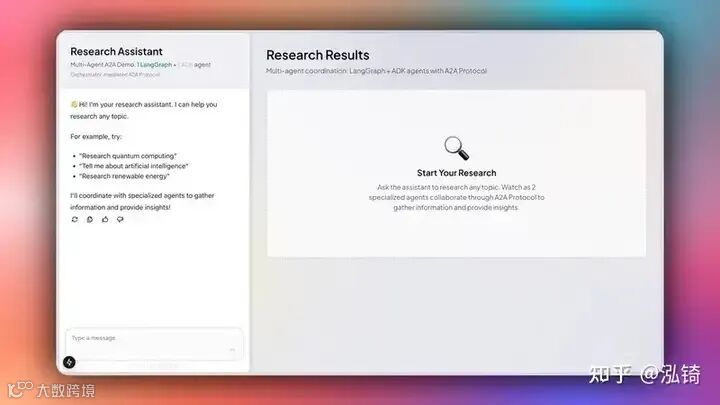

npm run dev一旦开发服务器运行，导航到http://localhost:3000/您应该会看到您的 A2A 多代理前端启动并运行。

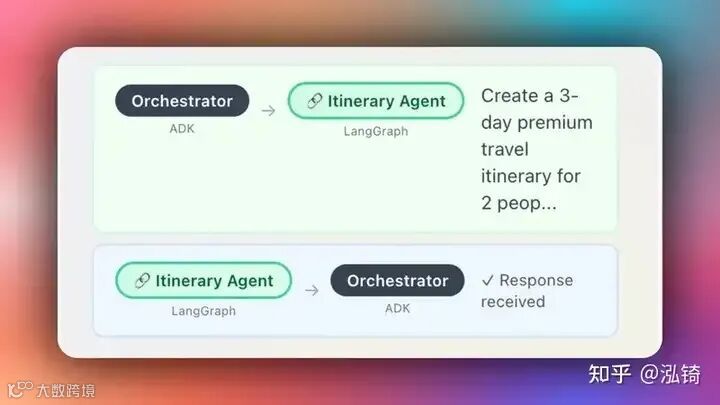

恭喜！您已成功设置 A2A 多智能体通信。尝试让您的智能体研究一个主题，例如“请研究量子计算”。您会看到它会向研究智能体和分析智能体发送消息。然后，它会将完整的研究和分析结果呈现给用户。
在后端将 Orchestrator 代理与 Google ADK 和 AG-UI 协议集成
在本节中，您将学习如何将您的编排代理与 Google ADK 和 AG-UI 协议集成，以将其作为 ASGI 应用程序公开给前端。
让我们开始吧。
步骤 1：设置后端
首先，克隆由基于 Python 的后端（代理）和 Next.js 前端组成的A2A-Travel 存储库。
接下来，导航到后端目录：
cd agents然后创建一个新的Python虚拟环境：
python -m venv .venv之后，激活虚拟环境：
source .venv/bin/activate # On Windows: .venv\Scripts\activate
最后，安装文件中列出的所有 Python 依赖项 requirements.txt 。
pip install -r requirements.txt步骤 2：配置 Orchestrator ADK 代理
设置后端后，通过定义代理名称、指定 Gemini 2.5 Pro 作为大型语言模型 (LLM) 以及定义代理的指令来配置您的编排器 ADK 代理，如下面的文件所示agents/orchestrator.py。
# Import Google ADK components for LLM agent creation
from google.adk.agents import LlmAgent
# === ORCHESTRATOR AGENT CONFIGURATION ===
# Create the main orchestrator agent using Google ADK's LlmAgent
# This agent coordinates all travel planning activities and manages the workflow
orchestrator_agent = LlmAgent(
name="OrchestratorAgent",
model="gemini-2.5-pro", # Use the more powerful Pro model for complex orchestration
instruction="""
You are a travel planning orchestrator agent. Your role is to coordinate specialized agents
to create personalized travel plans.
AVAILABLE SPECIALIZED AGENTS:
1. **Itinerary Agent** (LangGraph) - Creates day-by-day travel itineraries with activities
2. **Restaurant Agent** (LangGraph) - Recommends restaurants for breakfast, lunch, and dinner by day
3. **Weather Agent** (ADK) - Provides weather forecasts and packing advice
4. **Budget Agent** (ADK) - Estimates travel costs and creates budget breakdowns
CRITICAL CONSTRAINTS:
- You MUST call agents ONE AT A TIME, never make multiple tool calls simultaneously
- After making a tool call, WAIT for the result before making another tool call
- Do NOT make parallel/concurrent tool calls - this is not supported
RECOMMENDED WORKFLOW FOR TRAVEL PLANNING:
// ...
""",
)步骤 3：创建 ADK 中间件代理实例
配置您的 Orchestrator ADK 代理后，创建一个 ADK 中间件代理实例，该实例包装您的 Orchestrator ADK 代理以将其与 AG-UI 协议集成，如下面agents/orchestrator.py文件中所示。
# Import AG-UI ADK components for frontend integration
from ag_ui_adk import ADKAgent
// ...
# === AG-UI PROTOCOL INTEGRATION ===
# Wrap the orchestrator agent with AG-UI Protocol capabilities
# This enables frontend communication and provides the interface for user interactions
adk_orchestrator_agent = ADKAgent(
adk_agent=orchestrator_agent, # The core LLM agent we created above
app_name="orchestrator_app", # Unique application identifier
user_id="demo_user", # Default user ID for demo purposes
session_timeout_seconds=3600, # Session timeout (1 hour)
use_in_memory_services=True # Use in-memory storage for simplicity
)步骤 4：配置 FastAPI 端点
创建 ADK 中间件代理实例后，配置一个 FastAPI 端点，将 AG-UI 包装的编排器 ADK 代理公开到前端，如下面的文件所示agents/orchestrator.py。
# Import necessary libraries for web server and environment variables
import os
import uvicorn
# Import FastAPI for creating HTTP endpoints
from fastapi import FastAPI
// ...
# === FASTAPI WEB APPLICATION SETUP ===
# Create the FastAPI application that will serve the orchestrator agent
# This provides HTTP endpoints for the AG-UI Protocol communication
app = FastAPI(title="Travel Planning Orchestrator (ADK)")
# Add the ADK agent endpoint to the FastAPI application
# This creates the necessary routes for AG-UI Protocol communication
add_adk_fastapi_endpoint(app, adk_orchestrator_agent, path="/")
# === MAIN APPLICATION ENTRY POINT ===
if __name__ == "__main__":
"""
Main entry point when the script is run directly.
This function:
1. Checks for required environment variables (API keys)
2. Configures the server port
3. Starts the uvicorn server with the FastAPI application
"""
# Check for required Google API key
if not os.getenv("GOOGLE_API_KEY"):
print("⚠️ Warning: GOOGLE_API_KEY environment variable not set!")
print(" Set it with: export GOOGLE_API_KEY='your-key-here'")
print(" Get a key from: https://aistudio.google.com/app/apikey")
print()
# Get server port from environment variable, default to 9000
port = int(os.getenv("ORCHESTRATOR_PORT", 9000))
# Start the server with detailed information
print(f"🚀 Starting Orchestrator Agent (ADK + AG-UI) on http://localhost:{port}")
# Run the FastAPI application using uvicorn
# host="0.0.0.0" allows external connections
# port is configurable via the environment variable
uvicorn.run(app, host="0.0.0.0", port=port)恭喜！您已成功将 Orchestrator ADK 代理与 AG-UI 协议集成，并且可在http://localhost:9000（或指定端口）端点上使用。
将来自不同代理框架的 AI 代理与 A2A 协议集成
在本节中，您将学习如何将来自不同代理框架的 AI 代理与 A2A 集成
协议。
让我们开始吧！
步骤 1：配置 A2A 远程代理
首先，配置您的 A2A 远程代理，例如使用 LangGraph 框架的行程代理，如agents/itinerary_agent.py文件所示。
# Import LangGraph components for workflow management
from langgraph.graph import StateGraph, END
// ...
# === MAIN AGENT CLASS ===
class ItineraryAgent:
"""
Main agent class that handles itinerary generation using LangGraph workflow.
"""
def __init__(self):
self.llm = ChatOpenAI(model="gpt-4o-mini", temperature=0.7)
# Build and compile the LangGraph workflow
self.graph = self._build_graph()
def _build_graph(self):
workflow = StateGraph(ItineraryState)
workflow.add_node("parse_request", self._parse_request)
workflow.add_node("create_itinerary", self._create_itinerary)
workflow.set_entry_point("parse_request")
workflow.add_edge("parse_request", "create_itinerary")
workflow.add_edge("create_itinerary", END)
# Compile the workflow into an executable graph
return workflow.compile()
def _parse_request(self, state: ItineraryState) -> ItineraryState:
message = state["message"]
# Create a focused prompt for the extraction task
prompt = f"""
Extract the destination and number of days from this travel request.
Return ONLY a JSON string with 'destination' and 'days' fields.
Request: {message}
Example output: {{"destination": "Tokyo", "days": 3}}
"""
# Get LLM response for parsing
response = self.llm.invoke(prompt)
# Debug: Print the LLM response for troubleshooting
print(response.content)
try:
# Attempt to parse the JSON response
parsed = json.loads(response.content)
state["destination"] = parsed.get("destination", "Unknown")
state["days"] = int(parsed.get("days", 3))
except:
# Fallback values if parsing fails
print("⚠️ Failed to parse request, using defaults")
state["destination"] = "Unknown"
state["days"] = 3
return state
def _create_itinerary(self, state: ItineraryState) -> ItineraryState:
destination = state["destination"]
days = state["days"]
# Create detailed prompt for itinerary generation
prompt = f"""
Create a detailed {days}-day travel itinerary for {destination}.
// ...
Make it realistic, interesting, and include specific place names.
Return ONLY valid JSON, no markdown, no other text.
"""
# Generate itinerary using LLM
response = self.llm.invoke(prompt)
content = response.content.strip()
# Clean up response - remove markdown formatting if present
if "```
json" in content:
content = content.split("
```json")[1].split("```
")[0].strip()
elif "
```" in content:
content = content.split("```
")[1].split("
```")[0].strip()
try:
# Step 1: Parse JSON from LLM response
structured_data = json.loads(content)
# Step 2: Validate structure using Pydantic model
validated_itinerary = StructuredItinerary(**structured_data)
# Step 3: Store both validated data and formatted JSON string
state["structured_itinerary"] = validated_itinerary.model_dump()
state["itinerary"] = json.dumps(validated_itinerary.model_dump(), indent=2)
print("✅ Successfully created structured itinerary")
// ...
return state
async def invoke(self, message: Message) -> str:
# Extract text content from A2A message format
message_text = message.parts[0].root.text
print("Invoking itinerary agent with message: ", message_text)
# Execute the LangGraph workflow with initial state
result = self.graph.invoke({
"message": message_text,
"destination": "", # Will be populated by parse_request
"days": 3, # Default, will be updated by parse_request
"itinerary": "" # Will be populated by create_itinerary
})
# Return the final itinerary JSON string
return result["itinerary"]步骤 2：设置 A2A 远程座席技能和座席卡
配置 A2A 远程代理后，请设置该代理以便其他代理可以发现和调用。
为此，定义每个代理提供的特定技能，以及其他代理可以发现的公共代理卡，如agents/itinerary_agent.py文件中所示。
from a2a.types import ( AgentCapabilities, AgentCard, AgentSkill)
// ...
# Define the specific skill this agent provides
skill = AgentSkill(
id='itinerary_agent',
name='Itinerary Planning Agent',
description='Creates detailed day-by-day travel itineraries using LangGraph',
tags=['travel', 'itinerary', 'langgraph'],
examples=[
'Create a 3-day itinerary for Tokyo',
'Plan a week-long trip to Paris',
'What should I do in New York for 5 days?'
],
)
# Define the public agent card that other agents can discover
public_agent_card = AgentCard(
name='Itinerary Agent',
description='LangGraph-powered agent that creates detailed day-by-day travel itineraries in plain text format with activities and meal recommendations.',
url=f'http://localhost:{port}/',
version='1.0.0',
defaultInputModes=['text'], # Accepts text input
defaultOutputModes=['text'], # Returns text output
capabilities=AgentCapabilities(streaming=True), # Supports streaming responses
skills=[skill], # List of skills this agent provides
supportsAuthenticatedExtendedCard=False, # No authentication required
)步骤3：配置A2A代理执行器
设置好每个代理的技能以及代理卡后，为每个代理配置一个 A2A 代理执行器，用于处理 A2A 请求和响应，如文件所示agents/itinerary_agent.py。
from a2a.server.agent_execution import AgentExecutor, RequestContext
// ...
# === A2A PROTOCOL EXECUTOR ===
class ItineraryAgentExecutor(AgentExecutor):
"""
An executor class that bridges the A2A Protocol with our ItineraryAgent.
This class handles the A2A Protocol lifecycle:
- Receives execution requests from other agents
- Delegates to our ItineraryAgent for processing
- Sends results back through the event queue
"""
def __init__(self):
"""Initialize the executor with an instance of our agent"""
self.agent = ItineraryAgent()
async def execute(
self,
context: RequestContext,
event_queue: EventQueue,
) -> None:
"""
Execute an itinerary generation request.
This method:
1. Calls our agent with the incoming message
2. Formats the result as an A2A text message
3. Sends the response through the event queue
Args:
context: Request context containing the message and metadata
event_queue: Queue for sending response events back to caller
"""
# Generate itinerary using our agent
result = await self.agent.invoke(context.message)
# Send result back through A2A Protocol event queue
await event_queue.enqueue_event(new_agent_text_message(result))
async def cancel(
self, context: RequestContext, event_queue: EventQueue
) -> None:
"""
Handle cancellation requests (not implemented).
For this agent, we don't support cancellation since the itinerary
Generation is typically fast and non-interruptible.
"""
raise Exception('cancel not supported')步骤 4：设置 A2A 代理服务器
为每个远程代理配置 A2A 代理执行器后，设置每个代理的 A2A 代理服务器，该服务器配置 A2A 协议请求处理程序、创建 Starlette Web 应用程序并启动 uvicorn 服务器，如agents/itineray_agent.py文件中所示。
# Import A2A Protocol components for inter-agent communication
from a2a.server.apps import A2AStarletteApplication
from a2a.server.request_handlers import DefaultRequestHandler
from a2a.server.tasks import InMemoryTaskStore
// ...
# Get port from environment variable, default to 9001
port = int(os.getenv("ITINERARY_PORT", 9001))
# === MAIN APPLICATION SETUP ===
def main():
"""
Main function that sets up and starts the A2A Protocol server.
This function:
1. Checks for required environment variables
2. Sets up the A2A Protocol request handler
3. Creates the Starlette web application
4. Starts the uvicorn server
"""
# Check for required OpenAI API key
if not os.getenv("OPENAI_API_KEY"):
print("⚠️ Warning: OPENAI_API_KEY environment variable not set!")
print(" Set it with: export OPENAI_API_KEY='your-key-here'")
print()
# Create the A2A Protocol request handler
# This handles incoming requests and manages the task lifecycle
request_handler = DefaultRequestHandler(
agent_executor=ItineraryAgentExecutor(), # Our custom executor
task_store=InMemoryTaskStore(), # Simple in-memory task storage
)
# Create the A2A Starlette web application
# This provides the HTTP endpoints for A2A Protocol communication
server = A2AStarletteApplication(
agent_card=public_agent_card, # Public agent information
http_handler=request_handler, # Request processing logic
extended_agent_card=public_agent_card, # Extended agent info (same as public)
)
# Start the server
print(f"🗺️ Starting Itinerary Agent (LangGraph + A2A) on http://localhost:{port}")
uvicorn.run(server.build(), host='0.0.0.0', port=port)
# === ENTRY POINT ===
if __name__ == '__main__':
"""
Entry point when the script is run directly.
This allows the agent to be started as a standalone service:
python itinerary_agent.py
"""
main()恭喜！您已成功将远程代理与 A2A 协议集成，现在 Orchestrator 代理可以将任务委托给代理。
使用 CopilotKit 构建 AG-UI 和 A2A 多代理通信的前端
在本节中，您将学习如何使用 CopilotKit 为 AG-UI 和 A2A 多代理通信添加前端，CopilotKit 可以在 React 运行的任何地方运行。
让我们开始吧。
步骤 1：设置前端
首先，在您之前克隆的A2A-Travel 存储库中安装前端依赖项。
npm install然后配置环境变量并编辑.env文件，添加你的GOOGLE_API_KEY和OPENAI_API_KEY。
cp .env.example .env最后，启动所有后端和前端服务器：
npm run dev该命令启动 UI http://localhost:3000、Orchestrator http://localhost:9000、Itinerary Agent http://localhost:9001、Budget Agent http://localhost:9002、Restaurant Agenthttp://localhost:9003和 Weather Agenthttp://localhost:9005

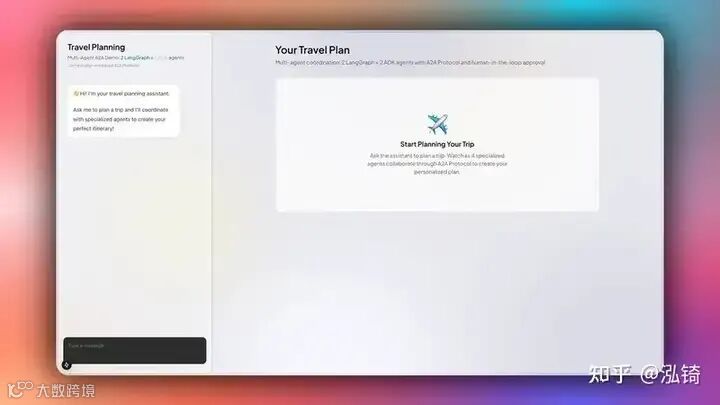

如果您导航到http://localhost:3000/，您应该会看到旅行计划 A2A 多代理前端已启动并正在运行。
步骤 2：使用 A2A 中间件配置 CopilotKit API 路由
设置好前端后，使用 A2A 中间件配置 CopilotKit API 路由，以建立前端、AG-UI + ADK Orchestrator 代理和 A2A 代理之间的连接，如文件所示app/api/copilotkit/route.ts。
import {
CopilotRuntime,
ExperimentalEmptyAdapter,
copilotRuntimeNextJSAppRouterEndpoint,
} from "@copilotkit/runtime";
import { HttpAgent } from "@ag-ui/client";
import { A2AMiddlewareAgent } from "@ag-ui/a2a-middleware";
import { NextRequest } from "next/server";
export async function POST(request: NextRequest) {
// STEP 1: Define A2A agent URLs
const itineraryAgentUrl =
process.env.ITINERARY_AGENT_URL || "http://localhost:9001";
const budgetAgentUrl =
process.env.BUDGET_AGENT_URL || "http://localhost:9002";
const restaurantAgentUrl =
process.env.RESTAURANT_AGENT_URL || "http://localhost:9003";
const weatherAgentUrl =
process.env.WEATHER_AGENT_URL || "http://localhost:9005";
// STEP 2: Define orchestrator URL (speaks AG-UI Protocol)
const orchestratorUrl =
process.env.ORCHESTRATOR_URL || "http://localhost:9000";
// STEP 3: Wrap orchestrator with HttpAgent (AG-UI client)
// the orchestrator agent we pass to the middleware needs to be an instance of a derivative of an ag-ui `AbstractAgent`
// In this case, we have access to the agent via url, so we can gain an instance using the `HttpAgent` class
const orchestrationAgent = new HttpAgent({
url: orchestratorUrl,
});
// STEP 4: Create A2A Middleware Agent
// This bridges AG-UI and A2A protocols by:
// 1. Wrapping the orchestrator
// 2. Registering all A2A agents
// 3. Injecting send_message_to_a2a_agent tool
// 4. Routing messages between orchestrator and A2A agents
const a2aMiddlewareAgent = new A2AMiddlewareAgent({
description:
"Travel planning assistant with 4 specialized agents: Itinerary and Restaurant (LangGraph), Weather and Budget (ADK)",
agentUrls: [
itineraryAgentUrl, // LangGraph + OpenAI
restaurantAgentUrl, // ADK + Gemini
budgetAgentUrl, // ADK + Gemini
weatherAgentUrl, // ADK + Gemini
],
orchestrationAgent,
});
// STEP 5: Create CopilotKit Runtime
const runtime = new CopilotRuntime({
agents: {
a2a_chat: a2aMiddlewareAgent, // Must match frontend: <CopilotKit agent="a2a_chat">
},
});
// STEP 6: Set up Next.js endpoint handler
const { handleRequest } = copilotRuntimeNextJSAppRouterEndpoint({
runtime,
serviceAdapter: new ExperimentalEmptyAdapter(),
endpoint: "/api/copilotkit",
});
return handleRequest(request);
}步骤 3：设置 CopilotKit 提供程序
使用 A2A 中间件配置 CopilotKit API 路由后，设置管理 A2A 多代理会话的 CopilotKit 提供程序组件。
要设置 CopilotKit 提供程序， [<CopilotKit>](https://docs.copilotkit.ai/reference/components/CopilotKit) 组件必须包装应用程序的 Copilot 感知部分，如components/travel-chat.tsx文件中所示。
import { CopilotKit } from "@copilotkit/react-core";
// ...
/**
* MAIN COMPONENT: CopilotKit Provider Wrapper
*
* This is the main export that wraps the chat component with the CopilotKit provider.
* The provider configuration enables:
* - Runtime connection to backend agents via /api/copilotkit endpoint
* - A2A agent communication protocol
* - Development console for debugging (disabled in production)
*/
export default function TravelChat({
onItineraryUpdate,
onBudgetUpdate,
onWeatherUpdate,
onRestaurantUpdate,
}: TravelChatProps) {
return (
<CopilotKit
runtimeUrl="/api/copilotkit" // Backend endpoint for agent communication
showDevConsole={false} // Disable dev console in production
agent="a2a_chat" // Specify A2A agent protocol
>
<ChatInner
onItineraryUpdate={onItineraryUpdate}
onBudgetUpdate={onBudgetUpdate}
onWeatherUpdate={onWeatherUpdate}
onRestaurantUpdate={onRestaurantUpdate}
/>
</CopilotKit>
);
}步骤 4：配置 Copilot UI 组件
设置 CopilotKit 提供程序后，请设置一个 Copilot UI 组件，以便您与 AG-UI + A2A 代理进行交互。CopilotKit 附带多个内置聊天组件，包括CopilotPopup、 CopilotSidebar和CopilotChat。
要设置 Copilot UI 组件，请将其与核心页面组件一起定义，如components/travel-chat.tsx文件中所示。
import { CopilotChat } from "@copilotkit/react-ui";
// ...
const ChatInner = ({
onItineraryUpdate,
onBudgetUpdate,
onWeatherUpdate,
onRestaurantUpdate,
}: TravelChatProps) => {
// ...
/**
* COPILOTKIT CHAT COMPONENT: Main chat interface
*
* The CopilotChat component provides the core chat interface with:
* - Message history and real-time conversation
* - Integration with all registered actions
* - Customizable labels and instructions
* - Built-in support for generative UI and HITL workflows
*/
return (
<div className="h-full">
<CopilotChat
className="h-full"
labels={{
initial:
"👋 Hi! I'm your travel planning assistant.\n\nAsk me to plan a trip and I'll coordinate with specialized agents to create your perfect itinerary!",
}}
instructions="You are a helpful travel planning assistant. Help users plan their trips by coordinating with specialized agents."
/>
</div>
);
};步骤 5：使用生成 UI 呈现代理间通信
设置 Copilot UI 组件后，使用聊天组件中的生成 UI呈现代理到代理的通信。
为了在聊天组件中实时呈现代理到代理的通信，请定义一个 useCopilotAction()名为的钩子send_message_to_a2a_agent，如文件中所示components/travel-chat.tsx。
import { useCopilotAction } from "@copilotkit/react-core";
//A2A Communication visualization components
import { MessageToA2A } from "./a2a/MessageToA2A";
import { MessageFromA2A } from "./a2a/MessageFromA2A";
// ...
const ChatInner = ({
onItineraryUpdate,
onBudgetUpdate,
onWeatherUpdate,
onRestaurantUpdate,
}: TravelChatProps) => {
// ...
useCopilotAction({
name: "send_message_to_a2a_agent",
description: "Sends a message to an A2A agent",
available: "frontend", // This action runs on frontend only - no backend processing
parameters: [
{
name: "agentName",
type: "string",
description: "The name of the A2A agent to send the message to",
},
{
name: "task",
type: "string",
description: "The message to send to the A2A agent",
},
],
// Custom render function creates visual A2A communication components
render: (actionRenderProps: MessageActionRenderProps) => {
return (
<>
{/* MessageToA2A: Shows outgoing message (green box) */}
<MessageToA2A {...actionRenderProps} />
{/* MessageFromA2A: Shows agent response (blue box) */}
<MessageFromA2A {...actionRenderProps} />
</>
);
},
});
// ...
return (
<div className="h-full">
{*/ ... /*}
</div>
);
};当协调器代理发送请求或接收来自 A2A 代理的响应时，您应该会看到聊天组件上呈现的通信，如下所示。
步骤 6：在前端实现人机交互（HITL）

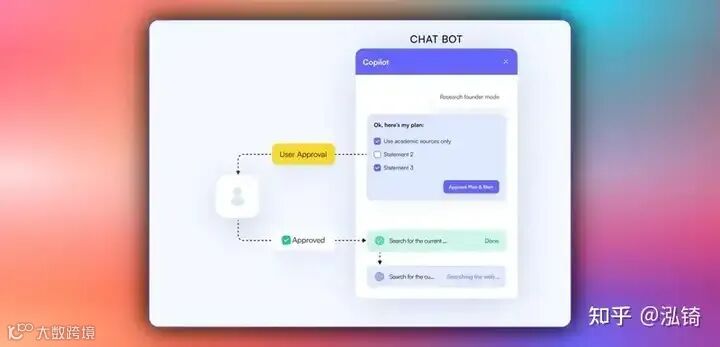

人机在环 (HITL) 允许代理在执行过程中请求人工输入或批准，从而提高 AI 系统的可靠性和可信度。在构建需要处理复杂决策或需要人工判断的操作的 AI 应用程序时，这种模式至关重要。
您可以在 CopilotKit 文档中了解有关 Human in the Loop 的更多信息。
要在前端实现人机交互 (HITL)，您需要使用 CopilotKit useCopilotKitAction 钩子和renderAndWaitForResponse方法，该方法允许从渲染函数异步返回值，如components/travel-chat.tsx文件中所示。
const ChatInner = ({
onItineraryUpdate,
onBudgetUpdate,
onWeatherUpdate,
onRestaurantUpdate,
}: TravelChatProps) => {
// State management for HITL budget approval workflow
// Tracks approval/rejection status for different budget proposals
const [approvalStates, setApprovalStates] = useState<
Record<string, { approved: boolean; rejected: boolean }>
>({});
/**

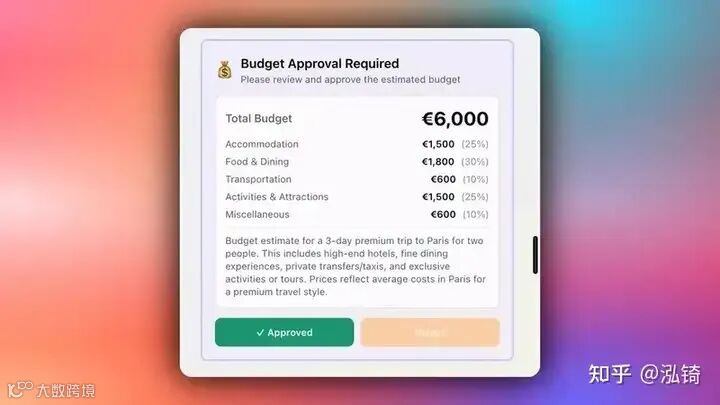

* HITL FEATURE: Budget approval workflow with renderAndWaitForResponse
*
* This useCopilotAction demonstrates CopilotKit's Human-in-the-Loop (HITL)
* capabilities, which pause agent execution and wait for user interaction
* before continuing the workflow.
*
* Key features:
* - renderAndWaitForResponse: Blocks agent until user provides input
* - State management: Tracks approval/rejection status across re-renders
* - Business logic integration: Only proceeds with approved budgets
* - Custom UI: Renders an interactive approval card with approve/reject buttons
* - Response handling: Sends the user's decision back to the agent
*/
useCopilotAction(
{
name: "request_budget_approval",
description: "Request user approval for the travel budget",
parameters: [
{
name: "budgetData",
type: "object",
description: "The budget breakdown data requiring approval",
},
],
// renderAndWaitForResponse pauses agent execution until the user responds
renderAndWaitForResponse: ({ args, respond }) => {
// Step 1: Validate budget data structure
if (!args.budgetData || typeof args.budgetData !== "object") {
return (
<div className="text-xs text-gray-500 p-2">
Loading budget data...
</div>
);
}
const budget = args.budgetData as BudgetData;
if (!budget.totalBudget || !budget.breakdown) {
return (
<div className="text-xs text-gray-500 p-2">
Loading budget data...
</div>
);
}
// Step 2: Create a unique key for this budget to track approval state
const budgetKey = `budget-${budget.totalBudget}`;
const currentState = approvalStates[budgetKey] || {
approved: false,
rejected: false,
};
// Step 3: Define approval handler - updates state and responds to agent
const handleApprove = () => {
setApprovalStates((prev) => ({
...prev,
[budgetKey]: { approved: true, rejected: false },
}));
// Send approval response back to the agent to continue the workflow
respond?.({ approved: true, message: "Budget approved by user" });
};
// Step 4: Define rejection handler - updates state and responds to agent
const handleReject = () => {
setApprovalStates((prev) => ({
...prev,
[budgetKey]: { approved: false, rejected: true },
}));
// Send rejection response back to the agent to handle accordingly
respond?.({ approved: false, message: "Budget rejected by user" });
};
// Step 5: Render interactive budget approval card
return (
<BudgetApprovalCard
budgetData={budget}
isApproved={currentState.approved}
isRejected={currentState.rejected}
onApprove={handleApprove}
onReject={handleReject}
/>
);
},
},
[approvalStates] // Re-register when approval states change
);
// ...
return (
<div className="h-full">
{/* ... */}
</div>
);当代理通过工具/操作名称触发前端操作，以在执行过程中请求人工输入或反馈时，系统会提示最终用户进行选择（该选项会呈现在聊天界面中）。然后，用户可以通过按下聊天界面中的按钮进行选择，如下所示。
步骤 6：在前端流式传输代理到代理的响应
要在前端流式传输代理到代理的响应，请定义一个 useEffect() 钩子，该钩子解析 AI 代理响应以提取结构化数据（如行程、预算、天气或餐厅推荐），如components/travel-chat.tsx文件中所示。
const ChatInner = ({
onItineraryUpdate,
onBudgetUpdate,
onWeatherUpdate,
onRestaurantUpdate,
}: TravelChatProps) => {
// State management for HITL budget approval workflow
// Tracks approval/rejection status for different budget proposals
const [approvalStates, setApprovalStates] = useState<
Record<string, { approved: boolean; rejected: boolean }>
>({});
// CopilotKit hook to access chat messages for data extraction
// visibleMessages contains all messages currently displayed in the chat
const { visibleMessages } = useCopilotChat();
/**
* GENERATIVE UI FEATURE: Auto-extract structured data from agent responses
*
* This useEffect demonstrates CopilotKit's ability to automatically parse and
* extract structured data from AI agent responses, converting them into
* interactive UI components.
*
* Process:
* 1. Monitor all visible chat messages for agent responses
* 2. Parse JSON data from the A2A agent message results
* 3. Identify data type (itinerary, budget, weather, restaurant)
* 4. Update parent component state to render corresponding UI components
* 5. Apply business logic (e.g., budget approval checks)
*/
useEffect(() => {
const extractDataFromMessages = () => {
// Step 1: Iterate through all visible messages in the chat
for (const message of visibleMessages) {
const msg = message as any;
// Step 2: Filter for A2A agent response messages specifically
if (
msg.type === "ResultMessage" &&
msg.actionName === "send_message_to_a2a_agent"
) {
try {
const result = msg.result;
let parsed;
// Step 3: Parse the agent response data (handle both string and object formats)
if (typeof result === "string") {
let cleanResult = result;
// Remove A2A protocol prefix if present
if (result.startsWith("A2A Agent Response: ")) {
cleanResult = result.substring("A2A Agent Response: ".length);
}
parsed = JSON.parse(cleanResult);
} else if (typeof result === "object" && result !== null) {
parsed = result;
}
// Step 4: Identify data type and trigger appropriate UI updates
if (parsed) {
// Itinerary data: destination + itinerary array
if (
parsed.destination &&
parsed.itinerary &&
Array.isArray(parsed.itinerary)
) {
onItineraryUpdate?.(parsed as ItineraryData);
}
// Budget data: requires user approval before displaying
else if (
parsed.totalBudget &&
parsed.breakdown &&
Array.isArray(parsed.breakdown)
) {
const budgetKey = `budget-${parsed.totalBudget}`;
const isApproved = approvalStates[budgetKey]?.approved || false;
// Step 5: Apply HITL approval check - only show if user approved
if (isApproved) {
onBudgetUpdate?.(parsed as BudgetData);
}
}
// Weather data: destination + forecast array
else if (
parsed.destination &&
parsed.forecast &&
Array.isArray(parsed.forecast)
) {
const weatherDataParsed = parsed as WeatherData;
onWeatherUpdate?.(weatherDataParsed);
}
// Restaurant data: destination + meals array
else if (
parsed.destination &&
parsed.meals &&
Array.isArray(parsed.meals)
) {
onRestaurantUpdate?.(parsed as RestaurantData);
}
}
} catch (e) {
// Silently handle parsing errors - not all messages contain structured data
}
}
}
};
extractDataFromMessages();
}, [
visibleMessages,
approvalStates,
onItineraryUpdate,
onBudgetUpdate,
onWeatherUpdate,
onRestaurantUpdate,
]);
// ...
return (
<div className="h-full">
{/* ... */}
</div>
);
};然后，提取的结构化数据触发 UI 更新以呈现交互式组件，如app/page.tsx文件中所示。
"use client";
import { useState } from "react";
import TravelChat from "@/components/travel-chat";
import { ItineraryCard, type ItineraryData } from "@/components/ItineraryCard";
import { BudgetBreakdown, type BudgetData } from "@/components/BudgetBreakdown";
import { WeatherCard, type WeatherData } from "@/components/WeatherCard";
import { type RestaurantData } from "@/components/ItineraryCard";
export default function Home() {
const [itineraryData, setItineraryData] = useState<ItineraryData | null>(null);
const [budgetData, setBudgetData] = useState<BudgetData | null>(null);
const [weatherData, setWeatherData] = useState<WeatherData | null>(null);
const [restaurantData, setRestaurantData] = useState<RestaurantData | null>(null);
return (
<div className="relative flex h-screen overflow-hidden bg-[#DEDEE9] p-2">
// ...
<div className="flex flex-1 overflow-hidden z-10 gap-2">
// ...
<div className="flex-1 overflow-hidden">
<TravelChat
onItineraryUpdate={setItineraryData}
onBudgetUpdate={setBudgetData}
onWeatherUpdate={setWeatherData}
onRestaurantUpdate={setRestaurantData}
/>
</div>
</div>
<div className="flex-1 overflow-y-auto rounded-lg bg-white/30 backdrop-blur-sm">
<div className="max-w-5xl mx-auto p-8">
// ...
{itineraryData && (
<div className="mb-4">
<ItineraryCard data={itineraryData} restaurantData={restaurantData} />
</div>
)}
{(weatherData || budgetData) && (
<div className="grid grid-cols-1 lg:grid-cols-2 gap-4">
{weatherData && (
<div>
<WeatherCard data={weatherData} />
</div>
)}
{budgetData && (
<div>
<BudgetBreakdown data={budgetData} />
</div>
)}
</div>
)}
</div>
</div>
</div>
</div>
);
}关注【索引目录】服务号，更多精彩内容等你来探索！
