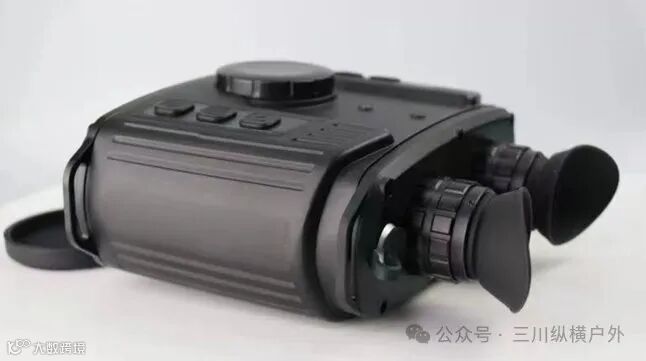

BINOCULAR FUSION THERMAL IMAGER

Infrared

Model

ROLES-  TS380

ROLES-  TS640

Detector type

Amorphous silicon  uncooled infrared  focal  plane

Vanadium Oxide  Uncooled Infrared Focal  Plane

Resolution

384x288

640x512

Pixel size

17um

12μm

Field angle

7.5°x 5.6°

8 . 8°x7 .  0°

Working band

8-14um

NETD

<50mk@25C,@f/1.0

Focal length

50mm

Frame rate

≤50Hz

Focus mode

Electric focus

Detection distance

Characters

(1.7mx0.5mx0.3m)

3333m

4722m

Vehicles

(4.5mx2.0mx1.5m)

8823m

12500m

Identification distance

Characters

(1.7mx0.5mx0.3m)

883m

1180m

Vehicles

(4.5mx2.0mx1.5m)

2205m

3125m

Shimmer

Detector  type

Ultra-low illumination CMOS

Resolution

1920x1080

Pixel size

4.0um

Focal length

35mm

Frame rate

≤30Hz

Focus mode

Focus free

Display

Display screen type

OLED

Resolution

1024x768

Display screen size

0.39 inches

Display screen mode

Infrared/shimmer/dual light fusion/  picture in pictures

Electron doubling

1x /2x /4x

Visual control

±4SD

Color palette

Rainbow, iron red, cold color,  white hot, and  black hot

Other functions

WIFI

2.4G image transmission

Electronic compass

Square angle display

Positioning

GPS/BD

Storage

Capacity

Built-in 16G eMMC (Note: the usable  storage capacity is less than this value, because  the system software occupies a certain space)

Shooting

Supported

Video recording

Supported

Picture/Video format

JPG/MP4

Interface

CVBS output

PAL system video  output

USB interface

Export pictures and videos

External power supply

DC12/1A

Power supply

Detachable rechargeable lithium  battery

2000mAhx4 (battery model  18650)

Battery charging mode

Standalone charging stand

Overall power consumption

≤6W

Endurance duration

≤6 hours

Operating/storage environment

Operating  temperature

-20C to 50C

Storage temperature

-30C to 70C

Shock

≤30g

Protection level

IP54

Overall dimension/Weight

Overall dimension

193.1mmx176.8mmx99mm

Weight

1.58kg (including batteries)
