UHPC国内外经典案例分享

博创达UHPC

2020-07-09

导读：UHPC应用案例介绍

标准板案例

STANDARD BOARD CASE

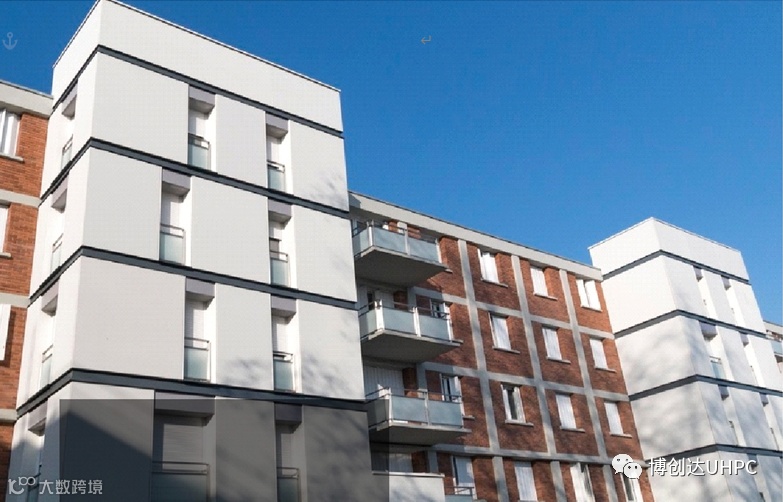

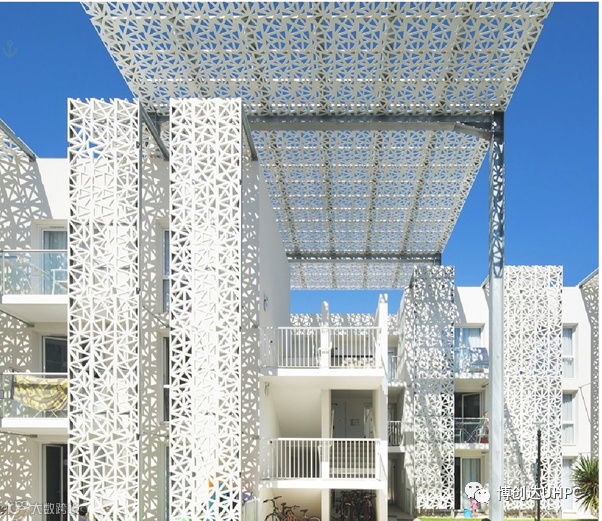

法国巴黎公寓改造

PARIS APARTMENT RENOVATION

该项⽬4mx3m的⼤板块尺⼨，该项⽬4mx3m的⼤板块尺⼨，⽽且它的美观性和机械耐久性都很⾼，⾮常符合建筑师的设计意图。⾯板也易于维护，只需⽤⽔清洗即可。

The large plate size of 4mx3m fits well with thearchitect's design intention.It also has highaesthetics and mechanical durability, and the panels areeasy to maintain andsimply need to be cleaned with water.

世博会法国馆

France Pavilion at World Expo

UHPC的优异⼒学性能，使⼤镂空率镂空板厚度得到有效控制，平衡了建筑物立面和顶⾯的防晒及采光,减轻了⾃重和对结构的荷载。

The excellent mechanical properties of UHPC can effectively control the thickness of the large hollow-out rate, reduce the dead weight and load on the structure,and balance the sun protection and lighting on the facade and top of the building.

定制化单双曲板案例

CUSTOMIZED SINGLE AND DOUBLE CURVED BOARD CASE

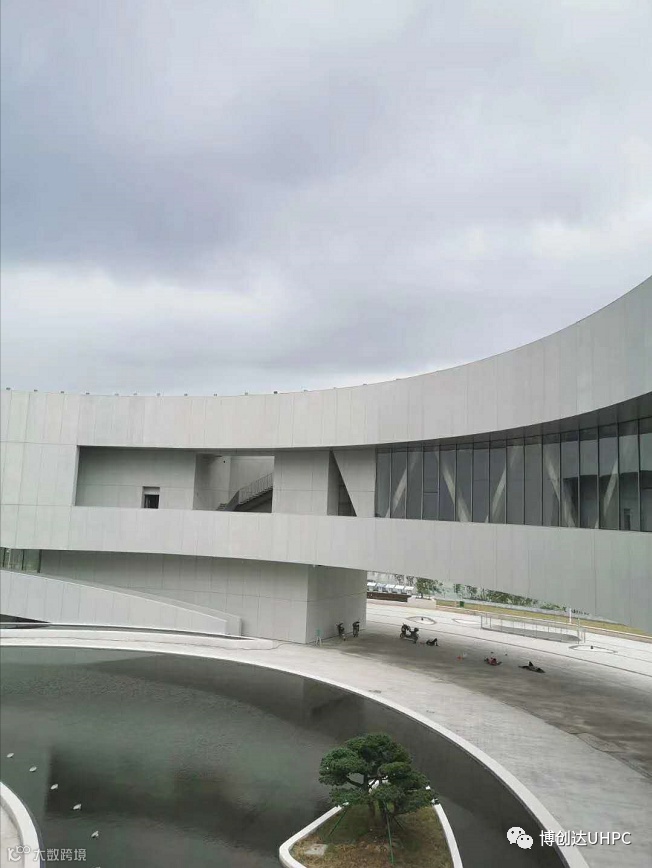

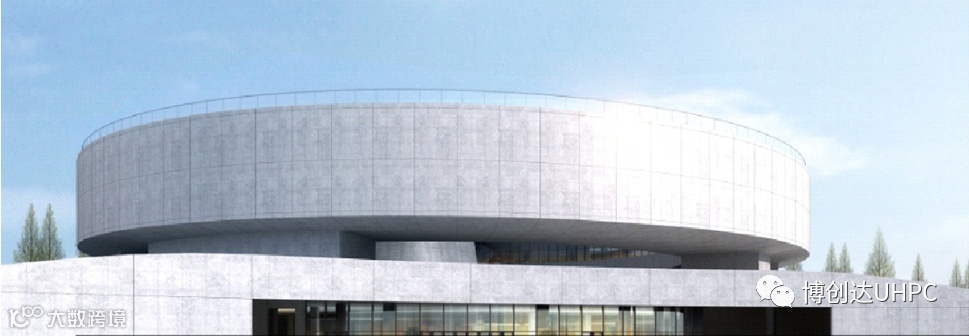

城市之眼宁波未来城科普中⼼

Eye of the City -- Ningbo Future City Science Center

未来城科普中⼼位于浙江省宁波市奉化经济开发区城市轴线内，项目建成后其中UHPC幕墙⾯积达22000平⽅⽶。将成为奉化标志性建筑，是文化、经济社会发展成果的集中展⽰区，成为市⺠、外界了解奉化独特魅⼒的窗⼝之⼀。
The future City Science Center is located in the urban axis of Fenghua Economic Development Zone, Ningbo city, Zhejiang Province, with the UHPC curtain wall covering an area of 22,000 square meters. After completion, the project will become a landmark building of Fenghua, aconcentrated exhibition area of the achievements of cultural, economic and social development, and one of the Windows for citizens and the outside world to understand the unique charm of Fenghua.

定制化镂空平板案例
CUSTOMIZABLE HOLLOW-OUTTABLET CASE

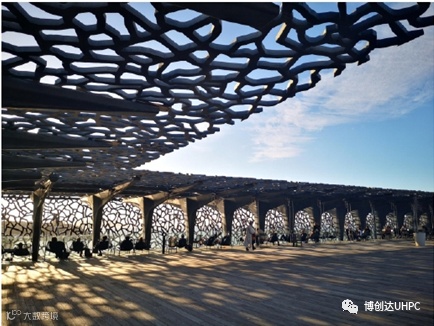

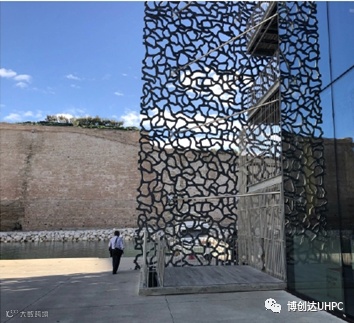

法国⻢赛码头博物馆

The Quay Museum, Marseilles, France

这是第⼀个描述地中海⽂明的博物馆，共有七层，他通过UHPC形成蕾丝" ，由法国建筑师Rudy_Ruccioti设计。花纹达到光线和海⻛的结合，室内流线和材料相结合，映衬着蔚蓝的⼤海和天空，外⽴⾯的花纹表现了地中海地区的⼿⼯艺传统。

The first museum to describe Mediterranean civilization, the seven-story museum was designed by French architect Rudy Ruccioti. Through UHPC, he forms a"lace" pattern to achieve the combination of light and sea breeze. The interior streamline is combined with materials to set off against the blue sea and sky, while the pattern on the facade reﬂects the culture and handicraft traditions of the Mediterranean region.

定制化单曲镂空板案例

CASE OF CUSTOMIZEDSINGLE HOLLOWAY

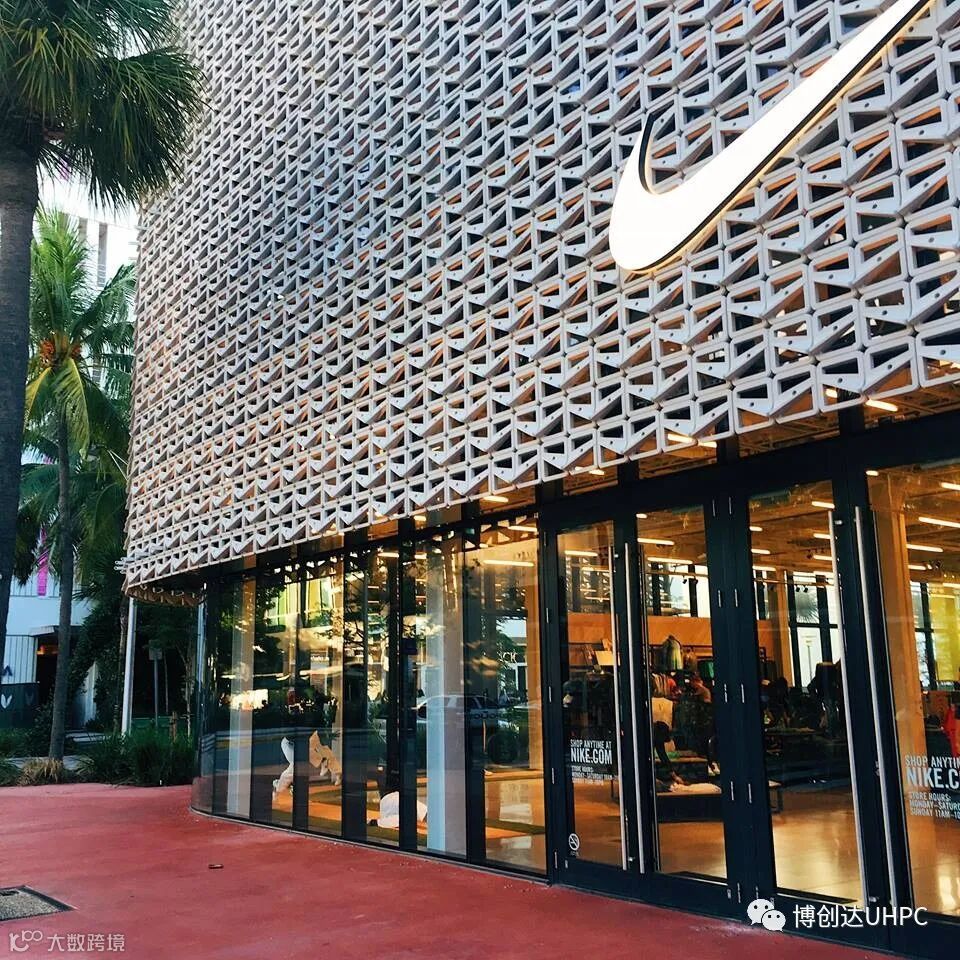

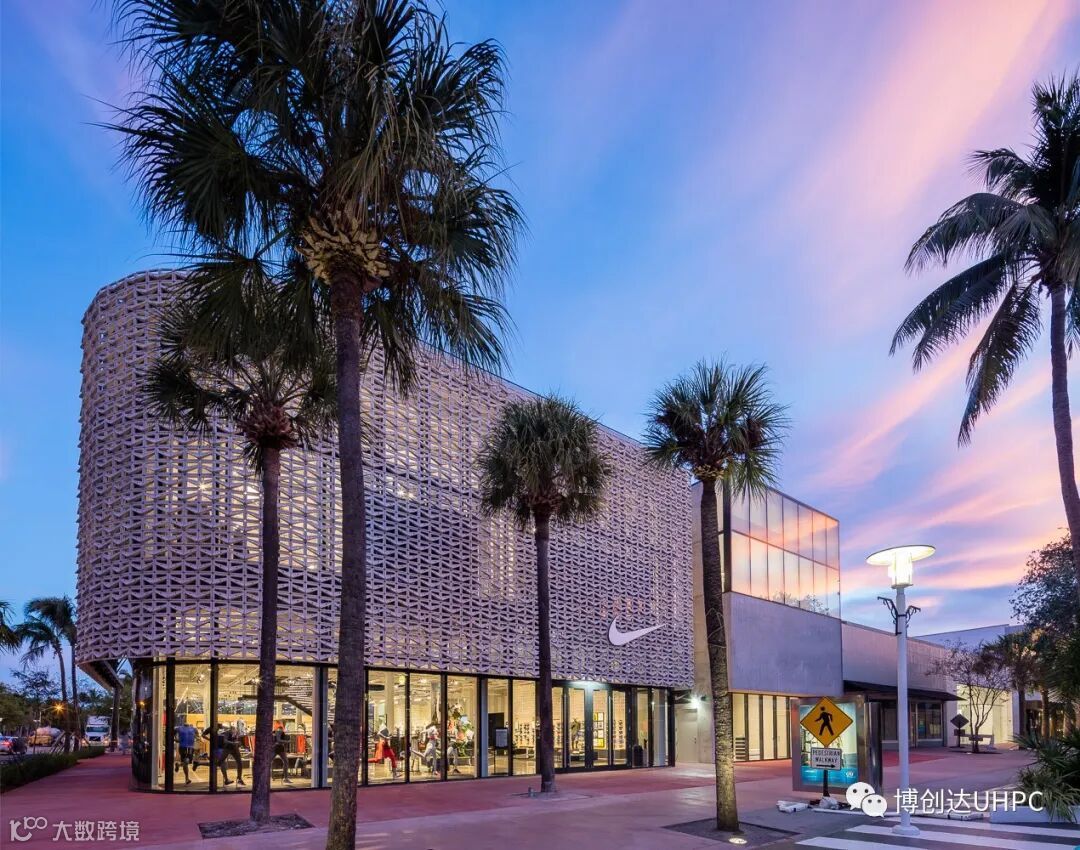

Nike 南海岸迈阿密购物空间

NIKE SOUTH COAST MIAMI SHOPPING SPACE

板块安装⽅式通过背栓和玻璃幕墙的框架进⾏连接安镂空率⾼达53%,体现了超⾼强度的优势。
The plate is installed through the back bolt and the glass curtainwall frame, with a hollow-out rate of up to 53%, reﬂecting theadvantage of ultra-high strength.

市政桥梁运用

MUNICIPAL BRIDGEOPERATION

宁波机场快速路南延项目

Ningbo Airport Expressway South Extension project
箱梁湿接缝

Box girder wet joint

共计 9 个标段。主线桥梁宽度 25.5 ⽶， 8 ⽚预制⼩箱梁由片制预制小梁组成上下匝道宽 8.5m，由片预制小箱梁组成。
There are 9 segments in total. The main bridge is 25.5 meters wide and consists of 8 prefabricated small box girders. The upper and lower ramp is 8.5 meters wide and consists of three prefabricated small box girders.
