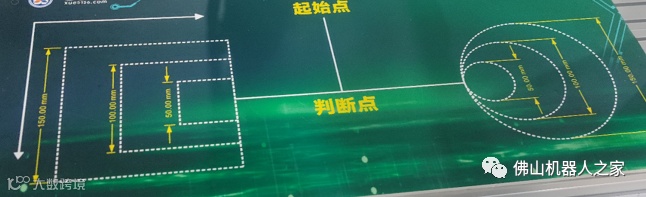

ABB机器人串口通讯画任意几何尺寸的圆和方

往期精彩回顾：

1. ABB机器人常见故障之（1）

2. ABB机器人的控制柜和示教器的认识

3. ABB仿真软件RobotStudio批量创建IO

4. ABB机器人添加外部轴（导轨）小技巧

5. ABB工业机器人两台或多台机器人DeviceNet的通信

6. 揭秘ABB机器人用户权限丢失恢复步骤

7. ABB机器人通讯篇之串行通讯

8. 安川机器人外部IO启动

9. YASKAWA  中断程序编程

10. 安川机器人仿真软件MotoSimEG_VRC2020安装教程和软件

11. YASKAWA  配置并使用Motoplus功能

12. YASKAWA  信号的分类以及梯形图初识

13. 安川机器人指令扩展小技巧

14. 安川机器人示教器按键界面认识

15. KUAK机器人A6轴无限制转动

16. KUKA机器人示教器中英文语言切换

17. KUKA机器人功能程序

18. KUKA机器人中断路径恢复程序

19. KUKA机器人软件伺服

20. KUKA机器人Workvisual在线连机程序的创建和上传

















     ▼东莞机器人之家，关注有惊喜







     ▼





































小编微信☜



公众号二维码☞



















单击对应二维码，长按添加小编为好友▲

VAR iodev iodev1;

VAR num Reveice_Byte{8};

VARjointtargetPhome:=[[3.10955,-30.1587,14.6977,-2.07106,67.5213,3.24353],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];

    VAR robtarget p10:=[[489.04,0.00,391.23],[5.33165E-05,1.24356E-36,-1,1.2047E-37],[0,-1,0,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];

    VAR robtarget p20:=[[509.73,61.76,296.50],[5.31843E-05,4.00685E-08,-1,3.36067E-08],[0,-1,0,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];

    VAR robtarget p30:=[[504.33,-38.24,296.50],[5.31562E-05,-3.26453E-09,-1,9.48518E-09],[-1,0,-1,0],[9E+09,9E+09,9E+09,9E+09,9E+09,9E+09]];

    PERS tooldata MyTool:=[TRUE,[[31.792631019,0,229.638935148],[0.945518576,0,0.325568154,0]],[1,[0,0,1],[1,0,0,0],0,0,0]];

    PROC main()

        Close iodev1;

        Open "COM1:",iodev1\Bin;

        ClearIOBuff iodev1;

        FOR i FROM 1 TO 8 DO

            Reveice_Byte{i}:=ReadBin(iodev1);

        ENDFOR

        MoveAbsJ Phome\NoEOffs,v1000,fine,mytool\WObj:=wobj0;

        MoveL p10,v1000,fine,mytool\WObj:=wobj0;

        IF Reveice_Byte{2}=1 THEN

            yuan;

        ELSEIF Reveice_Byte{2}=2 THEN

        ELSE

            stop;

        ENDIF

    ENDPROC

    PROC yuan()

        TPReadNum Reveice_Byte{3}, "";

        MoveL p20,v1000,fine,mytool\WObj:=wobj0;

        IF Reveice_Byte{3}=50 THEN

            MoveL p20,v1000,fine,mytool\WObj:=wobj0;

           MoveC offs(p20,25,25,0),offs(p20,0,50,0),v1000,fine,mytool\WObj:=wobj0;

            MoveC offs(p20,-25,25,0),p20,v1000,fine,mytool\WObj:=wobj0;

        ELSEIF Reveice_Byte{3}=100 THEN

            MoveL p20,v1000,fine,mytool\WObj:=wobj0;

         MoveC offs(p20,50,50,0),offs(p20,0,100,0),v1000,fine,mytool\WObj:=wobj0;

            MoveC offs(p20,-50,50,0),p20,v1000,fine,mytool\WObj:=wobj0;

        ELSEIF Reveice_Byte{3}=150 THEN

            MoveL p20,v1000,fine,mytool\WObj:=wobj0;

         MoveC offs(p20,75,75,0),offs(p20,0,150,0),v1000,fine,mytool\WObj:=wobj0;

            MoveC offs(p20,-75,75,0),p20,v1000,fine,mytool\WObj:=wobj0;

        ELSE

            stop;

        ENDIF

        MoveAbsJ Phome\NoEOffs,v1000,fine,mytool\WObj:=wobj0;

    ENDPROC

    PROC fang()

        MoveL p20,v1000,fine,mytool\WObj:=wobj0;

        MoveL p30,v1000,fine,mytool\WObj:=wobj0;

        TPReadNum Reveice_Byte{4}, "";

        IF Reveice_Byte{4}=50 THEN

            MoveL p30, v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,25,0,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,25,-50,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,-25,-50,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,-25,0,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL p30, v1000, fine, mytool\WObj:=wobj0;

        ELSEIF Reveice_Byte{4}=100 THEN

            MoveL p30, v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,50,0,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,50,-100,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,-50,-100,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,-50,0,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL p30, v1000, fine, mytool\WObj:=wobj0;

        ELSEIF Reveice_Byte{4}=150 THEN

            MoveL p30, v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,75,0,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,75,-150,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,-75,-150,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL Offs(p30,-75,0,0), v1000, fine, mytool\WObj:=wobj0;

            MoveL p30, v1000, fine, mytool\WObj:=wobj0;

        ELSE

            stop;

        ENDIF

        MoveAbsJ Phome\NoEOffs,v1000,fine,mytool\WObj:=wobj0;

    ENDPROC

ENDMODULE
