In the live-line working scenarios of the power industry, the risk of accidental electric shock always exists. As a professional rescue tool, insulated rescue hooks can safely drag trapped personnel in live environments of different voltage levels such as 10kV to 35kV, and are key equipment for ensuring the life safety of workers. This article will comprehensively analyze from the dimensions of product definition, technical standards, selection guidelines, and operation methods, what kind of rescue hooks can truly achieve "hooking people and isolating electricity"?
What is an insulated rescue hook?
The rescue hook is a specialized rescue tool designed for electric operation scenarios. It is mainly used to drag the person who has been injured by electric shock to a safe area in environments with voltages ranging from 10kV to 35kV. Its core function is to isolate the current through insulating materials, preventing the rescuer and the person in distress from getting electrocuted simultaneously. At the same time, the hook design ensures a stable grip on the waist or armpit of the person in distress, ensuring the controllability of the rescue process. It is widely used in scenarios such as power maintenance, transmission line maintenance, and substation operations. In electric operation sites, when rescue personnel cannot immediately cut off the power supply, the insulating rescue hook is the only tool that can safely separate the person who has been electrocuted from the live body. It is not a simple iron hook; it is a complete set of insulating life transfer system.
The material & craftsmanship

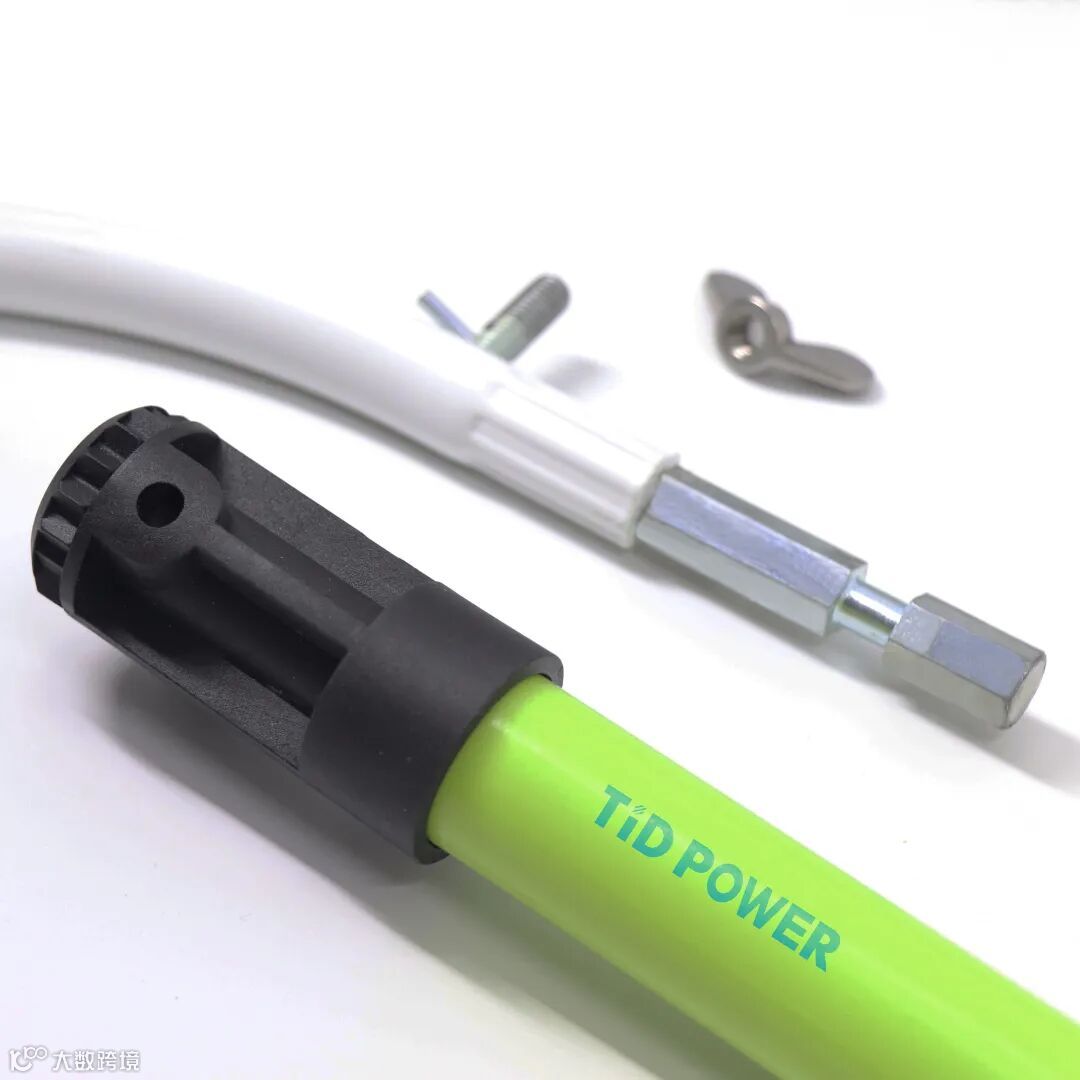

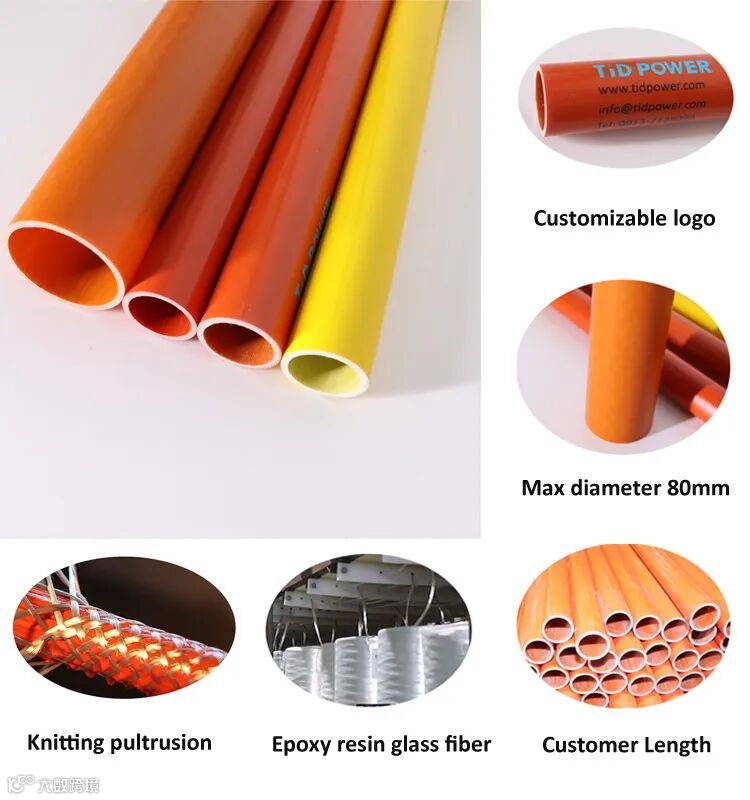

We are participate in the compilation of the new national standard of Pultrusion weaving technique. The products comply with ASTM F711 and IEC 60855 standards, ensuring that the insulation performance and mechanical strength meet the requirements. Our tubes adopt the new pultruded braiding process and have obtained relevant patents, The dielectric strength is 100kV/300mm; Paint-free process to avoid the occurrence of paint damage or peeling. The hooks are made of φ18 steel tubes and U-shaped joints, and can be used for high-pressure detectors. The handle is made of rubber material.
Product series & specification selection

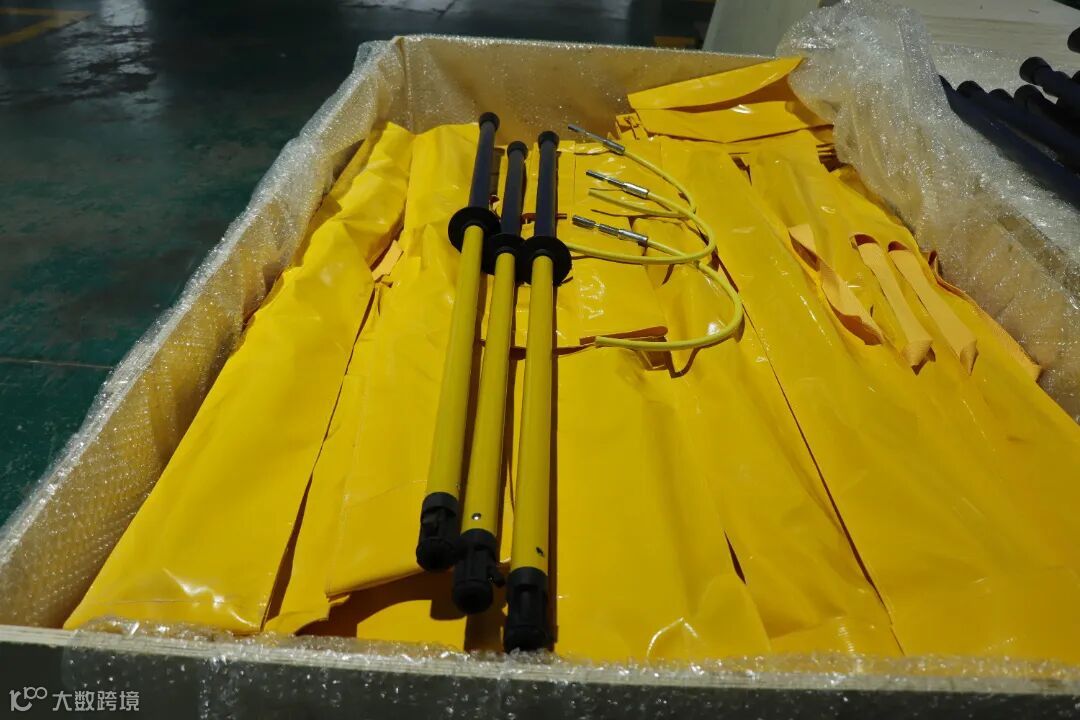

Our rescue hooks are divided into three types.

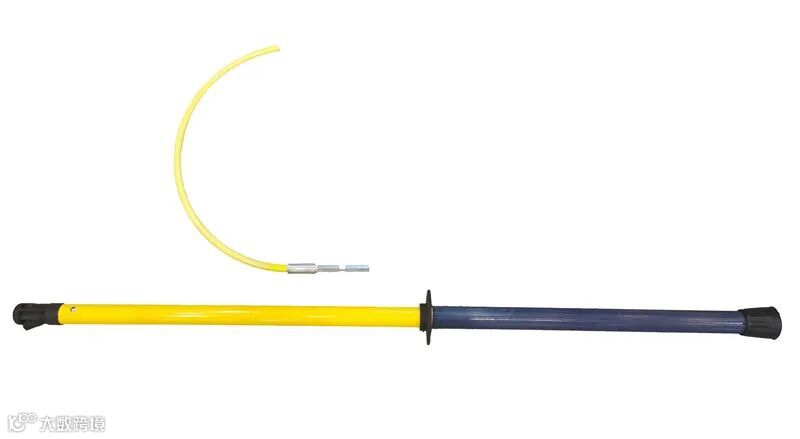

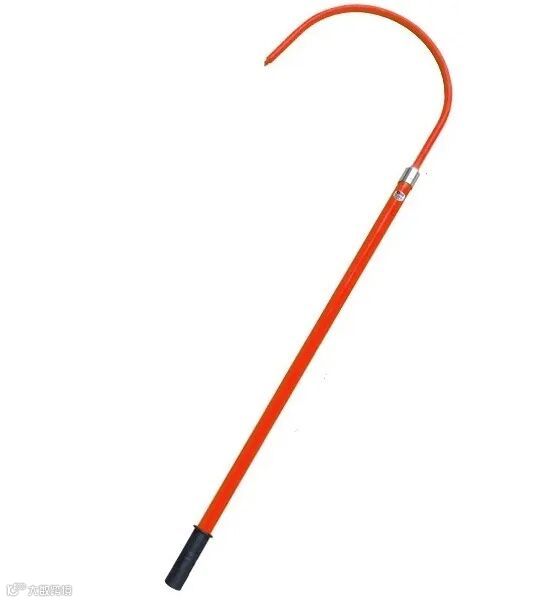

The first type is made of treated steel hooks with a diameter of 450mm and covered with a plastic insulation layer. It is not prone to deformation; the tube is designed in 1-2 sections. The product length is 1.0m - 3.0m; the load-bearing range is 100kg.
The second type uses a tube with a diameter of 32mm, both ends equipped with moisture-proof sealing devices; the tube is designed in 1 section. The product length is 1.79m - 2.79m, with a load-bearing capacity of 80kg, and comes with a U-shaped steel hook.

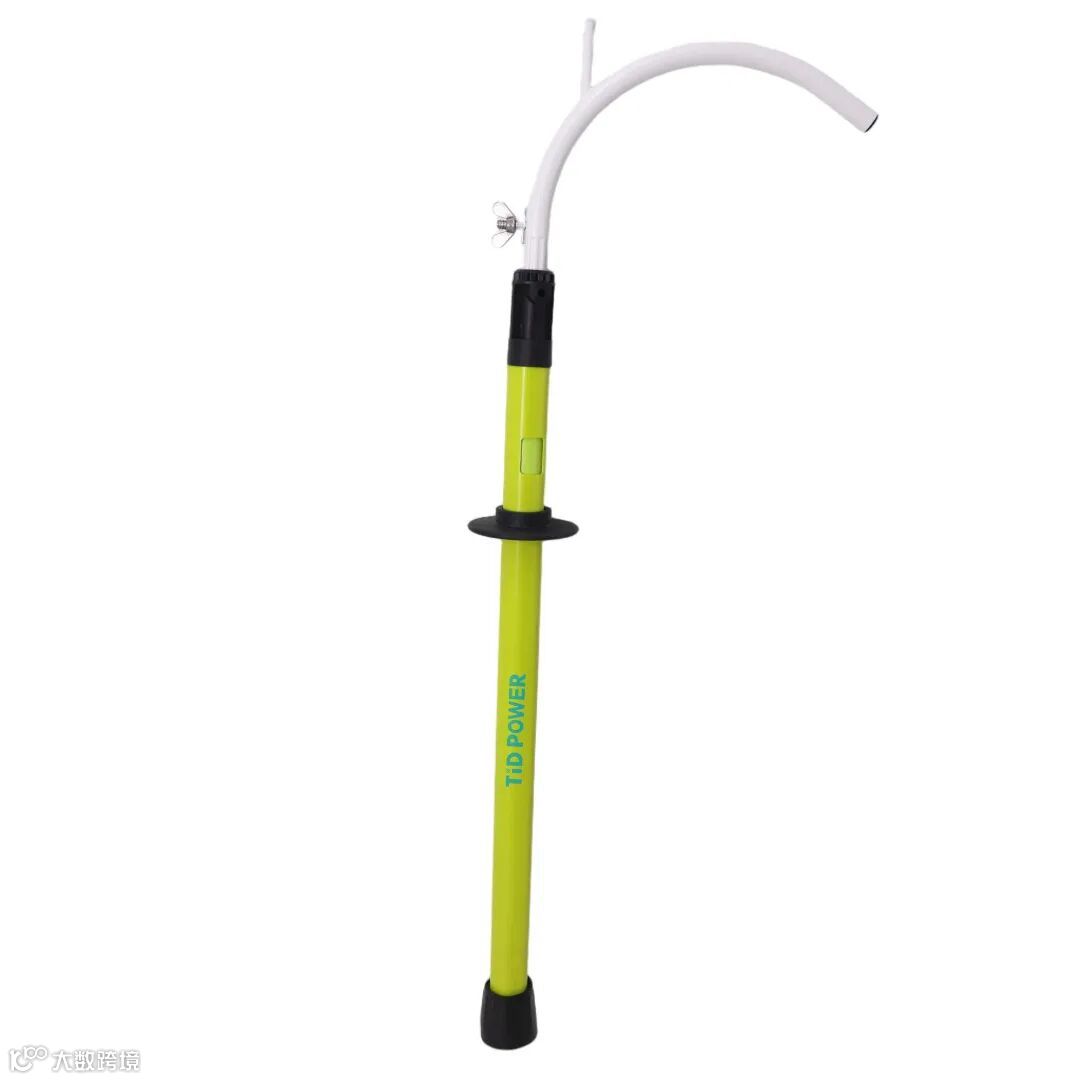

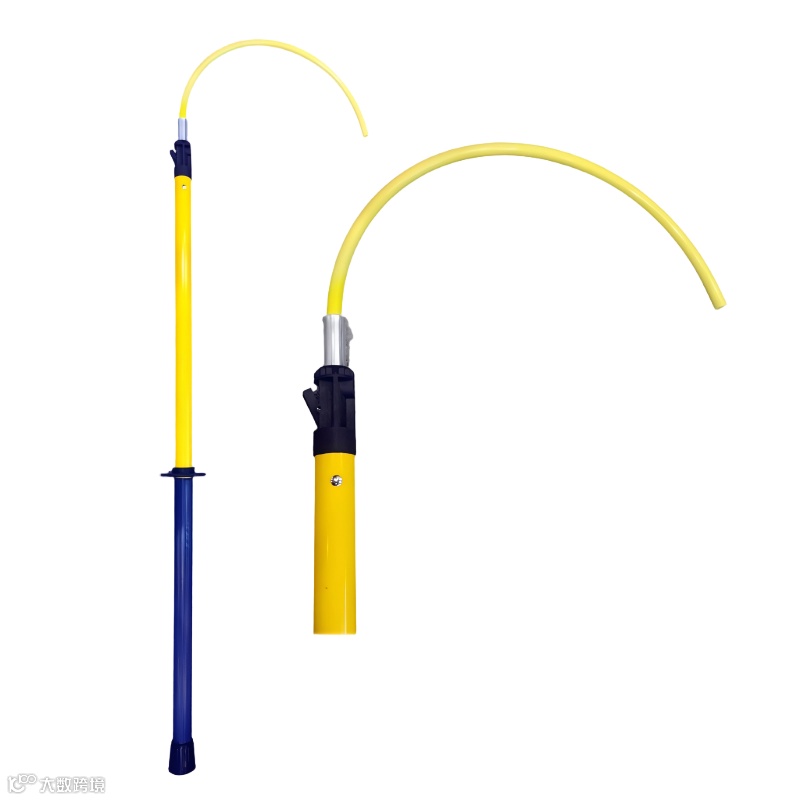

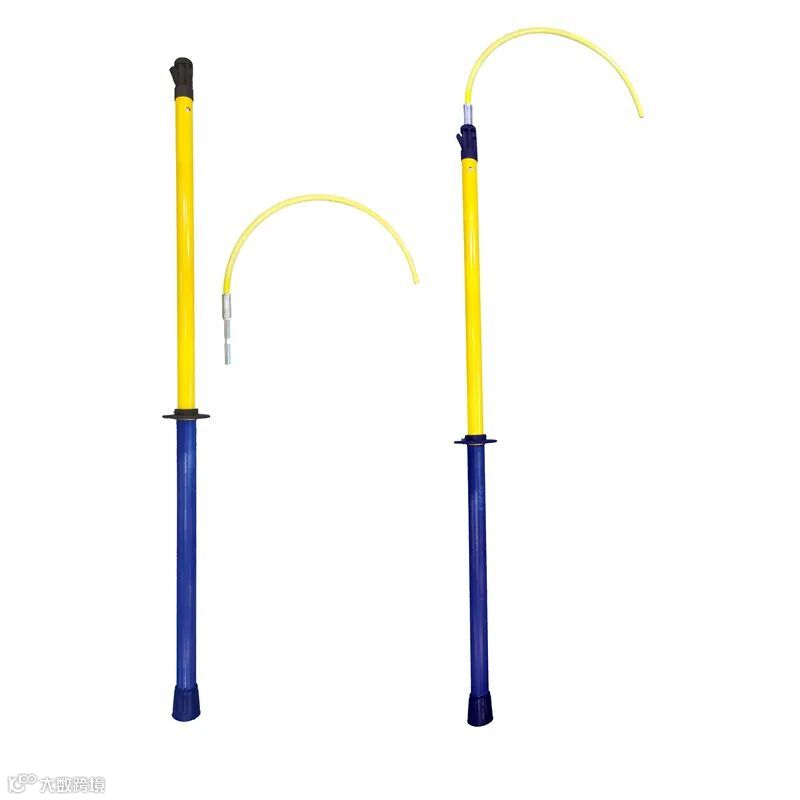

The third type is a telescopic rescue hook. The first section is a circular foam-filled tube with a diameter of 28mm, which can prevent moisture from entering; the second section is a pentagonal tube, which is not prone to slipping and can increase torque; the tube is designed in 2 sections; the product length is 1.3m - 2.0m, with a load-bearing capacity of 80kg; a universal interface is reserved at the top of the U-shaped hook, which can be used to attach a high-voltage tester. Before rescue, perform an electrical test.
Operation methods & usage scenarios

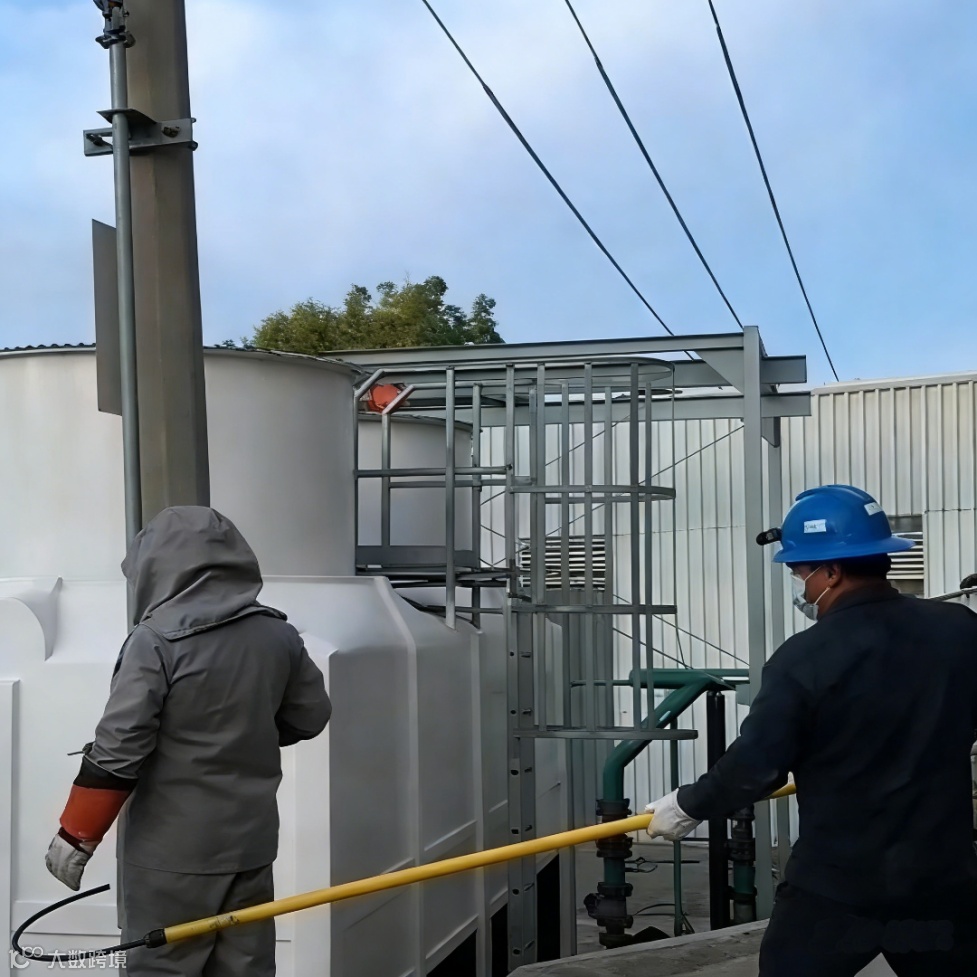

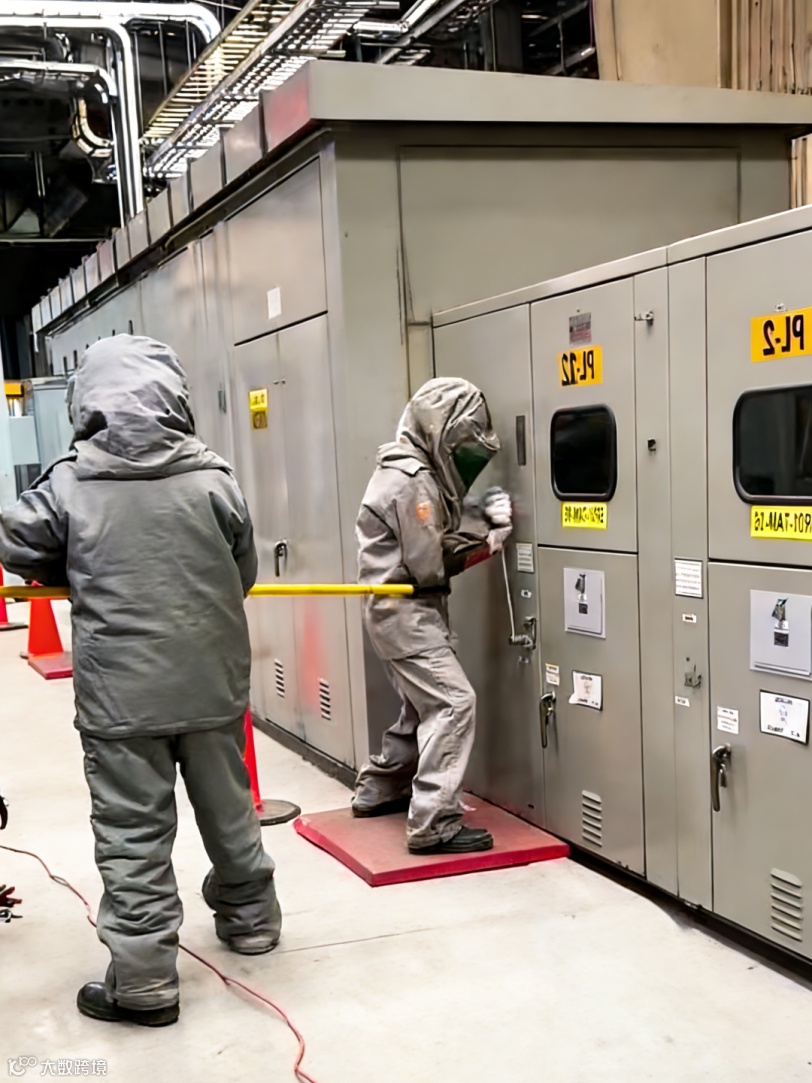

The operation of the insulated rescue hook should follow professional standards: The rescuer must wear insulating protective equipment, hold the insulating rod, precisely insert the hook body into the waist or armpit of the trapped person, and slowly drag it to a safe area. In the scenario of power line maintenance, it can be used to pull the trapped person away from the live conductors; in the operation of substations, it can be used to rescue the maintenance personnel who have been electrocuted. At the same time, the product can also be used in outdoor scenarios to push the cable away from the trapped person to avoid secondary injuries.
The unique advantages
It complies with ASTM F711 and IEC 60855 standards, with insulation performance and mechanical strength far exceeding industry requirements.
Material upgrade: It uses high-strength epoxy woven pultruded insulation tubes, with strong bending resistance and anti-aging capabilities.
Scene adaptation: It offers multiple specification options, covering voltage levels of 10kV - 35kV. At the same time, it supports different designs such as telescopic and single-section, suitable for various live working scenarios.
Quality Assurance & After-Sales Support

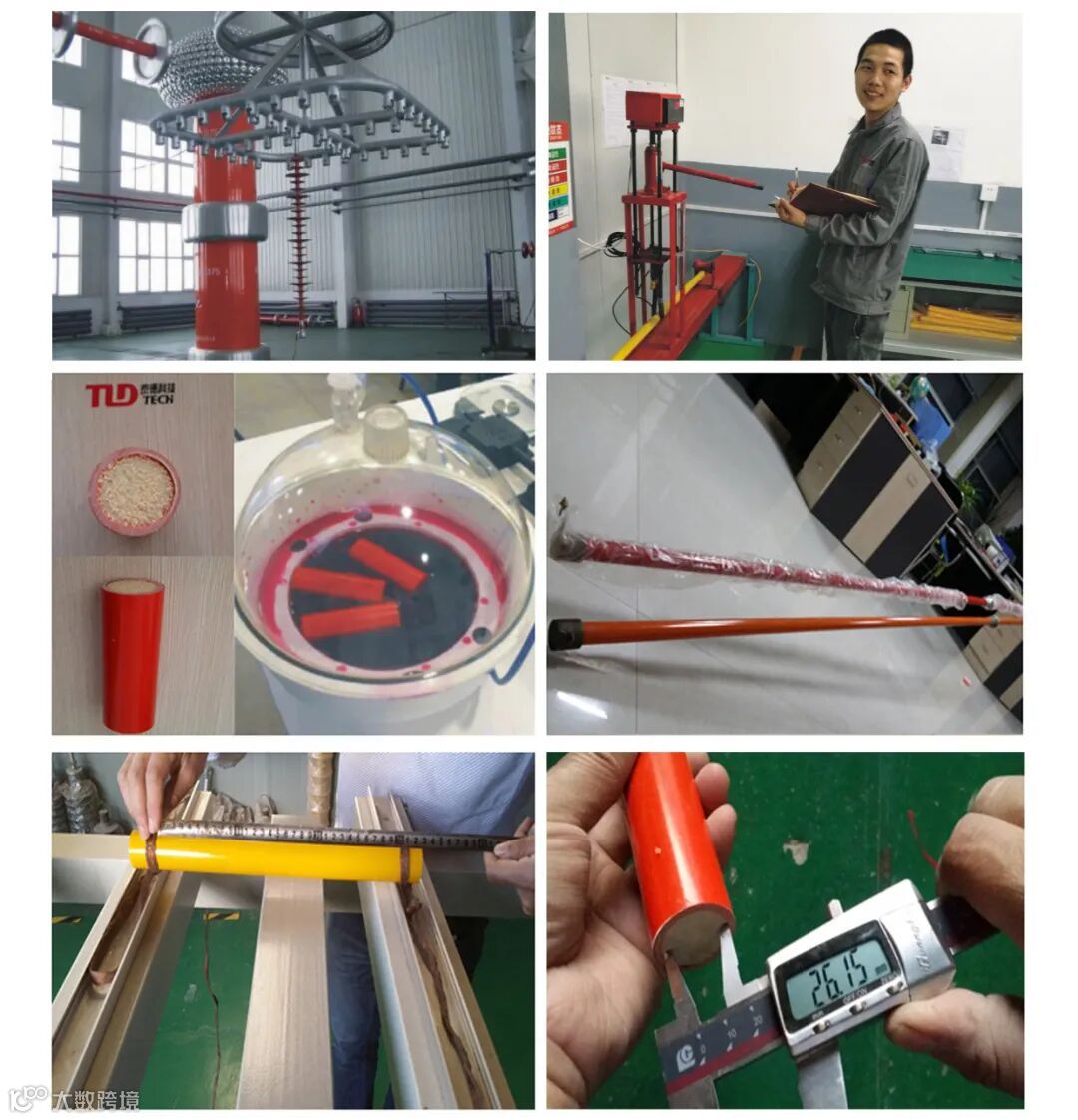

Our insulating rescue hooks have all undergone strict factory inspections, including insulation strength tests (100kV/300mm) and mechanical load-bearing tests, to ensure that each product meets safety standards. Additionally, we offer exclusive after-sales support: free repairs during the product warranty period, operation training and selection consultation to help users accurately choose the appropriate rescue tools.
If you want to learn more about the product information or customize the selection plan, please feel free to contact us via email at sale@tidpower.com. We will provide you with professional services and support.
What challenges did you encounter during the live operation rescue? Please feel free to leave a message in the comment section to share your experiences and we will provide you with targeted solutions.
