I. Core Construction

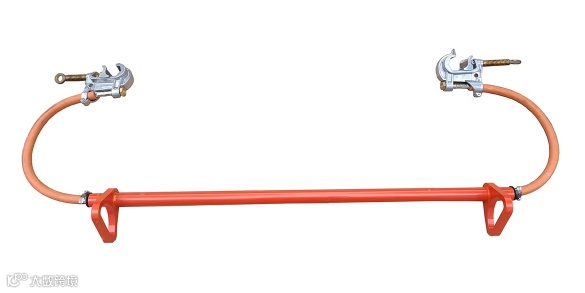

The insulated bypass jumper utilizes soft-insulated conductors with a high-strength epoxy-insulated support tube. The flexible, flexible conductors adapt to diverse wiring requirements in diverse operating scenarios and easily navigate various obstacles. The high-strength epoxy-insulated support tube provides strong structural support for the conductors, effectively preventing excessive deformation from their own weight or external factors, ensuring stable current transmission.

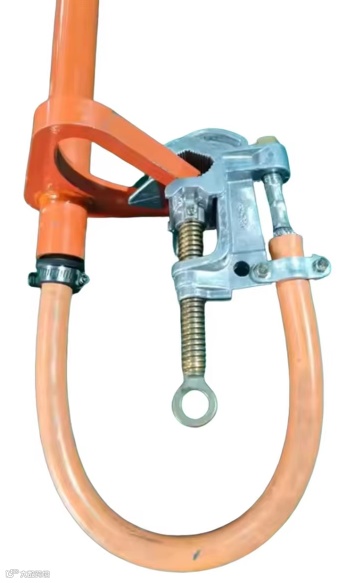

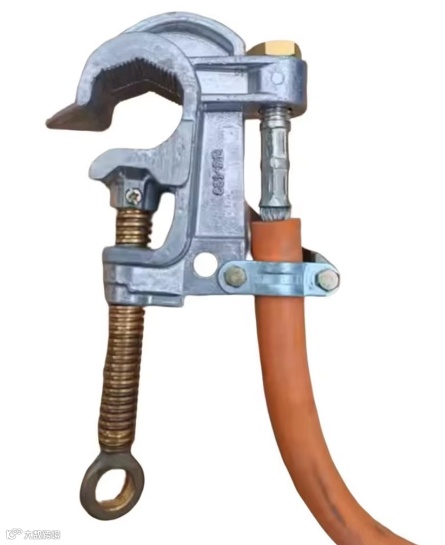

The ingeniously designed clamps at each end not only accommodate delicate gloved hands, allowing workers to precisely connect the clamps while wearing protective gear, but also meet the remote requirements of insulated pole work, further expanding their application range and facilitating access for workers with diverse work habits and site conditions.
II. Diverse Specifications

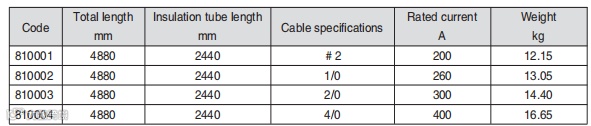

To better meet the current carrying capacity and length requirements of various 15kV bypass operations, the insulated bypass jumper is available in a wide range of specifications and models. The following are some of the core specifications:
III. Core Applications
The insulated bypass jumper is primarily used as a temporary power connection conductor during 15kV bypass operations. During bypass operations such as 15kV line maintenance and renovation, it can quickly establish a temporary power transmission channel, enabling load transfer and allowing the line under maintenance or renovation to operate without load. This ensures the safety of workers while minimizing the impact on user power supply, thereby improving the power system's reliability and service quality.
High-quality equipment is crucial for safe and efficient power operations. With its professional design, diverse specifications, and reliable performance, the insulated bypass jumper can elevate power system operations and maintenance to a higher level.
