In the power industry, insulating tools are crucial for ensuring worker safety. Today, we'd like to introduce a key product: high-strength insulating rods.
1. Core Materials
High-strength insulating rods are made from high-strength glass fiber, epoxy resin, and a polymer-based reinforcing and toughening agent. They meets standards such as IEC61109, IEC60855, and GB13398, ensuring reliable quality.
2. Advanced Technology

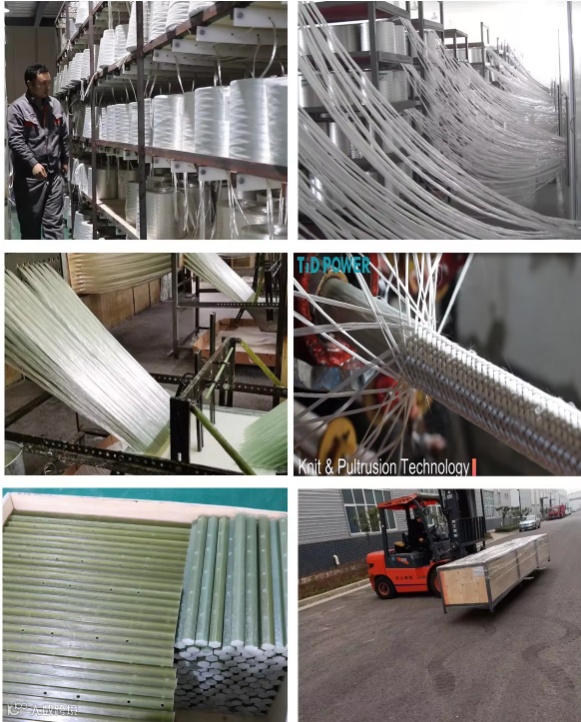

The continuous pultrusion or braiding + continuous pultrusion production process is used. The mechanical strength of the insulating rod produced by the braiding + continuous pultrusion process is about 20% higher than that of the traditional insulating rod, which can better cope with the complex stress conditions in power operations.
3. Customized Services

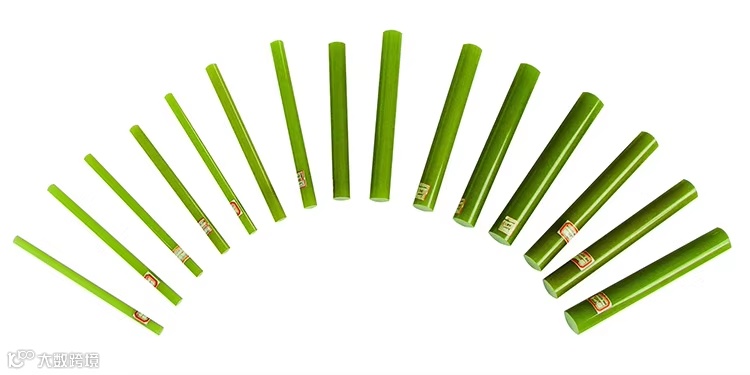

Color Customization
Available in light green, brown, and other colors, they facilitate identification and management in diverse operating environments.

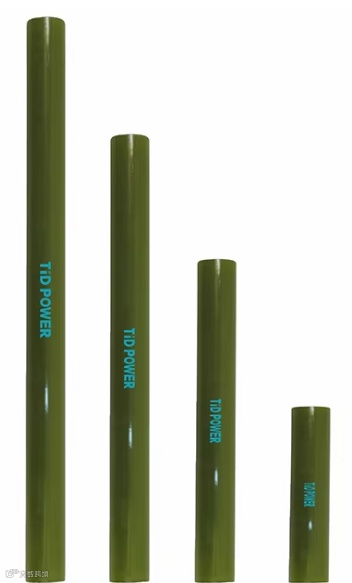

Length Customization
Flexibly customizable based on operating height, equipment spacing, and other requirements, they are suitable for a wide range of scenarios, from distribution and maintenance to transmission maintenance.
Customization for Special Requirements

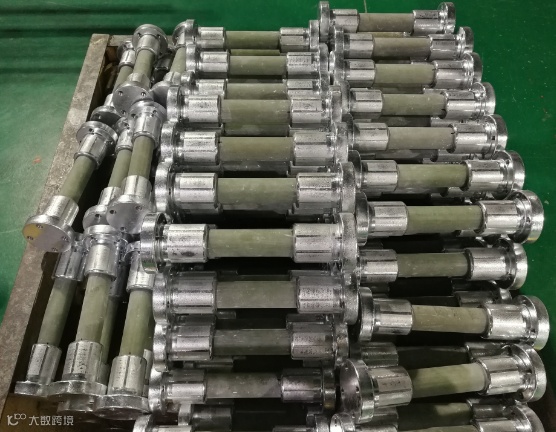

Dimensions, surface treatments (such as anti-slip and wear-resistant coatings), and machining (such as optimized end connection structures) can all be tailored to customer needs.

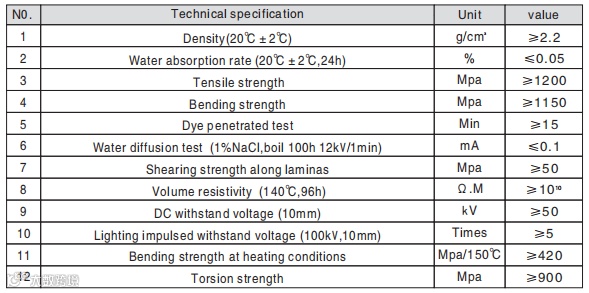

4. Technical Parameters
5. Applications

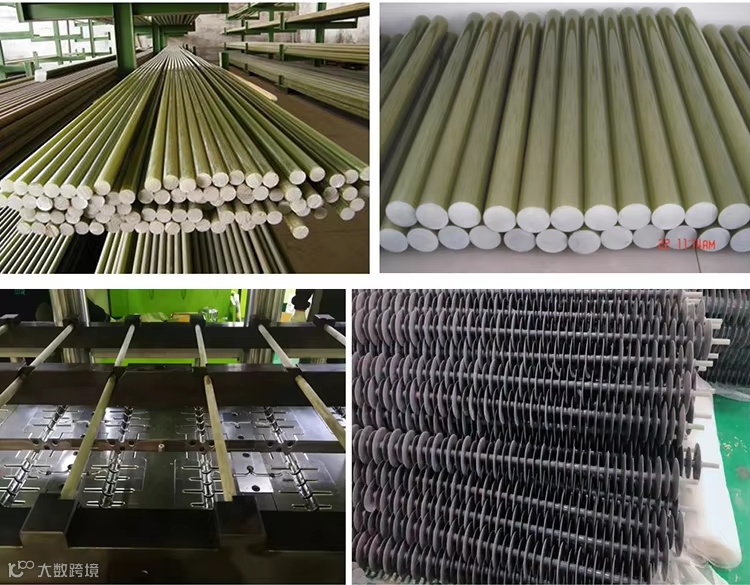

High-strength glass fiber epoxy insulation rods can be used in the production of insulators, lightning arresters, and fuses; they can also be used in high-voltage testing, power inspection and maintenance, and electrical equipment manufacturing.
Utilizing high-quality materials, advanced technology, standard certification, and flexible customization, these high-strength insulation rods provide strong support for safe and efficient power operations.
