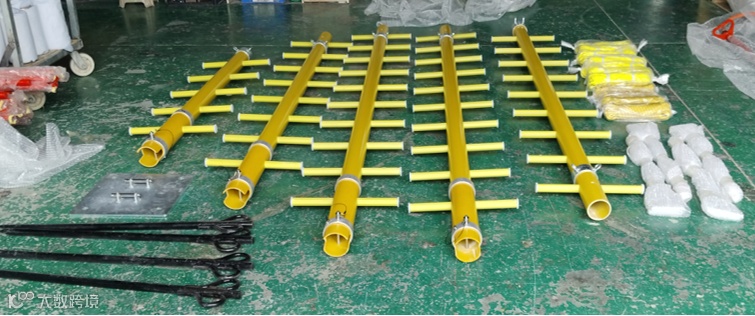

The insulated centipede Type ladder gets its name from its centipede-like shape, featuring a central straight pole surrounded by several parallel insulating horizontal bars. Don't underestimate this unique structure; it's the key to solving numerous operational challenges!
1. Easily navigate various complex terrains!
Conventional methods for ascending live-line work are either difficult to navigate or, due to geographical restrictions, prevent live-line work vehicles from entering, delaying work schedules and adding to the frustration.

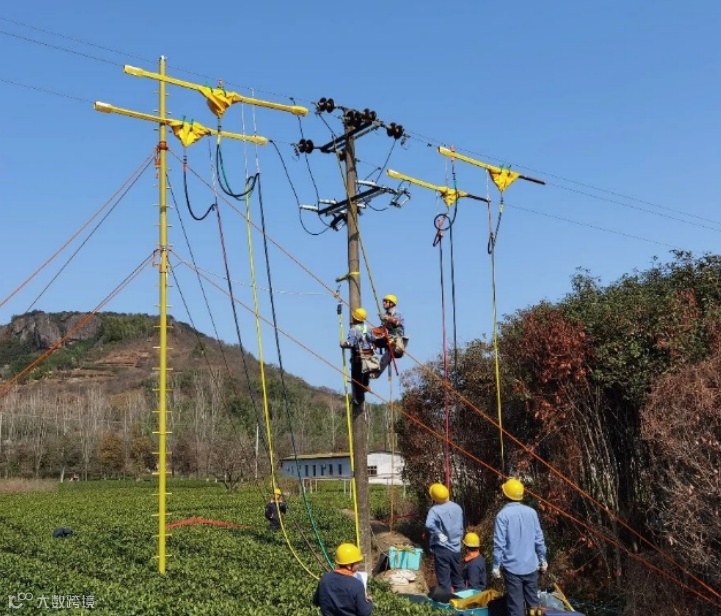

However, the insulated centipede ladder adapts to a wide range of terrains, from uneven ridges to slopes and grassy fields. It can easily overcome terrain challenges and free live-line work from site restrictions!
2. Hardcore performance, ensuring operational safety
( I ) Main pole and rungs: Strong insulation

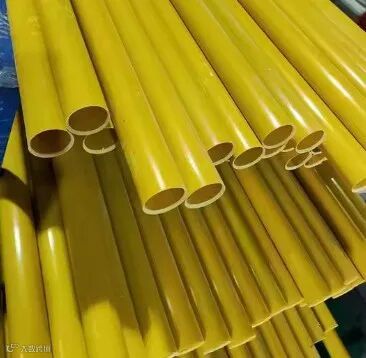

The main pole is constructed of high-strength epoxy resin and pultruded insulation tubes, offering excellent insulation, high strength, good rigidity, and minimal deflection under load. The ladder rungs are available in either round or triangular insulated tubes, offering superior insulation and mechanical strength, along with a large contact surface for comfortable climbing.
(II) Insulated Rope: Stretchability
Triangular nylon rope or insulated silk rope is used, offering excellent insulation and high tensile strength. This provides a secure lock for the ladder and a secure step, ensuring every step is secure.
(III) Sectional Design: Flexible and Portable

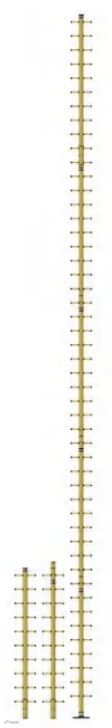

The structure features a plug-and-lock structure with a mounting base at the bottom to secure the ladder. Each section is approximately 3 meters high, with fixed footrests and a waterproof and moisture-proof insulation bag. It can be quickly assembled and disassembled for easy portability, making it easy to adapt to different heights.
(IV) Working Platform: Enhanced Comfort
An optional insulated work platform is available, significantly enhancing working comfort, minimizing fatigue during long periods of standing, and doubling efficiency, integrating comfort and efficiency into your workflow!

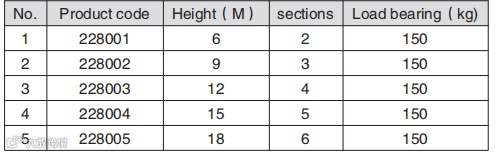

3. Product Specifications
4. Purchasing Tips
Insulated nylon rope is standard. If insulated silk rope is required, please specify this when placing your order.
Want an insulated work platform? Communicate in advance at the time of purchase so the tool can be customized to your needs!
