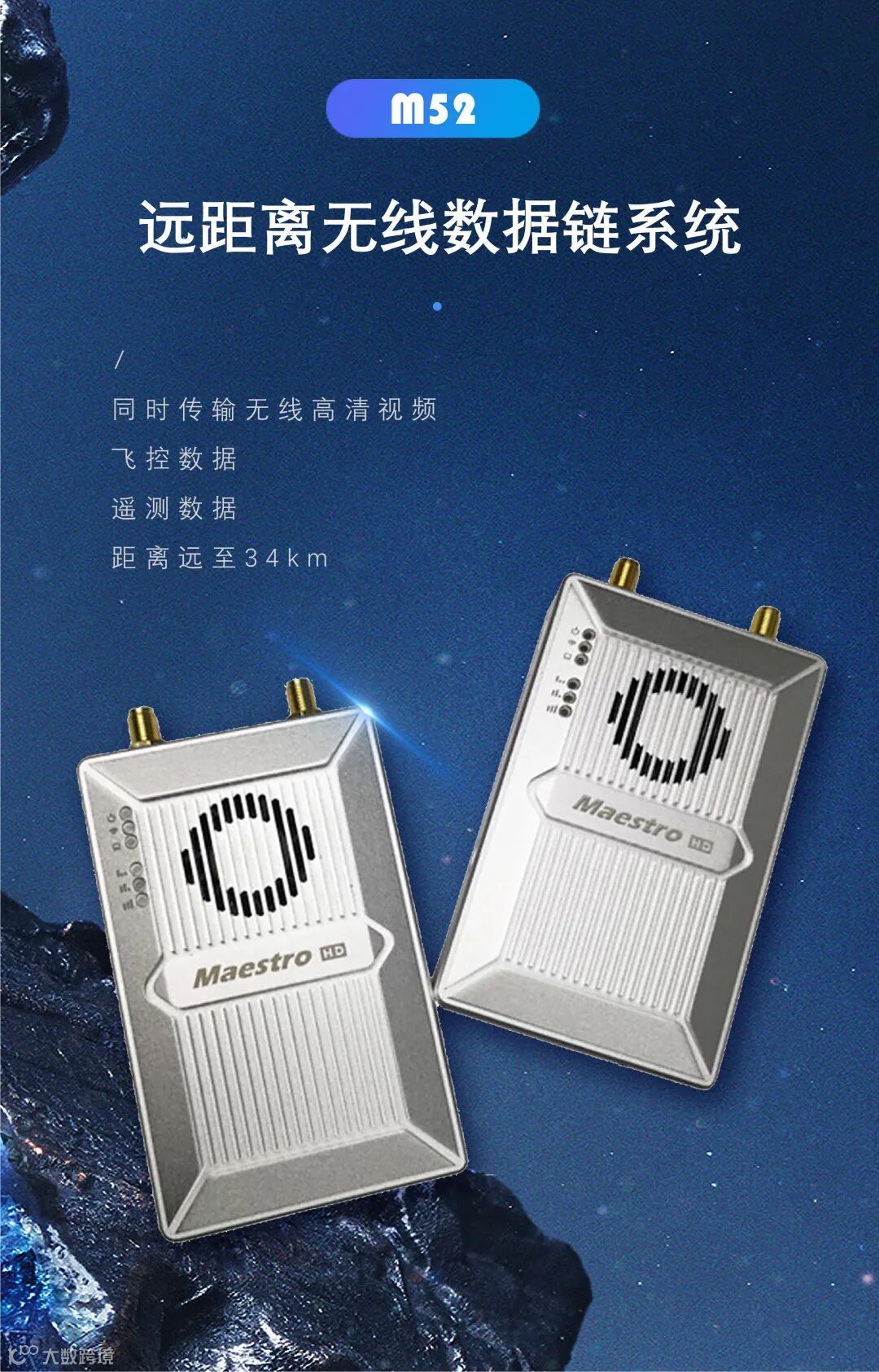

Maestro系列图传---M52

   M52采用先进的无线信道编码技术和信道控制技术，无线实时传输的距离远至34km。同时，由于采用了高效的数据处理算法，M52最多可将4路独立的飞控数据、遥测数据、云台控制数据、挂载控制数据等同时传输，让行业无人机如虎添翼，实现超远距离实时巡检、测绘、勘察、巡逻等需求。

    It benefits from advanced wireless channel coding technology and channel control technology, the wireless transmission distance of M52 can reaches 34 kilometers.As a result of use of the efficient data processing algorithms,M52 can transmit four-way independent fight control data, RC data, and gimbal control data simultaneously,it help industry UAV to achieve ultra-long distance real-time cruisedetection,mapping,exploration, patrol and so on.

    M52具有很高的集成度，丰富的接口，可以满足行业无人机多样化挂载需求。其中三个百兆以太网口，不但可以同时挂载多个网络接口吊舱，而且，当需要接入HDMI/SDI/AV吊舱或者输出HDMI信号给监视器，可以将M52的以太网口与我司的编解码系列产品MF05、MF08直接互连*1，使用更加灵活，方便。M52具有2个串口——UART1 & UART2，串口支持Mavlink协议和Transparent协议，用户可通过Maestro Assistant工具或Web UI配置串口协议和波特率。M52具有SBUS输入和输出接口，用户可以用来传输遥控信号。

    There are three ethernet ports in M52. Users can connect it to ethernet gimbal and  other payload simultaneously. If you want to connect HDMI/SDI/AV port payload, we have MF05、MF08 to meet your needs*1 . You only need one single switching cable to connect M52 and MF05. And the switching cable is in the accessory box.There are two UART port——UART1 and UART2. Two protocols, Mavlink and Transparent, are supported. Users can make changes easily through Maestro Assitant or Webpage. There are two SBUS——SBUS_IN and SBUS_OUT for RC data transmission.

    M52具有性能强大的数据和视频处理平台*2，用户可以通过上位机或嵌入式处理平台调用M52的SDK软件接口来实现个性化需求。目前，用户可以通过SDK接口来获得无线信号的信号强度（RSSI），并在线更改工作频率、带宽、发射功率等无线参数信息。M52的软件系统集成MavLink协议解析SDK，用户可方便查阅飞行高度、GPS、电池电量、飞行距离等信息，用户可以控制这些OSD信息叠加到输出的高清视频上。通过与行业内的Payload厂家深度合作，M52支持行业主流厂家的控制协议并将不断增加支持的厂家，用户只需要通过SDK进行简单的参数传递就能实现云台的控制、喊话、投掷等功能。M52的SDK调用接口可以是UART（TTL/RS232）串口，也可以是标准的以太网口，用户使用非常方便。

    M52 have a powerful data and video process platform*2, and the SDK API provided by M52 can be used by user for secondary development to meet the individual needs.Through the SDK API, M52's radio parametes such as RSSI,frequency,bandwidth,transmit power and that like can be checked and set by user.M52's SDK system support the parsing of the Mavlink protocol,so customers can easily get the flight parameters such as flight altitude,flight distance,GPS,battery level and overlay them on the video.We have deep cooperation with the mainstream payload manufacturers in the industry and M52 has built-in the PTZ control protocol of these manufacturers,so users can easily through M52's SDK API to achieve PTZ control,shouting,cast and so on.M52's SDK API is used to communicate over the network,it is very convenient for users to use.

    M52可使无线信号的传输距离达34km，让行业无人机在作业过程中，可以探索更广阔的空间，提高作业效率。

   The maxium transmission distance of M52 can reach 34km，allowing the drones to explore a wider space during operation and improve operation efficiency.

    M52采用先进的射频信道技术，双重信道滤波设计，使其具有强大的抗干扰性能。M52具有800MHz及1.4GHz两个可选的频段，由于采用了我司功放发明专利技术(公开号：CN107707207A)，以及对射频电路的优化，M52具有效率高、发热量小等特点。得益于良好的电路设计及工业热设计，M52能满足各种极端的行业应用需求。

    M52 have two bands 800MHz and 1.4GHz for customers to choose from, it has a strong anti-interference performance through adopts advanced channel coding technology and dual channel filter design.As a result of the use of my company's power amplifier invention patent technology (Number: CN1077077207A) and excellent circuit design and industrial cooling design,M52 have the advantages of high efficiency and low heat output,it can meet the needs of extreme industry applications.

    M52可以与大有万联多个系列的产品实现无缝连接，不需要额外的配置，我们的编解码产品系列可以满足您对多样化挂载接口、超低时延等需求。通过4G图传产品，您能够将无人机现场作业的视频和数据传输到互联网，摆脱距离的束缚。通过跟踪天线，可以得到更稳定的传输，发挥M52最大的传输性能。更多惊喜，期待您来探索。

   We have a series of matching products to go with M52 and no additional configuration is required.Codec series MF05/MF08 can meet you diverse interfaces and ultra-low latency needs.You can stream video and data from the drone operation site to the internet and get rid of distance by 4G video transmission.You can get more stable transmission through tracking antenna, to maximize M52 's transnission performance.More surprises is looking forward to your exploration.
