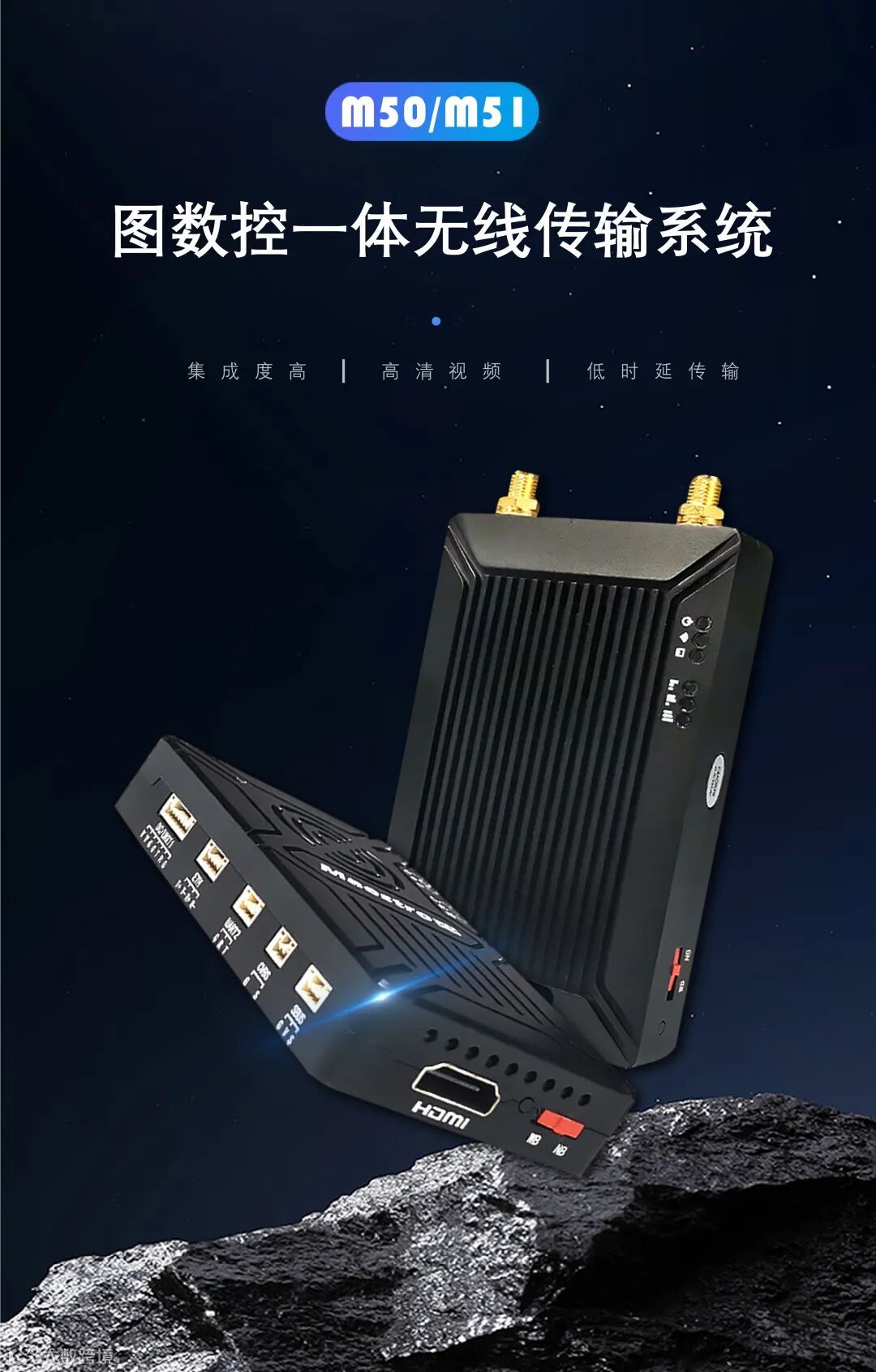

Maestro系列图传---M50/M51

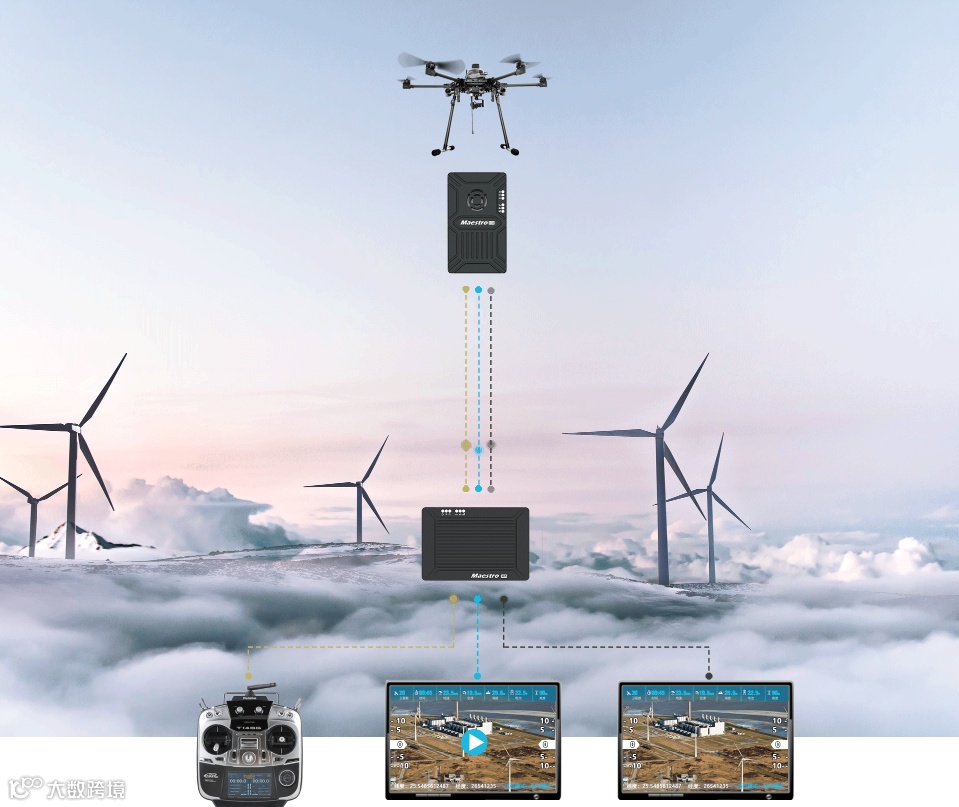

    M50/M51可同时传输高清视频、飞控数据、遥控器数据，并可以扩展同时传输其他挂载的控制信息，真正做到All In One。

    The air unit has HDMI/SDI /CVBS/ETH port, which can be used for video input.The ground unit has HDMI/EHT port,which can be used for video output.The device also has two UART ports and SBUS port, which can be use for data and RC transmission.

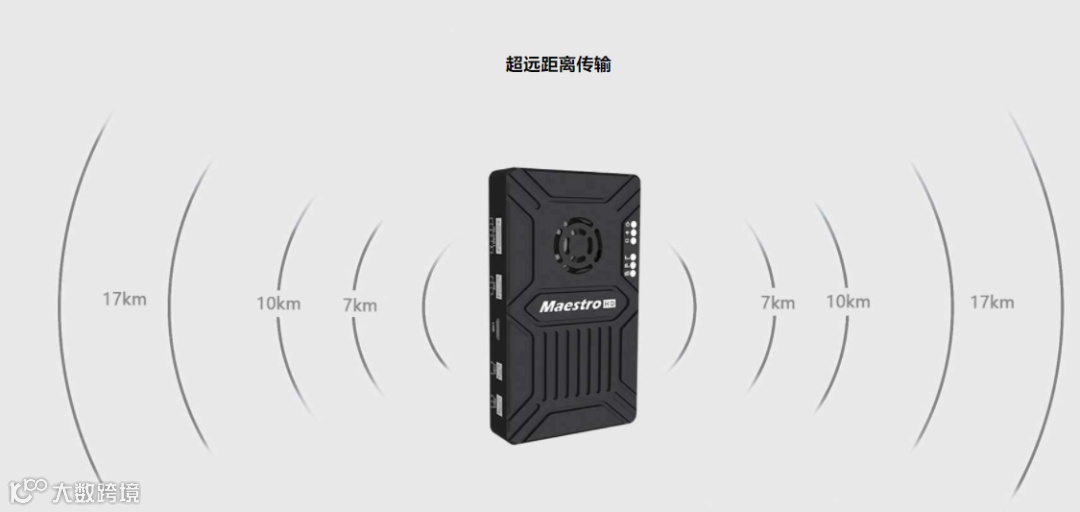

    M50的传输距离最远可达到7km，M51的传输距离最远可达到17km。

    The maximum transmission distance of M50 is 7km,While M51 is 17km, under the condition of line of sight.

    M50/M51具有三个可选的频段：800MHz，1.4GHz，2.4GHz。其中2.4GHz频段通过 工信部型号核准和CE认证。用户可自主通过Maestro Assistant工具或Web页面选择所需的频段。

    There are three frequency bands you can use:800MHz,1.4GHz,2.4GHz. The 2.4GHz has obtained CE and SRRC certification.User can select the frequency they need through the web page or Maestro Assitant.

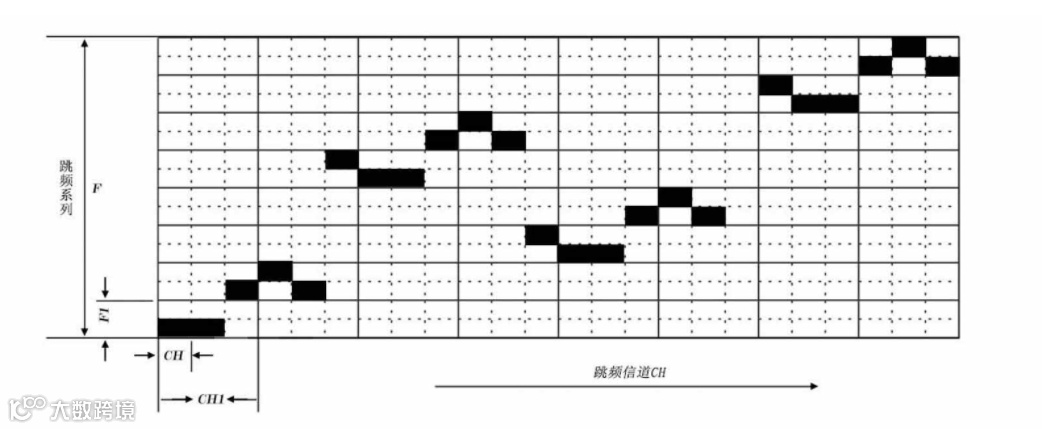

    M50/M51采用先进的无线通信技术，可工作在定频和跳频模式，当用户设置工作模式为窄带时，可满足同一空域内四台无人机同时使用。

    With the advanced communication technology,M51 can work on frequency hopping mode or fixed mode. When you need to use up to 4 drones in the same place, please selcet fixed mode and narrow bandwidth.

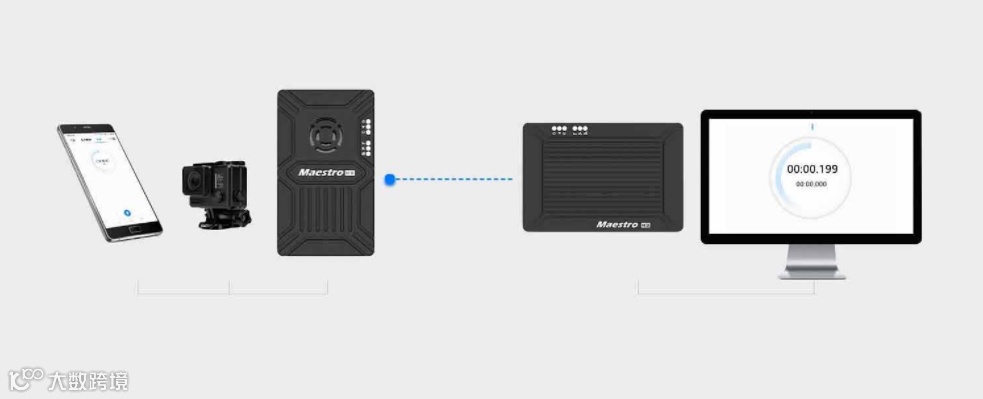

    M50/M51采用先进的编解码技术，数传时延低于30ms， 1080P60高清视频的端到端时延低于200ms，让无人机操控者具有极佳的实时体验。

    With the advanced CODEC technology,the data latency is below 30ms, the 1080P60 video lantency within 200ms.

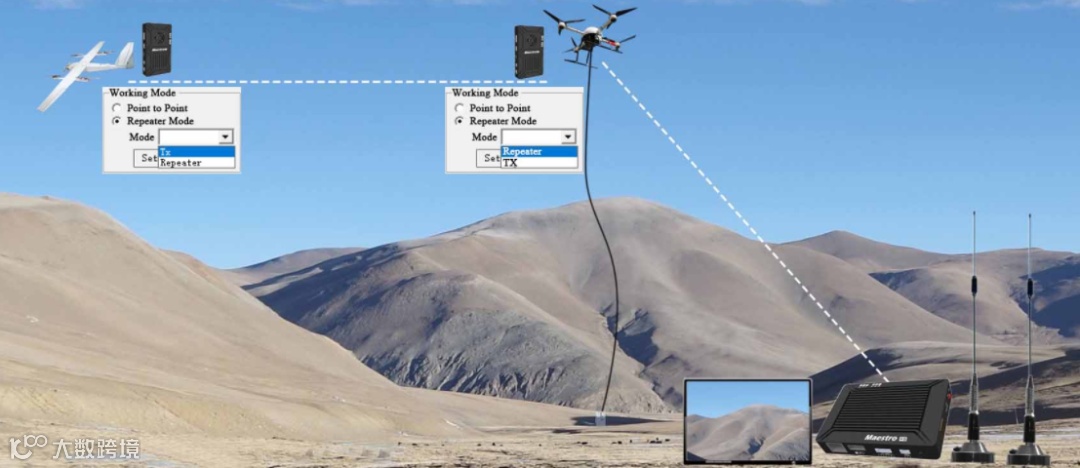

    M51具有两种工作模式：点对点和中继模式。利用中继模式，用户可以方便地拓展无人机的应用场景。中继模式下，发射端的视频与数据信号都能够回传至地面站，方便用户设计更加合理的无人机解决方案。

    There are two working mode of M51: point point mode and repeater mode.When you need to transmit signal under non-line- of-sight condition, please select repeater mode.You only need to buy one more air unit and easily set working mode throuth web page or Maestro Assitant.

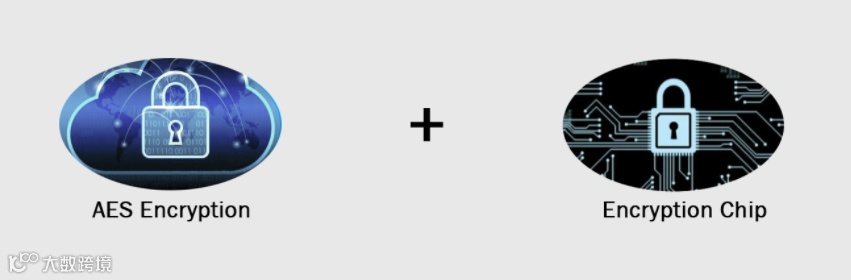

    M51采用双重加密技术，确保无线通信的数据安全性，用户可通过Maestro Assistant工具或进入网页使能/禁用加密功能，使能加密功能后，用户可以自定义私有的通信密钥。

    M51 adopts double encryption technology to ensure the security of wireless video and data transmission.User can enable this function and set your private code through web page and software.

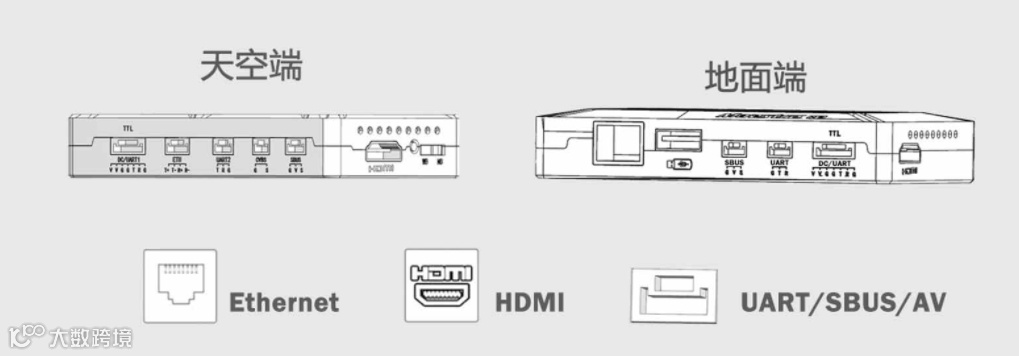

    天空端具有HDMI/网口/AV等视频接口，2路UART接口，1路SBUS输出接口。地面端具有HDMI/网口，2路UART接口，1路SBUS输入接口。串口支持Mavlink协议和Transparent协议。丰富的接口使M50/M51能满足多样化挂载需求。

    M50/M51 supports most of the gimbal on the market,including HDMI/SDI/CVBS/Ethernet port.The UART supports two protocols:Mavlink and Transparent.The Uart has TTL or RS232 level. Please give us the details when ordering.
