Skywalker系列
S2无线离清图传系统采用最新的H.265/HEVC编解码技术,可实现视觉质量超乎想象的无线视频传输。支持加密功能,使视频传输更安全,发射机自带HDMI/AV、网口等多种视频输入接口,可兼容更多的摄像机视频源,并且支持多种视频源按TDMA方式多路同传,使无人机"多眼看世界"。
S2 wireless HD transmission is adopted the newest technology H.265/HEVC code and achieve wireless video transmission beyond your imagination. Supporting encryption function is more secure.The transmitter is compatible with more video from camera and supports multiple simultaneous transmission by TDMA.
Skywalker
S2

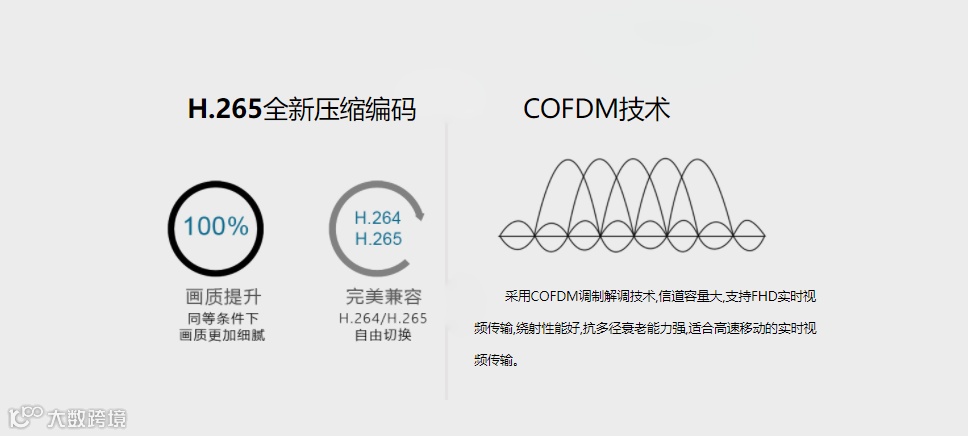

S2采用H.265全新压缩编码技术，同时采用COFDM调制解调技术,信道容量大,支持FHD实时视频传输,绕射性能好,抗多径衰老能力强,适合高速移动的实时视频传输。
S2 adopted H.265 the newest code technology,and adopted COFDM modulation technology,large channel capacity,supports FHD real-time video transmission,it has good performance on Anti-fading which affected by multi-path transmission,it is suitable to transmit real-time video under the high speed motion.
Skywalker
S2

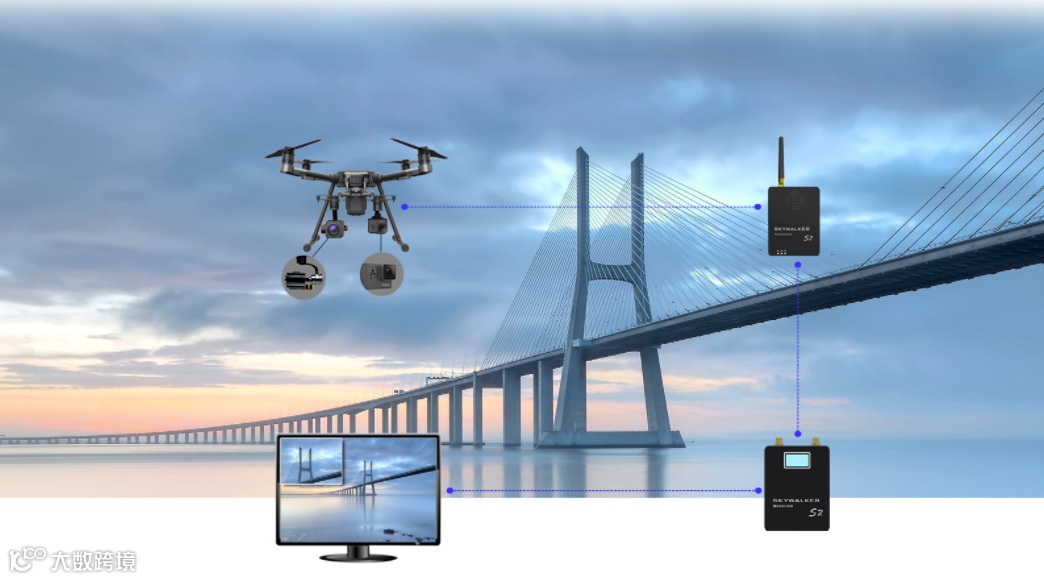

多路同传 , 画中画显示。发射端支持HDMI/CVBS+网络流同时输入,多路1080P高清视频同传,网络流支持TCP、UDP、RTSP等主流协议。
Multiple simultaneous transmission, picture-in-picture display，Transmitter supports HDMI/CVBS input at the same time,and multiple simultaneous 1080p HD video transmit.Network stream supports TCP,UDP,RTSP.

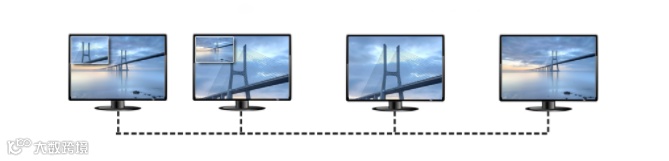

四种显示形态一键自由切换。接收端支持双画面画中画显示,一键切换,使用方便,并支持HDMI与网口同时传输,网络输出支持主流协议。
Four display methods can be freely switched. Receiver supports picture-in-picture display,one-click switch,easy to use,and supports simultaneously transmit HDMI and IP.IP output supports mainstream protocol.
Skywalker
S2

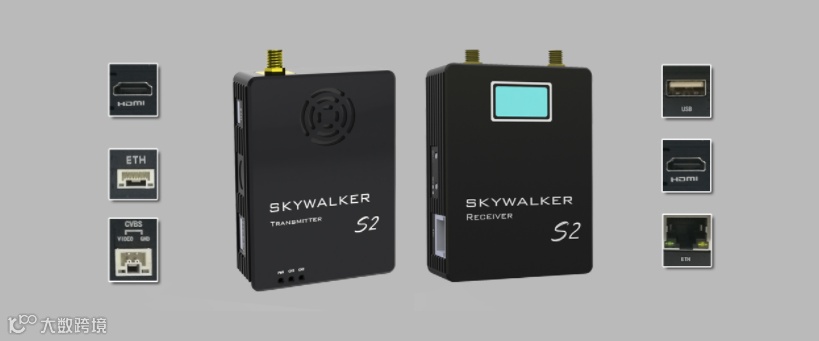

丰富接口: S2具有丰富的视明输入输出接口,发射端支持HDMI、网口、CVBS,满足用户多样化挂在需求,接收有HDMI网口,并支持HDMI和网络流同时输出,接收机还具有通用的USB接口,可描入USB设备,一键录制高清实时视频,多重备份, 不错过无人机每一个重要瞬间。
Diversified interface: S2 has diversified interface to output and input video.The transmitter supports HDMI,IP,CVBS, which user content with diversified mounting demand. The receiver has HDMI and IP interface,supports simultaneously output by HDMI and IP.In addition,the receiver has US interface.User can insert USB,which record HD real-time video,multiple backup.
Skywalker
S2

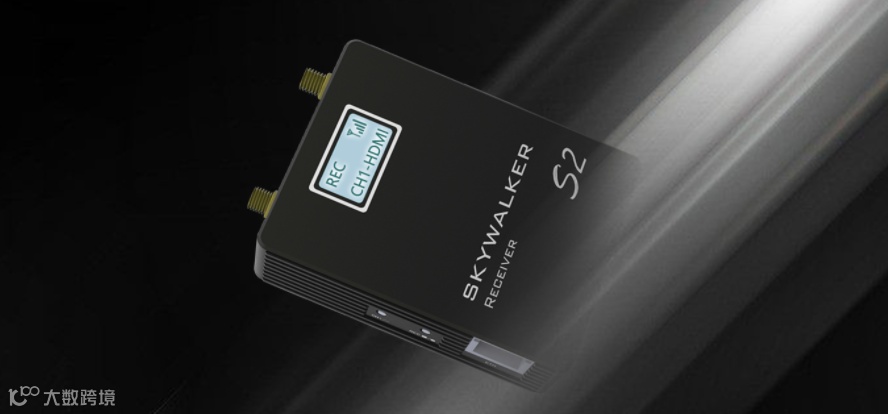

工人性化显示设计，操作简单。接收端自带OLED显示屏，清晰指示当前信息的信号强度，视频录制等信息，所有操作一键完成。
Humanized display design,easy to use. Has OLED display screen on the receiver, clearly indicata strength of current signal and video recording information. All operations need only be done with one button.

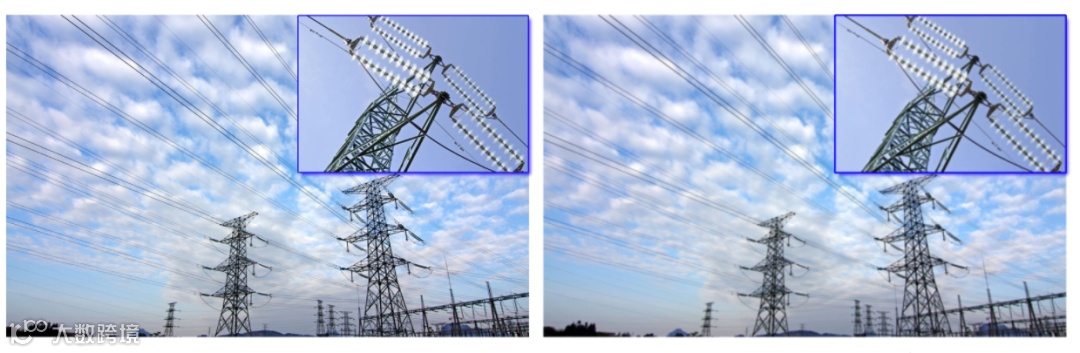

S 2图传飞行测试效果VS普通图传飞行测试效果
S2无线高清图传,只为带来不一样的高清用户体验,并支持客户深度定制叠加OSD显示,让无人机作业更加方便,更高效。
S2 wireless HD system,brings different user experience,supports custom- made OSD display.
