孔加工“好家伙”——GHDS双螺旋内冷浅孔钻应用案例

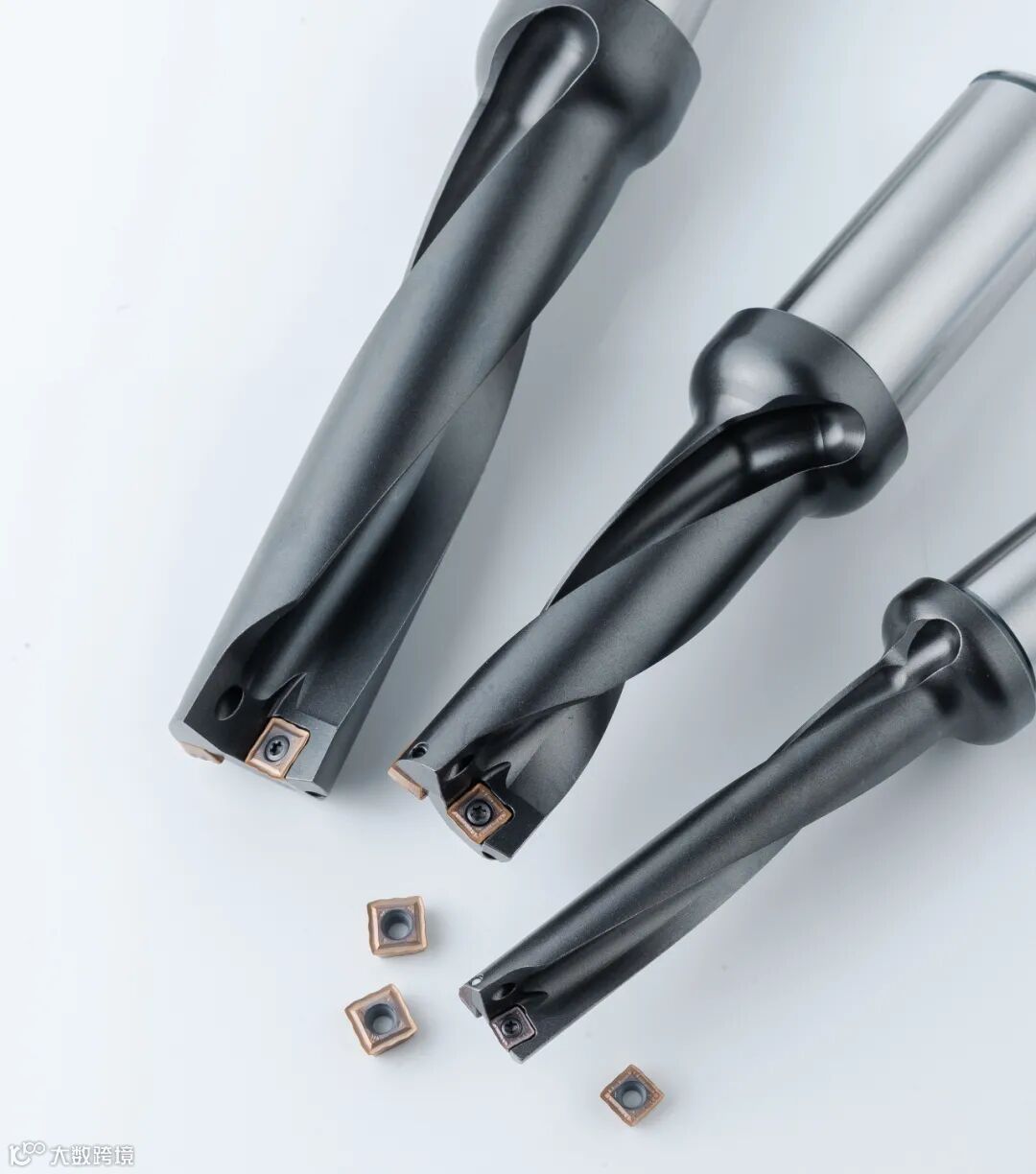

产品特点 | Features of Product

Inserts Installation：The internal and external inserts are consistent, which is convenient for tool management

槽型：通用槽型DP

Geometry：General DP Geometry

牌号 | Grade

• GA4230：铸铁、中碳钢加工

  Cast Iron or Carbon Steel processing


• GS4130：较硬钢材加工

  Harder Steel Processing


• GM3220：不锈钢、恶劣工况加工

  Stainless Steel or harsh working conditions processing




刀体接口：侧固式

Cutter Body Holder：Side-fixed arbor

加工范围：Φ14-Φ40mm，孔深2D-5D

Scope of Processing：Φ14-Φ40mm，L/D 2D-5D

应用特点 | Application Characteristics

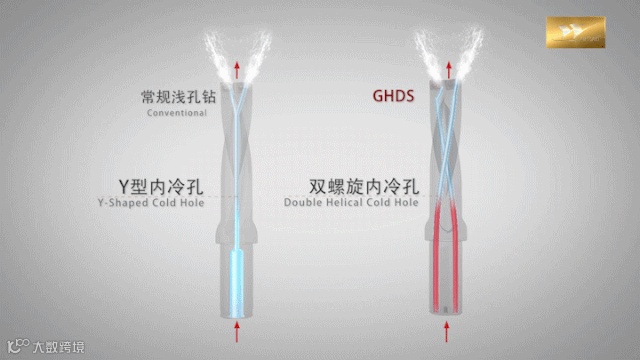

采用切削力平衡设计，钻削加工稳定，能够稳定加工4D-5D孔深，加工精度高

By using the cutting force balance design, makes drilling process be more stable.And it able to stable machine 4D-5D hole depth with high machining accuracy.

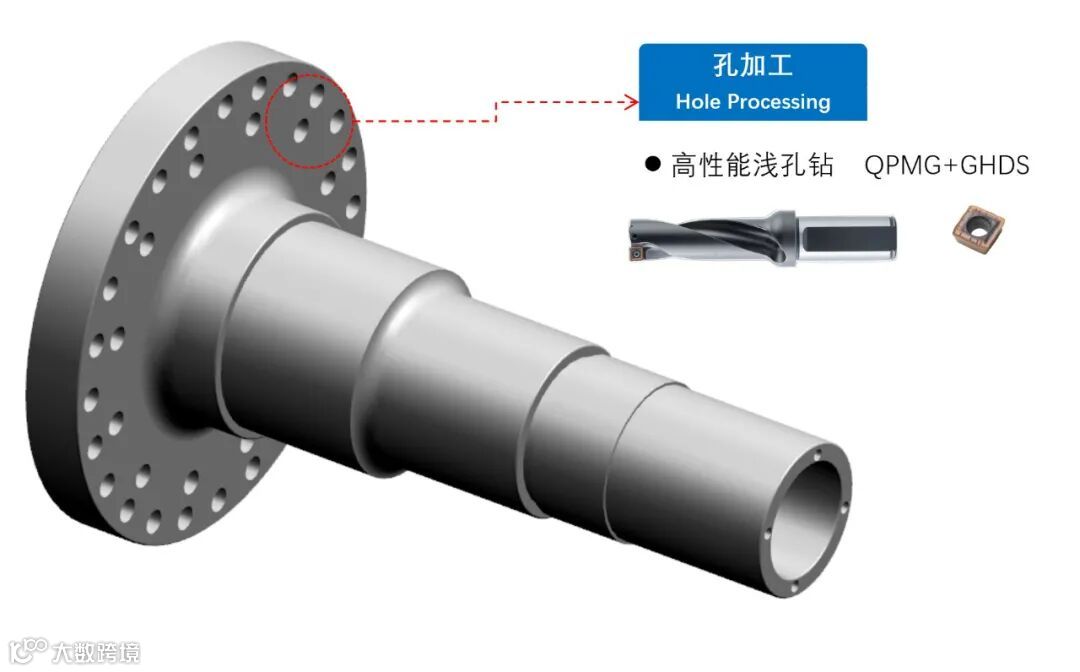

本案例为风电行业电机主轴孔加工案例，加工孔深达到4D，同时现场机床刚性和内冷压力都不具备理想条件，客户使用新款GHDS双螺旋内冷浅孔钻解决了老款钻体加工振刀、不断屑的难题，加工寿命和孔壁质量都有了显著的提升。

Following case shows a spindle hole making processing result. The hole processed depth reaches 4D. At the same time, the rigidity of the machine and the internal cooling pressure do not meet the ideal conditions. Customers use the new GHDS double-helix internal cooling shallow hole drill to solve the problems of machining vibration and continuous chipping which happen in old drill body,the machining life and hole wall quality have been significantly improved.
