超硬刀具标准系列成员上新|PCD立铣刀&车削刀片（CN&EN)

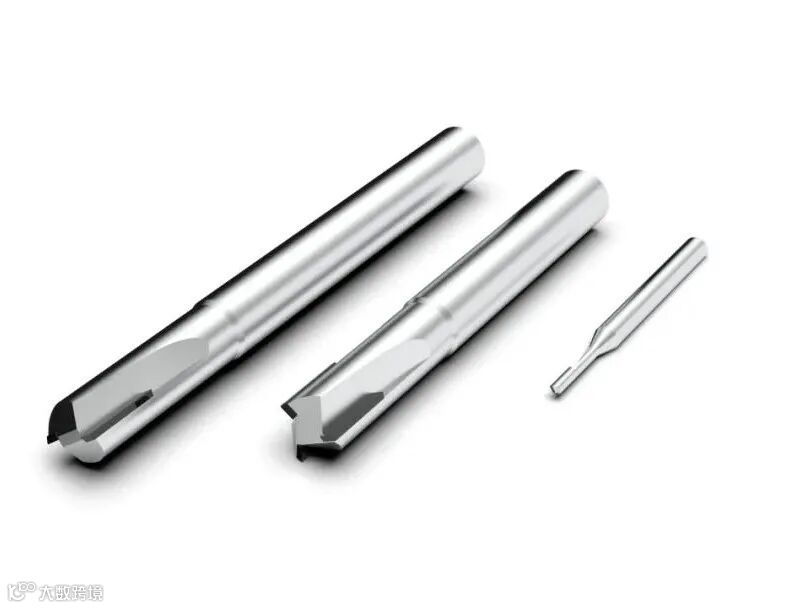

DNM100系列PCD立铣刀

DNM100 Series PCD Endmill

应用领域

Application Areas

DNM100系列PCD立铣刀主要用于加工有色金属材料及非金属材料，如铸铝、铝硅合金、硬质合金、玻璃纤维增强复合材料、碳纤维增强复合材料、增强塑料、石墨、木材等。

DNM100 series PCD endmill is for processing non-ferrous metals, such as casted aluminum, silicon aluminum, cemented carbide，and non-metal materials, such as reinforced glass fiber composite, reinforced carbon fiber composite, intensified plastic,graphite, wood etc.

应用行业：广泛应用于航天航空、汽车制造、3C行业、通用机械、风力发电等行业的精加工。

Main applications: Aerospace and Automotive industries, 3C products, general machinery industry, wind power, and other industries that require precision processing.

产品特性

Features

• 独特的复合片，提高刀具的耐磨性

  Unique selection of PCD inserts, improve abrasion resistance of cutting tools

• 高性能硬质合金基体，材料强度高

  Special substrate, high performance and strength

• 芯下设计，刃口锋利，切削力小

  Special edge design, sharped edge with low cutting force

• 特殊角度设计，增强刀刃的锋利度，提高切削稳定性

  Special edge design, with enhanced edge sharpness,improved cutting stability

型号规格

Specifications

型号 （Model)	刃径范围 (Range)	刀尖R角 (Radius)
DNM100-RS1	D2~D3	R0.1~0.3
DNM100-RS2	D4~D10	R0.1~2.0
DNM100-RS3	D10~D16	R0.1~3.0

应用案例

Application

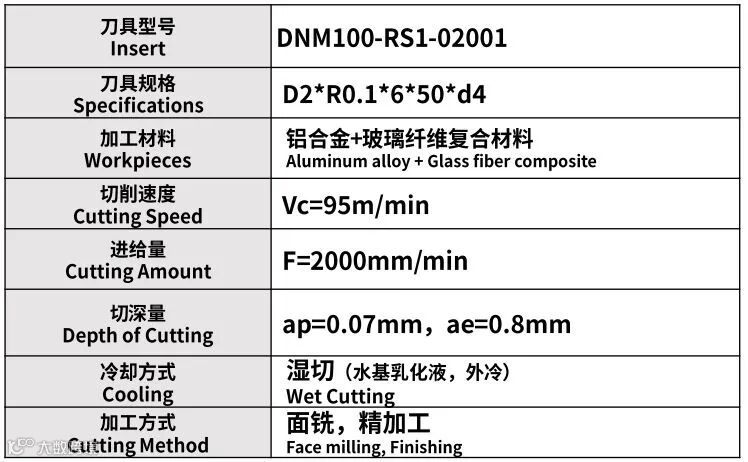

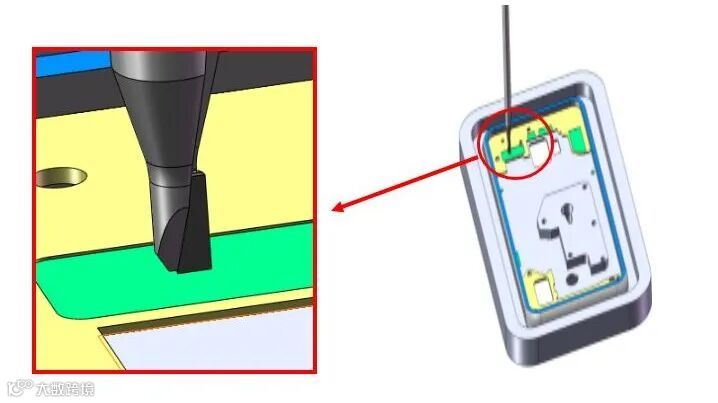

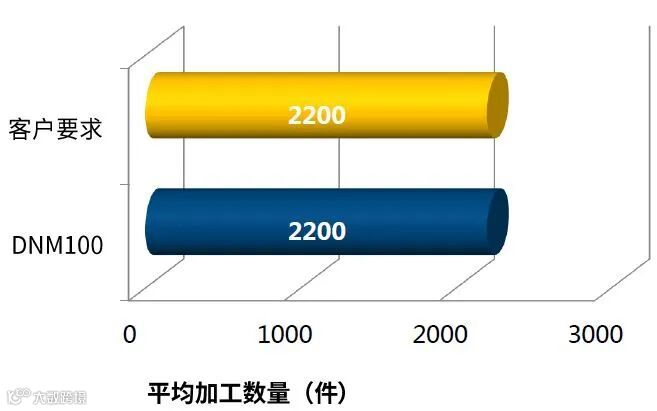

本案例为智能手机中框铝合金与玻璃纤维复合材料面铣精加工，客户要求产品加工表面无台阶、无明显接刀痕，我司DNM100系列PCD立铣刀很好地满足客户的加工要求，并表现出优异的耐磨性。

This case is a face milling finishing process of a smart phone frame aluminum alloy and glass fiber composite materials. The customer requires that the machined surface of the product has no steps and obvious tool markings. GESAC DNM100 series PCD endmills had greatly satisfied the customer's processing requirements and shows excellent wear resistance.

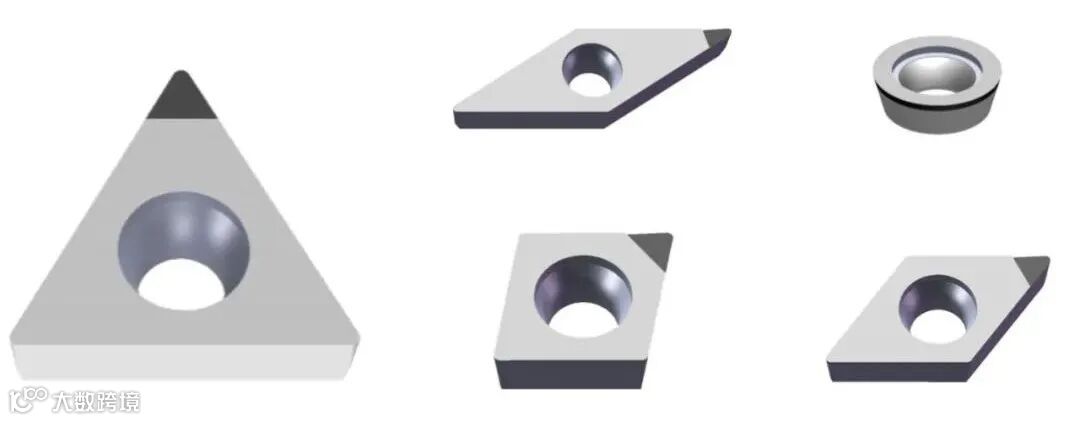

YP系列PCD车削刀片

YP Series PCD Turning Insert

应用领域

Application Areas

YP系列PCD车削刀片主要用于加工有色金属材料及非金属材料，如铸铝、铝硅合金、硬质合金、玻璃纤维增强复合材料、碳纤维增强复合材料、增强塑料、石墨、木材等。

YP series PCD turning inserts are for processing of non-ferrous metals, such as casted aluminum, silicon aluminum, cemented carbide，and non-metal materials, such as reinforced glass fiber composite, reinforced carbon fiber composite,intensified plastic, graphite, wood etc.

应用行业：广泛应用于航天航空、汽车制造、3C行业、通用机械、风力发电等行业的精加工。

Main applications: Aerospace and Automotive industries, 3C products, general machinery industry, wind power, and other industries that require precision processing.

产品特性

Product Features

• 可实现高速高效高精度加工

  Outstanding for high speed, high efficiency and high precision processing

• 装卸方便，可快速精确定位，节约换刀时间

  Convenient install and disassemble, allows fast and precise positioning, saving tool change time

• 具有极高的耐磨性，刀具使用寿命长

  With high abrasion resistance provides for long life

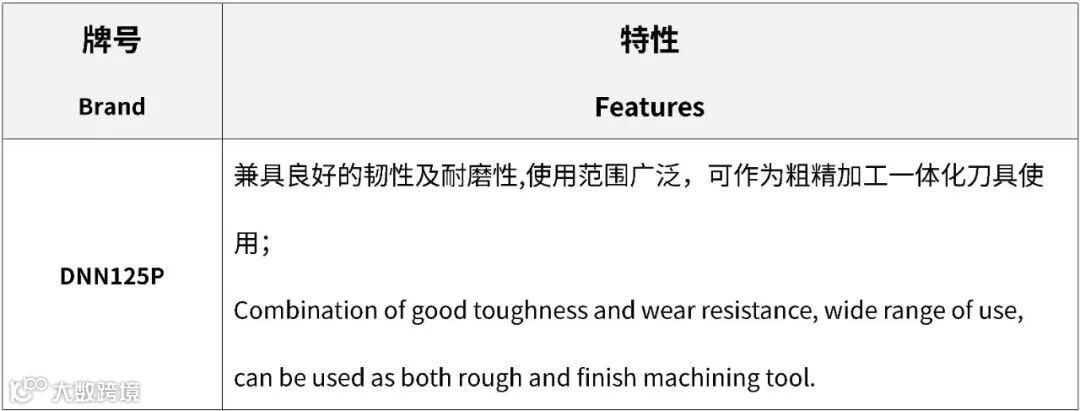

牌号介绍

Grade Profile

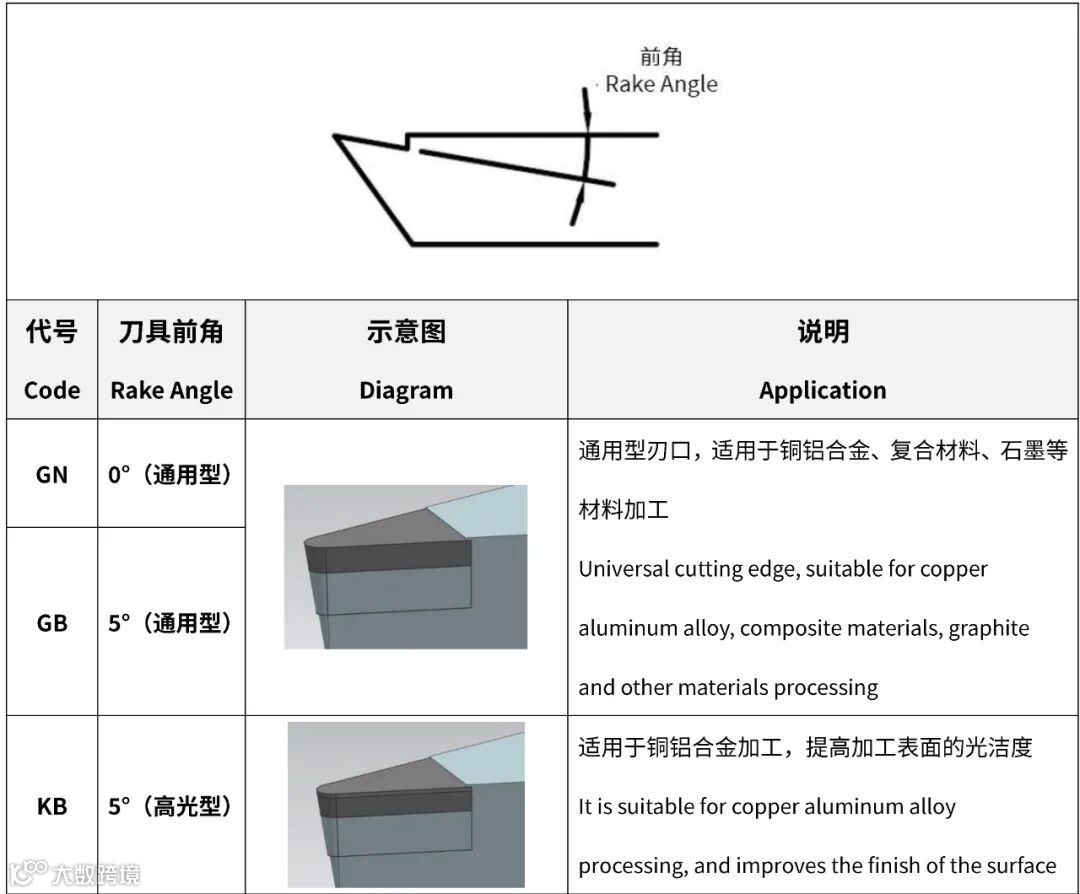

刃口形式介绍

Form of Edge

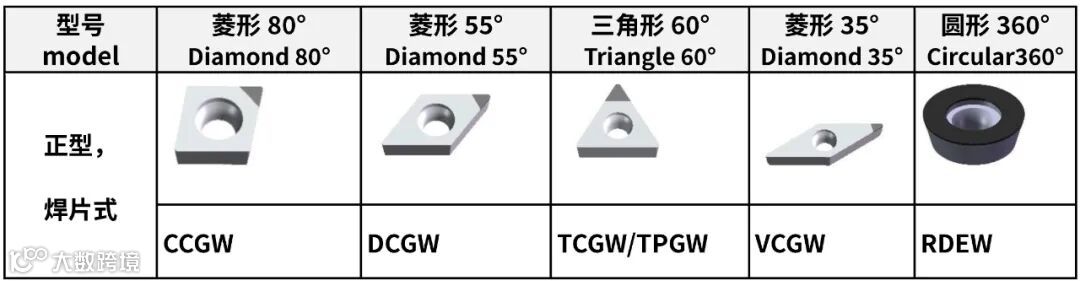

型号规格

Specifications

应用案例

Application

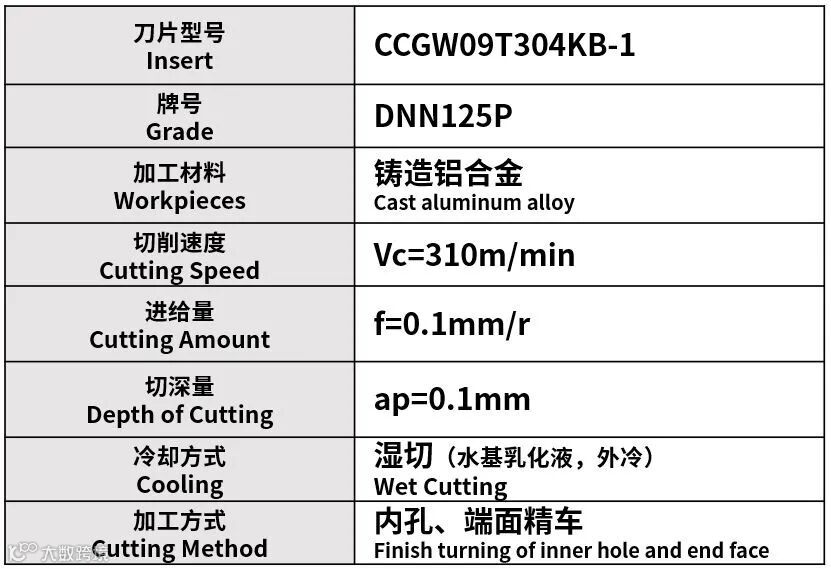

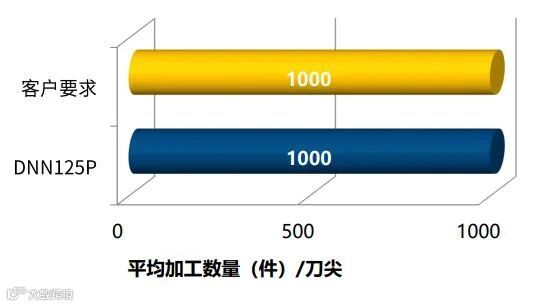

本案例为汽车零部件铸造铝合金材料内孔连续精车、端面断续精车加工，客户要求产品加工表面光亮无明显划痕，我司DNN125P牌号+KB刃口形式，很好地满足客户的加工要求，并表现出优异的耐磨性和抗崩性。

This case is a continuous finishing process of an automobile parts inner hole and intermittent finishing of end face made from cast aluminum alloy material. The customer requires that the surface of the product must be bright and no obvious scratches appear. GESAC DNN125P grade+KB geometry can meet the processing requirements of customers and performed an excellent wear resistance and anti-collapse abilities.

厦钨商城已同步上市，可下单及查询具体刀具型号。
