G-PAK 2021新品抢先看|SS600系列不锈钢加工立铣刀(CN&EN)

G-PAK 2021新品抢先看|SS600系列不锈钢加工立铣刀(CN&EN) 厦门金鹭切削工具
2021-09-04
1

厦门金鹭针对新品提供免费测试您可长按识别下方二维码,进入新品测试申请链接进行需求等信息填写,所填信息经审核通过后,我司人员将在7个工作日内与您联系,并安排寄样。

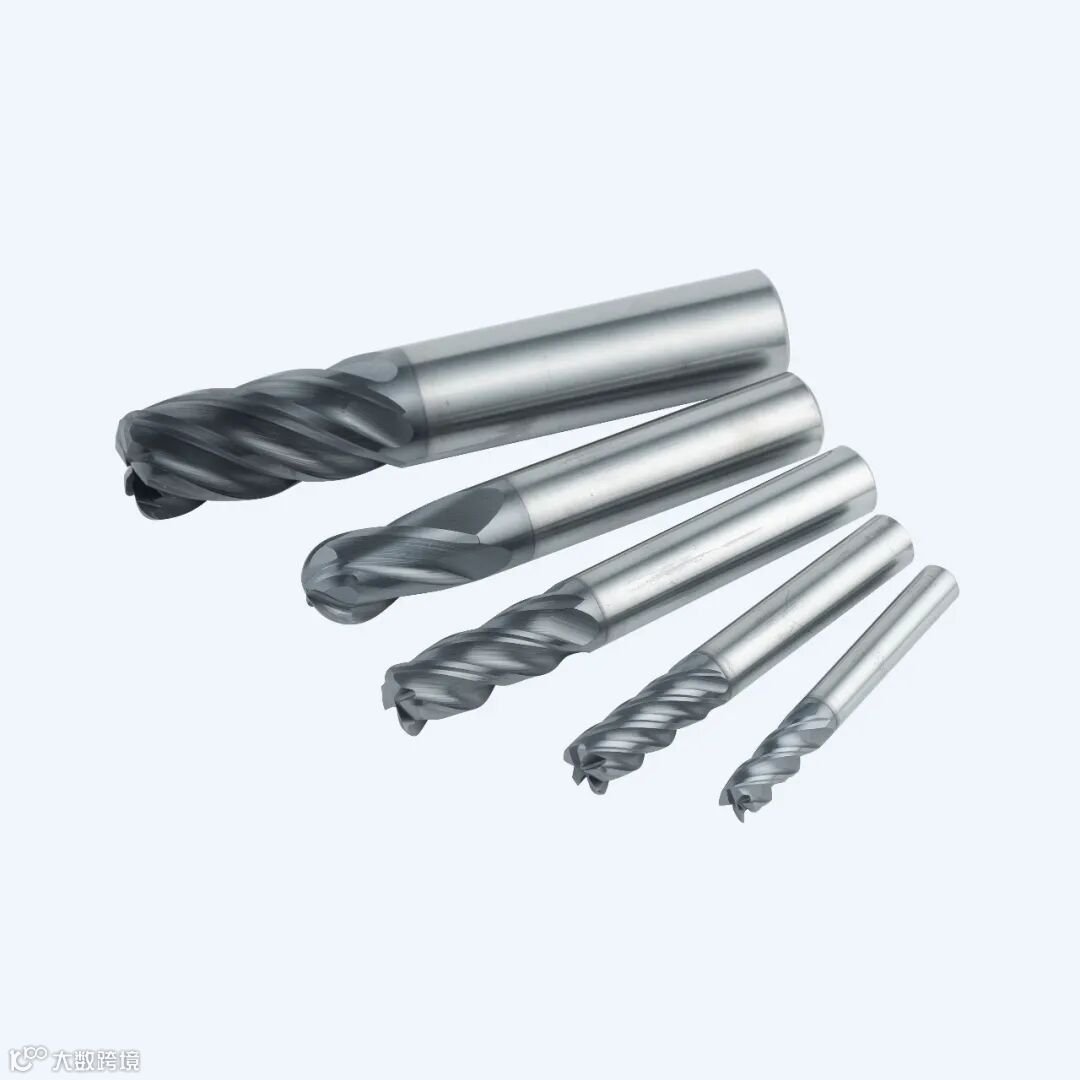

SS600系列不锈钢加工立铣刀
SS600 Stainless Processing Endmills


材料特性介绍
Material Characteristics

不锈钢材料主要分为铁素体不锈钢、马氏体不锈钢、奥氏体不锈钢、双相不锈钢和沉淀硬化不锈钢,加工过程中容易产生粘屑和硬化。其中奥氏体不锈钢硬度高,沉淀硬化不锈钢强度高的特点,在切削过程中易出现大切削冲击力、高温的问题,刀具极易崩缺,寿命低,工件的圈纹重。

Stainless steel is mainly divided into ferrite, martensite, austenite, duplex and precipitation hardening stainlesssteel, which is easy to adhere and hardening during processing. Austenitic stainless steel is characterized by precipitation hardening stainless steel with high hardness and strength. In the cutting process, it is easy to have problems such as high cutting impact force and high temperature. The tool is easy to collapse, with short service life and rough - finish of the workpiece.


SS600系列亮点
Highlights of SS600 Series

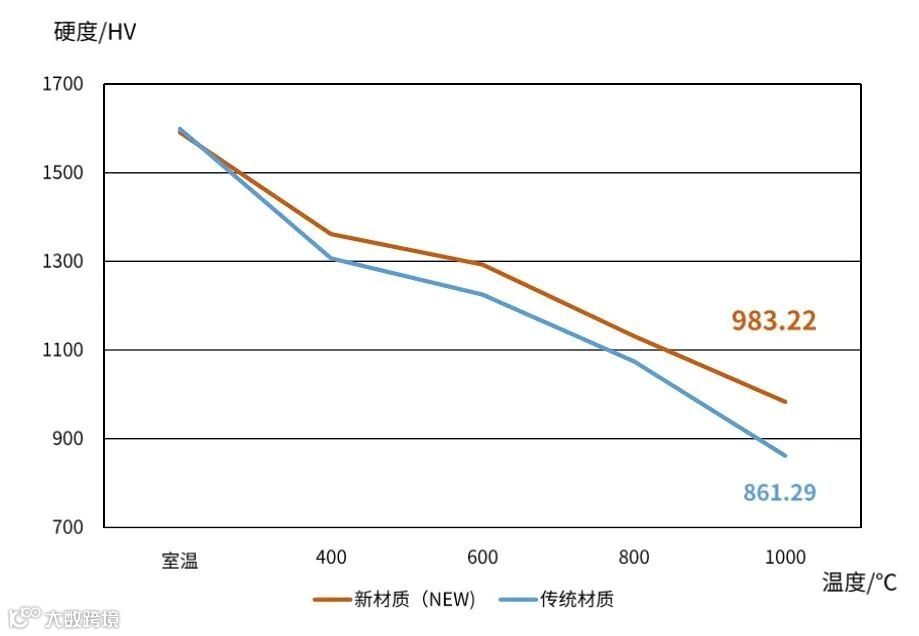

SS600-R5系列作为本次不锈钢新品产品的一大亮点,特殊高效的R角保护设计和高耐磨性的PVD涂层,搭配高温硬度和抗崩缺性优异的亚微晶粒硬质合金基体,具有良好的加工效率和抗崩性。

The SS600-R5 series has a special and efficient tip fillets protection design, a high wear resistance PVD coating and combined with a submicron grained carbide substrate, which results in excellent high temperature hardness, chipping resistance and good processing efficiency and resistance to collapse.



加工案例
Application

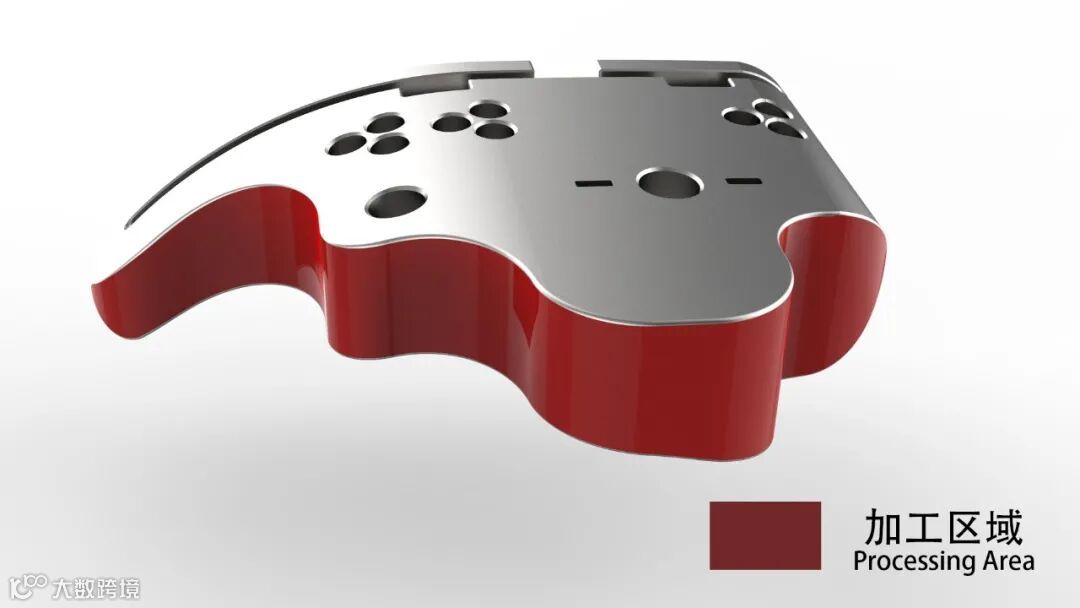

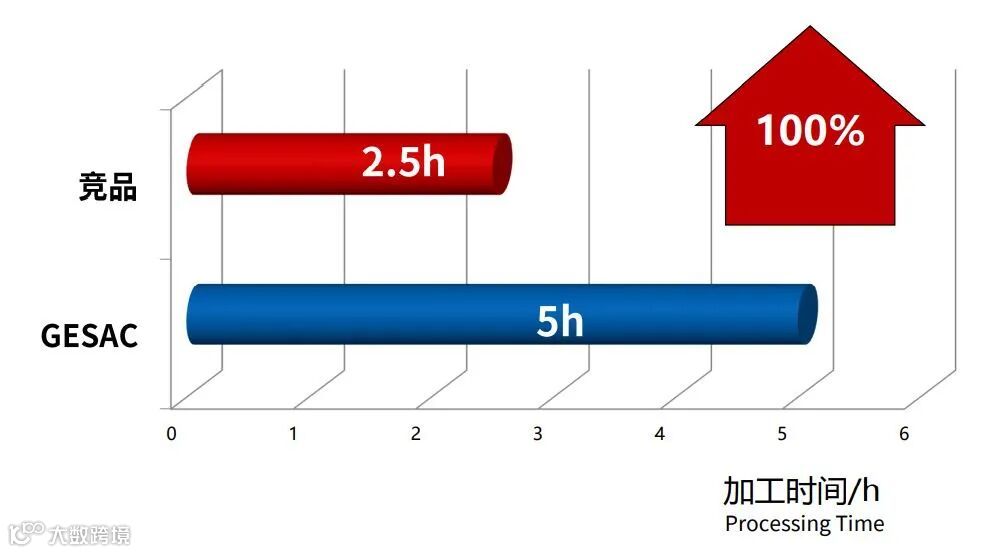

本案例为医疗行业胫骨截骨侧铣粗加工案例,工件材料为630(0Cr17Ni4Cu4Nb)材质,客户加工刀具寿命较低。在相同工况下,竞品刀具加工2.5h后,刀具因崩缺失效,而我司刀具可以加工5h,寿命提升100%,获得客户高度认可。

This case is a case of tibial osteotomy in the medical industry. The workpiece material is 630 (0Cr17Ni4Cu4Nb).Under the same working conditions, the cutting tools of competitive products will collapse after processing for 2.5 hours, but the cutting tools of our company can be processed for 5 hours, which is 100% longer than the cutting tools of competitors, and is highly recognized by customers.




新品亮点远不止这些,想了解更多关于新品特性,请持续关注“厦门金鹭切削工具”公众号,更多新品信息将在新品季为各位陆续推出。

New products are far more than these. To know more about new products, please keep on paying attention to the official account of "GESAC cutting tool". More new products will be launched in the new season.
