Steam turbines, also known as steam turbine engines, are hailed as the heart of power plants. Their main components can be categorized into blades, rotor shafts, cylinders, partition plates, steam seals, etc. Blades are the critical components of steam turbines—among the most intricate and vital parts, and also the most numerous type of component within the turbine.
Steam turbine blades operate under extreme conditions—enduring combined effects of high temperature, high pressure, centrifugal forces, corrosion, and vibration. This necessitates exceptional strength, superior high-temperature mechanical properties, and corrosion resistance. Blade materials typically include difficult-to-machine alloys such as high-strength stainless steels, superalloys, and titanium alloys. With the turbine industry currently at peak production capacity, Industrial chains are prioritizing efficiency gains, demanding cutting tools with high machining efficiency, extended longevity, and multi-material versatility—imposing increasingly stringent requirements on tooling performance.

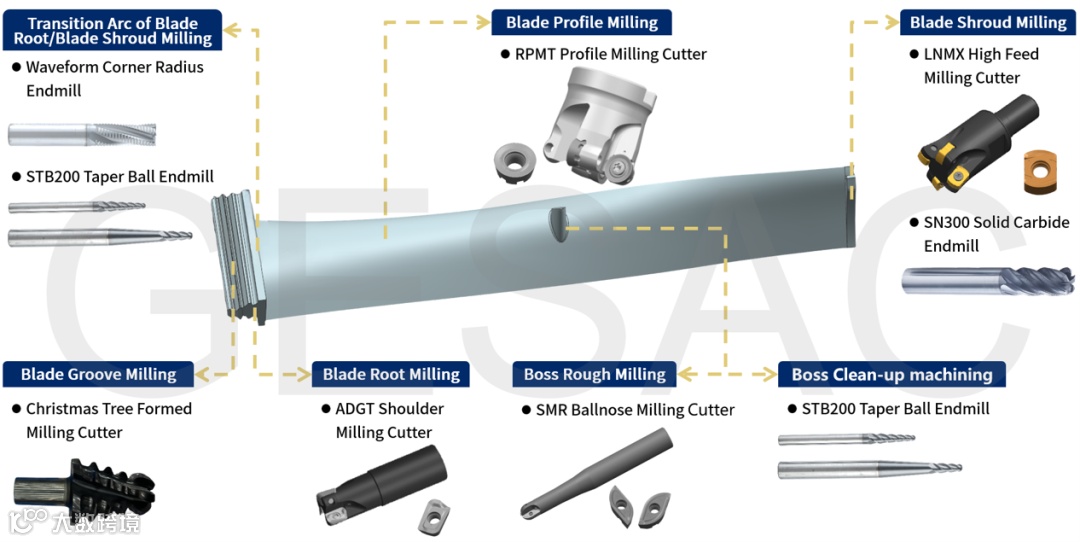

Steam Turbine Blade Solutions

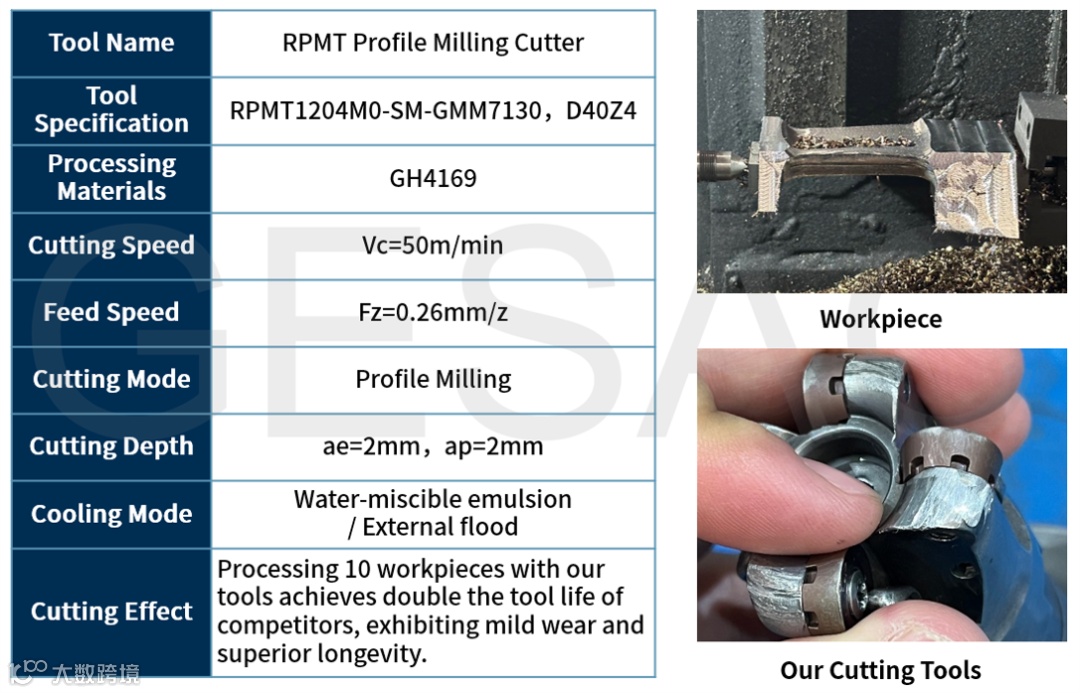

RPMT Profile Milling Cutter

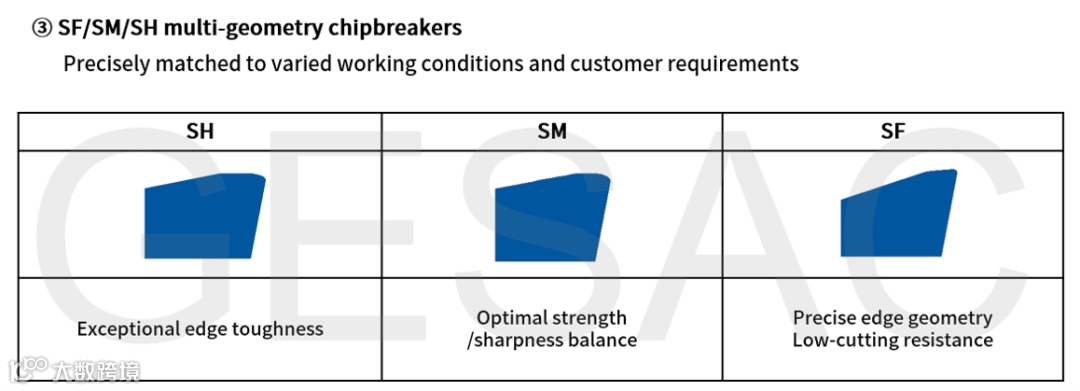

Primarily used for semi-finishing and rough machining of stainless steel, titanium alloys, and superalloys. Typical components include: steam turbine blades, aero-engine casings, and aerospace structural components. It has the following design features:

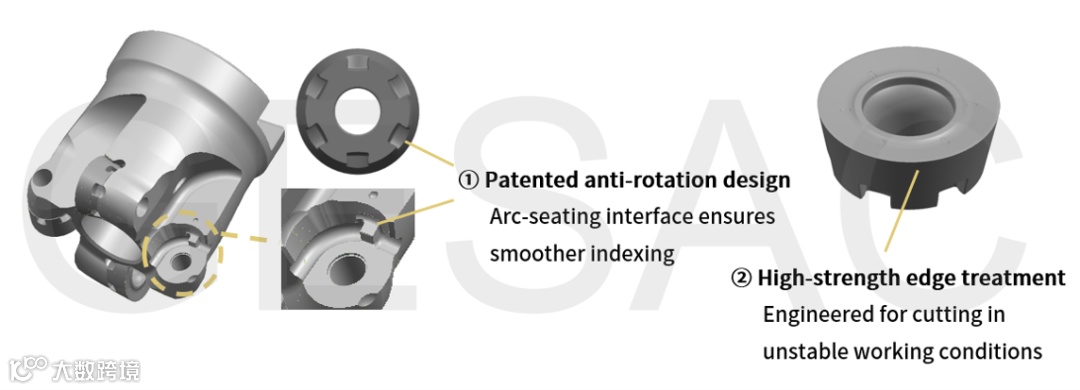

Core Technical Merits
-
Paired with the newly developed Grade GMM7130, this single grade covers machining of superalloys, titanium alloys, and various stainless steels, delivering high versatility that reduces customers' tool change time and enhances machining efficiency.
-

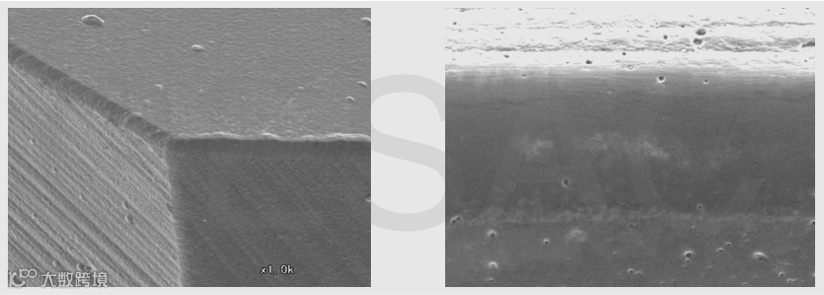

A wear-toughness balanced coating design coupled with a fracture-resistant carbide substrate ensures stable machining even in vibration-prone working conditions.

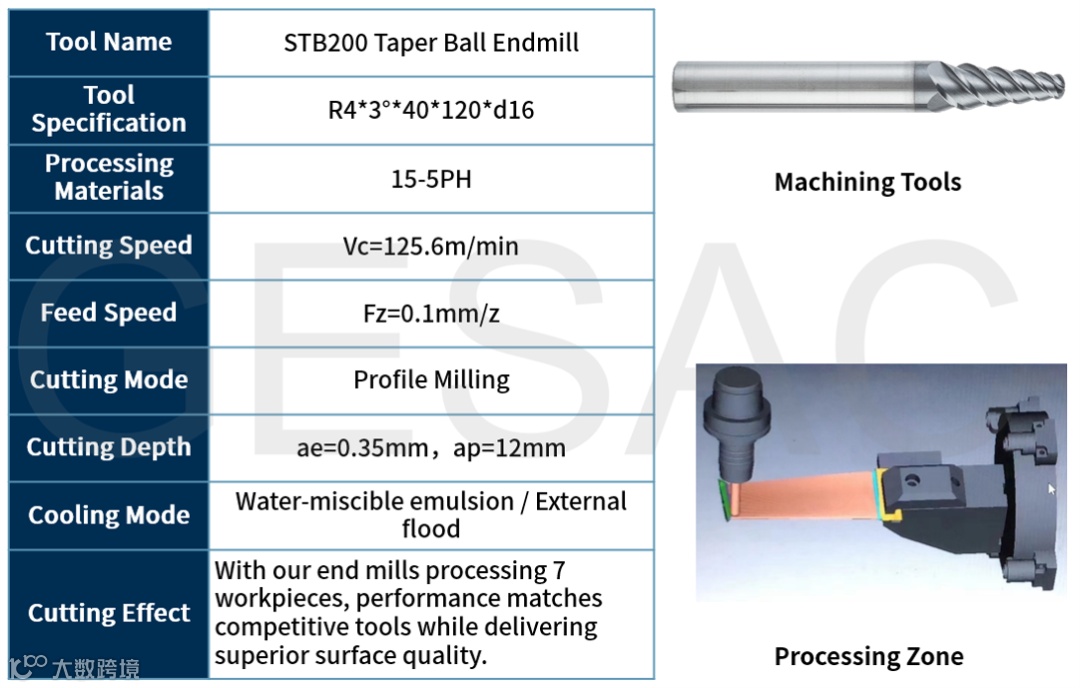

STB200 Taper Ball End Mill
Primarily used for semi-finishing and finishing of curved profiles, delivering superior surface quality while maintaining high efficiency. It has the following design features:
In this steam turbine blade machining application, our RPMT-SM series demonstrates exceptional tool life in superalloy processing, while the STB200 tapered ball-nose end mill delivers superior longevity and surface quality. This combination ensures machining efficiency and stability for turbine blades. This turbine blade machining solution from GESAC adds another powerful tool to the industry chain for achieving high-efficiency machining.
