导读：System: S-RHEO-CE

应用案例（Application）

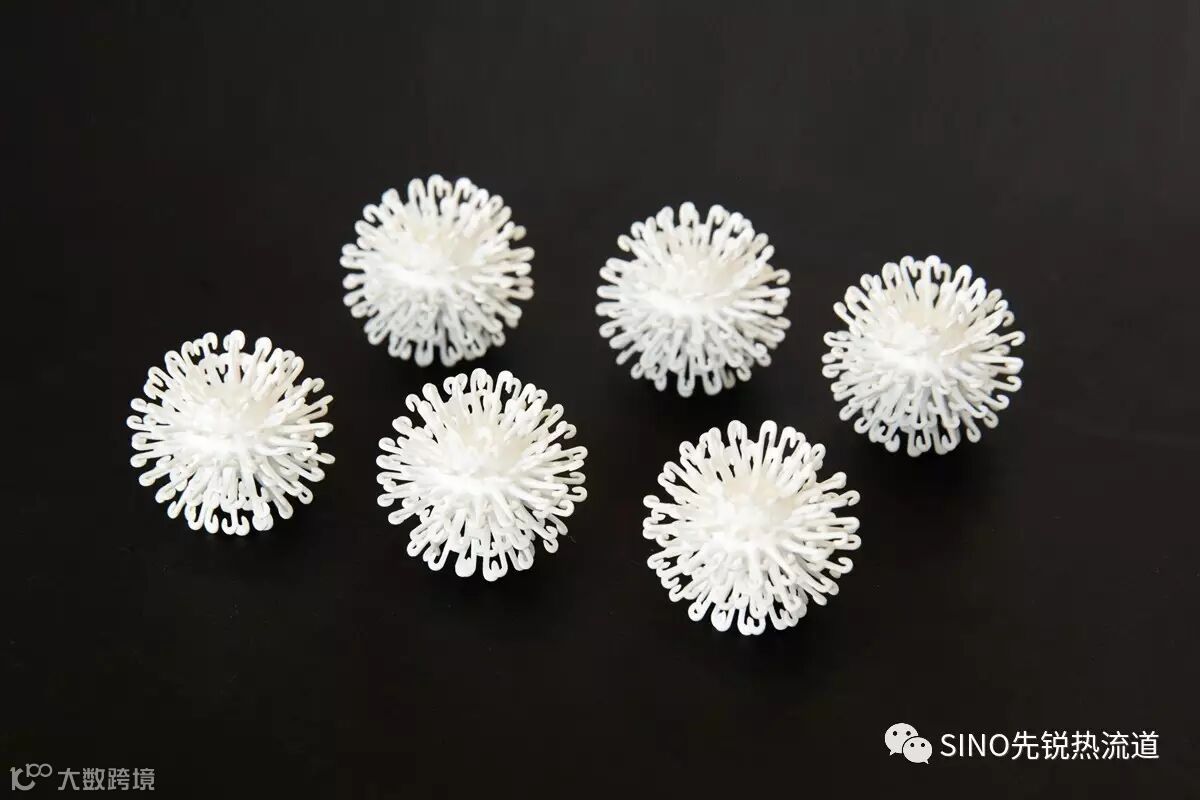

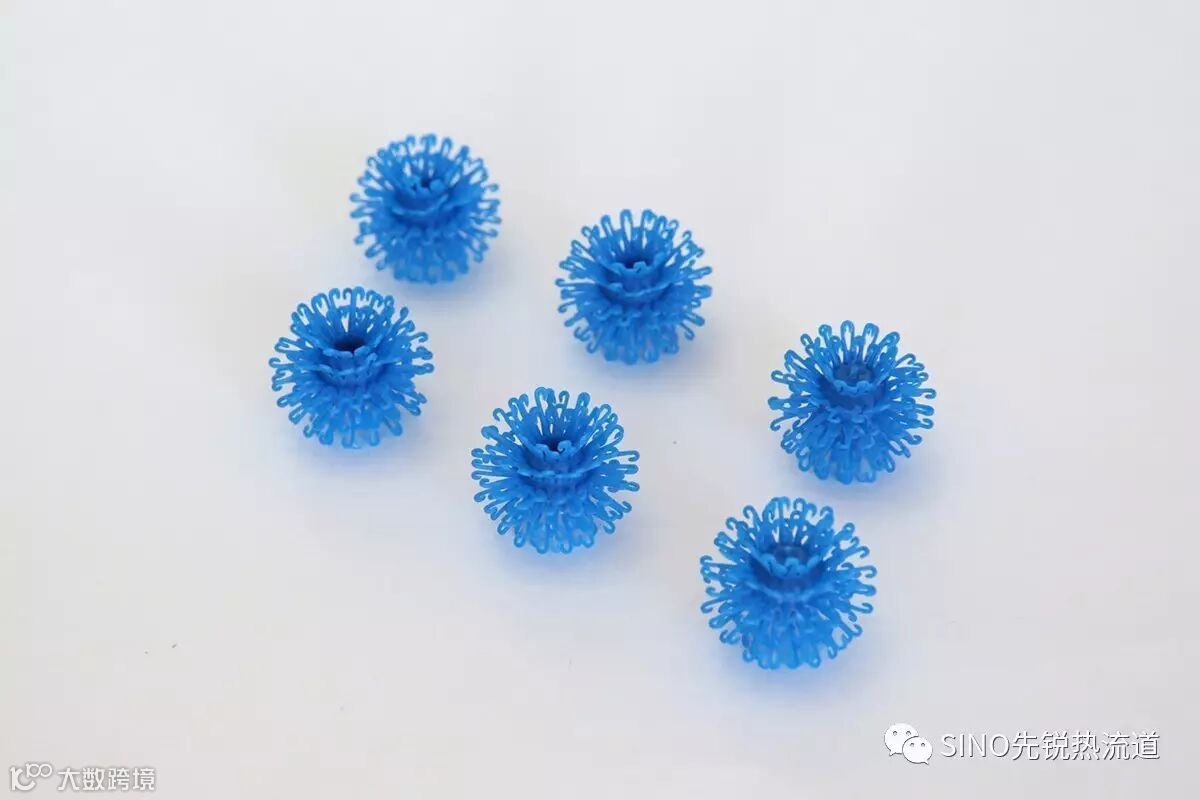

产品名称（Product Name）：毛毛球 Plastic hairy ball

材料（Resin）：PP

重量（Weight）：0.3g

颜色（Color）：蓝色、白色（Blue、White）

平均壁厚（Wall Thickness）：1.0mm

系统（System Type）：S-RHEO-CE

热咀点数（Nozzle Qty）：24

浇口大小（Gate Dia）：Φ0.8

型腔数（Cavity）：24

项目特性及客户要求

此类产品为清洁用品，产品尺寸小，外形复杂，进胶位置特殊，采用多穴设计，并且要求换色效果优异、进胶平衡。

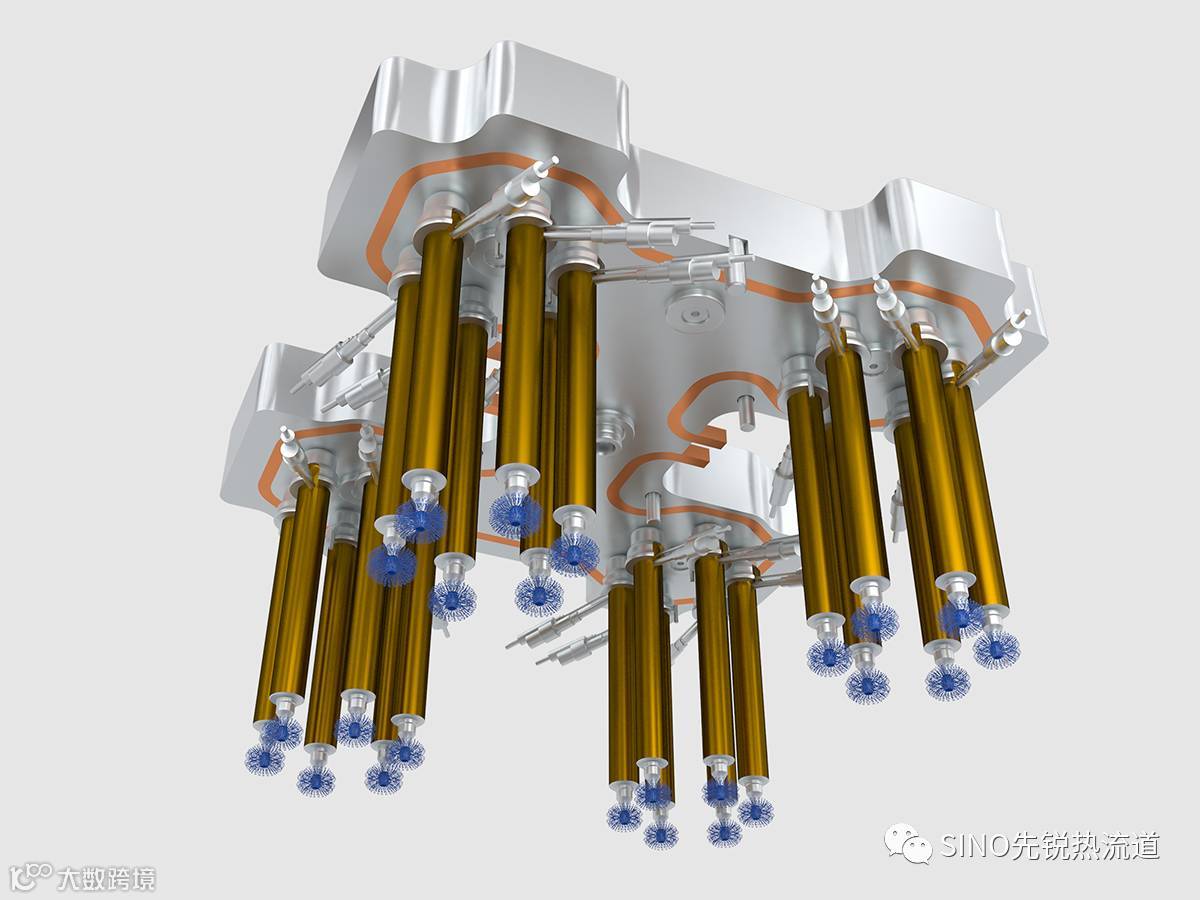

根据此产品特性及结合SINO(先锐)热流道系统综合分析，为客户选用SINO(先锐)S-RHEO-CE系统，此类系统采用铜套发热圈，热传递均衡；瘦长的咀身设计，适用于多穴模具；咀尖采用特殊材料加工，延长热咀使用寿命，大幅节约成本；并且换色效果突出，广泛应用于包装行业的多穴模具。

Project characteristics and customer requirements

This product is the cleaning appliance, it has little volume,with complex apparence, special gate location, and design it by using the multiple cavity, it require the effect of color change must be excellent as well and the flow balance.
Based on the product's feature and SINO hot runner system, we choose the SINO S-RHEO-CE system for customer, this kind of system is the slim nozzle body with the copper sleeve heater for the good heat balance on the nozzle, which suitable for the multiple cavity mold; the nozzle tip is machining by using special material, to extend its operation life, in this way, it can save the cost significantly; also with outstanding effect of color change, widely applying for multiple cavity mold of the package industry.
