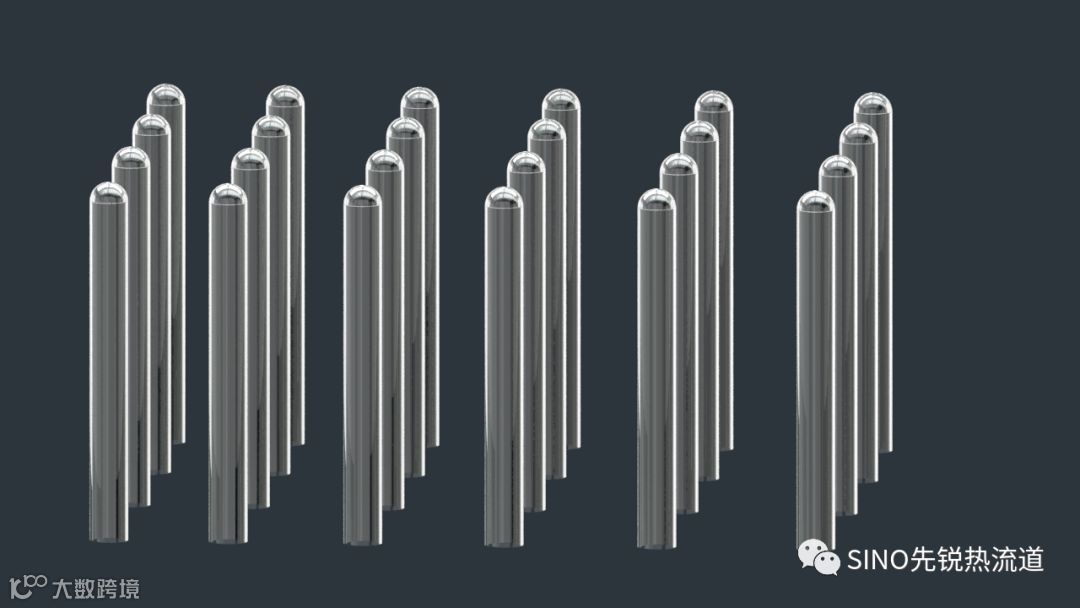

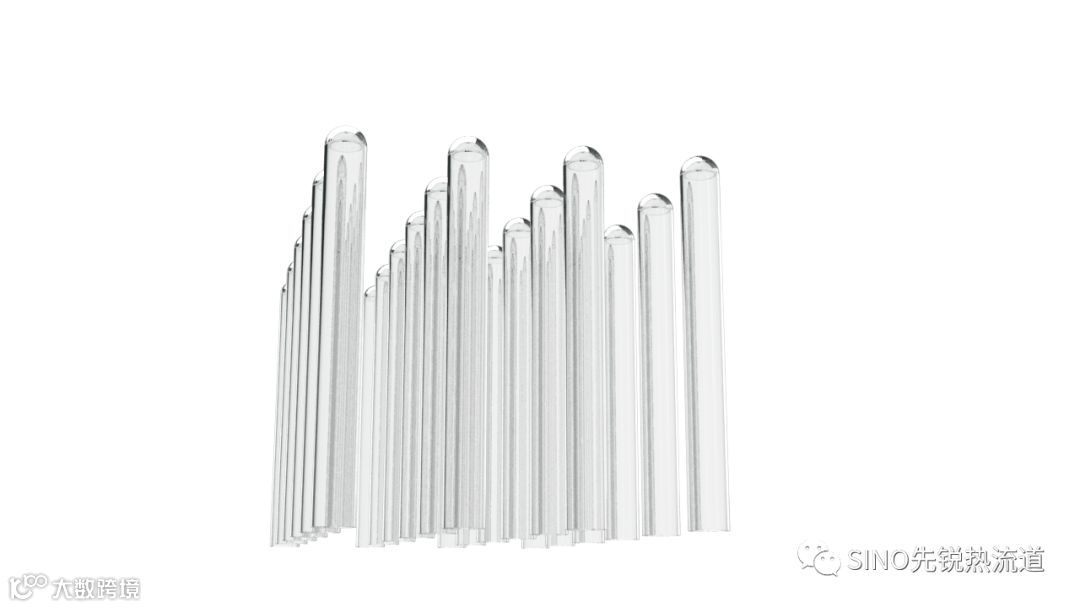

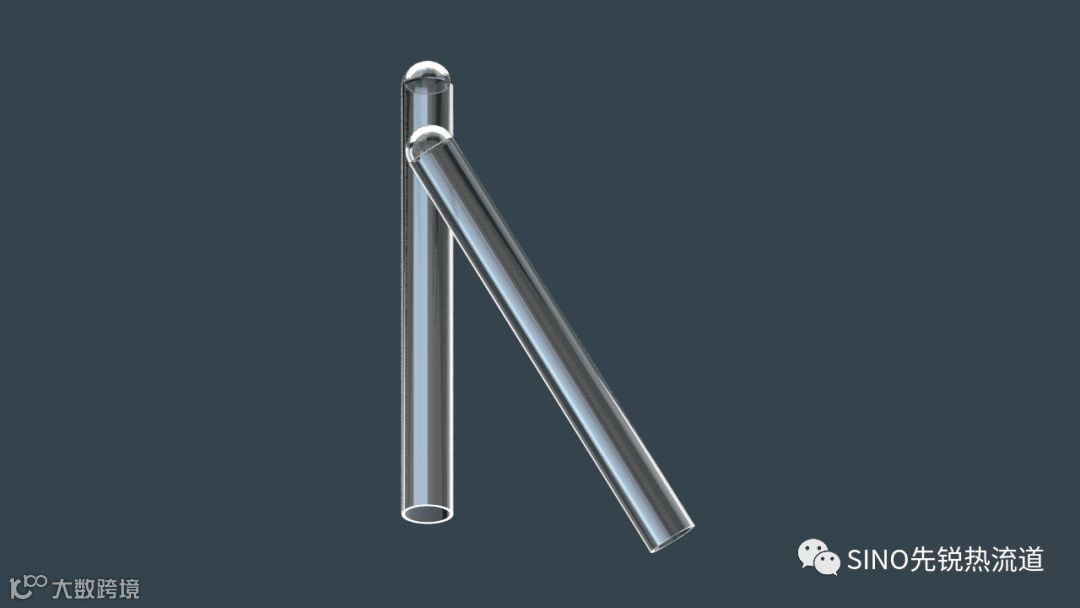

应用案例：试管 Test tube
材料（Resin）：PET
重量（Weight）：2.8g*24
颜色（Color）：透明 Lucid
平均壁厚（Wall Thickness）：1.0mm
系统（System Type）：S-Rheo21 CC
热咀点数（Nozzle Qty）：24
型腔数（Cavity）：24
项目特性及客户要求
Project characteristics and customer requirements
一、PET塑料分子结构高度对称，具有一定的结晶取向能力，同时具有较高的成膜性和成性，如温度控制不均衡时，将会影响产品的透明度（常见的雾化），故而对热流道要求较高。
No.1:PET plastic molecular structures are highly symmetrical and have crystallization orientation.Meanwhile, it has higher film formation and constitution.If the temperature balance can't controlled, it will effect products' transparency(common atomization),so the hot runner is highly requested.
二、单个产品重量：2.8g，1X24穴，要求最小间距排布，同时达到流量均衡、进胶平衡；
No.2: Single product weight:2.8g,1*24cavities,the smallest gap configuration, at the same time,keep the flow balance and glue into balance.
三、综合产品要求，我司选用S-Rheo21热咀，医疗、瓶胚专用加热器以保证控温精准； 分流板设计两层、流道设计三层，达到流道平衡；同时分流板采用特殊工艺——焊接技术，保证流道内无死角，达到产品透明度。
No.3:Comparehensive product requirement,our company choose S-Rheo21 Nozzle,dedicated heater for medical and bottles of fetus to ensure the temperature control accurately.Manifold should be designed to two layers,runner should be designed to three layers,to reach runner balance. At the same time,manifold use the special technology-welding technology,to ensure the runner seamlessly,and then to reach the products' transparency.
四、SINO提供热半模系统，有效地提高了前模精确度，同时简易了客户加工、节约了安装时间，从而提高效率；
No.4.SINO provide hot semimodular system,improved front mould's accuracy efficiently.Meanwhile, it's easy for customers process and save installation time,so improved efficiency.

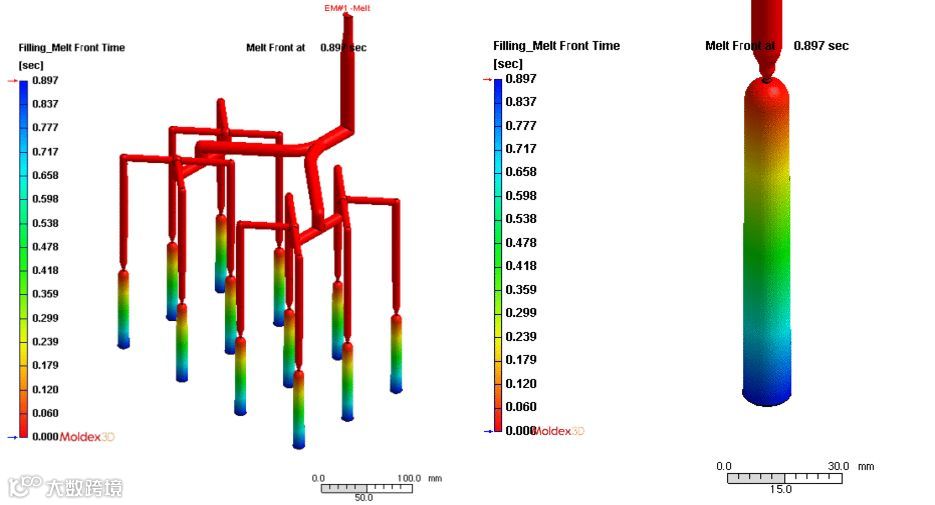

模流分析（The Flow Analysis）
