本文中,我将展示如何使用图形技术和一些编程来构建和探索自己文章的内容。

-
让 API 工作并通过 Python 访问它。 -

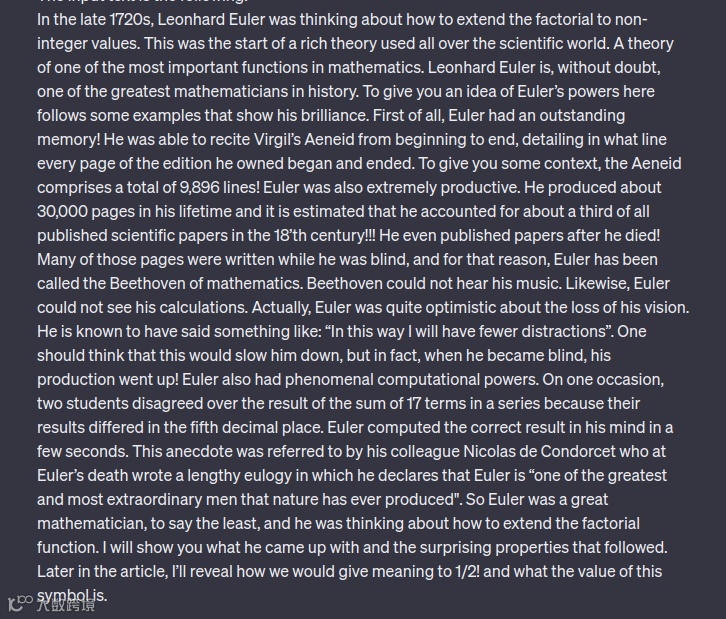

使用示例文本进行提示工程,确保 GPT-4 模型理解您想要从中得到什么。 -
下载您指定的文章,并预处理数据。 -

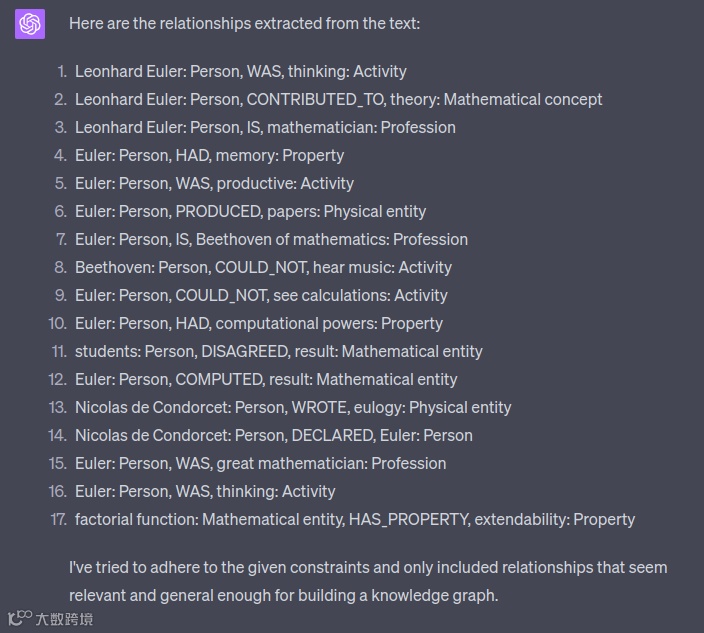

从 ChatGPT 中提取并收集输出。 -
对 ChatGPT 的输出进行后处理 -
使用 Cypher 查询语言编写代码以将数据进一步构造成图表。 -

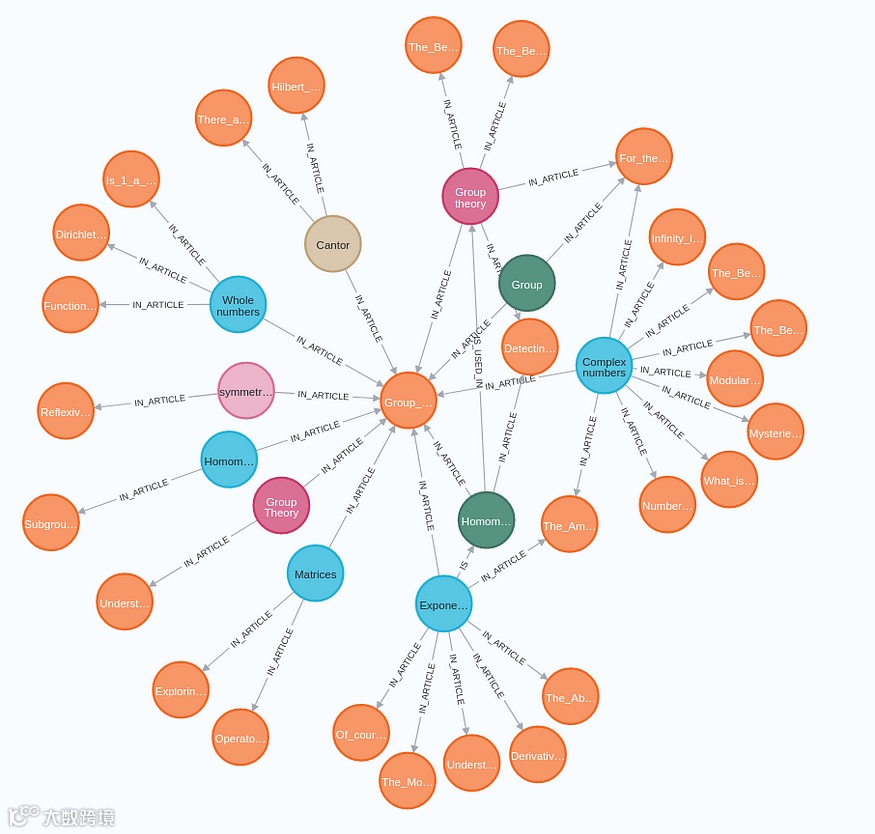

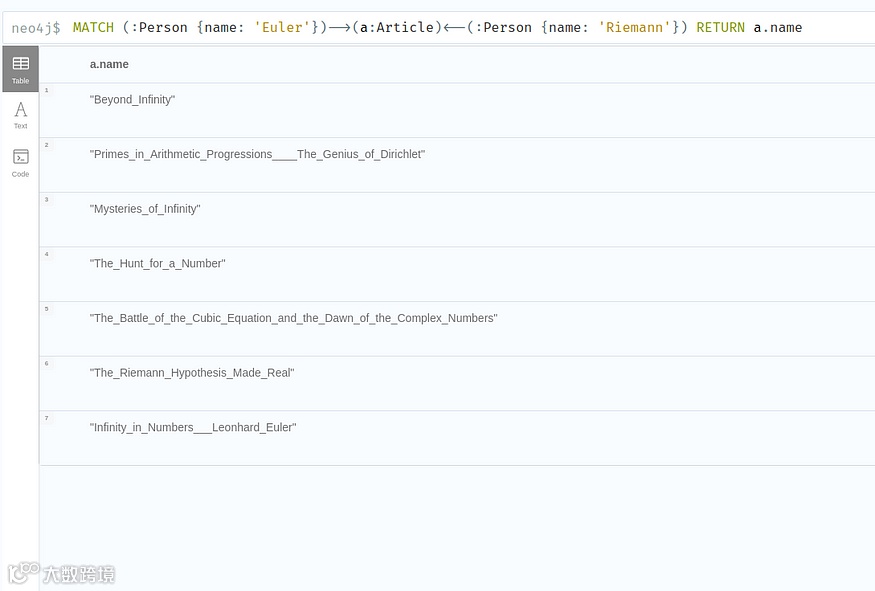

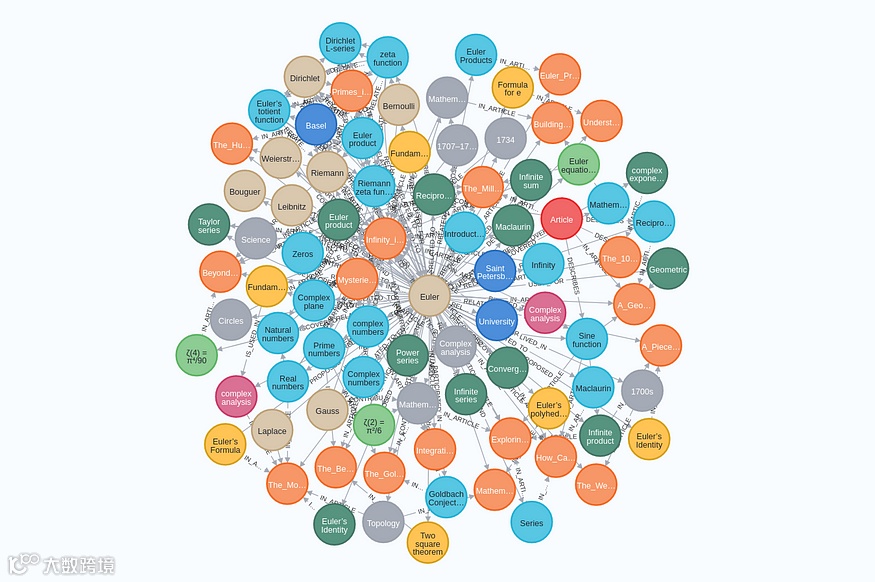

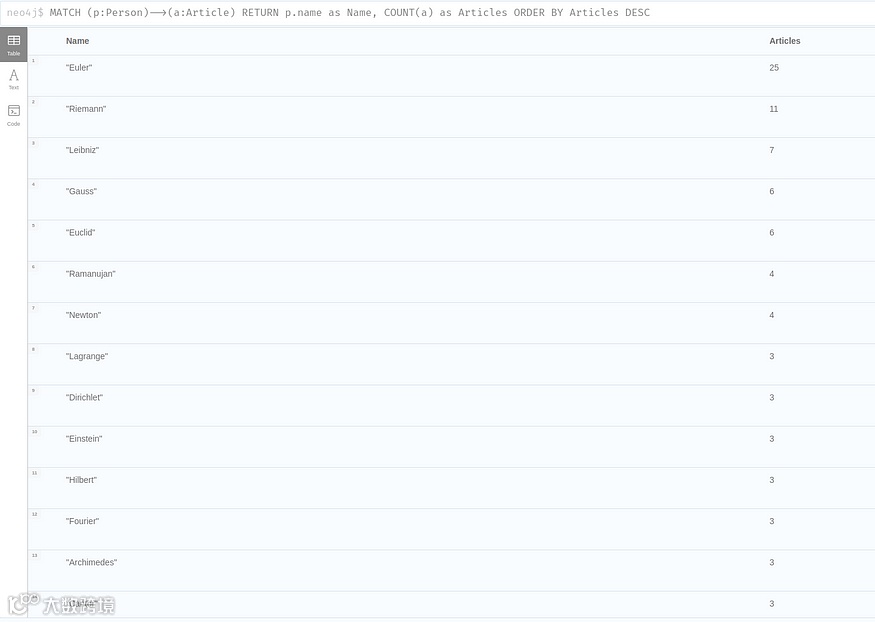

和你最好的新朋友一起玩,探索你的文章。

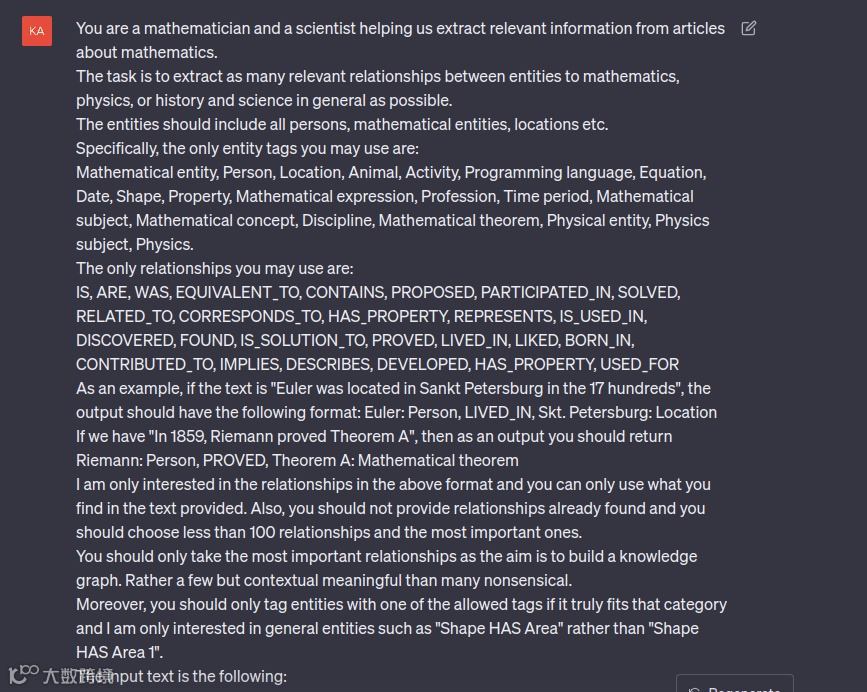

entities = ["Mathematical entity", "Person", "Location", "Animal", "Activity", "Programming language", "Equation", "Date", "Shape", "Property", "Mathematical expression", "Profession", "Time period", "Mathematical subject", "Mathematical concept", "Discipline", "Mathematical theorem", "Physical entity", "Physics subject", "Physics"]relationships = ["IS", "ARE", "WAS", "EQUIVALENT_TO", "CONTAINS", "PROPOSED", "PARTICIPATED_IN", "SOLVED", "RELATED_TO", "CORRESPONDS_TO", "HAS_PROPERTY", "REPRESENTS", "IS_USED_IN", "DISCOVERED", "FOUND", "IS_SOLUTION_TO", "PROVED", "LIVED_IN", "LIKED", "BORN_IN", "CONTRIBUTED_TO", "IMPLIES", "DESCRIBES", "DEVELOPED", "HAS_PROPERTY", "USED_FOR"]prompt = f"""You are a mathematician and a scientist helping us extract relevant information from articles about mathematics.The task is to extract as many relevant relationships between entities to mathematics, physics, or history and science in general as possible.The entities should include all persons, mathematical entities, locations etc.Specifically, the only entity tags you may use are:{', '.join(entities)}.The only relationships you may use are:{', '.join(relationships)}As an example, if the text is "Euler was located in Sankt Petersburg in the 17 hundreds", the output should have the following format: Euler: Person, LIVED_IN, Skt. Petersburg: LocationIf we have "In 1859, Riemann proved Theorem A", then as an output you should return Riemann: Person, PROVED, Theorem A: Mathematical theoremI am only interested in the relationships in the above format and you can only use what you find in the text provided. Also, you should not provide relationships already found and you should choose less than 100 relationships and the most important ones.You should only take the most important relationships as the aim is to build a knowledge graph. Rather a few but contextual meaningful than many nonsensical.Moreover, you should only tag entities with one of the allowed tags if it truly fits that category and I am only interested in general entities such as "Shape HAS Area" rather than "Shape HAS Area 1".The input text is the following:"""
import osimport openaifrom prompt_input import promptopenai.api_key = "<Your API key goes here>"def process_gpt4(text):"""This function prompts the gpt-4 model and returns the output"""response = openai.ChatCompletion.create(model="gpt-4",temperature=0,messages=[{"role": "user", "content": prompt + text},],)result = response['choices'][0]['message']['content']return result
from bs4 import BeautifulSoupdef extract_text_from_html(html_content):"""This function extracts the text from the articles"""soup = BeautifulSoup(html_content, 'html.parser')for script in soup(["script", "style"]):script.extract()article_tag = soup.find('article')if article_tag:return " ".join(article_tag.stripped_strings)
def text_to_batches(s, batch_size=2000):words = s.split()batches = []for i in range(0, len(words), batch_size):batch = ' '.join(words[i:i+batch_size])batches.append(batch)return batches
import osfrom tqdm import tqdmfrom connect import process_gpt4from extract_text import extract_text_from_htmlfrom preprocess import text_to_batchesbase_path = 'raw'processed_articles = os.listdir('data')for file_name in tqdm(os.listdir(base_path)):title = ' '.join(file_name.split('_')[-1].split('-')[:-1])if f'results_{title}.txt' in processed_articles:continueresults = ''with open(os.path.join(base_path, file_name), 'r', encoding='utf-8') as f:content = f.read()extraction = extract_text_from_html(content)batches = text_to_batches(extraction)for batch in batches:gpt_results = process_gpt4(batch)results += gpt_resultswith open(f'data/results_{title}.txt', 'w', encoding='utf-8') as results_file:results_file.write(results)with open(f'cleaned/cleaned_{title}.txt', 'w', encoding='utf-8') as cleaned_file:cleaned_file.write(extraction)
from neo4j import GraphDatabaseclass LoadGraphData:def __init__(self, username, password, uri):self.username = usernameself.password = passwordself.uri = uriself.driver = GraphDatabase.driver(self.uri, auth=(self.username, self.password))def create(self, query):with self.driver.session() as graphDB_Session:return graphDB_Session.run(query)def set_max_nodes(self, number):query = f":config initialNodeDisplay: {number}"with self.driver.session() as graphDB_Session:return graphDB_Session.run(query)def delete_graph(self):delete = "MATCH (n) DETACH DELETE n"with self.driver.session() as graphDB_Session:graphDB_Session.run(delete)@staticmethoddef do_cypher_tx(tx, cypher):result = tx.run(cypher)values = []for record in result:values.append(record.values())return valuesdef work_with_data(self, query):with self.driver.session() as session:values = session.read_transaction(self.do_cypher_tx, query)return values
import osimport refrom prompt_input import entities, relationshipsfrom loader import LoadGraphDatafrom tqdm import tqdmdef create_relationships(loader, title, e1, l1, e2, l2, R):query = f'MERGE (:Article {{name: "{title}"}})\MERGE (:{l1} {{name: "{e1}"}})\MERGE (:{l2} {{name: "{e2}"}})'loader.create(query)query = f'MATCH (t:Article {{name: "{title}"}})\MATCH (a:{l1} {{name: "{e1}"}})\MATCH (b:{l2} {{name: "{e2}"}})\MERGE (a)-[:{R}]->(b)\MERGE (a)-[:IN_ARTICLE]->(t)\MERGE (b)-[:IN_ARTICLE]->(t)'loader.create(query)def make_graph(source, cleaned):loader = LoadGraphData("neo4j", "<password>", "bolt://localhost:7687")loader.delete_graph()history = []for results in tqdm(os.listdir(source)):with open(os.path.join(source, results)) as r:content = r.read()lines = content.split('\n')if len(lines) < 10:continuewith open(os.path.join(cleaned, 'cleaned_' + '_'.join(results.split('_')[1:]))) as c:cleaned_content = c.read()for line in lines:line = re.sub('^\d+\.', '', line).strip()splitted = line.split(',')if len(splitted) == 3:A = splitted[0]R = splitted[1].strip()B = splitted[2]if not ':' in A or not ':' in B:continuee1, l1 = A.split(':')[0], A.split(':')[1]e2, l2 = B.split(':')[0], B.split(':')[1]e1, e2, l1, l2 = e1.strip(), e2.strip(), l1.strip(), l2.strip()if e1.lower() not in cleaned_content.lower() or e2.lower() not in cleaned_content.lower():continueif l1 == 'Person':for subname in e1.split()[::-1]:if subname[0].upper() == subname[0]:e1 = subnamebreakif l2 == 'Person':for subname in e2.split()[::-1]:if subname[0].upper() == subname[0]:e2 = subnamebreakif R == R.upper() and R in relationships and l1 in entities and l2 in entities and len(e1.split()) < 5 and len(e1) > 1 and len(e2.split()) < 5 and len(e2) > 1 and e1 != e2:if line not in history:history.append(line)l1 = l1.replace(" ", "_")l2 = l2.replace(" ", "_")e1 = e1.replace('"', '')e2 = e2.replace('"', '')title = results.split('.')[0].replace(' ', '_')title = '_'.join(title.split('_')[1:])create_relationships(loader=loader, title=title, e1=e1, l1=l1, e2=e2, l2=l2, R=R)
from make_graph import make_graphmake_graph(source='data', cleaned='cleaned')
