导读：高端办公楼焕然新生

▲ 更多精品，关注“搜建筑”

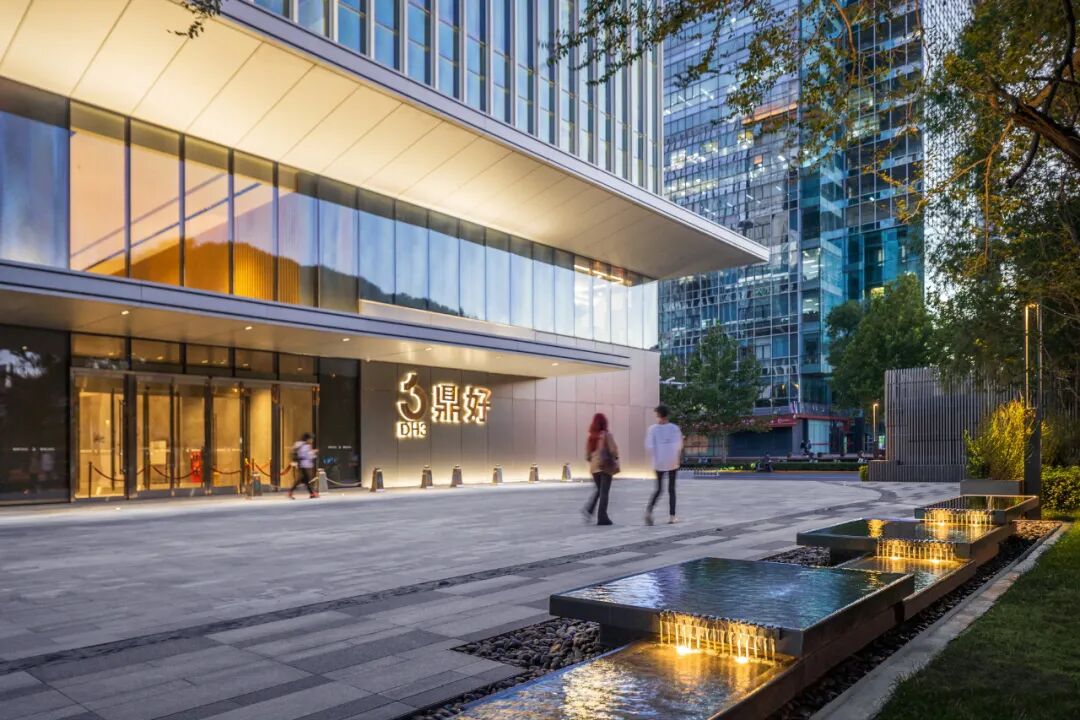

鼎好电子大厦升级改造

日建设计

这个项目是对2003年和2008年在北京中关村建成的20万平方米的商业和办公综合体鼎豪大厦的改造，中关村被称为中国的硅谷。中关村驻有许多IT企业的总部，北京大学和清华大学也坐落于附近，是北京先进企业的集结之处。

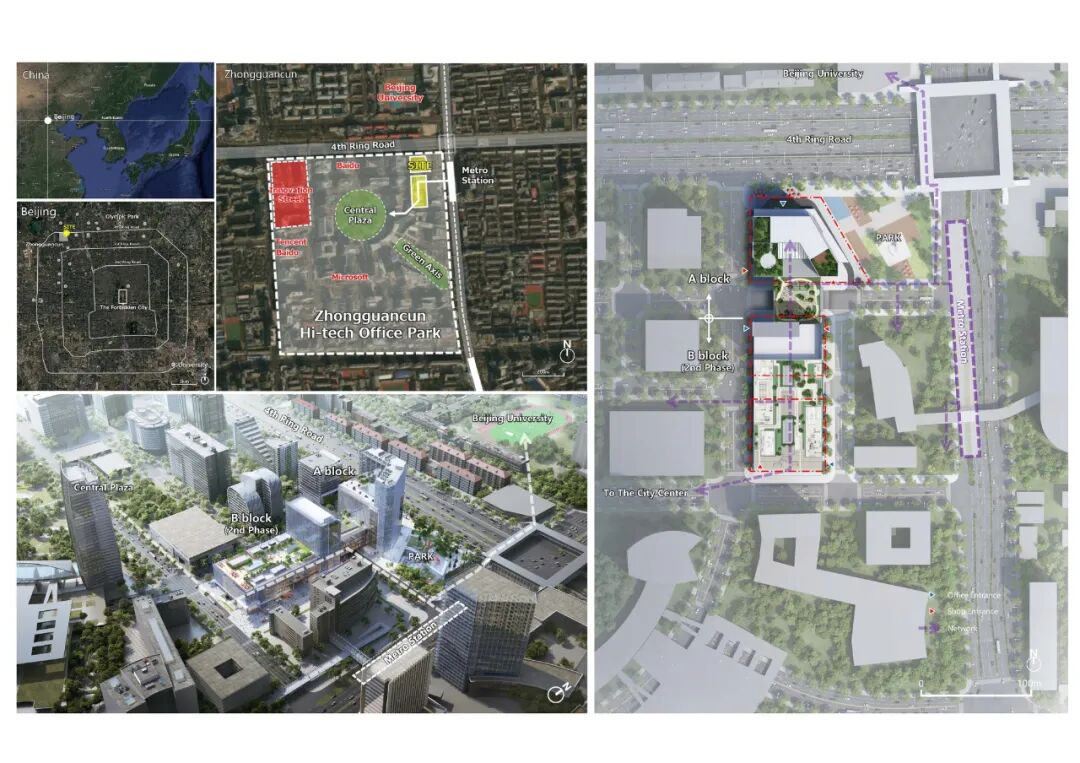

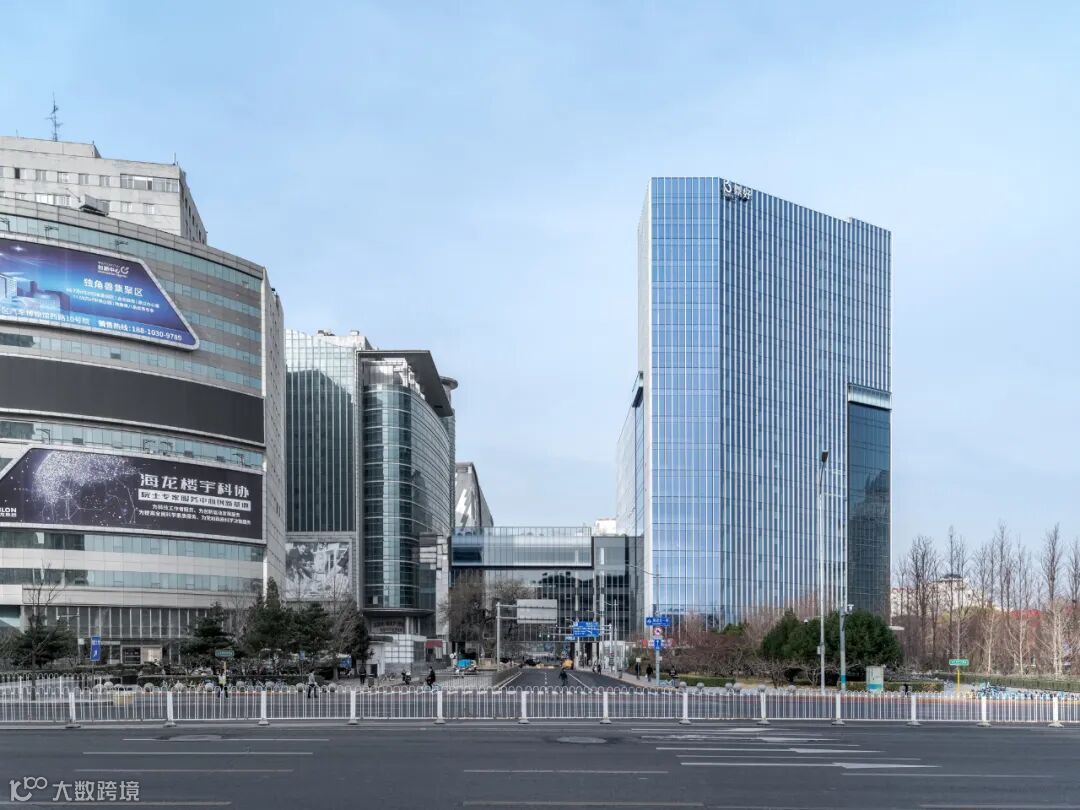

该建筑位于北四环的拐角处，中关村地区的门户。项目地下2层与地铁４号线中关村站直接相连，是该地区地标性的存在。随着时代的变迁，曾经一度繁华的尖端电子元件市场日渐式微，建筑内混杂了数不清的小型零售商店。

所以，在本次的更新改造中我们面临着一项挑战，除了将用途转变为需求日益增长的办公功能外，还要使其作为高端办公楼焕然新生。

This project is a conversion of the Ding Hao Building, a 200,000 square-meter commercial and office complex completed in 2003 and 2008 in Zhongguancun, Beijing, an area known as the Silicon Valley of China. Many IT companies are headquartered in Zhongguancun, and with Peking University and Tsinghua University located nearby, the area has become a major hub of advanced companies in Beijing. The building stands on a corner site that can be considered the gateway to the Zhongguancun area in relation to Beijing’s Fourth Ring Road and also has a landmark presence in the area with two basement levels directly connected to Zhongguancun Station on Subway Line 4. However, the bustling market for cutting-edge electronic components has waned with the changing times, and in recent years, the building has become crowded with small retail stores. In this renovation, we took on the challenge of revitalizing the building as a high-end office space in response to the increasing demand for business functions in buildings.

开创中国脱碳的城市更新模式。该更新改造项目没有采用中国曾经盛行的“拆旧造新”的城市更新方式，而是通过利用现有结构体将建筑从商业用途改为办公用途并重新配置楼面进行结构体的改造。

此外，还通过更换整个建筑外装实现建筑外观的全面翻新。与拆除原有建筑后建造新建筑相比，本项目在施工过程中减少了63%的二氧化碳排放量（Embodied Carbon Emission）。与此同时，建设成本降低了62%，工期也缩短到新建的一半左右，这种模式有助于降低再开发项目的投资回收风险。

Urban Renewal Model Pioneering China’s Decarbonization. Instead of scrap-and-build, which has been the norm for urban renewal in China, we sought to change the use of the building from commercial to business offices while utilizing the existing structural frame, rearranging the floors rationally, and renovating the frame as necessary. We also conducted a full exterior renovation by replacing the entire facade. This project reduced embodied carbon emissions by 63% compared to a new construction project in which the existing building would be demolished and removed. Construction costs were reduced by 62%, and the construction period was shortened to about half that of new construction, contributing to the reduction of investment recovery risk common in redevelopment projects.

城市中经常能够看到许多不知名的老旧建筑，如何利用这些城市存量并赋予其新的价值，使之在提升改造后继续使用正在成为中国主要城市面临的政策课题。在此背景下，本项目作为兼具低碳化（Decarbonization）与可行性（Feasibility）的城市更新示范项目，也受到了北京市政府的关注。

The recent policy challenge for China's major cities is to add new value to the old, anonymous buildings that can often be seen in the city and to utilize the stock of the city so that they can continue to be used. This project is attracting attention from the Beijing municipal government as a model project for urban renewal that combines decarbonization with business feasibility.

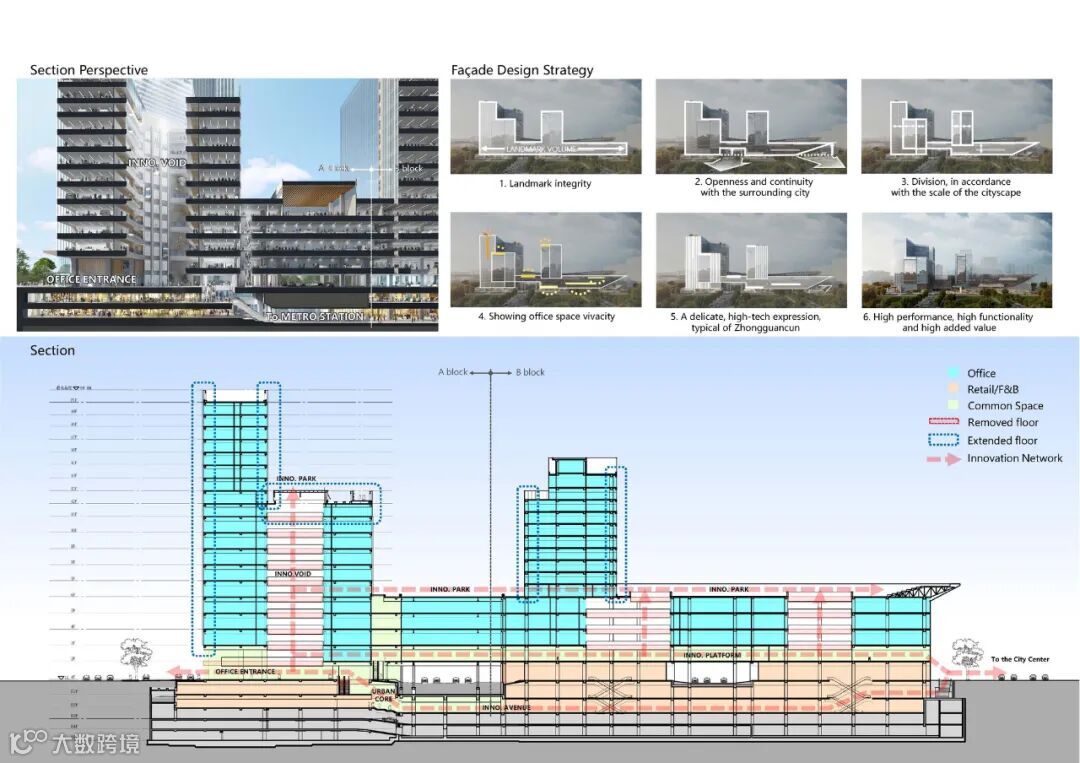

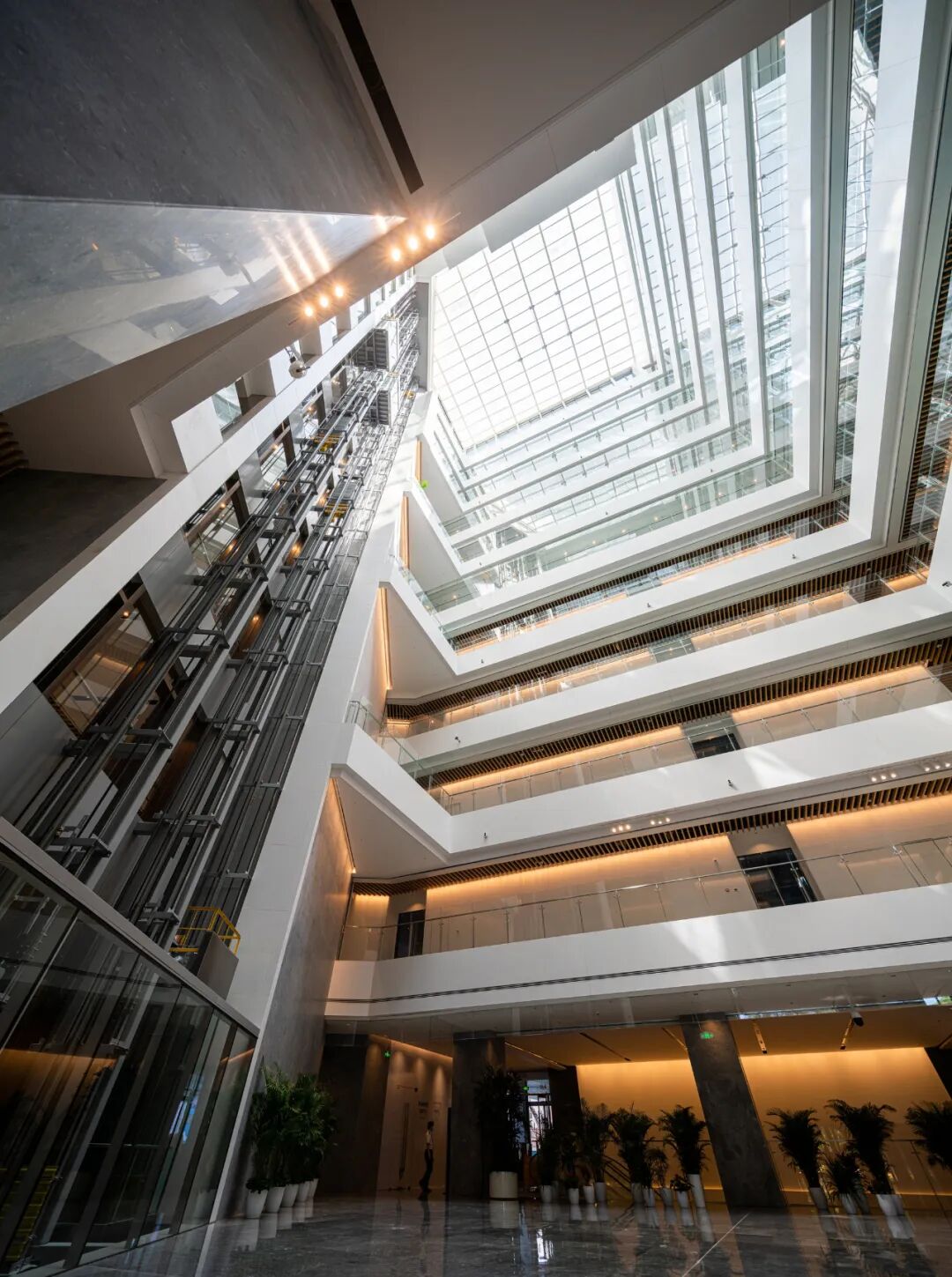

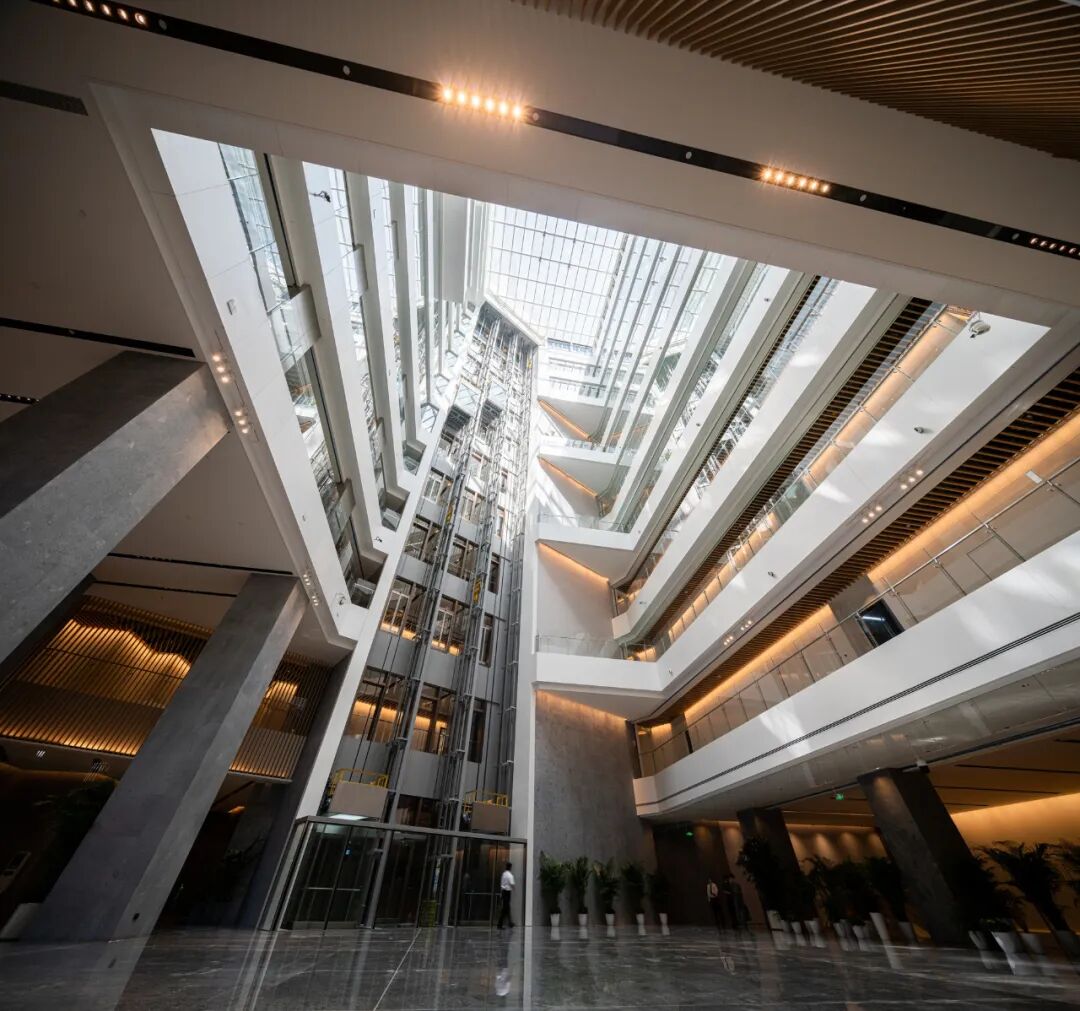

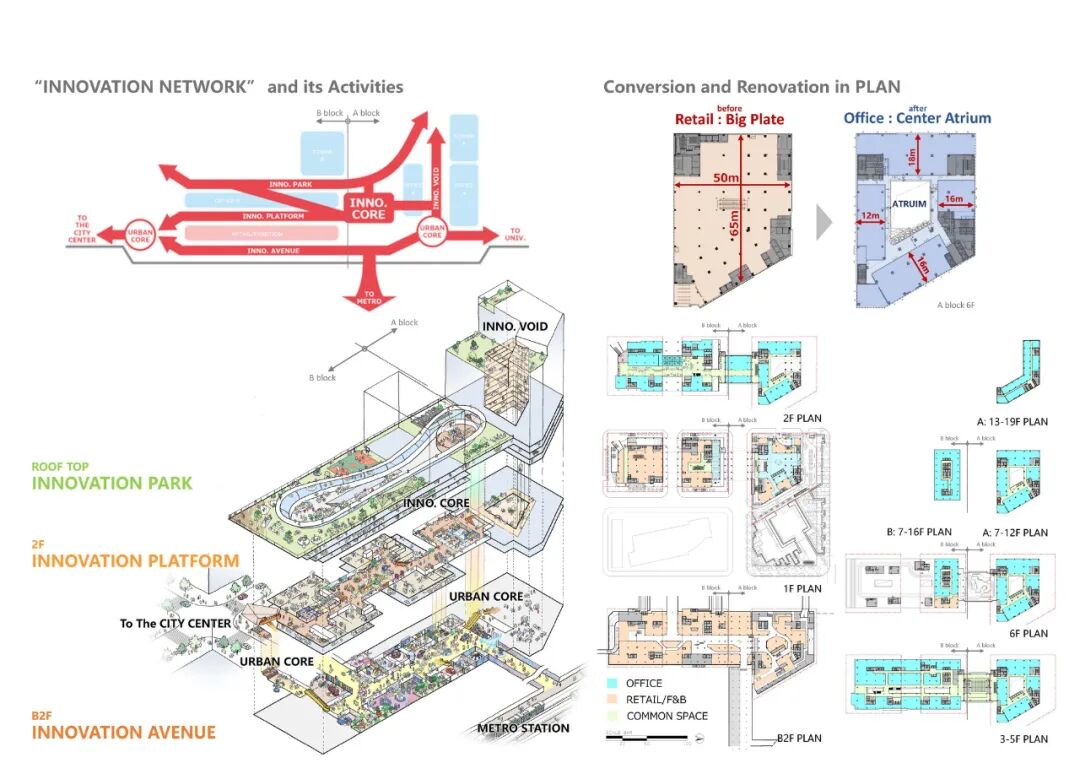

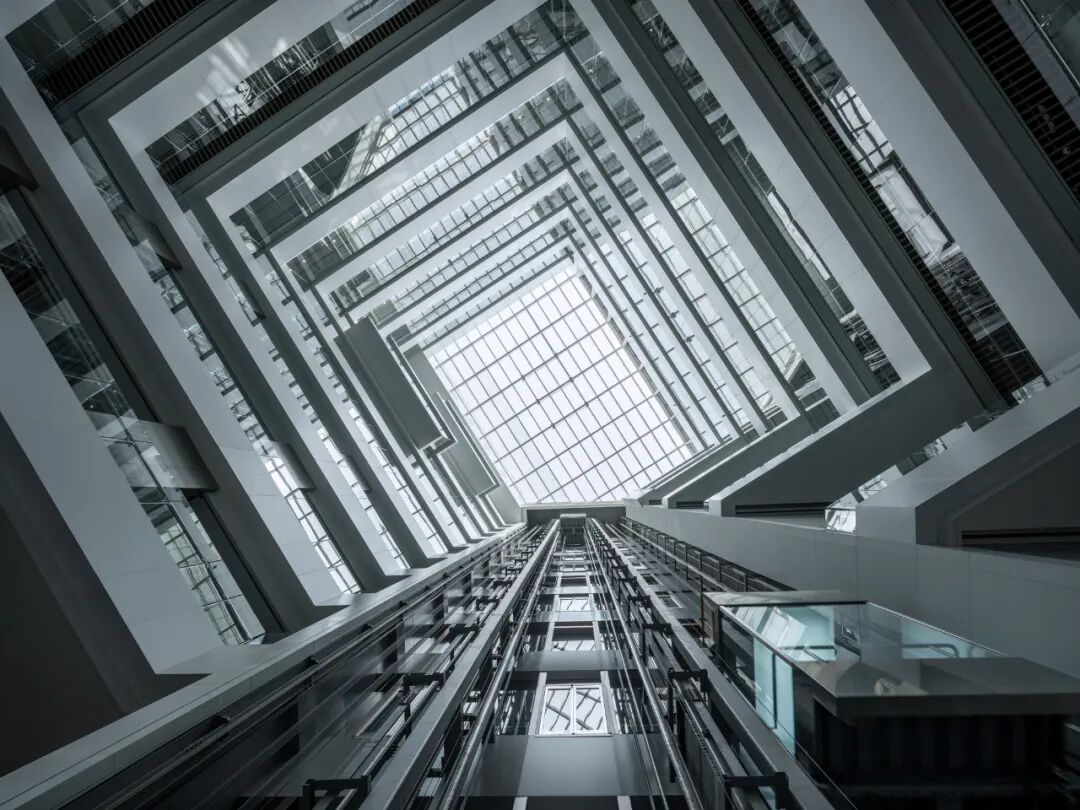

通过对建筑框架的改造，合理分配体量。该建筑曾经是大开间的商业建筑，我们在作为办公室价值较低的建筑中央从首层向顶层挖空形成中庭，将自然光导入作为公共部分的挑空空间，从而确保楼层任意位置的采光环境。

Rational reallocation of volume through renovation of the building frame. The building was previously a large-plate commercial building, but a void was created in the center of the building, from the ground floor to the top of the building. This part has low commercial value as an office building, so it was opened to create an atrium that directs natural light inside and ensures lighting across each floor.

虽然因为开挖中庭损失了部分面积，但通过在作为办公室具有较高价值的高层部分进行增建，得以确保大楼的总建筑面积不变。进行打开和增建的4,000㎡约占地面总建筑面积的7％，通过尽量减少增减建筑工程量来降低成本，同时根据改造后的用途对楼面重新进行优化配置，成功地提高了建筑的商业价值。

The resulting reduced floor space was added to the upper floors, which have high commercial value as office space so that the total floor area would remain unchanged following the renovation. The floor area adjustments were made on 4,000 square meters, or 7% of the total above-ground floor area, while minimizing construction and subsequent costs. The floors were rearranged to best suit the post-conversion use, successfully increasing the commercial value of the building overall.

枢纽功能以活力与创新连接车站与周边区域。该建筑原有一条从地铁站通到中关村中心的自由通道贯穿地下２层商业。

然而，这条通道却行人稀少，光线昏暗，并未得到充分利用。因此，日建设计采用经验颇丰的TOD手法，通过地下通道沿路的商业繁华将地铁站与城市连接在一起，旨在创造城市活力的连续性和提升整个中关村地区的价值。

Hub function connects the station and surrounding area with liveliness and innovation. Previously, a free passageway leading from the subway station to the center of Zhongguancun had been running through the commercial second basement level of the building. However, this passageway with its dark atmosphere was not actively utilized and had low foot traffic. Nikken Sekkei’s accumulated TOD experience and techniques were leveraged to connect the station and the city with bustling commercial activity along the underground passageway, creating a continuum of urban vitality and enhancing the value of the Zhongguancun area as a whole.

该建筑作为中国创新中心中关村的地标性建筑，将连接地铁站与城市的繁华与本项目的公共空间相连，从而打造出与城市相连且不断扩张的创新网络。通过在这里展示、体验和交流创新成果，形成引发更多创新的协同效应和生态系统，我们期待中关村地区能够进一步发展成为创新中心。

As a landmark in Zhongguancun, the center of innovation in China, this project will create an innovation network that engages the whole city by connecting this lively commercial zone to the communal space of the building. By exhibiting, experiencing, and interacting with the innovations created at this hub, we hope to create synergy and an ecosystem that will spark further innovations, helping the Zhongguancun area continue to develop as a center of innovation.

全面的外部改造符合新时代的环保性能。外观设计基于“镶嵌”的概念，使用不同的材料作为中关村的象征，这是一个不同人才和技术碰撞和友好竞争的地区。立面的比例通过“镶嵌”三种类型的外部体量来控制，这样建筑的巨大外部被分解成与周围环境相匹配的规模。

现有的商业设施采用平面形式，核心位于周边。我们组成了一个“镶嵌”图案，以配合办公室的安排，办公室需要自然通风的窗户，而核心的外部后部则表现为实心墙。这创造了一个当代高端办公设施，既嵌入功能，又保留了建筑表皮内的旧记忆。

Full exterior renovation conforming to the new era of environmental performance. The exterior design was based on the concept of “inlaying” using different materials as a symbol of Zhongguancun, an area where diverse talents and technologies collide and engage in friendly competition. The proportions of the elevations are controlled by “inlaying” three types of exterior volumes such that the massive exterior of the building gets broken down to a scale that matches the surroundings. The existing commercial facility had a flat format with a core located on the perimeter. We composed an “inlay” pattern to match the arrangement of the offices, which require windows for natural ventilation, and the core, where the exterior back of the core is expressed as a solid wall. This created a contemporary high-end office facility that both embeds functions and preserves the former memory within the building's skin.

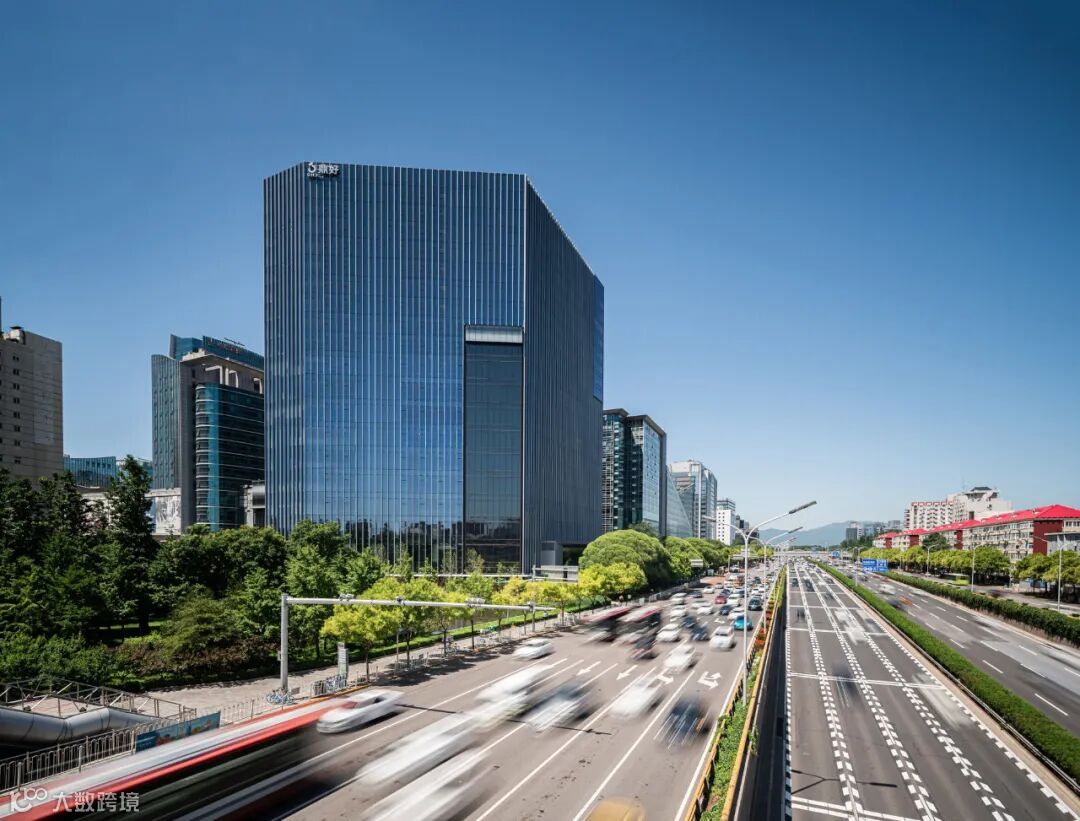

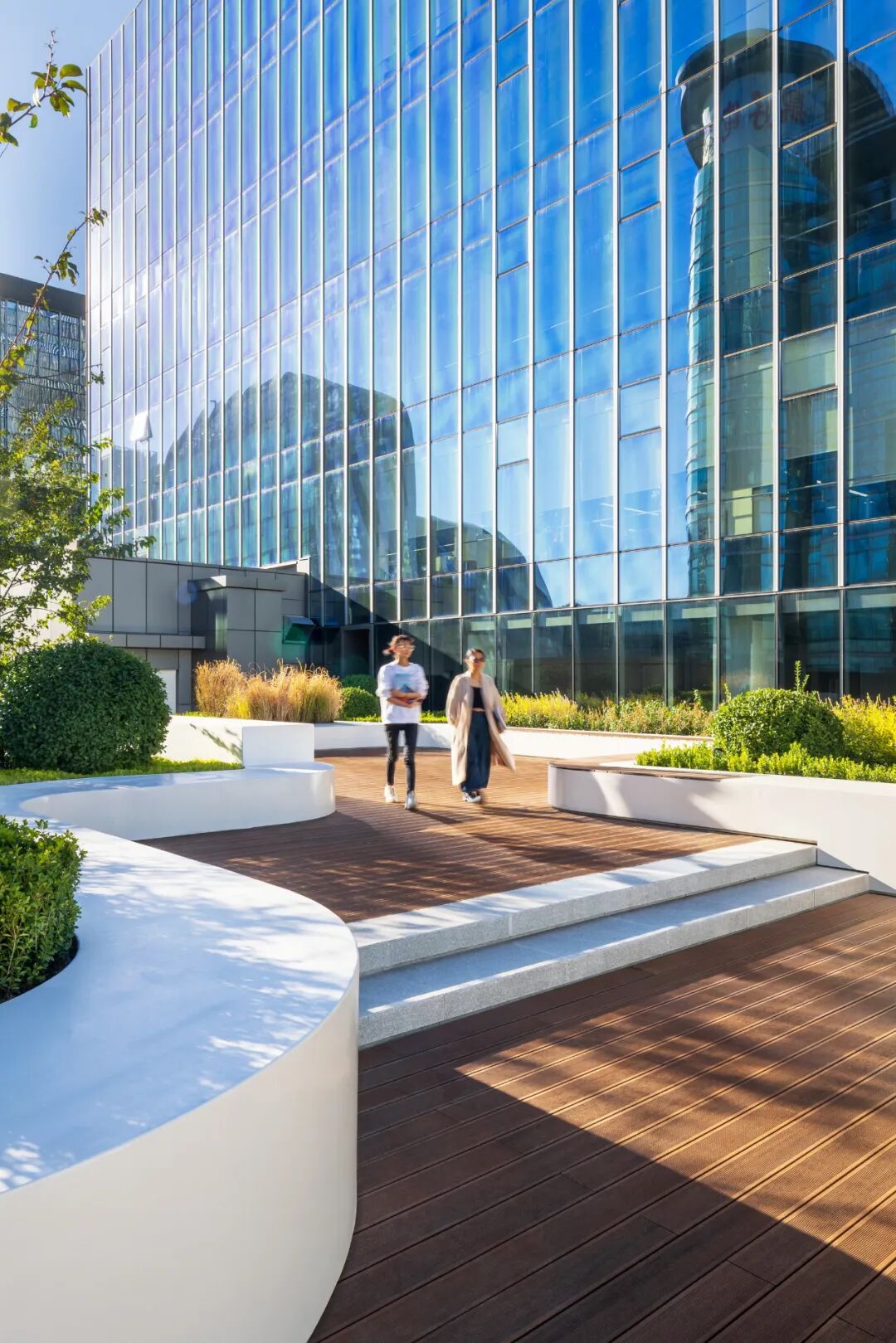

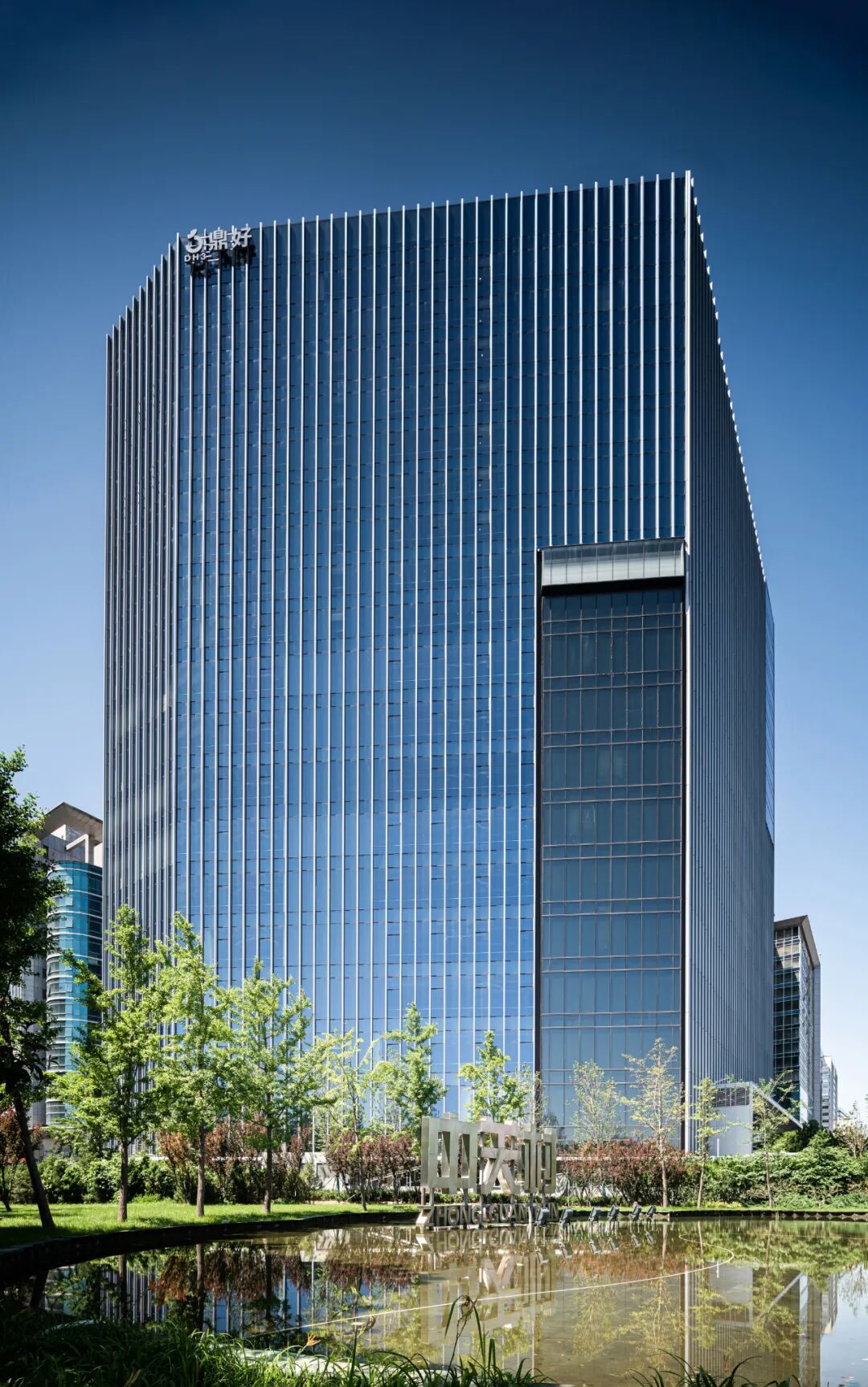

我们将自当初新建已有十几年历史的外部装饰全部拆除，将布满商业招牌和玻璃的外立面全面翻新为Low-E玻璃幕墙。通过这次的改造，与使用原有大楼相比，Operational Carbon降低了35%。我们没有拆除这座以“鼎好”之名为人们所熟知的商业大楼，而是顺应时代需求，通过变更用途（变为办公楼）和重塑外观，在进行提升改造的同时，传承了历史记忆。我们希望这次挑战能够为零碳化的进程中交出一份满意的答卷。

The entire existing skin, which was more than a decade old, was removed, and the commercial signage and patchwork of glass were completely replaced with a Low-E glass curtain wall. This renovation reduced operational carbon by 35% compared to the building’s former configuration.This project sought to update a commercial building without tearing it down, by converting it to an office space and refreshing its exterior while maintaining a memory of the original building. We hope that this initiative to revitalize the popularly known “Ding Hao” will be evaluated as one answer to the movement toward zero-carbon emissions.
