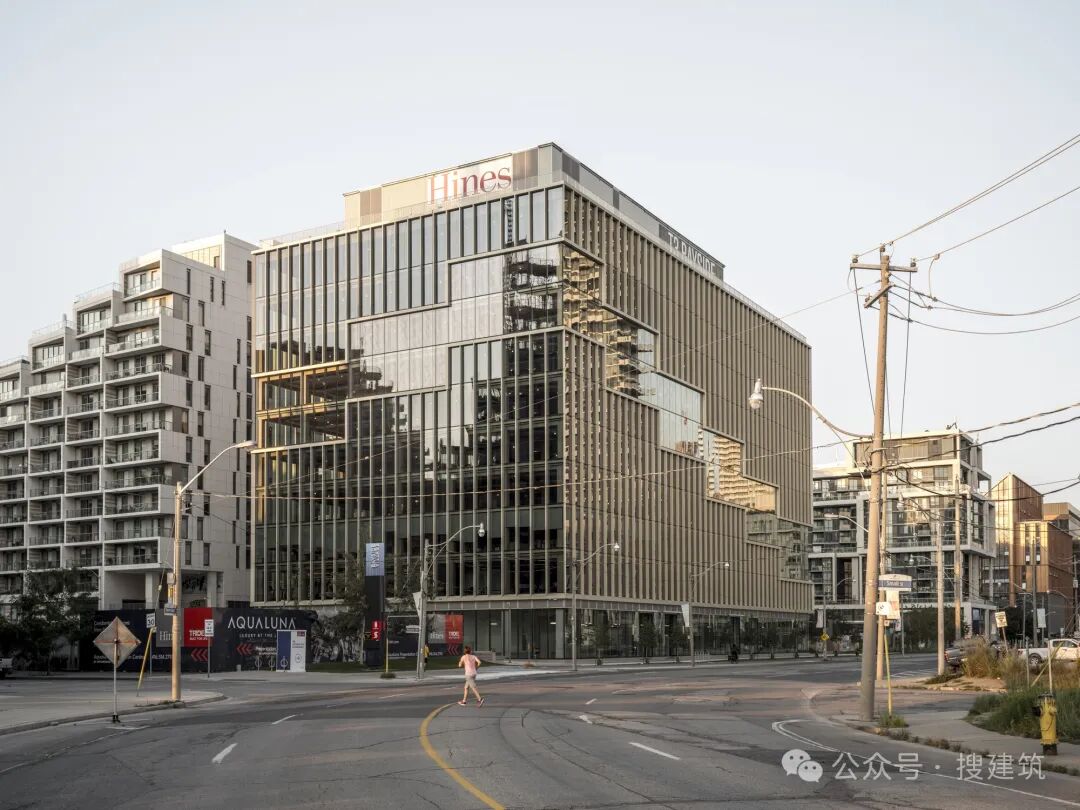

T3 Bayside是多伦多新混合用途社区Bayside的先锋木材办公楼，位于安大略湖岸边。它高42米，是北美最高的木制办公楼。在木结构办公室开发方面，Hines是世界领先的开发商。Hines的目标是为可持续木结构建筑树立新的标准，同时提供世界级的办公大楼，反映新兴的Bayside社区的“生活-工作-娱乐”精神。
T3 Bayside is a pioneering timber office building in Toronto's new mixed-use community, Bayside, on the shore of Lake Ontario. At 42 metres high, it is the tallest timber office buildings in North America. Having established itself as a world leader in timber office development, Hines' ambition for the project was to set a new standard for sustainable timber construction while providing a world-class office building which reflects the integrated 'live-work-play' ethos of the emerging Bayside community.

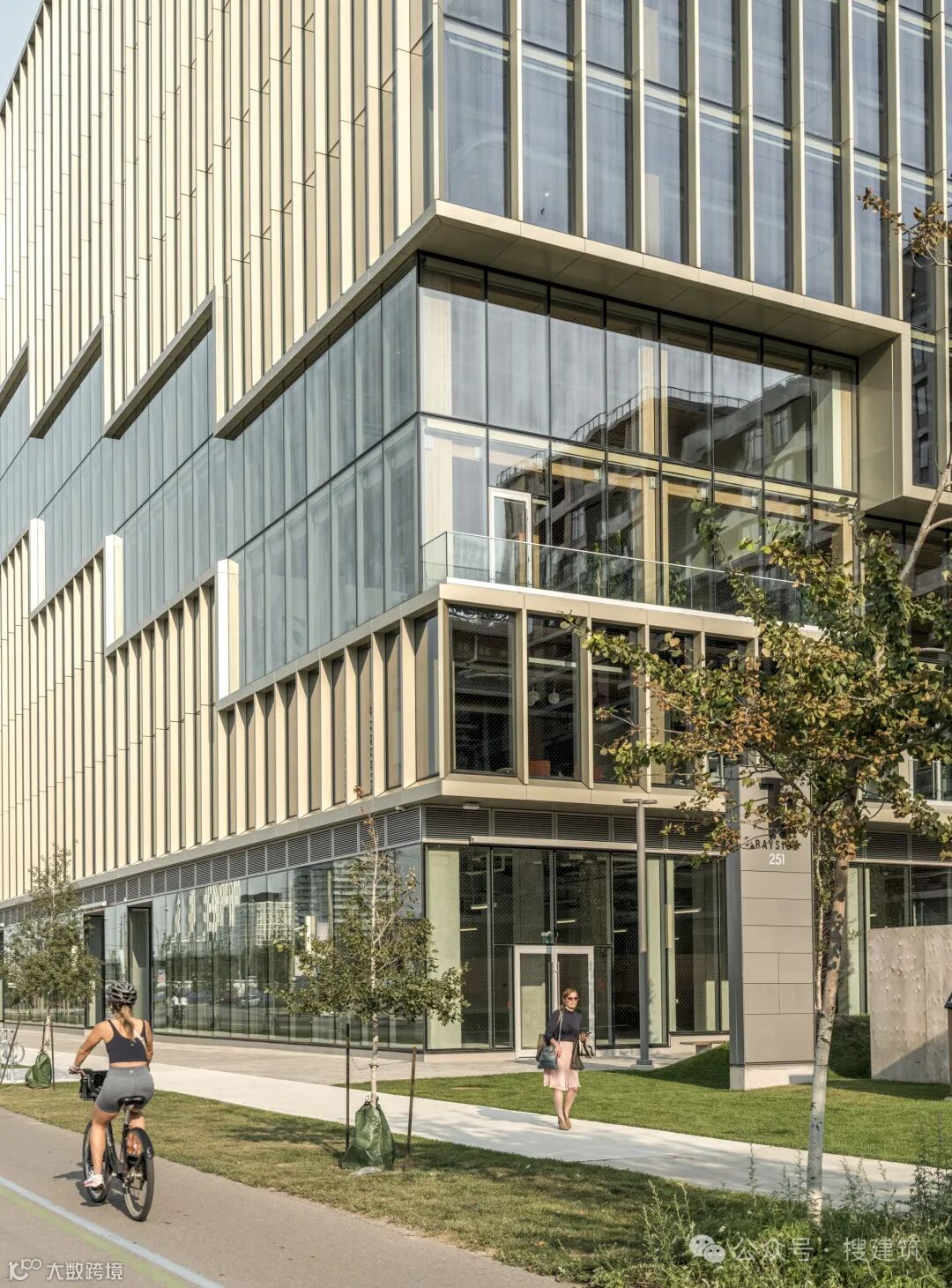

加强公共领域建设。T3 Bayside在邻近地区占据重要位置，旨在加强现有的总体规划，并将以前的工业海岸线转变为充满活力的城市目的地。该建筑围绕着一个公共广场，是通往Bayside开发项目的一个欢迎行人的门户，吸引游客进入场地，并将其与邻近的公园和远处的海滨长廊连接起来。街道上的零售和咖啡馆单元将创造一个活动中心，使广场成为一个自然的聚会场所和一个充满活力的社交空间，供游客、工人和居民共享。
Enhancing the Public Realm. Occupying an important position in the neighbourhood, T3 Bayside has been designed to enhance the existing masterplan and to transform the formerly industrial shoreline into a vibrant urban destination. Arranged around a public plaza, the building is a welcoming pedestrian gateway to the Bayside development, drawing visitors into the site and connecting it with the adjacent park and the waterfront promenade beyond. Retail and café units at street level will create a hub of activity and make the plaza a natural meeting place and a lively social space to be shared by visitors, workers, and residents alike.

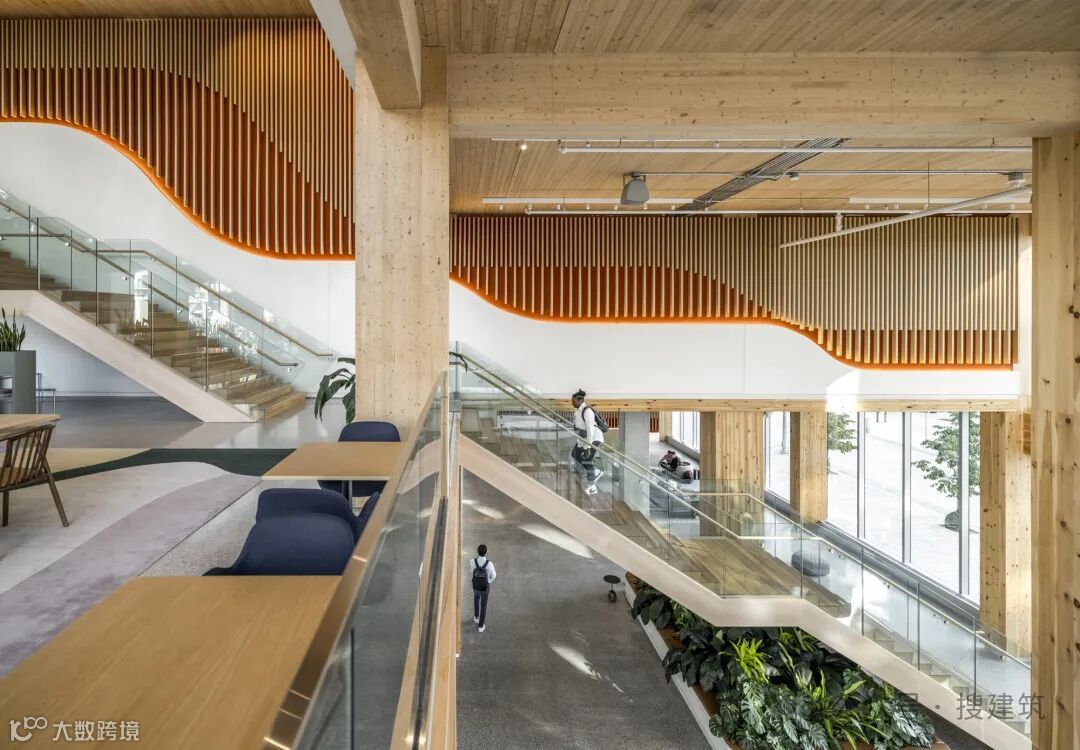

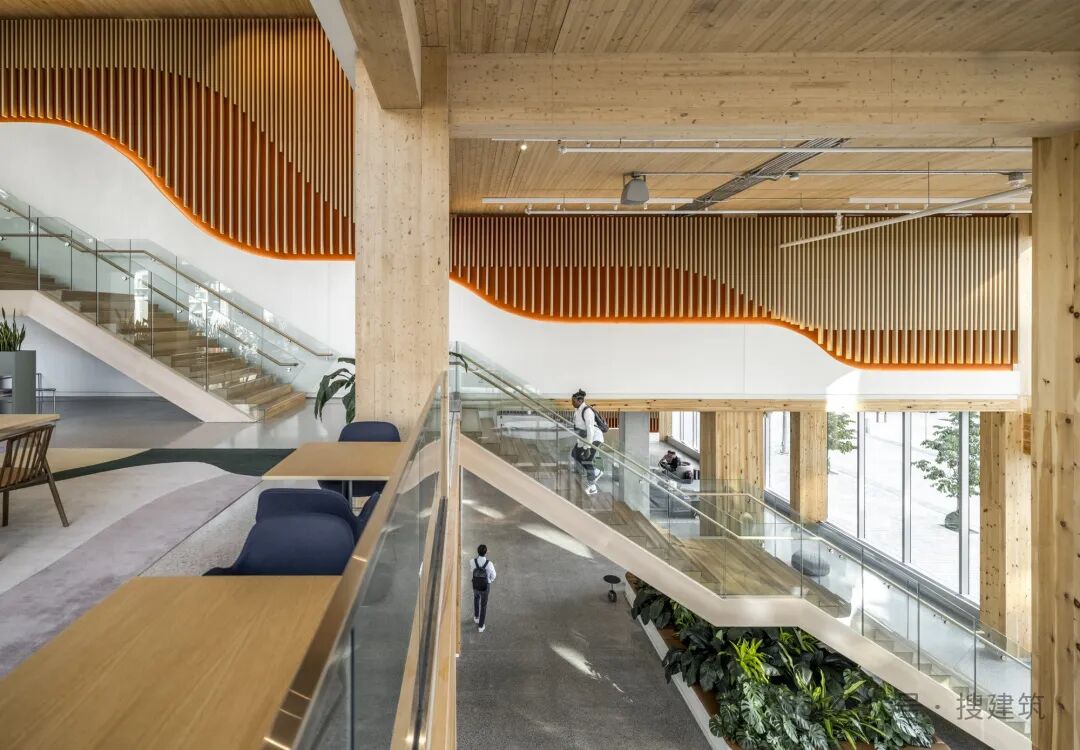

建筑最显著的特征之一是阶梯式的内部空间序列，围绕建筑的外缘形成连续的循环。前三个“台阶”向公众开放，作为广场的延伸，创造了一个城市客厅，软化了从公共空间到私人空间的过渡。除了提供与朋友见面或消磨时间的空间外，灵活的两层高空间还将举办展览、电影和表演等活动。

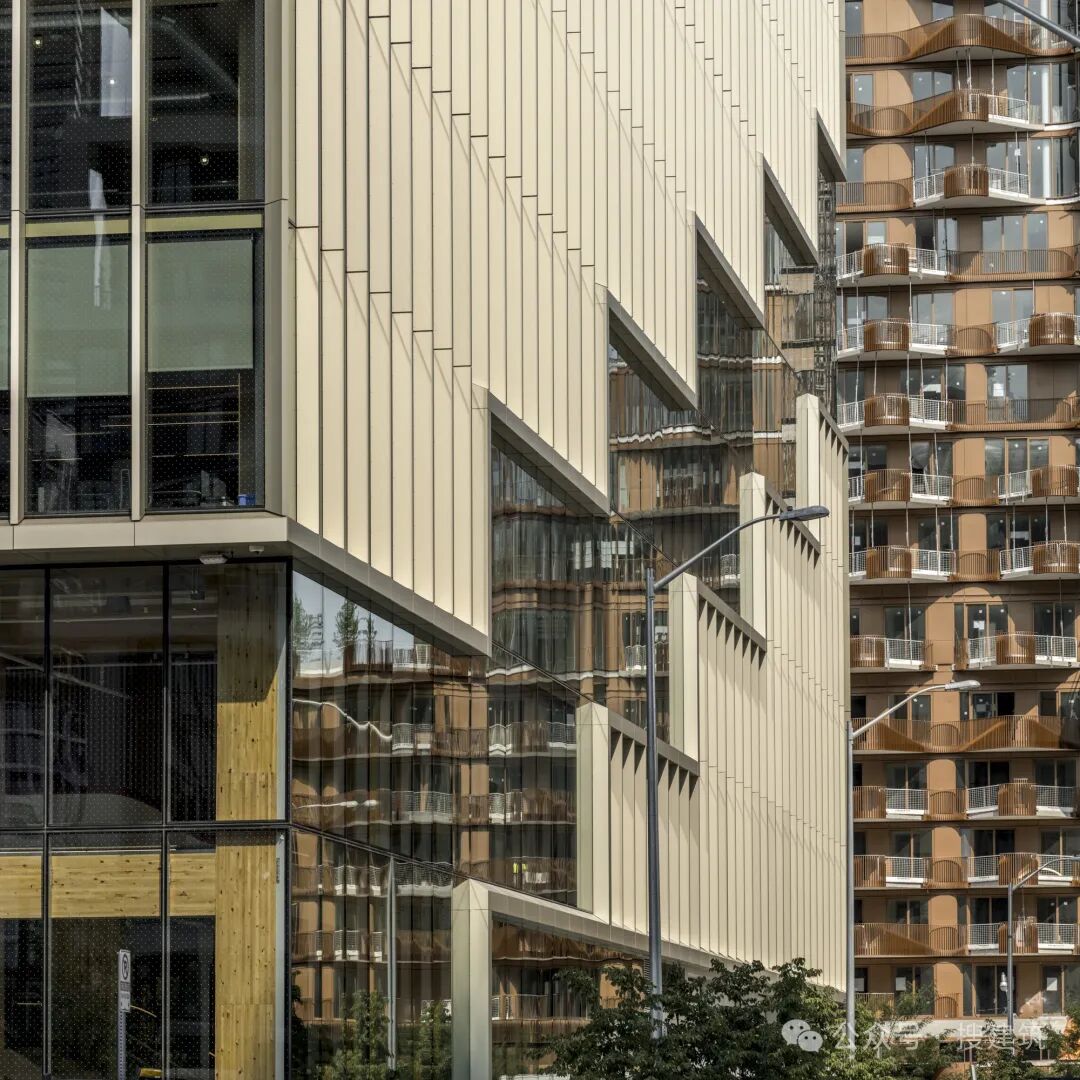

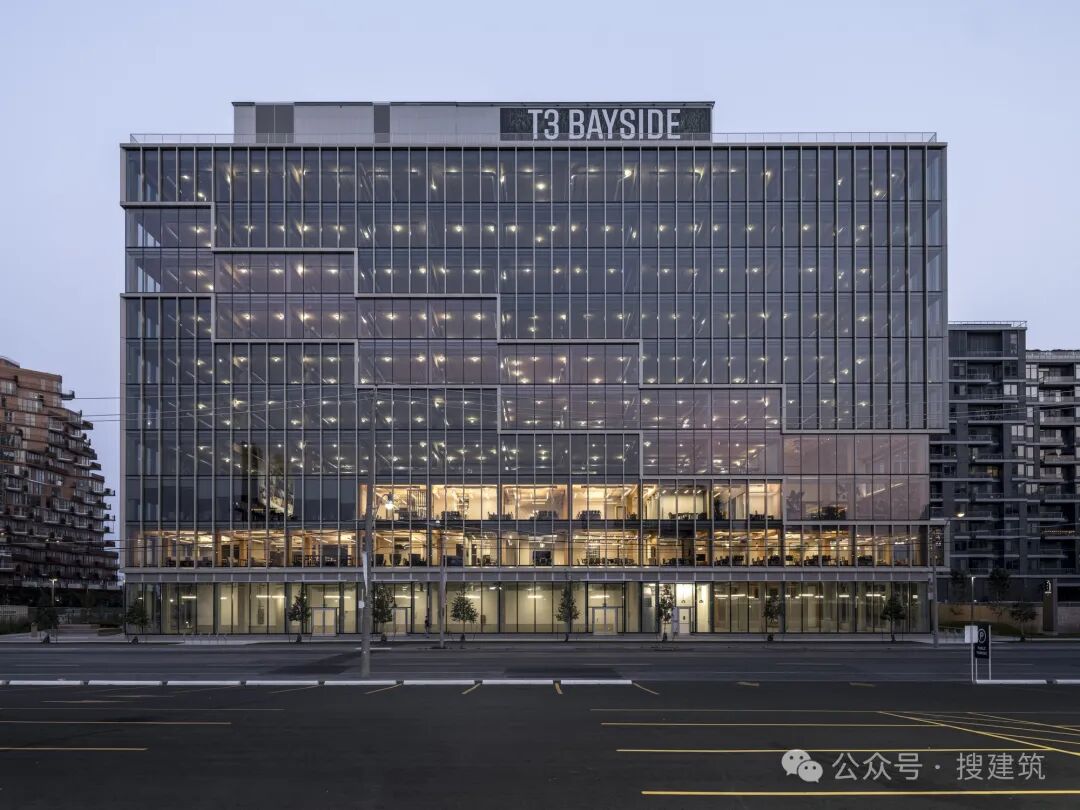

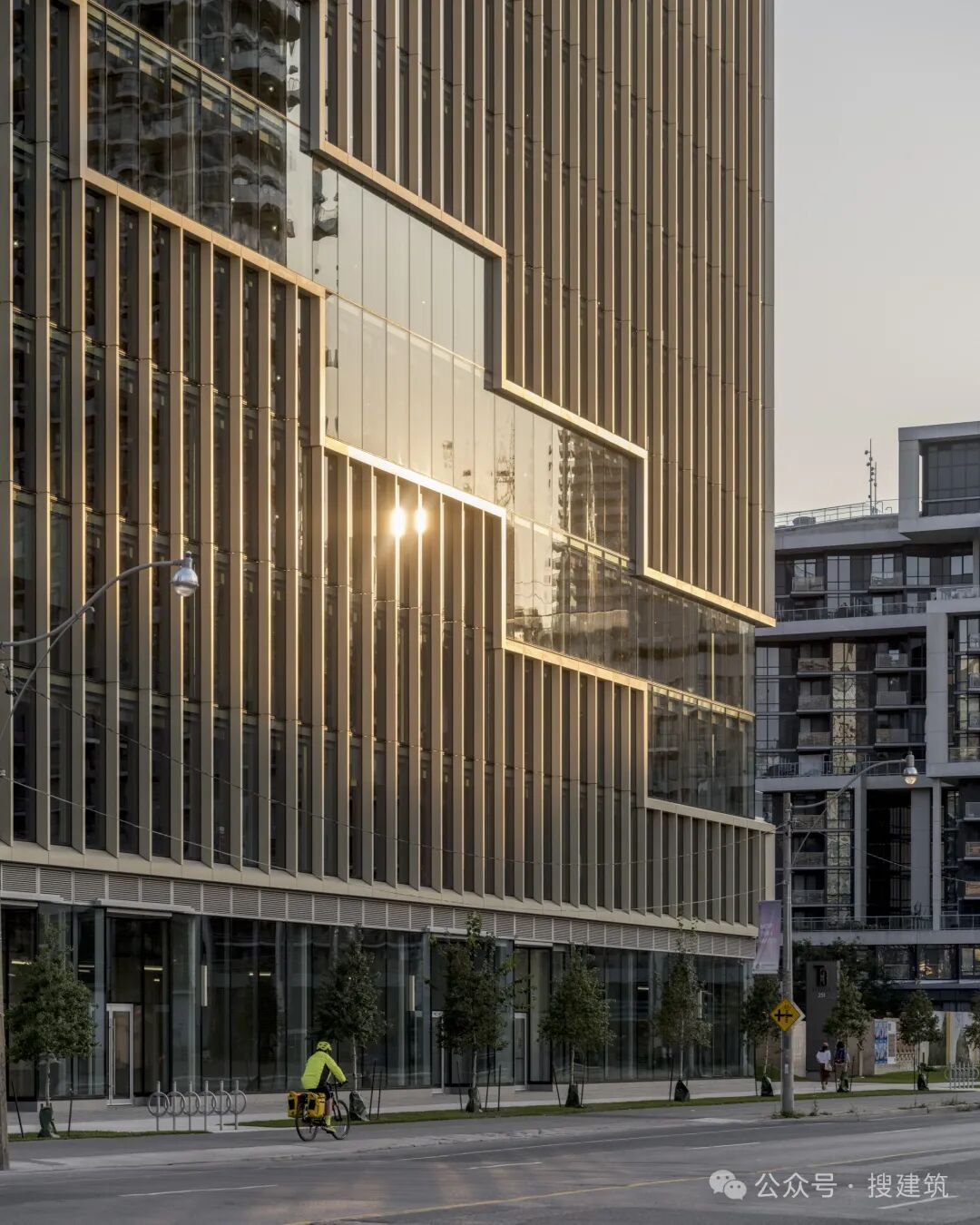

通过鳍和立面的布置，台阶在外部清晰地表达出来，详细地勾勒出内部空间。内部和外部之间的这种关系使建筑易于阅读，并在视觉上将广场与内部功能联系起来，以鼓励游客进入建筑。

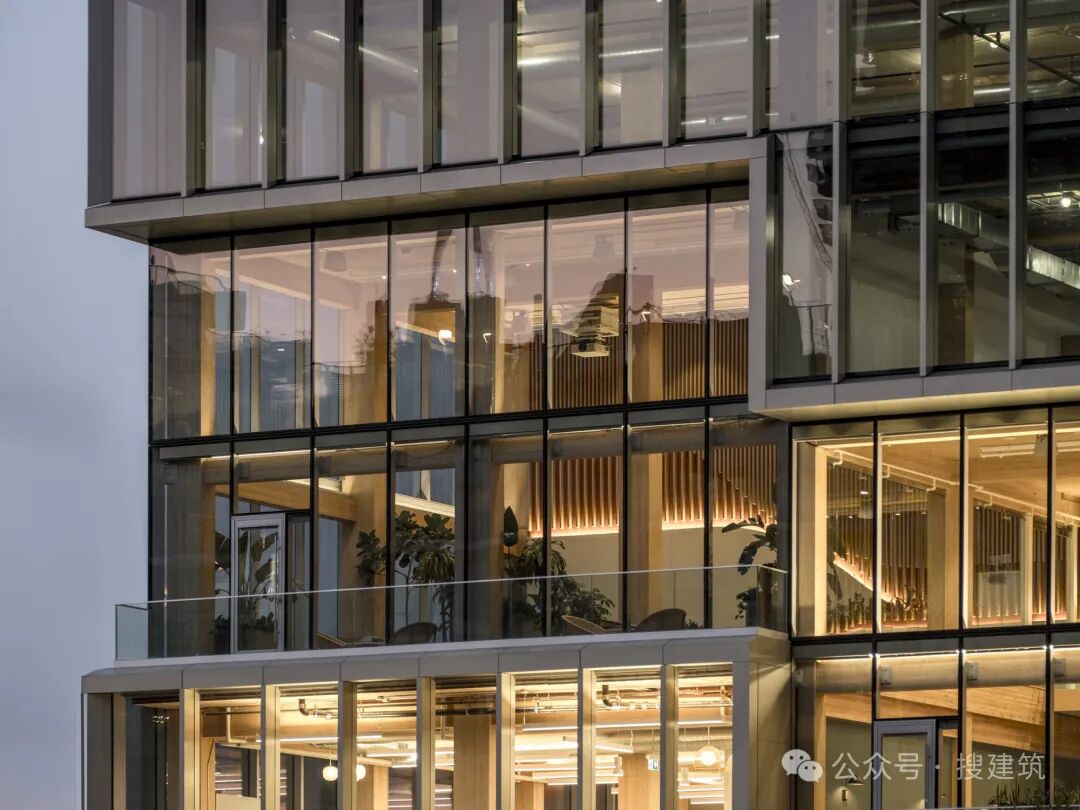

One of the building's most distinctive features is a sequence of stepped interior spaces which forms a continuous loop around the building's outer edges. The first three 'steps' are open to the public, acting as an extension to the plaza, creating an urban living room softening the transition from public to private space. In addition to providing space to meet friends, or simply pass time, the flexible double-height spaces will host pop-up events such as exhibitions, films, and performances. The steps are clearly articulated externally through the arrangement of fins and façade detailing framing the interior spaces. This relationship between interior and exterior makes the building easy to read and visually connects the plaza with the interior programme to encourage visitors into the building.

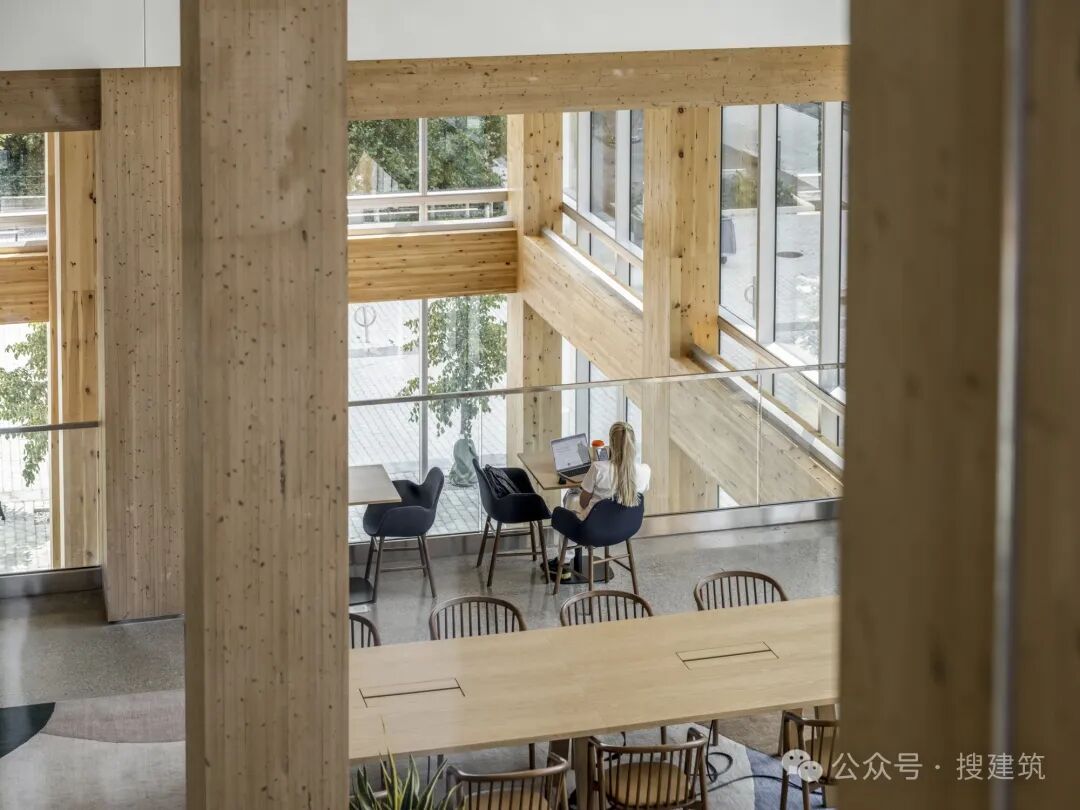

灵活健康的工作空间。上层的“台阶”属于办公空间，作为两层高的空间连接两个办公楼层。设计的一个关键元素是为租户提供灵活性和个性化空间的选择。楼板上的“软点”可以移除或修复，允许租户根据自己喜欢的安排调整空间。
该建筑的开放和灵活的地板也可以满足各种租户的需求，从只需要一小块区域的小型初创企业，到可能想要占用整个楼层或多个楼层的大型成熟企业。这些设计元素使建筑能够适应不断变化的需求，随着业务的增长或工作实践的发展。
Flexible and Healthy Workspaces. The upper 'steps' belong to the office spaces and act as double height spaces joining two office floors. A key element of the design was offering tenants flexibility and the option to personalise their space. 'Soft spots' in the slabs can be removed or restored, allowing tenants to adapt the space to their preferred arrangement. The building's open and flexible floorplates can also meet the needs of a diverse range of tenants, from small start-ups requiring only a small area, to large, established businesses who may want to occupy an entire floor, or multiple floors. These design elements allow the building to adapt to changing needs as businesses grow or as work practices evolve over time.

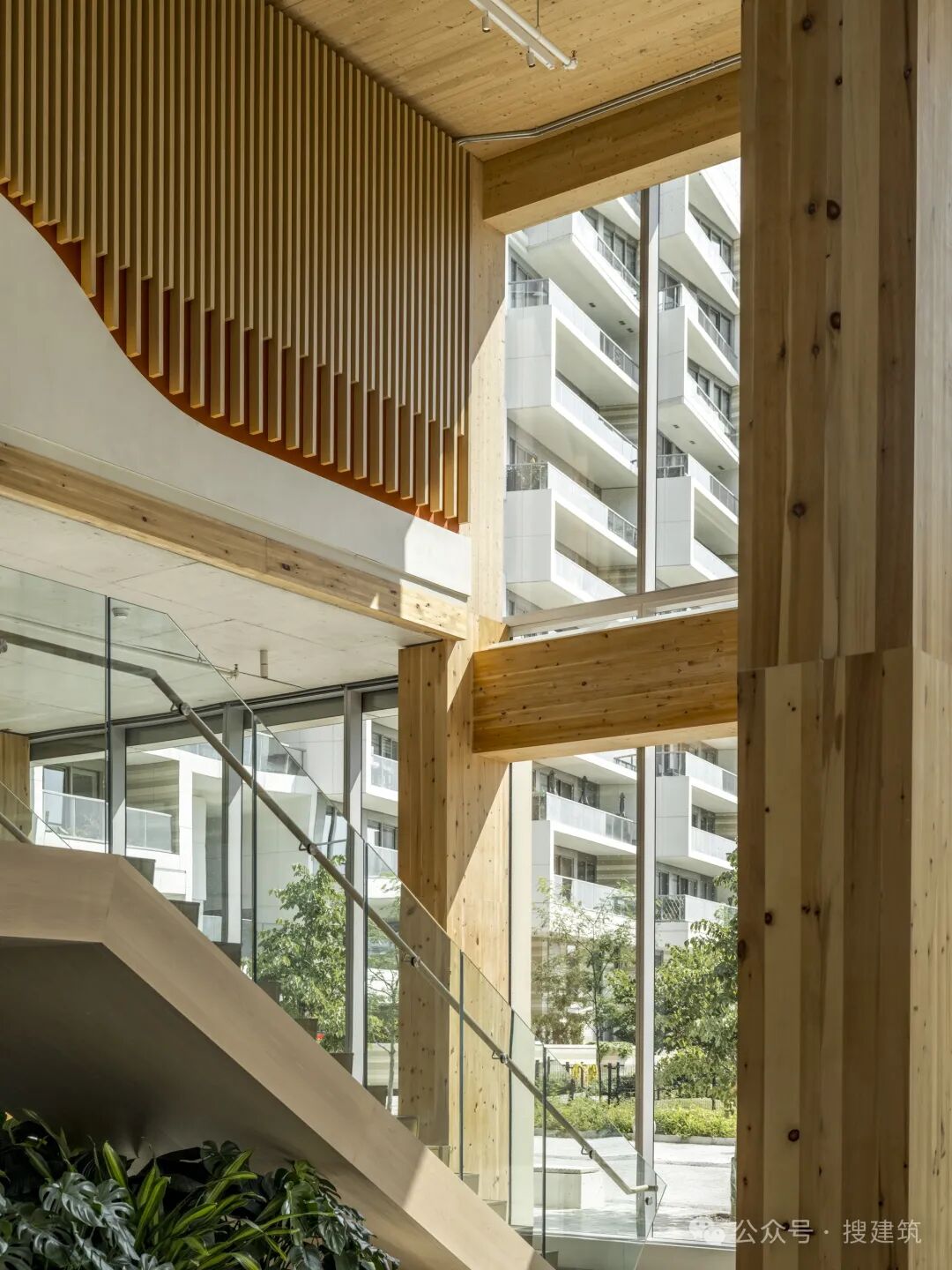

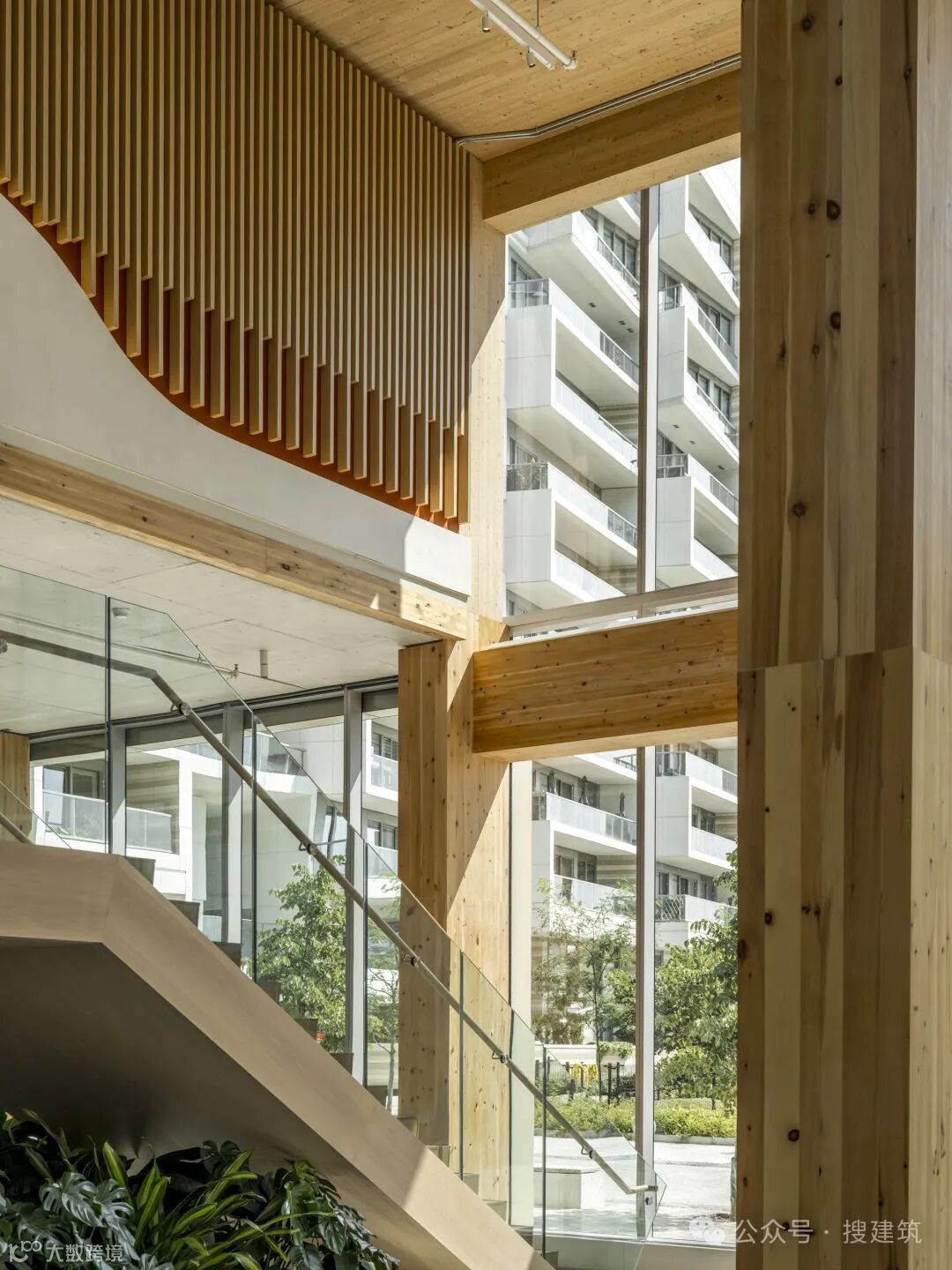

该设计以WELL认证为目标，以居住者的健康为中心，提供世界级的办公空间，迎合现代的工作方式，吸引最好的租户。在内部，木材是完全暴露的，庆祝建筑的结构，同时提供温暖，自然的美学，并有助于健康的室内环境。卓越的设施，包括一个租户休息室和一个可以俯瞰安大略湖的屋顶露台，为工人提供了各种休息区域，鼓励多样化的工作日体验和户外活动。
Targeting WELL Certification, the design is strongly centred on occupant wellbeing to provide world-class office space which can cater to modern methods of working and attract the best tenants. Internally, the timber is fully exposed, celebrating the building's structure while providing a warm, natural aesthetic and contributing to a healthy interior environment. Exceptional amenities, including a tenant lounge and a rooftop terrace with views over Lake Ontario, provide workers with a variety of break-out areas, encouraging a diverse workday experience and access to the outdoors.
可持续木结构建筑模型。T3 Bayside木结构建筑的诸多优点之一是在施工过程中最大限度地减少了对环境的影响，与传统办公建筑相比，其隐含碳排放量减少了约40-50%。
该建筑以LEED金牌认证为目标，采用了许多低能耗解决方案，并且作为雄心勃勃的终身可持续发展战略的一部分，其设计也可以拆卸。木材组件之间的机械连接意味着一旦T3 Bayside达到其使用寿命，它可以简单地拆除并拆卸建筑，最大限度地减少浪费，延长材料的使用寿命，并为循环经济做出贡献。
A Model for Sustainable Timber Construction. Amongst the many benefits of T3 Bayside's timber structure is the minimised environmental impact in construction, resulting in an estimated 40-50% reduction in embodied carbon when compared to a traditional office building. Targeting LEED Gold certification, the building incorporates a number of low-energy solutions and, as part of an ambitious whole-life sustainability strategy, is also designed so that it can be disassembled. Mechanical joints between the timber components mean that once T3 Bayside has reached the end of its life it can simply be undone and the building disassembled, minimising waste, extending the life of the materials and contributing to a circular economy.
项目信息
设计单位：3XN
地址：加拿大
建筑面积：23000 m²
项目年份：2024
